FRONT RUNNER | Tacoma 3rd & 2nd Gen 2005-Current Load Bed Load Bars Kit

If you don’t currently need a complete Slimline II tray mounted in your bed, but still want off-road rated, durable cargo space for a bicycle, roof top tent, kayak, or other adventure accessories, a Front Runner Load Bar Kit is the solution. This Front Runner Load Bar Kit works with the existing Tacoma factory bed rails.

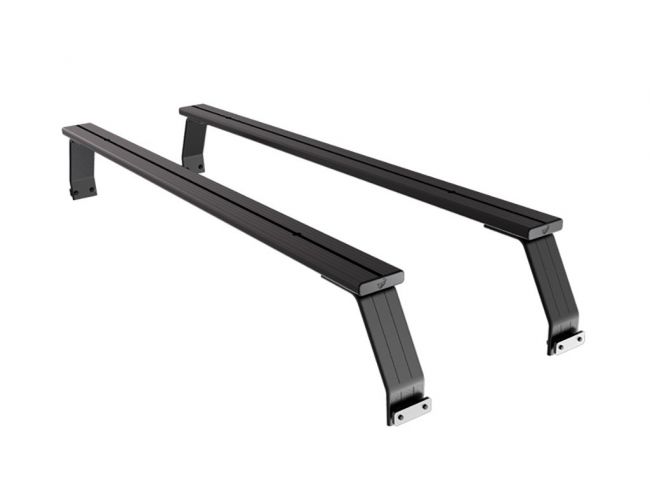

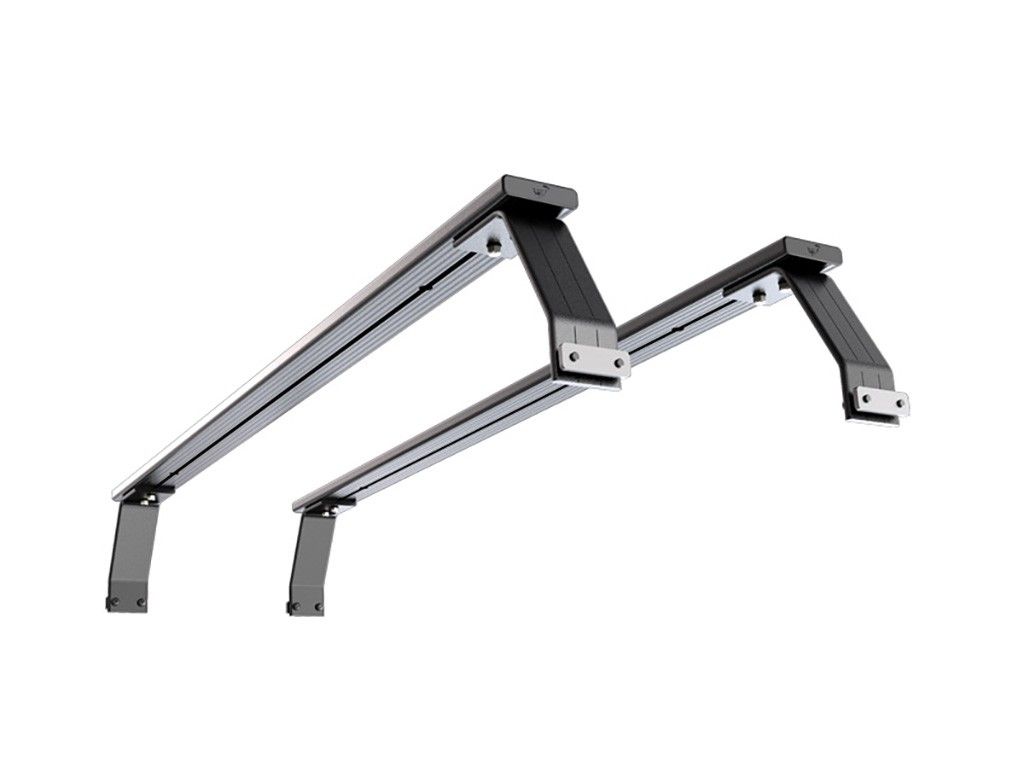

This Load Bar Kit contains a pair of 1425mm wide Front Runner Load Bars, 2 pair of Front Runner Load Bed Legs, and all the hardware necessary to mount to the factory bed rails in Tacomas 2005 +

DID YOU KNOW? These load bars can be used as slats in a similar width Slimline II Roof Rack. When you buy Front Runner Load Bars you are one step closer to owning a Front Runner Slimline II Roof Rack!

The Front Runner Load Bar Kit is ideal for mounting accessories to your vehicle when a strong, lightweight, low profile, smaller footprint is preferred.

The Front Runner Load Bar Kits utilize the same 22mm thick HD aluminium extrusions (slats) used in the Slimline II Roof Rack.

The sliding nut t-slots on the slats allow unlimited, ultra secure mounting positions as well as quick removal of accessories and equipment.

Accessories can be mounted to t-slots on the top and bottom of the Load Bars.

Specifications

KRTT901T - Toyota Tacoma (2005-Current) Load Bed Load Bars Kit - by Front Runner

Consisting of:

• 2 x LASS026 - Universal Load Bed Leg 188mm (Pair) - by Front Runner
• 1 x LBSK016 - Roof Load Bar Pair 1425mm(W) - by Front Runner
• 1 x RRAC901 - Load Bed Nut Kit / Toyota Tacoma 2004+/Tundra 2007+ - by Front Runner

 Material used: Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 7kg (15lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot or Grab-On Foot Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

 Shipping Dimensions:

• Width 130mm (5")
• Length 1270mm (50")
• Height 240mm (9")

Shipping Weight: Weight 7.9kg (17.4lbs)
