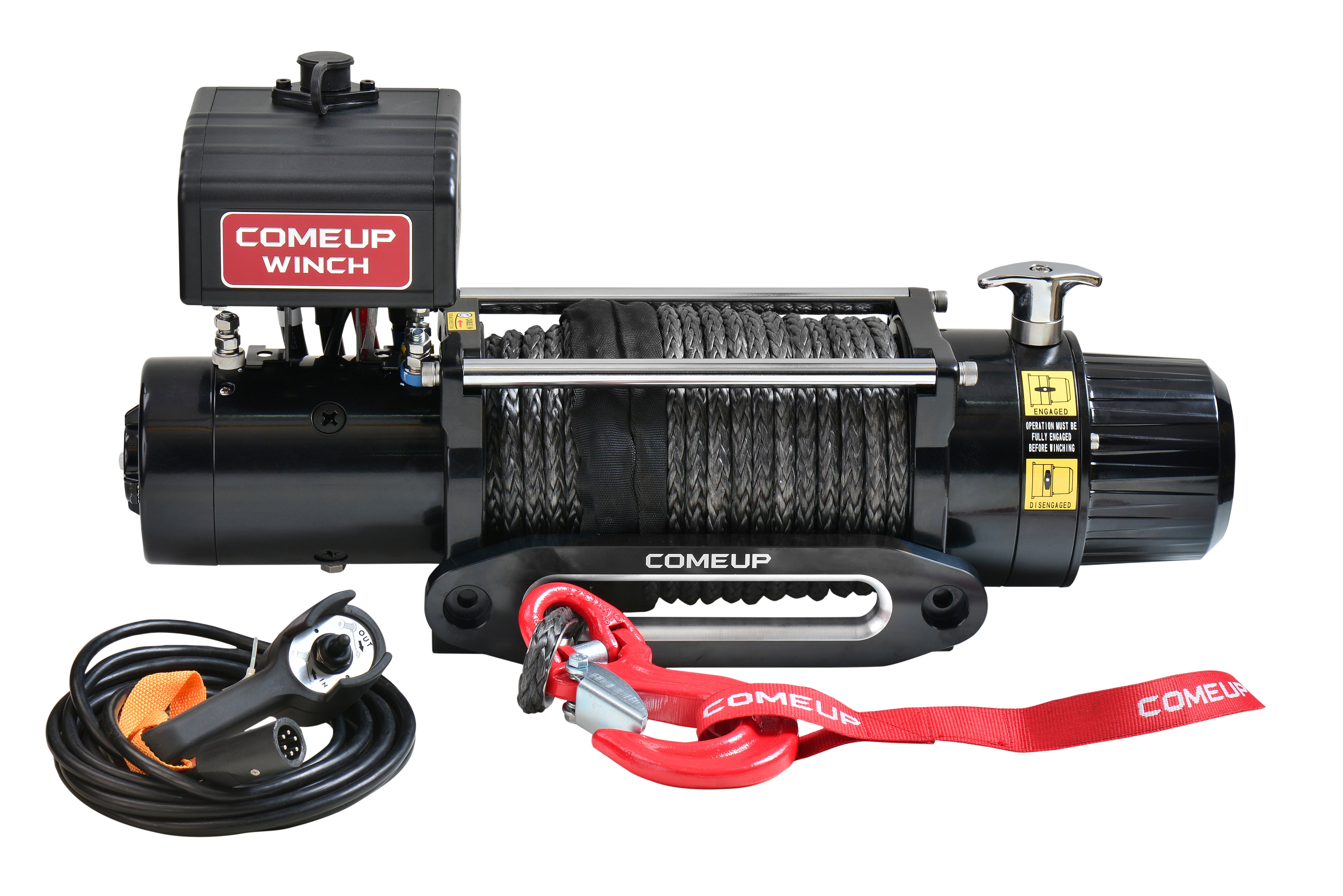

COMEUP WINCH | DV-9s 24V, Synthetic Rope
Quantity:
SELECT OPTIONS
Quantity:
Quantity:
Product Number 859113
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
No load | 13.2 / 43.3 | 30 |
907 / 2,000 | 4.7 / 15.3 | 65 |
1,814 / 4,000 | 3.4 / 11.2 | 100 |
2,722 / 6,000 | 2.8 / 9.1 | 130 |
3,629 / 8,000 | 2.3 / 7.6 | 170 |
4,082 / 9,000 | 2.0 / 6.5 | 210 |
Line Pull and Rope Capacity:
Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
1st | 4,802 / 9,000 | 5.5 / 18.1 |
2nd | 3,316 / 7,310 | 12.5 / 41.0 |
3rd | 2,792 / 6,154 | 20.9 / 68.6 |
4th | 2,410 / 5,314 | 30.5 / 100 |
Specifications:
- Rated Line Pull 9,000 lbs (4,082 kg) single line
- Motor 2.6 hp / 1,940 w 24V Series Wound
- Gear Ratio 3-Stage Planetary 156:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

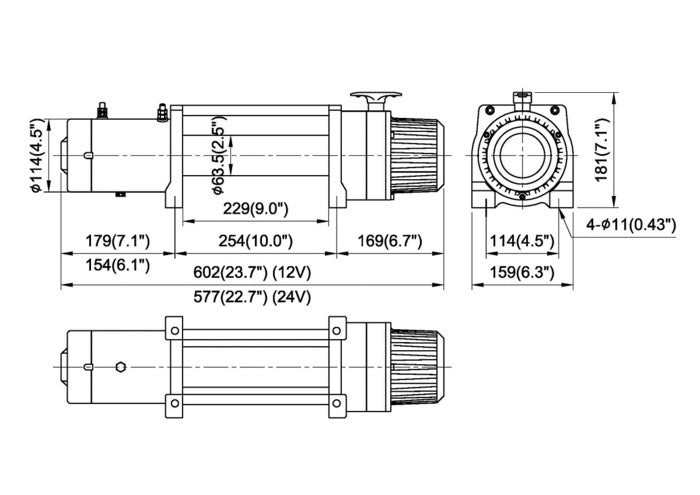

- Drum Size 2.5” x 9” (63.5 x 229 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type Synthetic Rope
- Rope Size 3/8" x 100' (10 mm x 30.5 m)
- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
- Winch Weight 59.5 lbs (27.0 kg)
- Gross Weight 72.8 lbs (33.0 kg)
- Box Dimensions 25.6" x 7.7" x 16.3" (650 x 192 x 415 mm)
