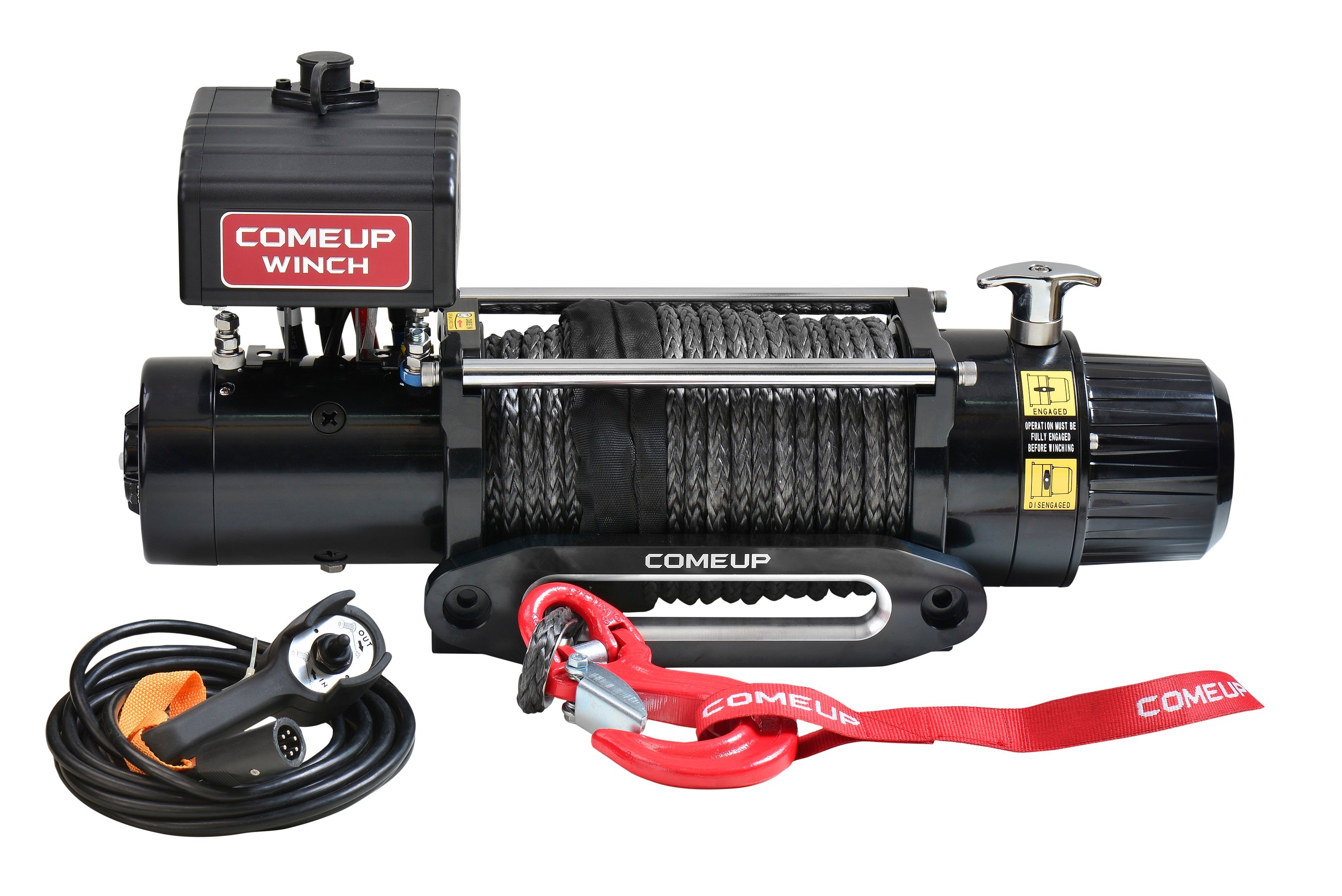

COMEUP WINCH | DV-9s 12V, Synthetic Rope
COMEUP WINCH | DV-9s 12V, Synthetic Rope
COMEUP WINCH | DV-9s 12V, Synthetic Rope

COMEUP WINCH | DV-9s 12V, Synthetic Rope

$1,060.95
Quantity:

Product Number 859112

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 13.2 / 43.3 55
907 / 2,000 4.7 / 15.3 110
1,814 / 4,000 3.4 / 11.2 200
2,722 / 6,000 2.8 / 9.1 230
3,629 / 8,000 2.3 / 7.6 260
4,082 / 9,000 2.0 / 6.5 350



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 4,802 / 9,000 5.5 / 18.1
2nd 3,316 / 7,310 12.5 / 41.0
3rd 2,792 / 6,154 20.9 / 68.6
4th 2,410 / 5,314 30.5 / 100



Specifications:

  • Rated Line Pull 9,000 lbs (4,082 kg) single line
  • Motor 4.6 hp / 3,430 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 156:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5"� x 8.9"� (63.5 x 227 mm)
  • Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 3/8"� x 100' (10 mm x 30.5 m)

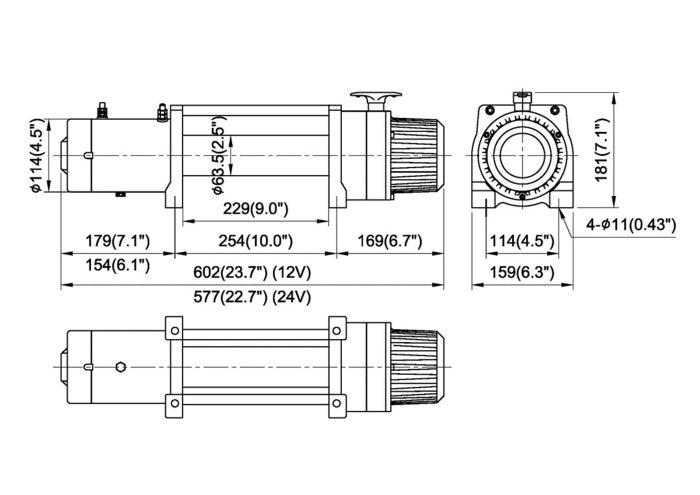

  • Mounting Bolt Pattern 10"� x 4.5"� (254 x 114 mm)
  • Winch Weight 59.5 lbs (27.0 kg)
  • Gross Weight 72.8 lbs (33.0 kg)
  • Box Dimensions 25.6"� x 7.7"� x 16.3"� (650 x 192 x 415 mm)
