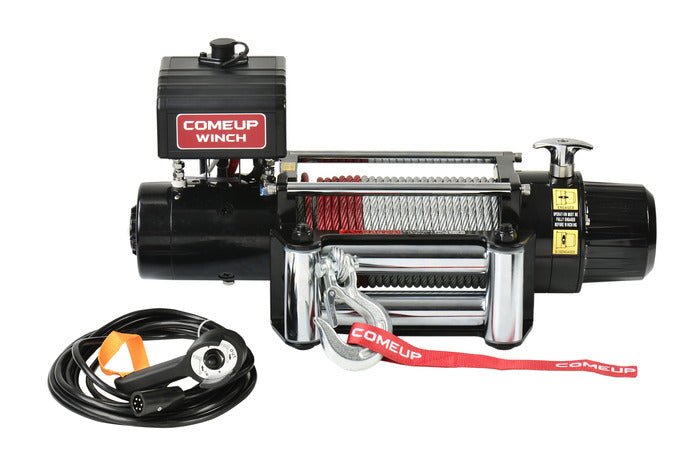

COMEUP WINCH | DV-9 24V
COMEUP WINCH | DV-9 24V
COMEUP WINCH | DV-9 24V

COMEUP WINCH | DV-9 24V

Regular price $860.00 Sale price $705.95
/

Product Number 856334



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 13 / 42.7 30
907 / 2,000 4.6 / 15.0 65
1,814 / 4,000 3.4 / 11.0 100
2,722 / 6,000 2.7 / 9.0 130
3,629 / 8,000 2.3 / 7.5 170
4,082 / 9,000 2.0 / 6.4  210



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 4,802 / 9,000 6.1 / 20.0
2nd 3,316 / 7,310 13.6 / 44.7
3rd 2,792 / 6,154 22.6 / 74.0
4th 2,410 / 4,314 30.5 / 100



Specifications:

  • Rated Line Pull 9,000 lbs (4,082 kg) single line
  • Motor 2.6 hp / 1,940 w 24V Series Wound
  • Gear Ratio 3-Stage Planetary 156:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5” x 9” (63.5 x 229 mm)
  • Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type Galvanized aircraft A7 x 19
  • Rope Size 21/64” x 100' (8.3 mm x 30.5 m)
  • Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm)
  • Winch Weight 72.8 lbs (33.0 kg)
  • Gross Weight 94.8 lbs (43 kg)
  • Box Dimensions 25.6” x 7.7” x 16.3” (650 x 192 x 415 mm)
