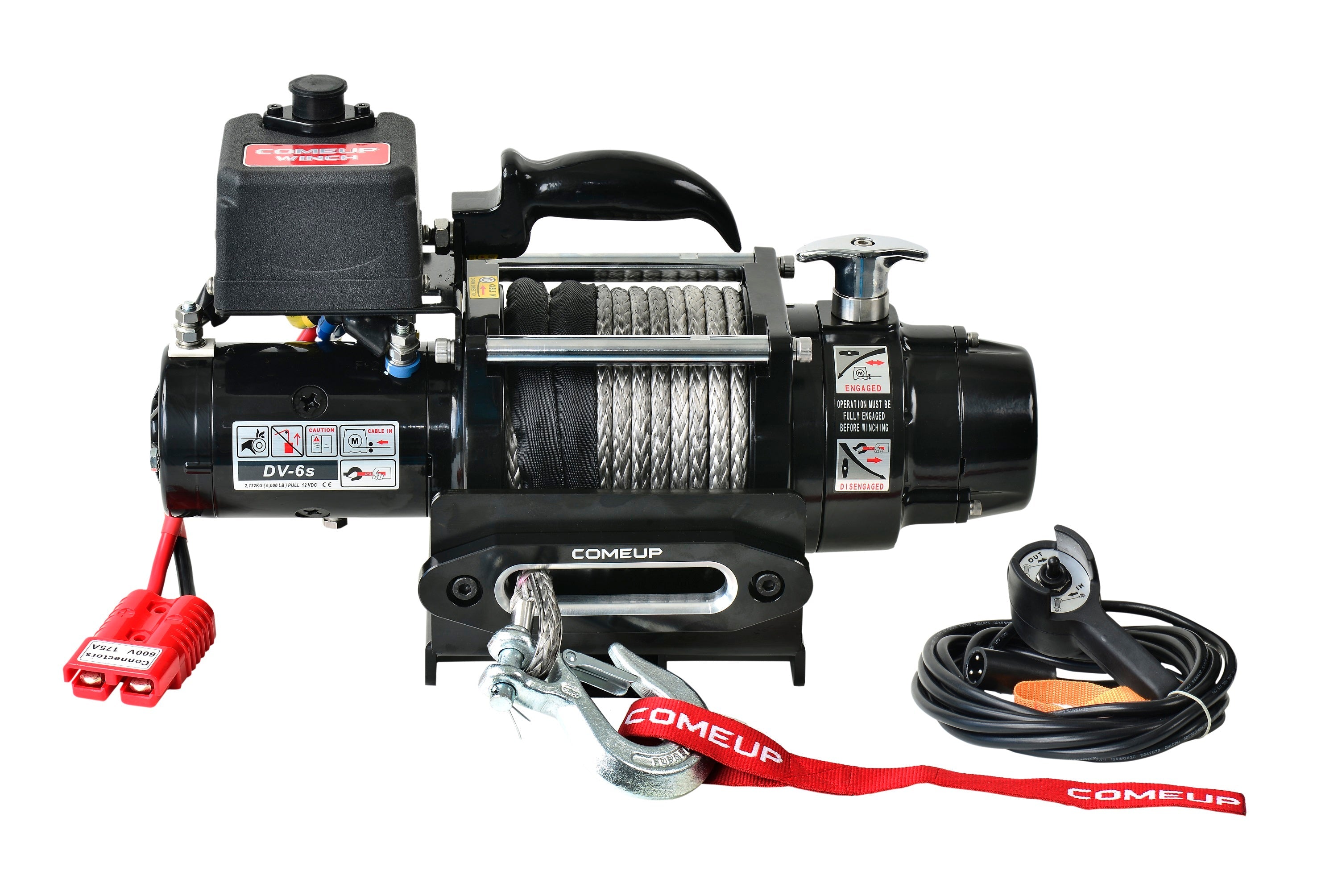

COMEUP WINCH | DV-6s Carry-On 12V, Synthetic Rope

COMEUP WINCH | DV-6s Carry-On 12V, Synthetic Rope

Sale price$835.95 Regular price$1,010.00
Save $174.05
Quantity:

Product Number 854768



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 8.1 / 26.5 60
907 / 2,000 5.3 / 17.3 150
1,814 / 4,000 3.1 / 10.3 240
2,722 / 6,000 2.0 / 6.6 300



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 2,722 / 6,000 3.5 / 11.3
2nd 2,266 / 4,995 7.7 / 25.2
3rd 1,914 / 4,279 12.6 / 41.5
4th 1,697 / 3,742 18.4 / 60.3
5th 1,508 / 3,325 24.4 / 80



Specifications:

  • Rated Line Pull 6,000 lb (2,722 kg) single line
  • Motor 3.2 hp/ 2,390 w 12V, series wound
  • Gear Ratio 3-stage planetary 216:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch construction Aluminum die cast housing with steel drum
  • Drum size 2.5" x 5.9" x 4.9" (63.5 x 151 x 125.5 mm)
  • Remote Control Waterproof remote w/ 17" cord
  • Rope Type Synthetic rope
  • Rope Size 21/64" x 80' (8 mm x 24.4 m)
  • Mounting Bolt Pattern 6" x 4.5" (152 x 114 mm)
  • Winch Weight 39.7 lb (18 kg)
  • Gross weight 49.4 lb (22.4 kg)
  • Box Dimension 20.5" x 8.5" x 13.4" (520 x 215 x 340 mm)
