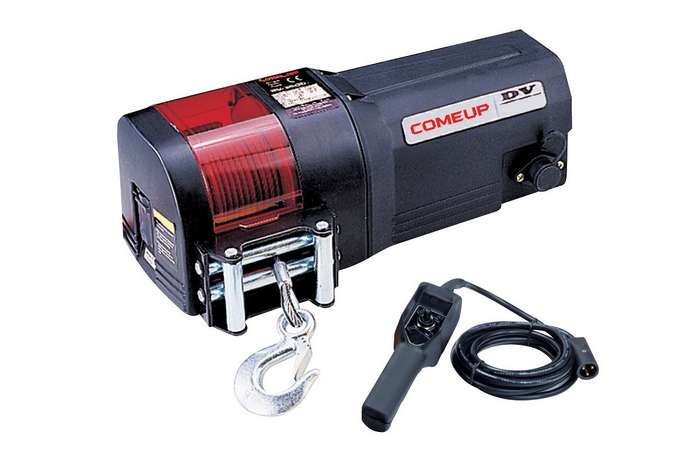

COMEUP WINCH | DV-4500i 12V
COMEUP WINCH | DV-4500i 12V

COMEUP WINCH | DV-4500i 12V

$610.95
Quantity:

Part Number 644512

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 6.5 / 21.3 25
454 / 1,000 5.0 / 16.4 110
907 / 2,000 3.6 / 11.8 210
1,134 / 2,500 3.2 / 10.5 240
1,361 / 3,000 2.5 / 8.2 270
1,588 / 3,500 1.8 / 5.9 290
1,814 / 4,000 1.4 / 4.6 310
2,041 / 4,500 0.4 / 1.3 330



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 2,041 / 4,500 2.4 / 7.9
2nd 1,688 / 3,722 5.3 / 17.4
3rd 1,440 / 3,174 8.7 / 28.6
4th 1,255 / 2,766 12.6 / 41.4
5th 1,112 / 2,451 15.2 / 50


Specifications:

  • Rated Line Pull 4,500 lbs (2,041 kg) single line
  • Motor 1,200 w / 1.6 hp 12V permanent magnet
  • Gear Ratio 3-Stage Planetary 170:1
  • Clutch (freespooling) Sliding ramping
  • Brake Automatic load-holding mechanical brake
  • Drum Size 2.1” x 3.3” (54 x 83 mm)
  • Control Handheld pendant switch remote control
  • Rope Type Galvanized aircraft A7 x 19
  • Rope Size 1/4” x 50' (6.3 mm x 15.2 m)

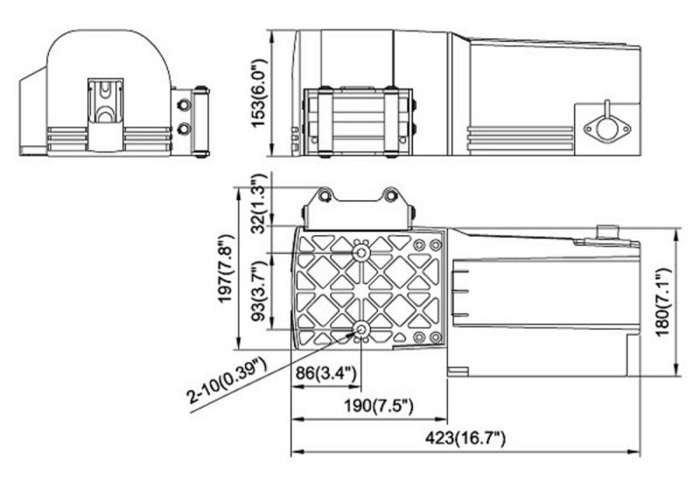

  • Mounting Bolt Pattern 3.4” x 3.7” (86 x 93 mm)
  • Winch Weight (including rope) 31.2 lbs (14.2 kg)
  • Gross Weight 40.0 lbs (18.2 kg)
  • Box Dimensions 18.2” x 10.7” x 7.3” (462 x 271 x 185 mm)
