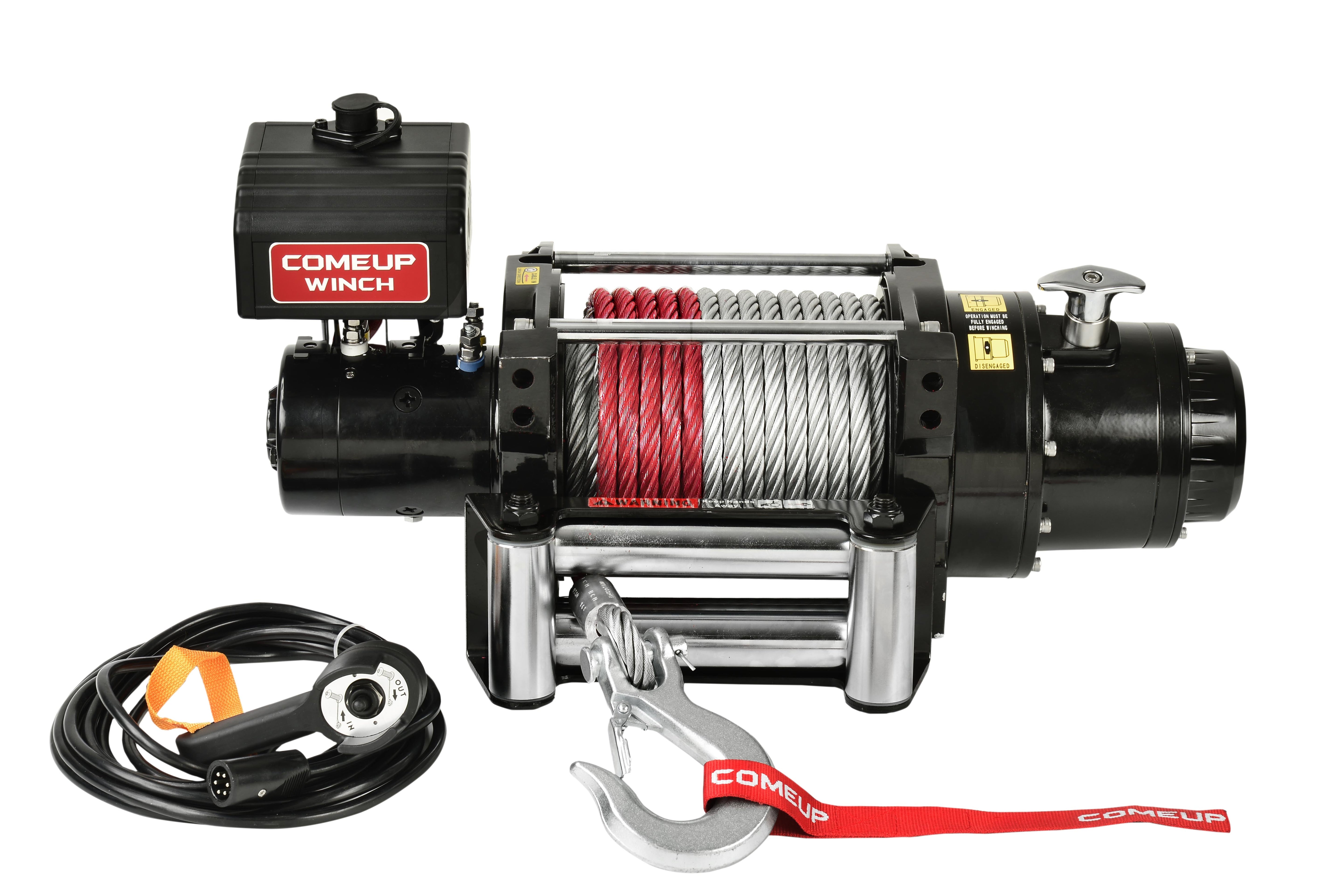

COMEUP WINCH | DV-18 24V
COMEUP WINCH | DV-18 24V
COMEUP WINCH | DV-18 24V

COMEUP WINCH | DV-18 24V

Regular price $1,760.00 Sale price $1,465.95
/

Part Number 851824



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 8.6 / 28.2 40
1,814 / 4,000 4.0 / 13.1 70
3,629 / 8,000 3.6 / 12.0  140
4,536 / 10,000 3.2 / 10.6 180
5,443 / 12,000 2.8 / 9.3 210
6,804 / 15,000 2.3 / 7.5 240
8,181 / 18,000 1.0 / 3.3 290


Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 8,181 / 18,000 4.7 / 15.4
2nd 6,546 / 14,431 10.5 / 34.4
3rd 5,456 / 12,028 17.5 / 57.4
4th 4,677 / 10,311 25.0 / 82.0



Specifications:

  • Rated Line Pull 18,000 lbs (8,181 kg) single line
  • Motor 6.0 hp / 4,474 w 24V Series Wound
  • Gear Ratio 3-Stage Planetary 315:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 3.5” x 7.6” (89 x 192 mm)
  • Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type 6 x 29 – IWRC
  • Rope Size 1/2” x 82' (12.7 mm x 25 m)
  • Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
  • Winch Weight 130 lbs (59 kg)
  • Gross Weight 156.5 lbs (71 kg)
  • Box Dimensions 27.3” x 10.4” x 16.5” (695 x 265 x 420 mm)
