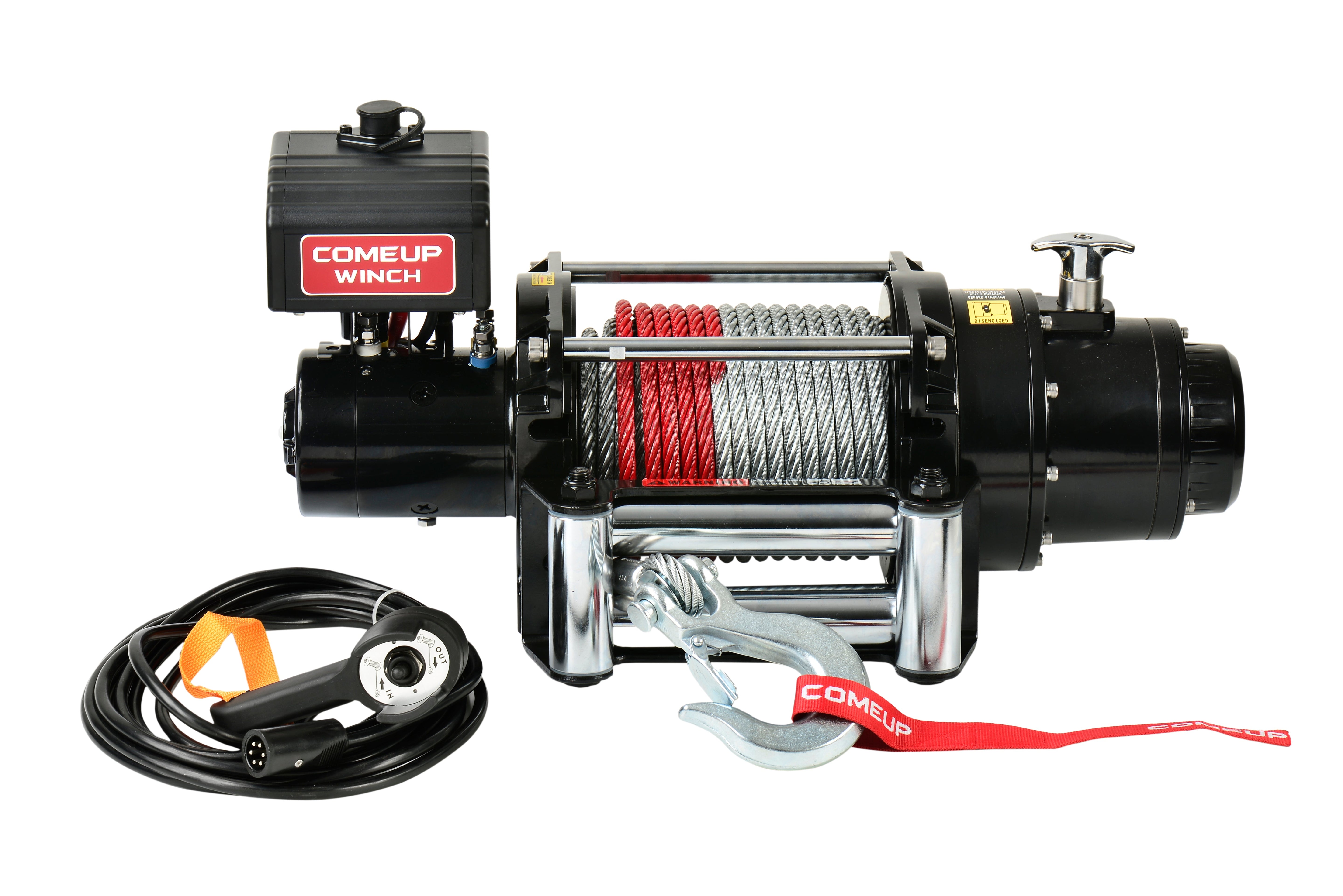

COMEUP WINCH | DV-15 24V
COMEUP WINCH | DV-15 24V
COMEUP WINCH | DV-15 24V

COMEUP WINCH | DV-15 24V

Regular price $1,490.00 Sale price $1,235.95
/

Part Number 857436



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 6.9 / 22.0 50
1,814 / 4,000 1.6 / 5.4 90
3,629 / 8,000 1.2 / 3.8 190
4,536 / 10,000 1.0 / 3.3 220
5,443 / 12,000 0.9 / 2.9 260
6,804 / 15,000 0.8 / 2.5 340


Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 6,804 / 15,000 5.7 / 18.6
2nd 5,569 / 12,277 12.6 /41.4
3rd 4,713 / 10,391 20.8 / 68.3
4th 4,086 / 9,007 27 / 89



Specifications:

  • Rated Line Pull 15,000 lbs (6,804 kg) single line
  • Motor 3.6 hp / 2,690 w 24V Series Wound
  • Gear Ratio 3-Stage Planetary 315:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 3.5” x 8.1” (89 x 206 mm)
  • Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type 6 x 29 – IWRC
  • Rope Size 7/16” x 89' (11.1 mm x 27 m)
  • Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
  • Winch Weight 125.4 lbs (57 kg)
  • Gross Weight 152 lbs (69 kg)
  • Box Dimensions 27.3” x 10.4” x 16.5” (695 x 265 x 420 mm)
