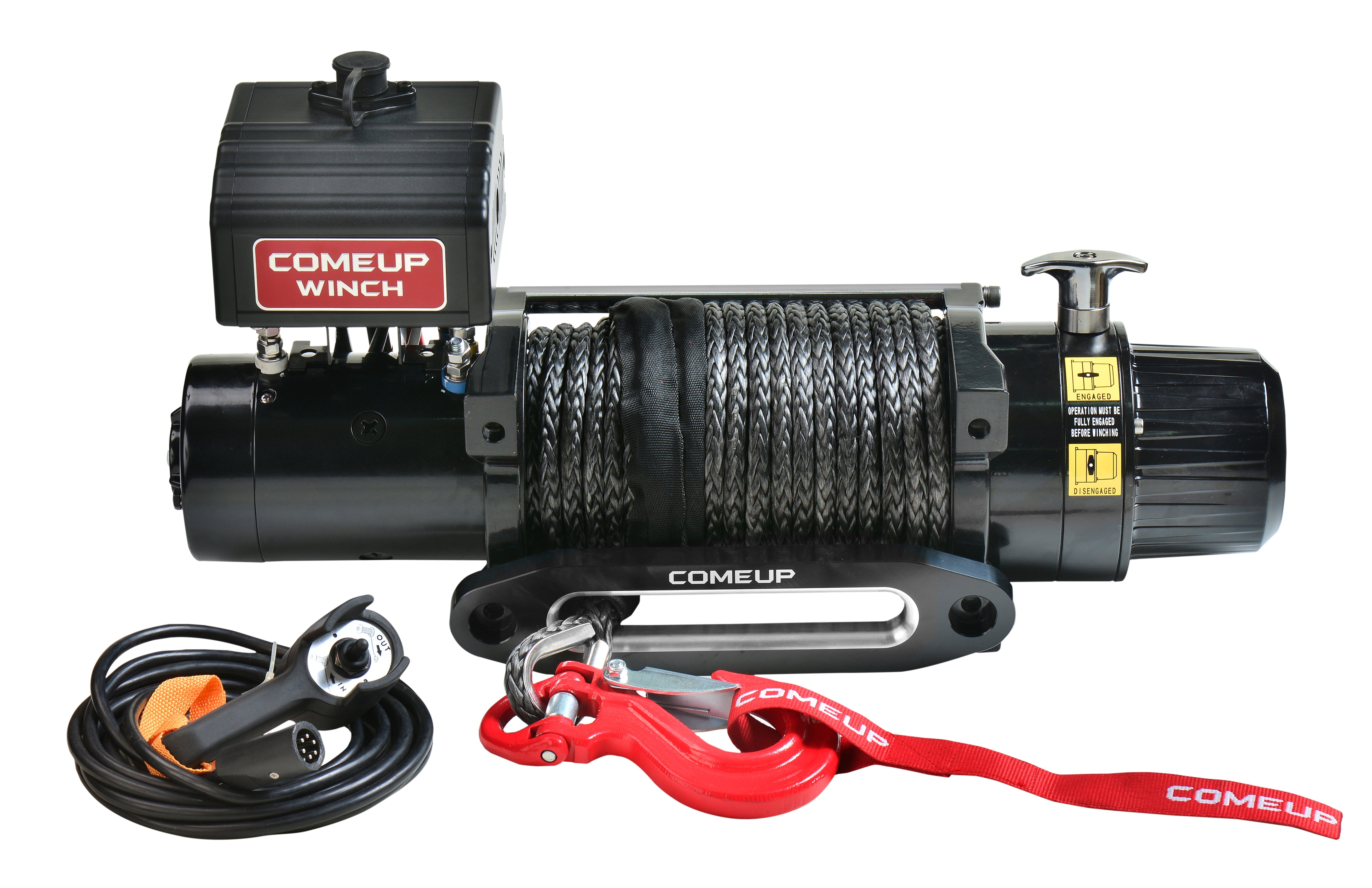

COMEUP WINCH | DV-12s LITE 12V
Quantity:
SELECT OPTIONS
Quantity:
Quantity:
Part Number 850112
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 8.3 / 26.9 | 50 |
| 1,814 / 4,000 | 3.1 / 10.2 | 120 |
| 3,629 / 8,000 | 1.6 / 5.1 | 230 |
| 4,536 / 10,000 | 1.2 / 4.0 | 290 |
| 5,443 / 12,000 | 1.0 / 3.3 | 350 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 5,443 / 12,000 | 4.7 / 15.5 |
| 2nd | 4,319 / 9,522 | 10.8 / 35.5 |
| 3rd | 3,580 / 7,893 | 18.3 / 60.1 |
| 4th | 3,056 / 6,737 | 25.0 / 82.0 |
Specifications
- Rated Line Pull 12,000 lbs (5,443 kg) single line
- Motor 4.6 hp / 3,430 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 211:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum
- Drum Size 2.5"x 9" (63.5 x 227 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type Synthetic Rope
- Rope Size 7/16" x 82' (11 mm x 25 m)

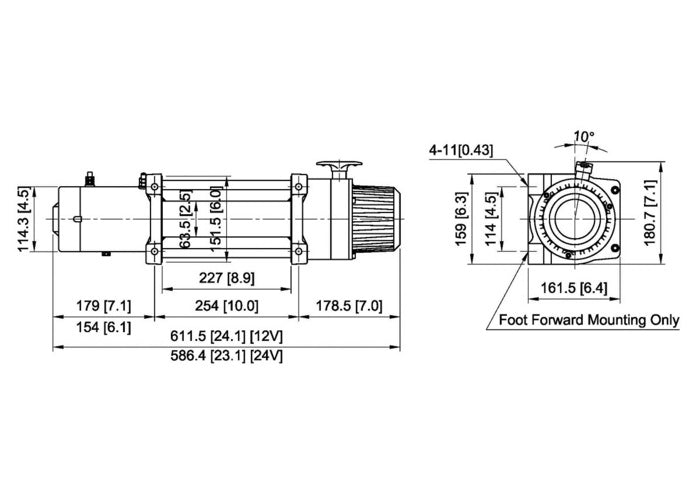

- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
- Winch Weight 66.1 lbs (30 kg)
- Gross Weight 79.4 lbs (36 kg)
- Box Dimensions 25.6"x 7.7" x 16.3"(650 x 192 x 415 mm)
