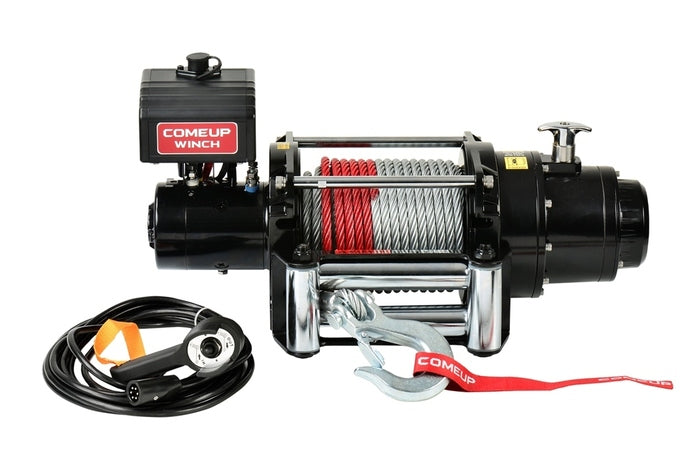

COMEUP WINCH | DV-12 12V
Quantity:
SELECT OPTIONS
Quantity:
Quantity:
Part Number 857133
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
No load | 8.3 / 27 | 60 |
1,814 / 4,000 | 2.6 / 8.6 | 200 |
3,629 / 8,000 | 1.7 / 5.8 | 310 |
4,536 / 10,000 | 1.4 / 4.4 | 370 |
5,443 / 12,000 | 1.2 / 4.0 | 440 |
Line Pull and Rope Capacity:
Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
1st | 5,443 / 12,000 | 6.6 / 21.5 |
2nd | 4,563 / 10,060 | 14.4 / 47.2 |
3rd | 3,928 / 8,659 | 23.5 / 77 |
4th | 3,448 / 7,601 | 33.8 / 110.9 |
5th | 3,072 / 6,774 | 38 / 125 |
Specifications:
- Rated Line Pull 12,000 lbs (5,443 kg) single line
- Motor 5.6 hp / 4,180 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 261:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

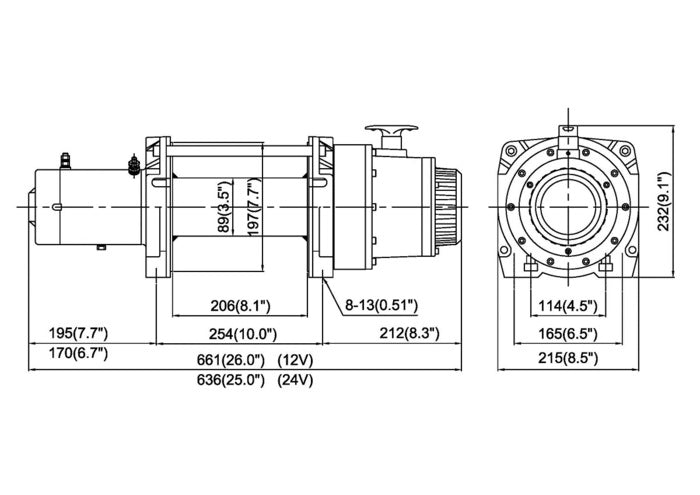

- Drum Size 3.5” x 8.1” (89 x 206 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 3/8” x 125' (9.5 mm x 38 m)

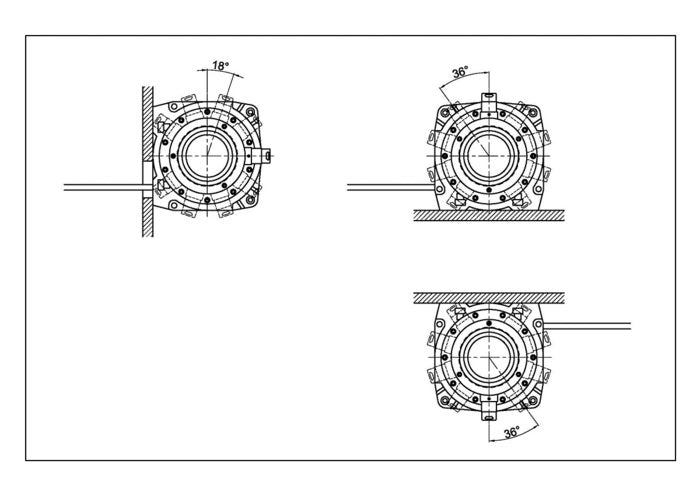

- Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
- Winch Weight 121 lbs (55 kg)
- Gross Weight 147.7 lbs (67 kg)
- Box Dimensions 26.8” x 8.2” x 17.8” (682 x 209 x 453 mm)
