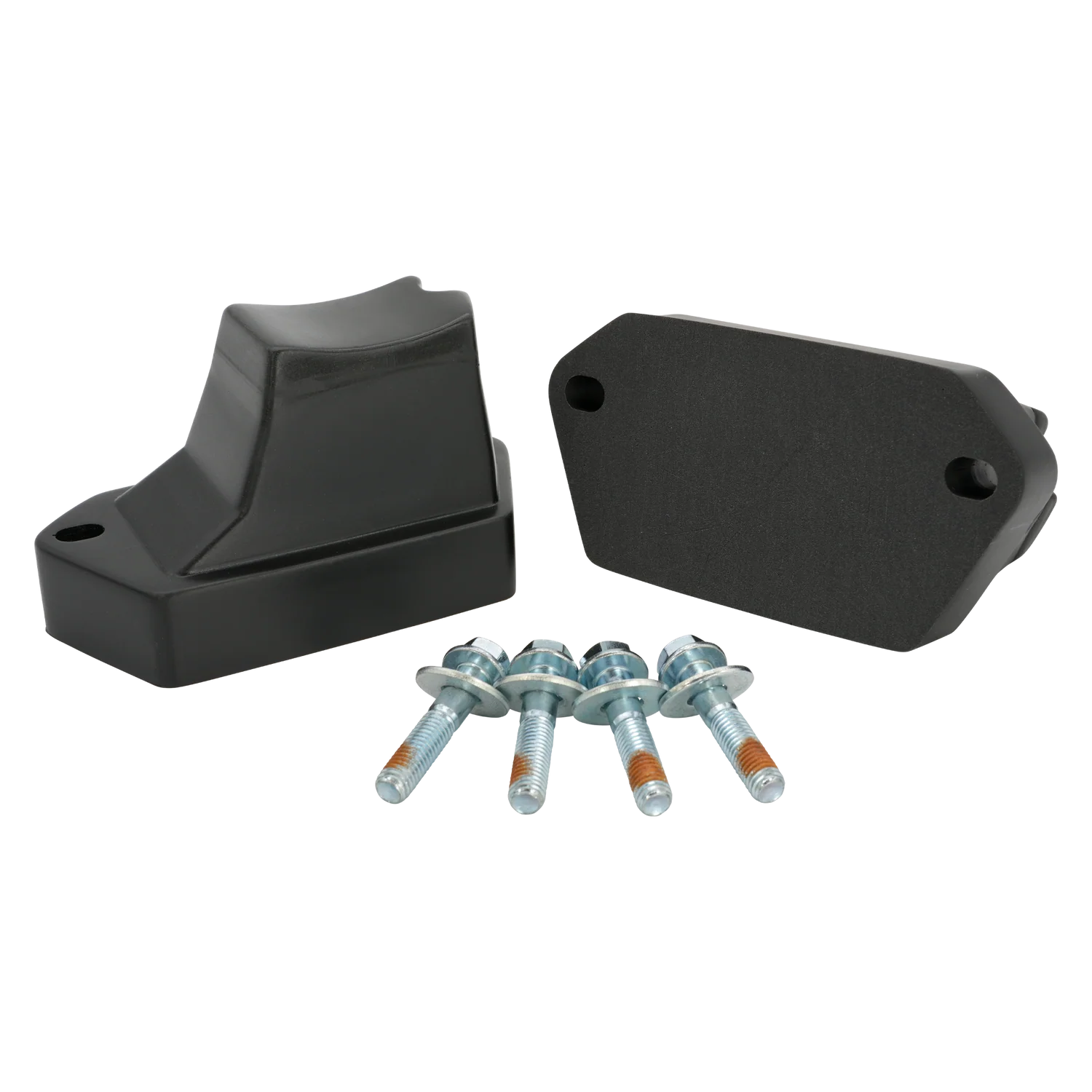

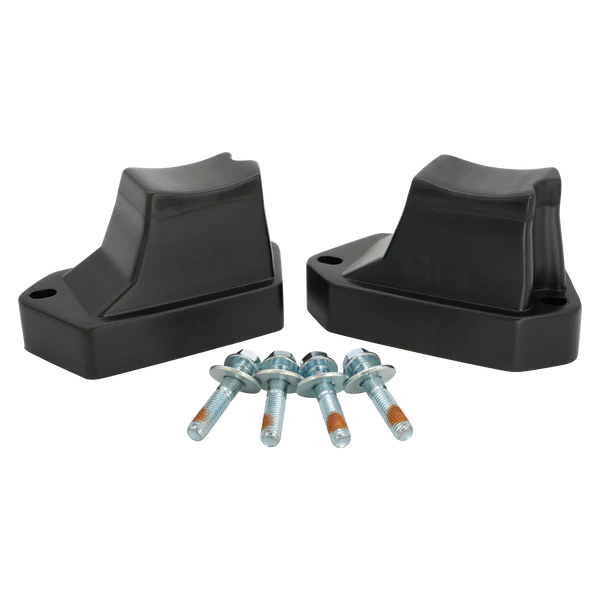

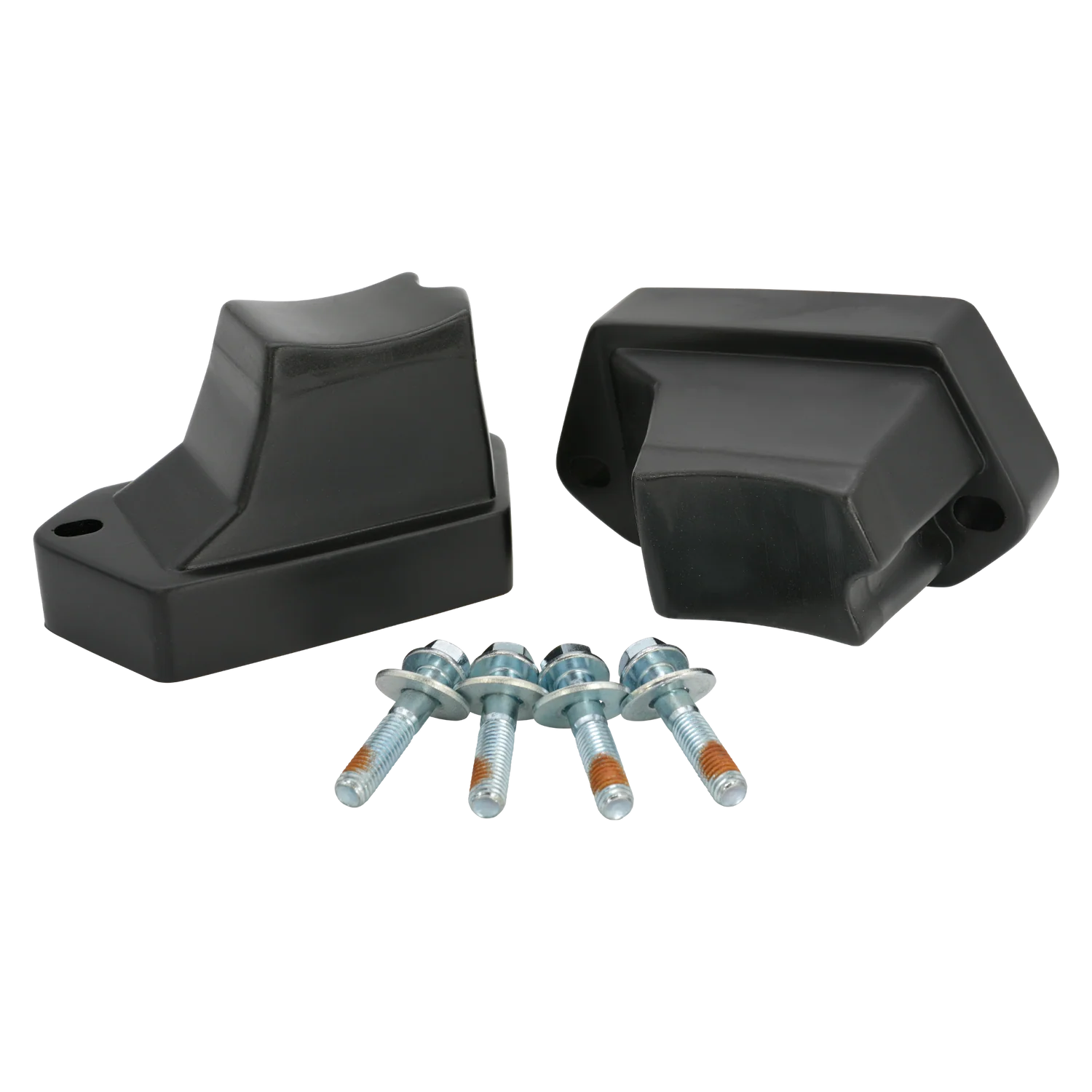

DUROBUMPS | Rear Bump Stops for 5th Gen Toyota 4Runner (2010-2024) (DBR35)

Specifications

Part Number: DBR35
Vehicle Application: Toyota 4Runner 2010 - 2024
Size: 5 x 3 x 3 (ea.)
Weight: 28 oz. / 1.75 lbs. (set)
Lift height: No Lift Required 0-3 inch+ Lift
Compression (Deflection): .5 inches @ 1500LBS.

• Installation Instructions: Toyota 5th Gen 4Runner Installation Instructions

Description

Built for Stock Height + Mild Lift Setups

Your 5th Gen Toyota 4Runner is capable out of the box—but factory rear bump stops fall short when the suspension fully compresses. Harsh, abrupt, and lacking real dampening, DuroBumps has your solution.

DuroBumps DBR35 is a direct-fit rear suspension upgrade that delivers real protection where it matters. Made from dual durometer rubber, it compresses smoothly under load—absorbing impact forces before they’re transferred into your chassis. Whether you're daily driving or hitting trails, DBR35 helps improve ride quality without sacrificing articulation.

Perfect for stock-height or mildly lifted 4Runners running factory-length rear shocks, DBR35 is engineered to maintain full suspension travel without interference or premature engagement. This makes it the ideal rear suspension upgrade for builds that need better bottom-out control, improved rear-end stability, and extended suspension component life under real-world driving conditions.

Built for Suspension Articulation + OEM Geometry

The DBR35 bump stops are precision-engineered for the 2010–2024 Toyota 4Runner, installing directly in the OEM location using the factory mounting points. This progressive bump stop upgrade is designed for stock-height or mildly lifted builds that run factory-length rear shocks and want to keep full up-travel and articulation.

Running tires larger than 33" is not recommended, as rear tire clearance may be compromised under full compression. Even with 33s, proper wheel offset is essential to allow the tire to tuck cleanly without contacting the wheel well.

While DBR35 is slightly taller than the OEM bump stop at rest, it compresses to the same final height under load—maintaining full suspension movement without limiting travel or disrupting geometry. Whether you're on road trips, work duty, or backcountry trails, DBR35 helps protect your suspension from hard bottom-outs without sacrificing comfort or performance.
