DOMETIC | FreshJet 5 Series Mechanical 15K Air Conditioner With R32 Refrigerant (9620015927)

Description

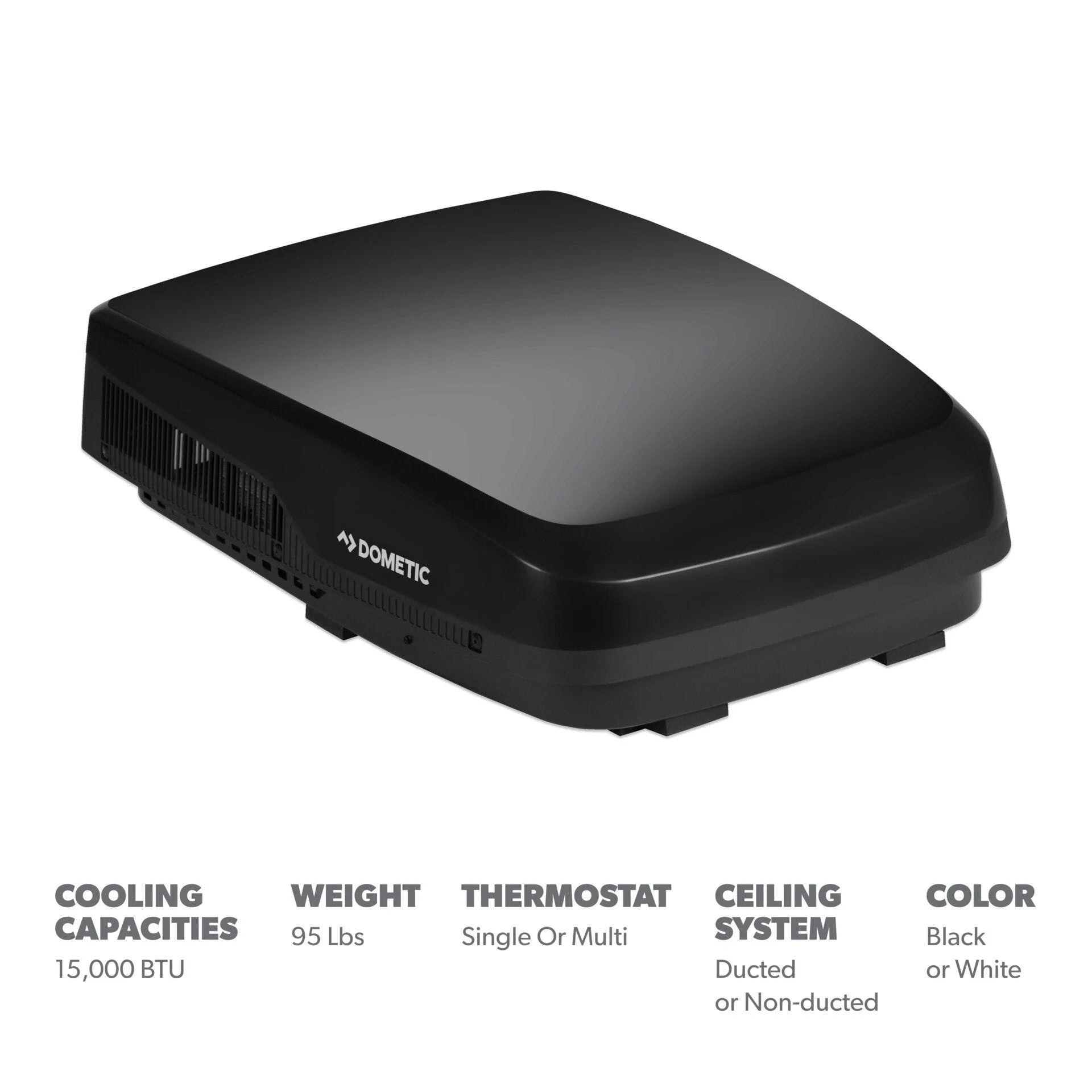

FreshJet 5 is Dometic’s low-profile rooftop air conditioner designed as a direct Penguin II replacement. The 15,000 BTU model delivers powerful cooling in a compact footprint and is available in both mechanical and electronic configurations. With built-in hard start, quieter performance, a reinforced steel base, and options with or without a heat pump, it’s ideal for new RV builds, universal...

15,000 BTU - Rooftop Low Profile Air Conditioner with R32 Refrigerant - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sold separately (PACKAGE CANNOT BE

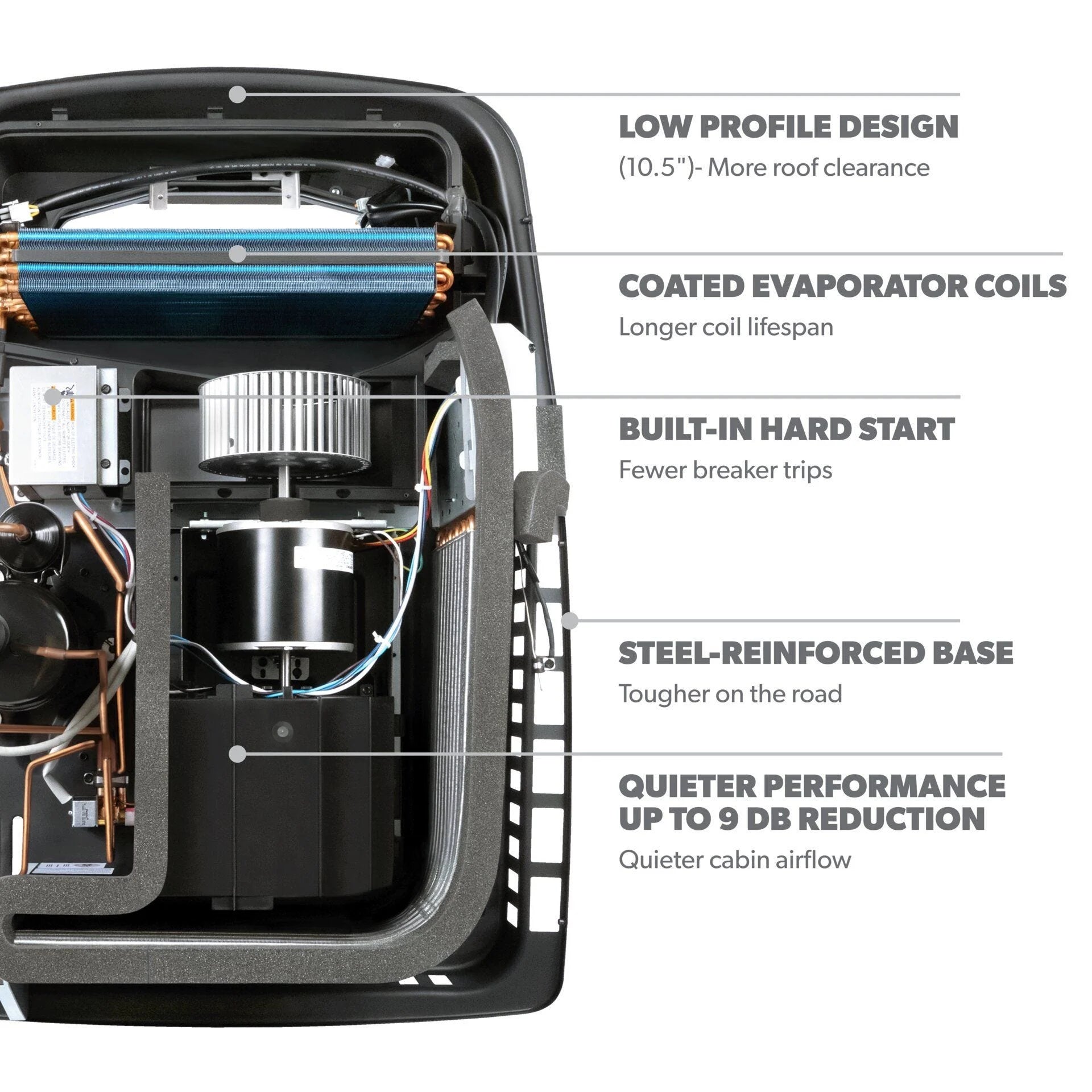

Features

• More Clearance Flexibility
• Quieter Cabin Comfort
• Reliable Startup Power
• Long-Term Durability
• Enhanced Cooling Longevity
• Simplified Mechanical System

Specifications

Dimensions

• Dimensions product depth, [mm]: 1026.20
• Dimensions product height, [mm]: 742.30
• Dimensions product width, [mm]: 282
• Dimensions product width, ["] - Display: 11.10
• Net weight, [lbs]: 95.26
• Standard mount. material thickness 1 min, [mm]: 18
• Standard mount. material thickness 1 max, [mm]: 68
• Cut out depth, [mm]: 360.000000
• Cut out width, [mm]: 360.000000

Electrical

• Input voltage (AC), [V]: 115
• Input frequency, [Hz]: 60

Performance

• Hermetically Sealed: Yes
• Refrigerant, type: R32
• GWP: 675
• CO2 equivalent, [t]: 0.256
• AirFlow, [m³h]: 415.690000
• Current consumption min cooling, [A]: 12.660000
• Current consumption max cooling, [A]: 19.730000
• Operating temperature min, [°C]: -1.100000

(9620015927)
