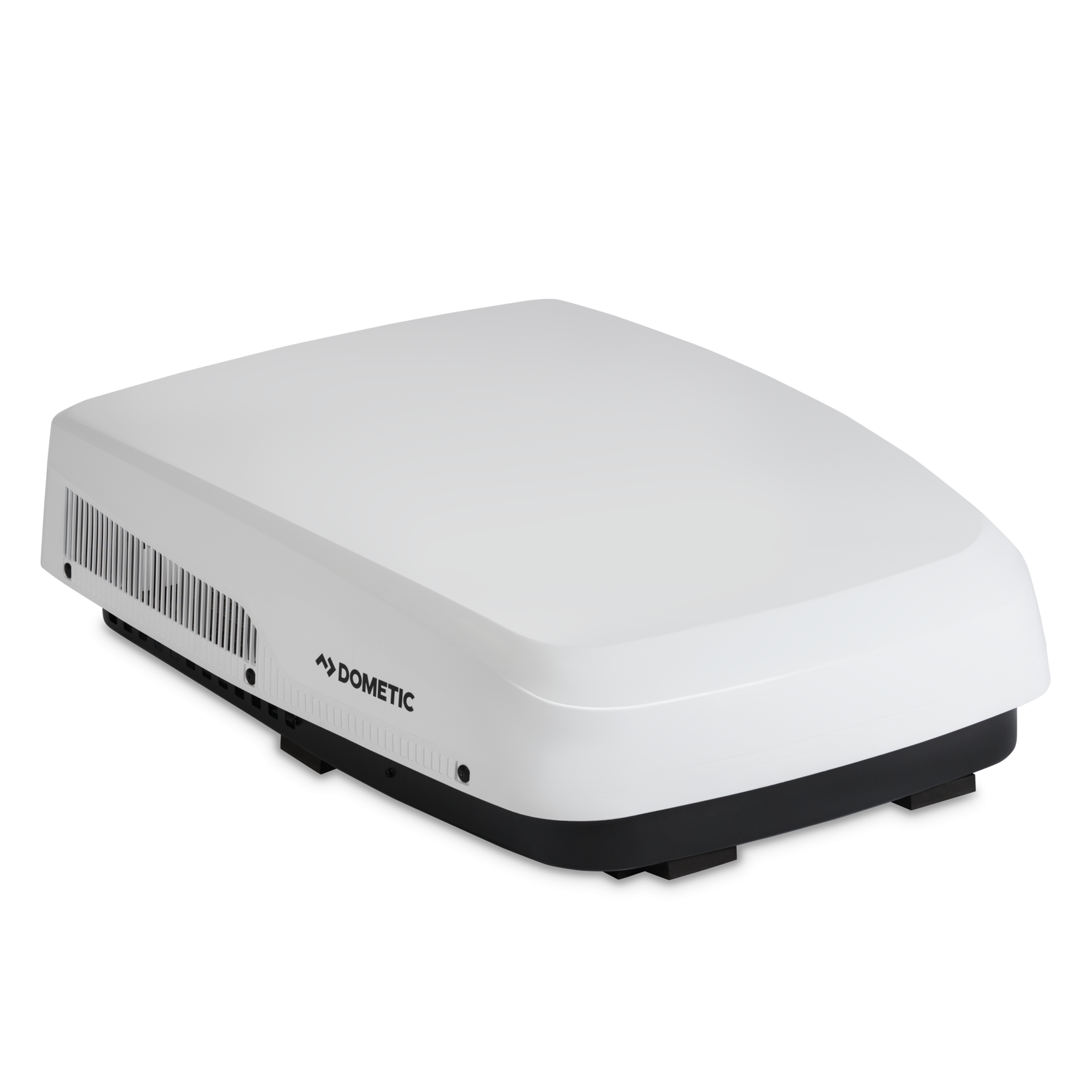

DOMETIC | FreshJet 5 Series Mechanical 13.5K Air Conditioner With R32 Refrigerant (9620015924)

Description

FreshJet 5 is Dometic’s low-profile rooftop air conditioner designed as a direct Penguin II replacement. With built-in hard start, quieter performance, a reinforced steel base, and models available with or without a heat pump, it’s engineered for both new RV builds, universal replacements, direct replacement for the Penguin II and upgrades offering modern comfort without changing the fit.

13,500 BTU - Rooftop Low Profile Air Conditioner with R32 Refrigerant - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sold separately (PACKAGE CANNOT BE

Features

• More Clearance Flexibility
• Reliable Startup Power
• Quieter Cabin Comfort
• Long-Term Durability
• Enhanced Cooling Longevity
• Simplified Mechanical System

Specifications

Dimensions

• Dimensions product depth, [mm]: 1026.20
• Dimensions product height, [mm]: 742.30
• Dimensions product width, [mm]: 282
• Dimensions product width, ["] - Display: 11.10
• Net weight, [lbs]: 92.39
• Standard mount. material thickness 1 min, [mm]: 18
• Standard mount. material thickness 1 max, [mm]: 68
• Cut out depth, [mm]: 360.000000
• Cut out width, [mm]: 360.000000

Electrical

• Input voltage (AC), [V]: 115
• Input frequency, [Hz]: 60

Performance
