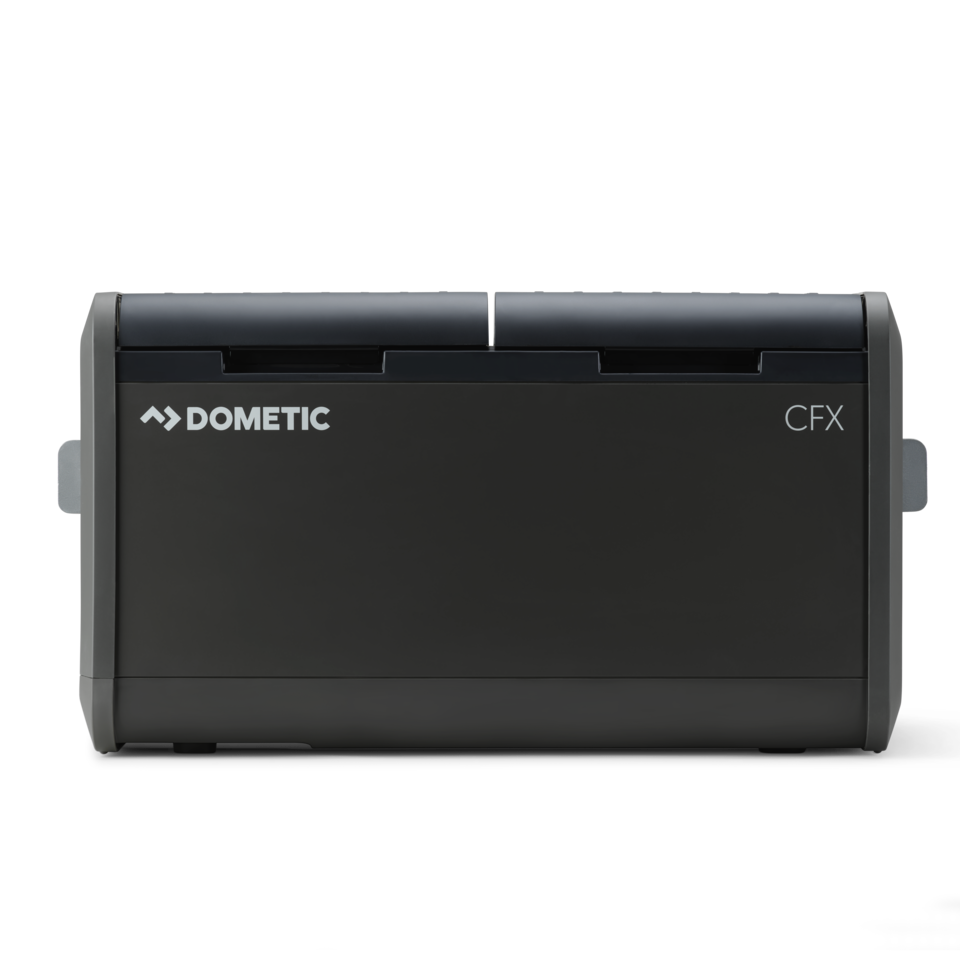

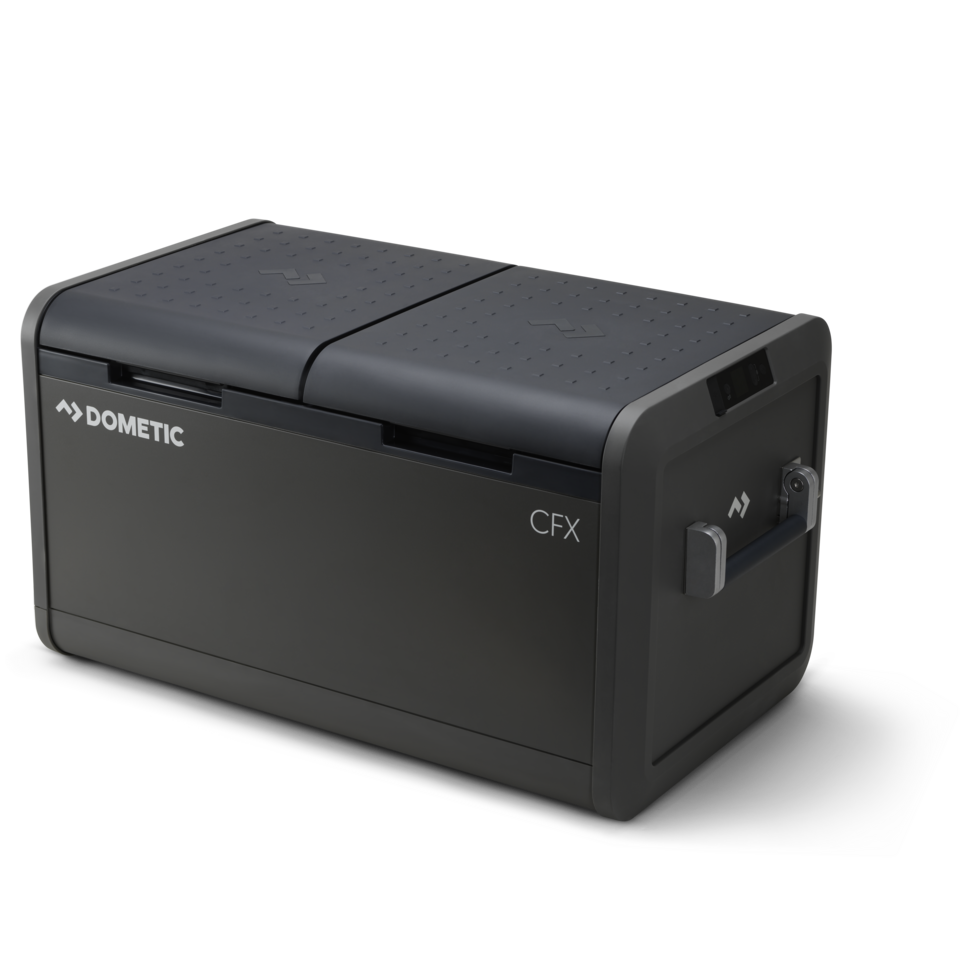

DOMETIC | CFX5 75DZ Electric Cooler (97000050757)

Description

Advanced Materials and Design in a 75L DZ Dual-Zone Electric Cooler

The CFX5 75DZ is a fan favorite. One of our largest ice-free electric coolers – great for a van’s portable fridge or long camping trips. Dual cooling zones mean ice cream won’t melt and cheese won’t freeze. Super-efficient Vacuum Insulated Panels deliver outstanding insulation, and temps go as low as -7F degrees. You can control it with our smartphone app, a carbon steel frame protects, it’s solar compatible, and – cheers – a bottle opener’s built in.

• Vip Vacuum Insulated Panels
• Powerful VMSO 3.5 Compressor

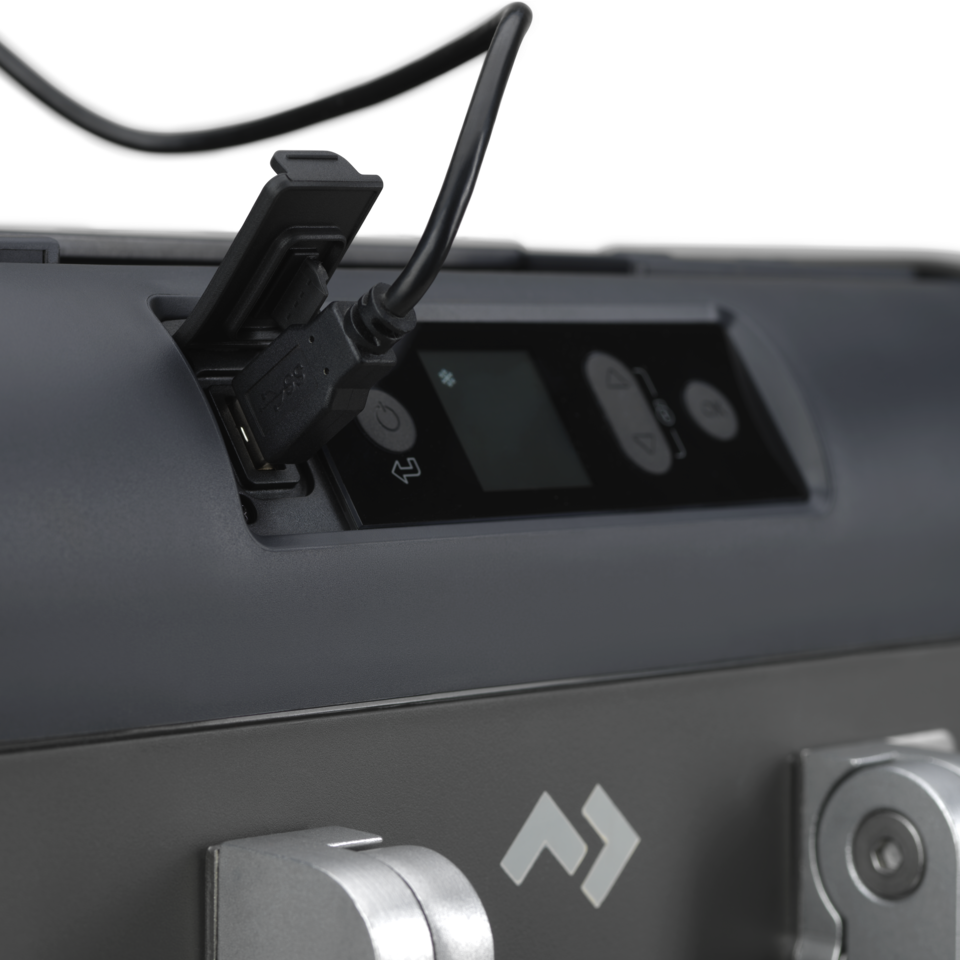

• Weatherproof High Resolution Display
• Reliable & Stable Interior
• Premium Design Details
• Two Cooling Zones

Features

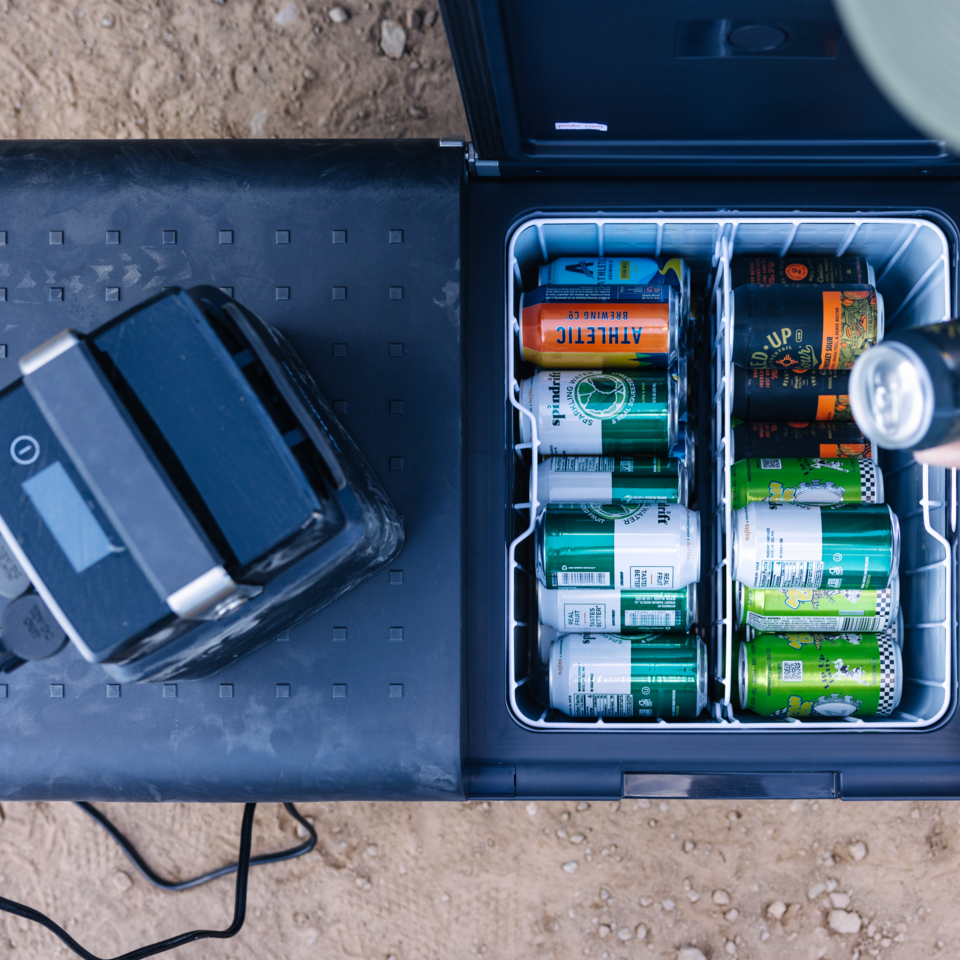

• The CFX5 75 DZ capacity holds up to 113 x 12 oz cans – a large size for weekend adventures, week-long camping trips, and extended nomadic travel.
• Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
• Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.

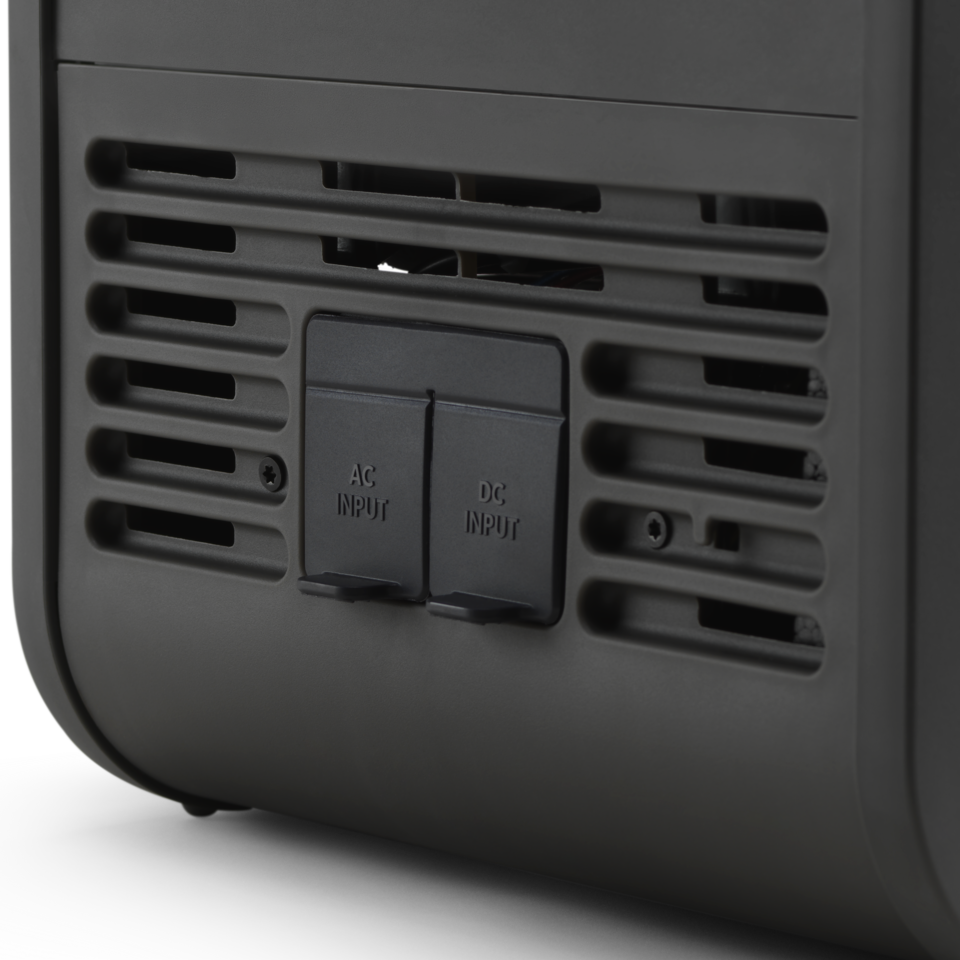

• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

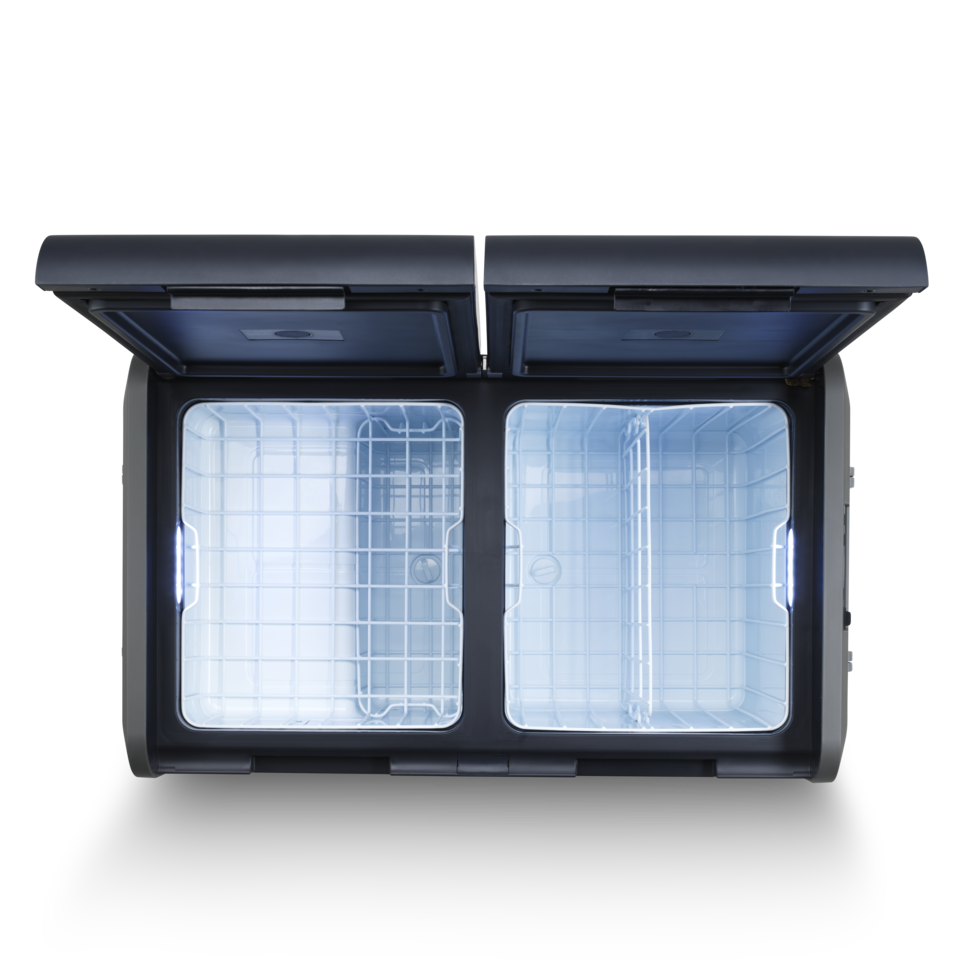

• Two cooling zones allow you to bring refrigerated and frozen foods all at once.

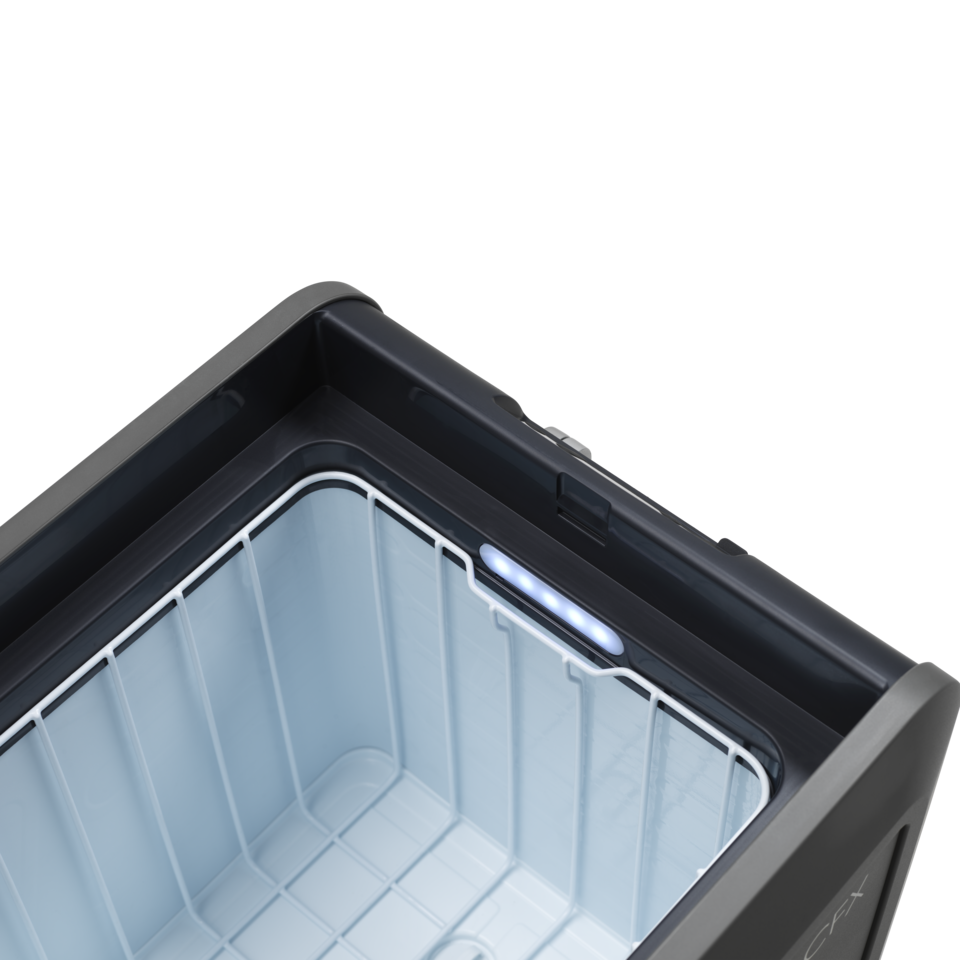

• Internal details include a removable wire divider and an interior light.

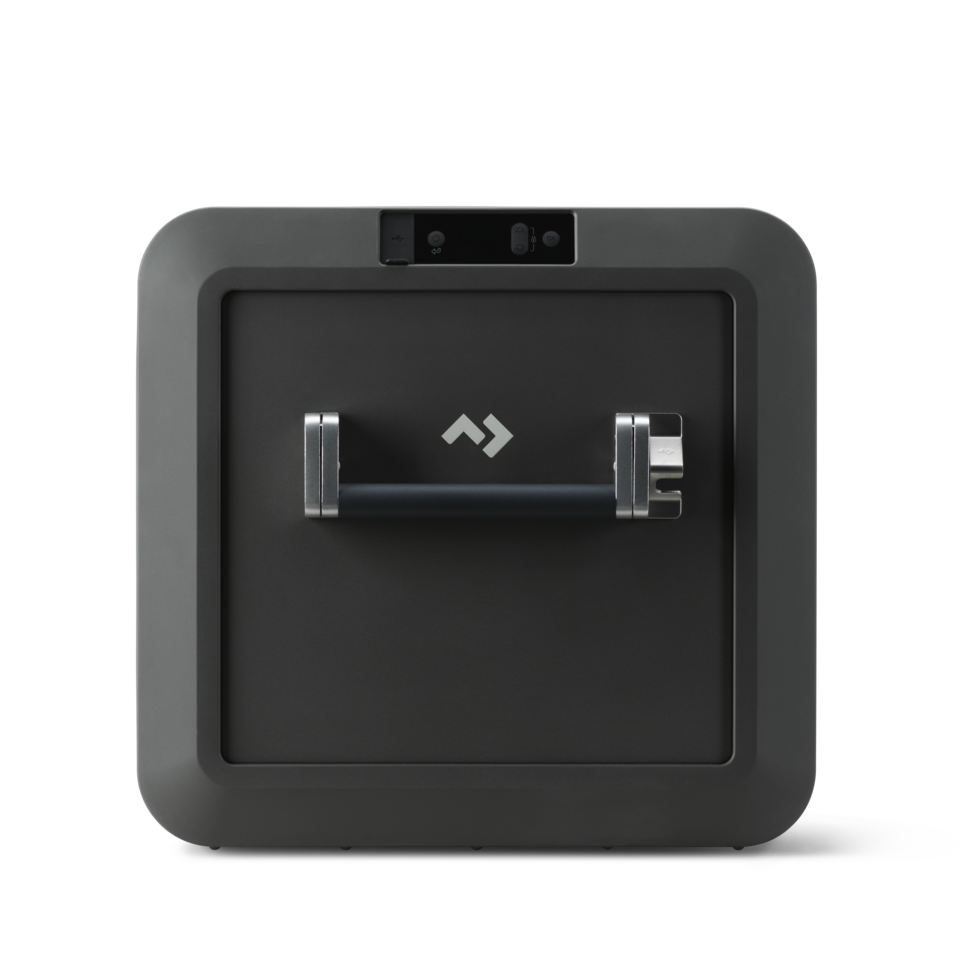

• External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

Specifications

General

• SKU number: 97000050757
• Model: CFX575DZ
• Scope of delivery: 1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener
• Single or Dual Zone: Dual
• Product Description: Advanced Materials and Design in a 75L DZ Dual-Zone Electric Cooler
• Refrigeration technology: Compressor

Dimensions

• Dimensions product depth, ["]: 19.49
• Dimensions product height, ["]: 18.58
• Dimensions product width, ["]: 35.12
• Net weight, [lbs]: 59.76
• Total volume (IEC 62552-3), [l]: 75
• Power Supply Cable Length AC: 6.6 ft
• Power Supply Cable Length DC: 4,9 ft
• Amount of cans (12oz/375ml): 113

Electrical

• Input voltage (AC), [V]: 100-240
• Input voltage (DC), [V]: 12/24
• Rated input current (AC), [A]: 1.11A at 100V, 0.47A at 240V
• Rated input current (DC), [A]: 4.4A at 24V, 9.7A at 12V
• Rated input power, [W]: 61
• Input frequency, [Hz]: 50/60

Performance

• Refrigerant, type: R1234yf
• Refrigerant amount, [g]: 46
• Noise (EN60704-1 & 60704-2-14), [dB(A)]: 44
• Noise Class EU20192016: D
• Climate class (EN 62552): N/T
• Temperature Range: + 20 °C to -22 °C
• Insulation Thickness: 55
• Insulation Type: PU (Polyurethane)

Additional

• Color: Ore
• USB Port: Yes
• Connectivity Type: BluetoothWiFi
• Basket: Yes
• Threaded inserts in base for mounting: M6

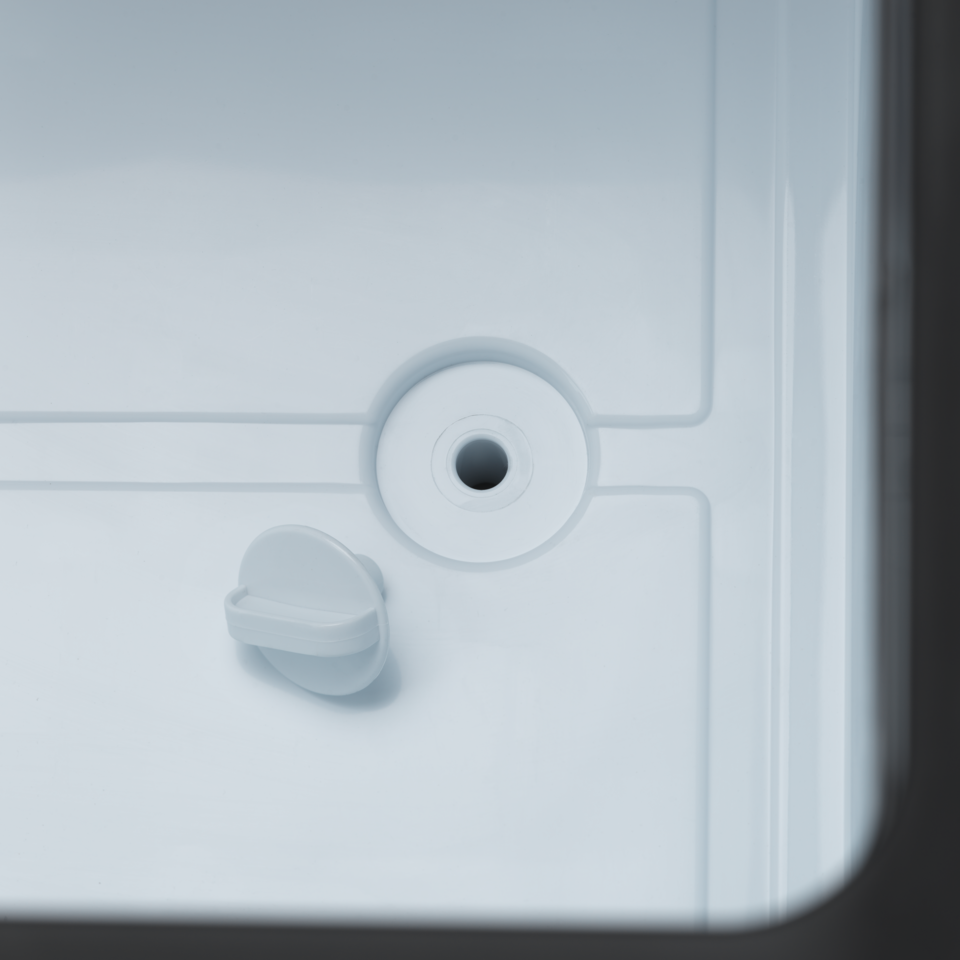

• Drain plug: Yes
• Anti-condensation coil: Yes
• Interior light: Yes, LED
• Cable length supply cable, [m]: 2

(97000050757)
