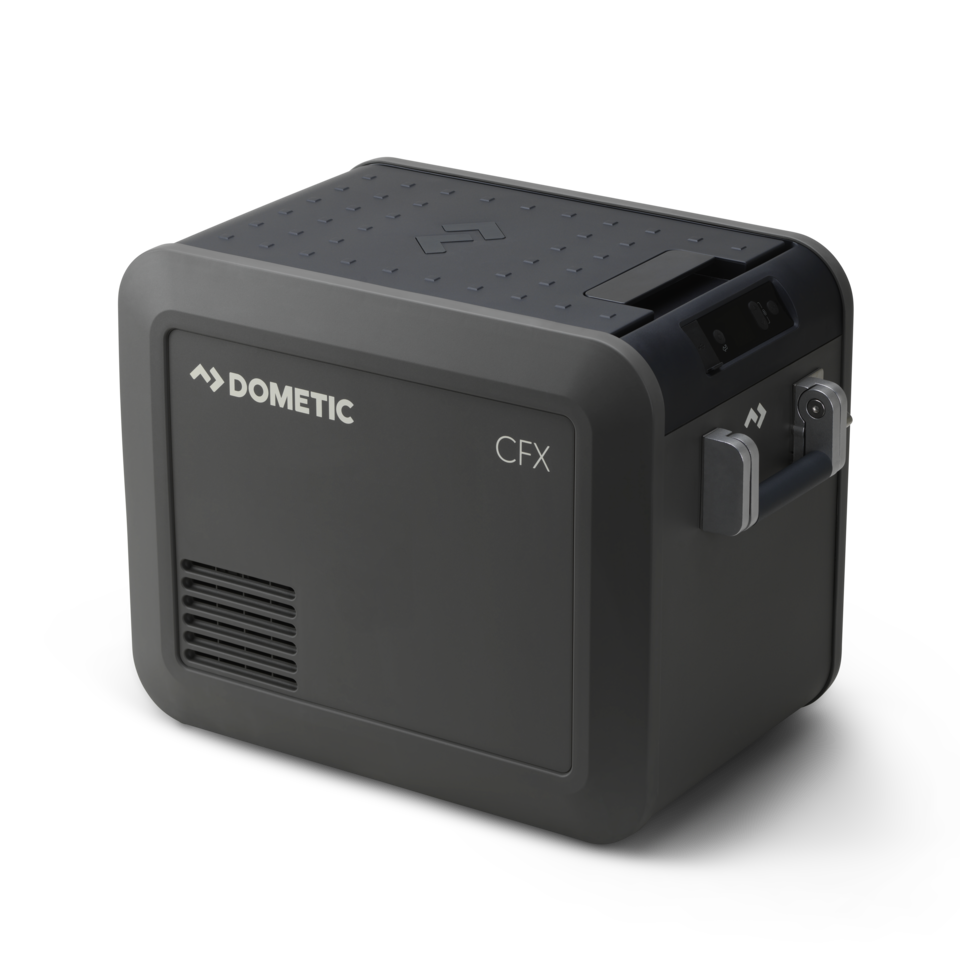

DOMETIC | CFX5 25 Electric Cooler (97000050753)
SELECT OPTIONS
Description
Our most compact and portable CFX5 25L ice-free electric cooler holds 40 cans and can spaciously fit in the back of your SUV or ride along in the back seat – great for day trips, duos, or going solo. Highly efficient Vacuum Insulated Panels deliver outstanding insulation, the lid seals tight, and the compressor takes you down to -7F degrees. Control it with our smartphone app and stay adventure ready.
- VIP Vacuum Insulated Panels
- Powerful VMSO 3.5 Compressor
- Weatherproof High Resolution Display
- Reliable & Stable Interior
- Premium Design Details
- Durable Exoframe Design
Features
The 25L capacity holds up to 40 x 12 oz cans – a compact size for up to three people’s weekend adventures and long solo trips.
Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.

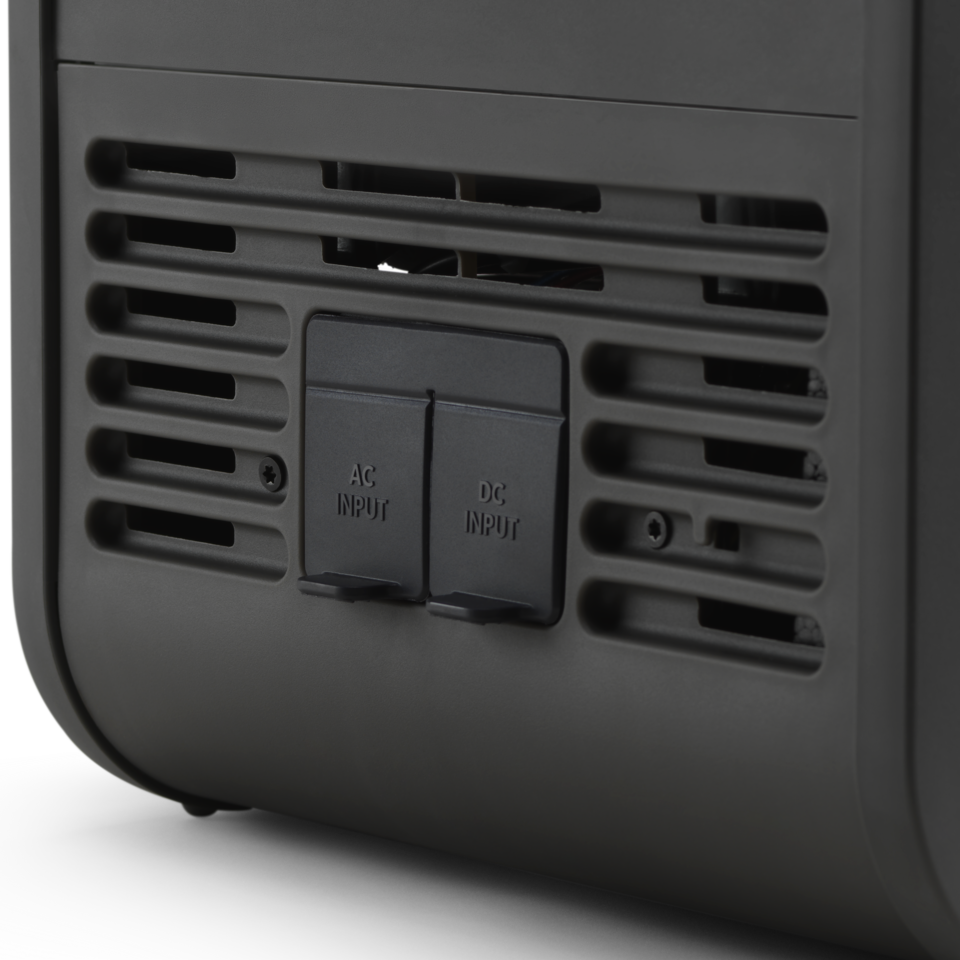

Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

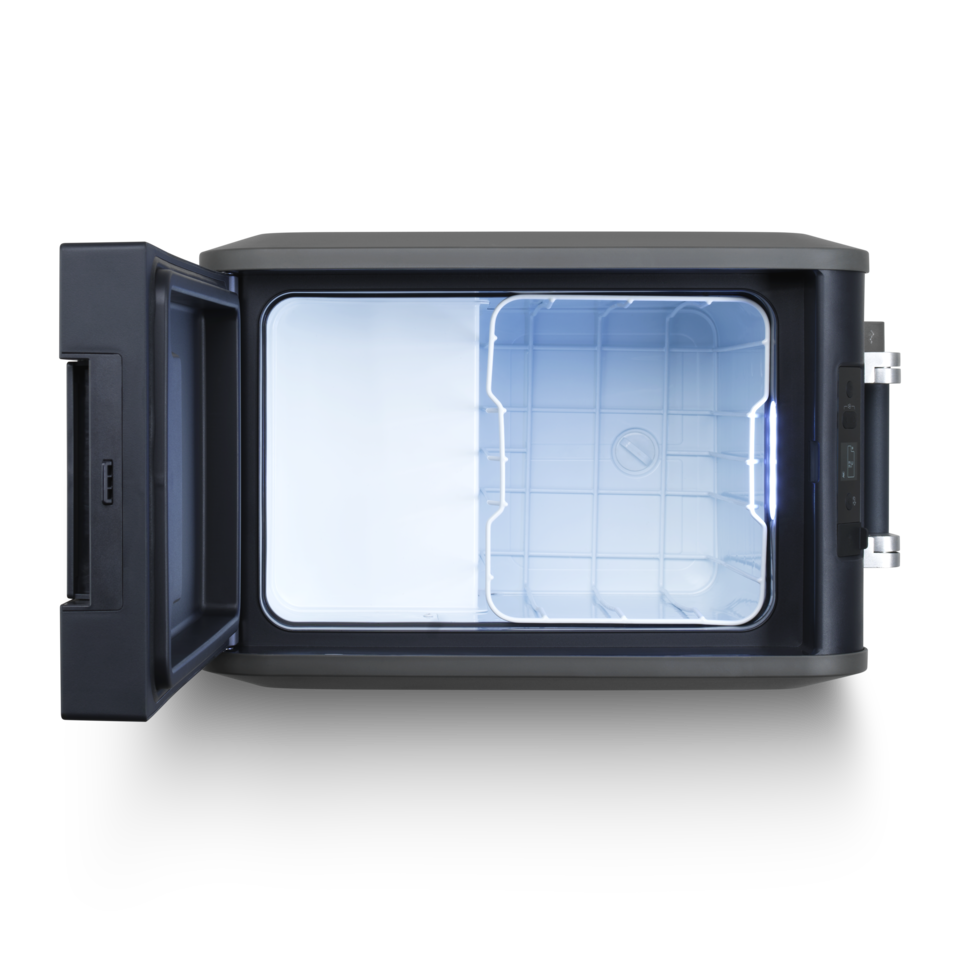

Internal details include a removable wire divider and an interior light.

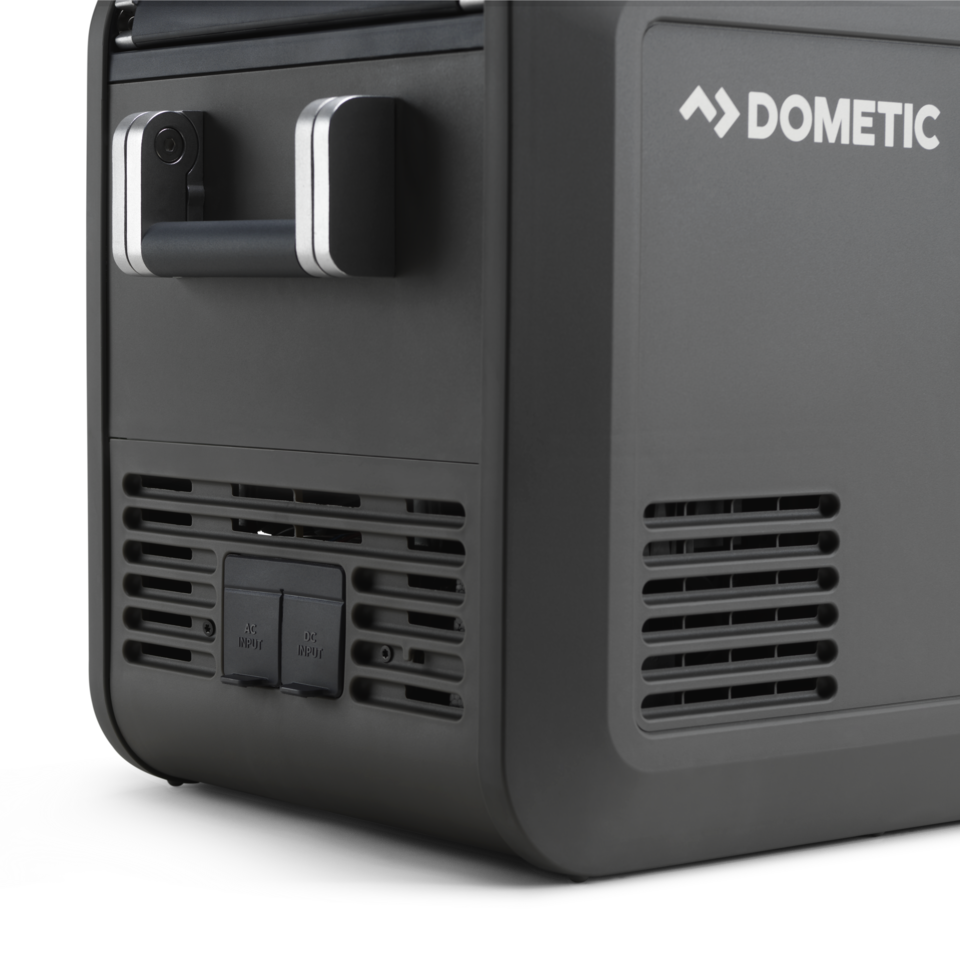

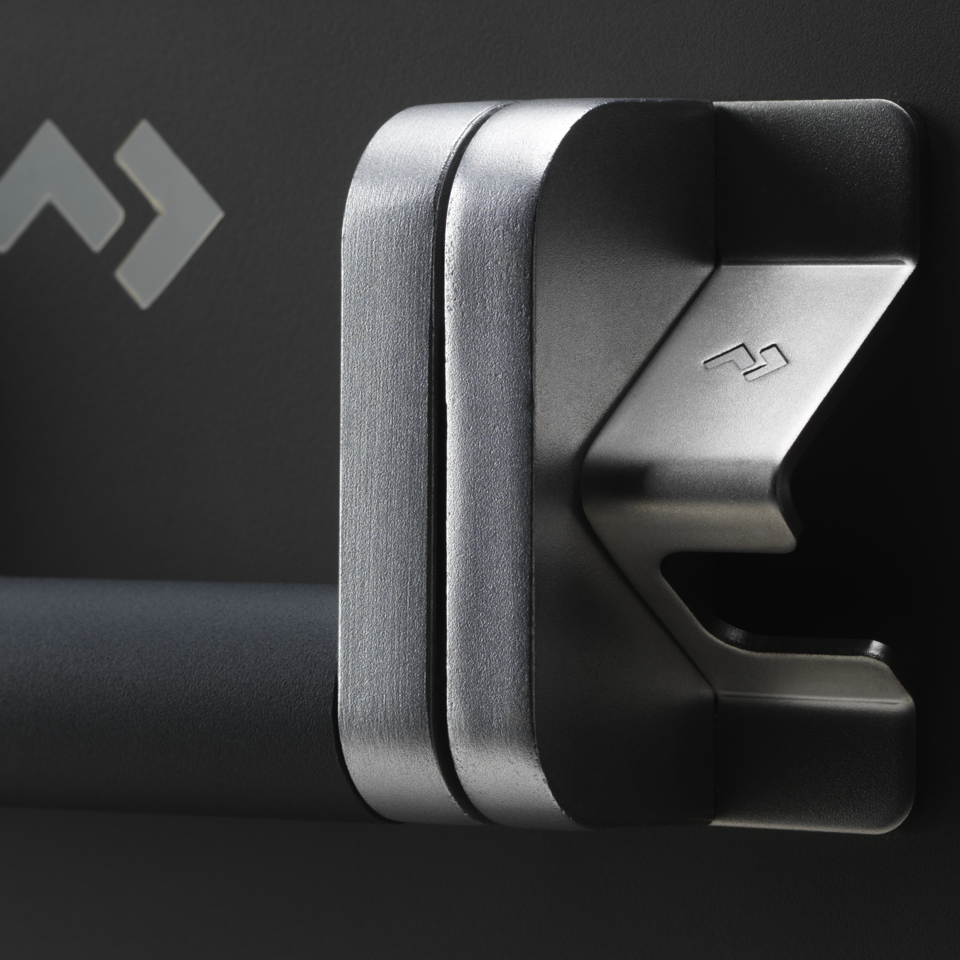

External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.
Specifications
General
SKU number
97000050753
Model
CFX525
Scope of delivery
1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener
Single or Dual Zone
Single
Product Description
Advanced Materials and Design in an Ice-Free 25L Electric Cooler
Refrigeration technology
Compressor
Warranty (Months)
5 Year Limited
Dimensions
Dimensions product depth, ["]
22.40
Dimensions product height, ["]
16.54
Dimensions product width, ["]
13.46
Net weight, [lbs]
29.77
Total volume (IEC 62552-3), [l]
25
Power Supply Cable Length AC
6.6 ft
Power Supply Cable Length DC
6.6 ft
Amount of cans (12oz/375ml)
33
Electrical
Input voltage (AC), [V]
100-240
Input voltage (DC), [V]
12/24
Rated input current (AC), [A]
0.85A at 100V, 0.36A at 240V
Rated input current (DC), [A]
3.2A at 24V, 7.2A at 12V
Rated input power, [W]
45
Input frequency, [Hz]
50/60
Performance
Refrigerant, type
R1234yf
Refrigerant amount, [g]
21
Noise (EN60704-1 & 60704-2-14), [dB(A)]
41
Noise Class EU20192016
C
Energy Consumption 12VDC (Ambient@90F, Internal@39F), [Ah/h]
1.03
Climate class (EN 62552)
N/T
Temperature Range
+ 20 °C to -22 °C
Insulation Thickness
55
Insulation Type
PU (Polyurethane)
Additional
Color
Slate / Ore

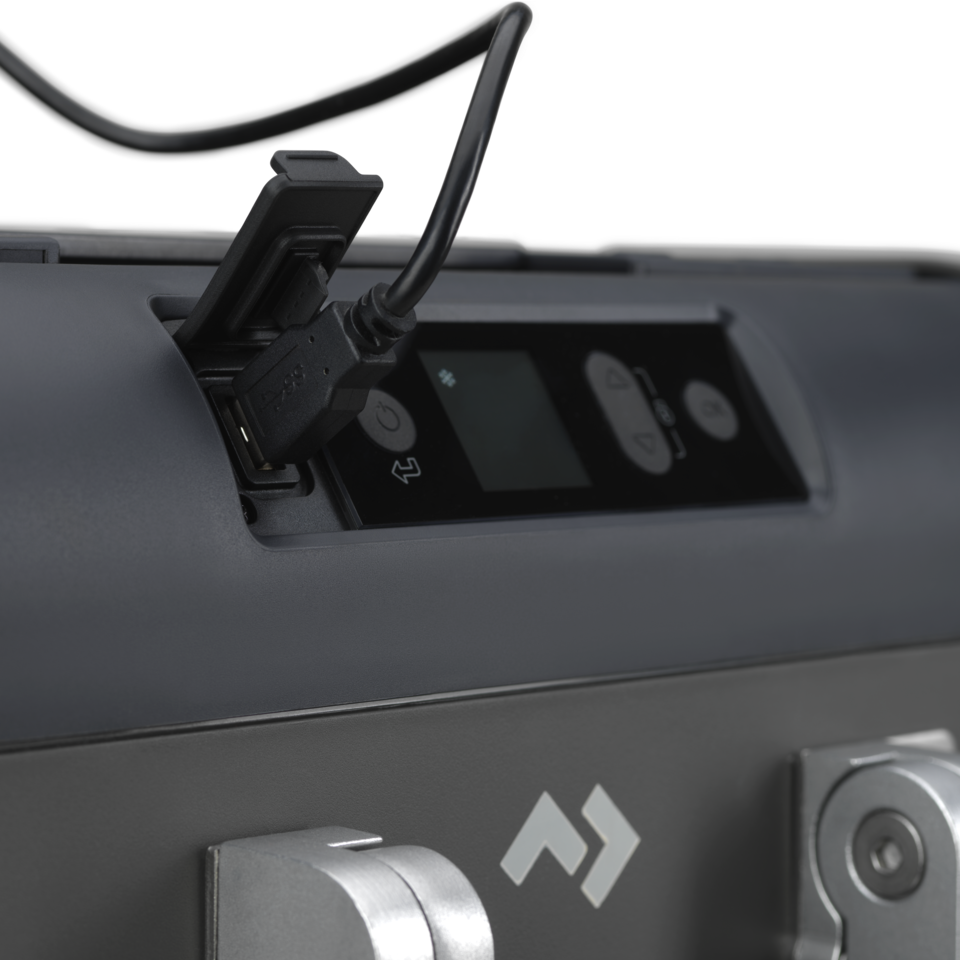

USB Port
Yes
Connectivity Type
BluetoothWiFi
Basket
Yes
Threaded inserts in base for mounting
M6

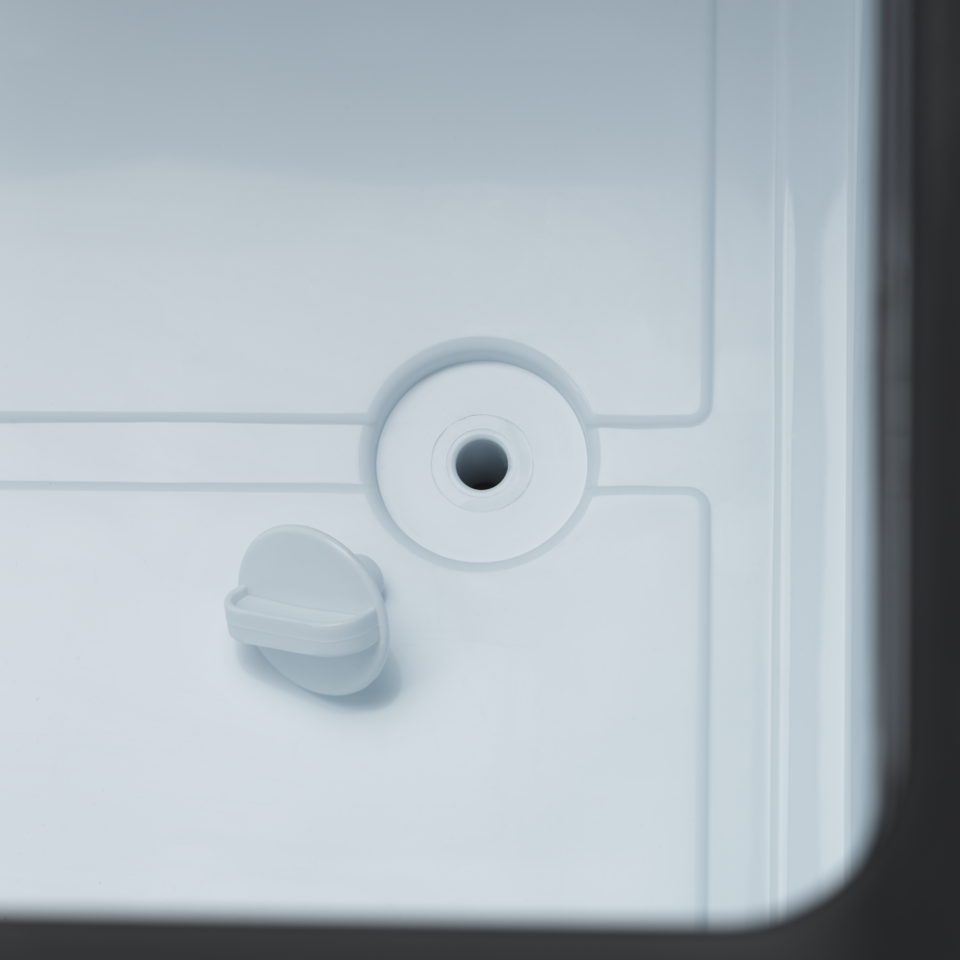

Drain plug
Yes
Anti-condensation coil
No

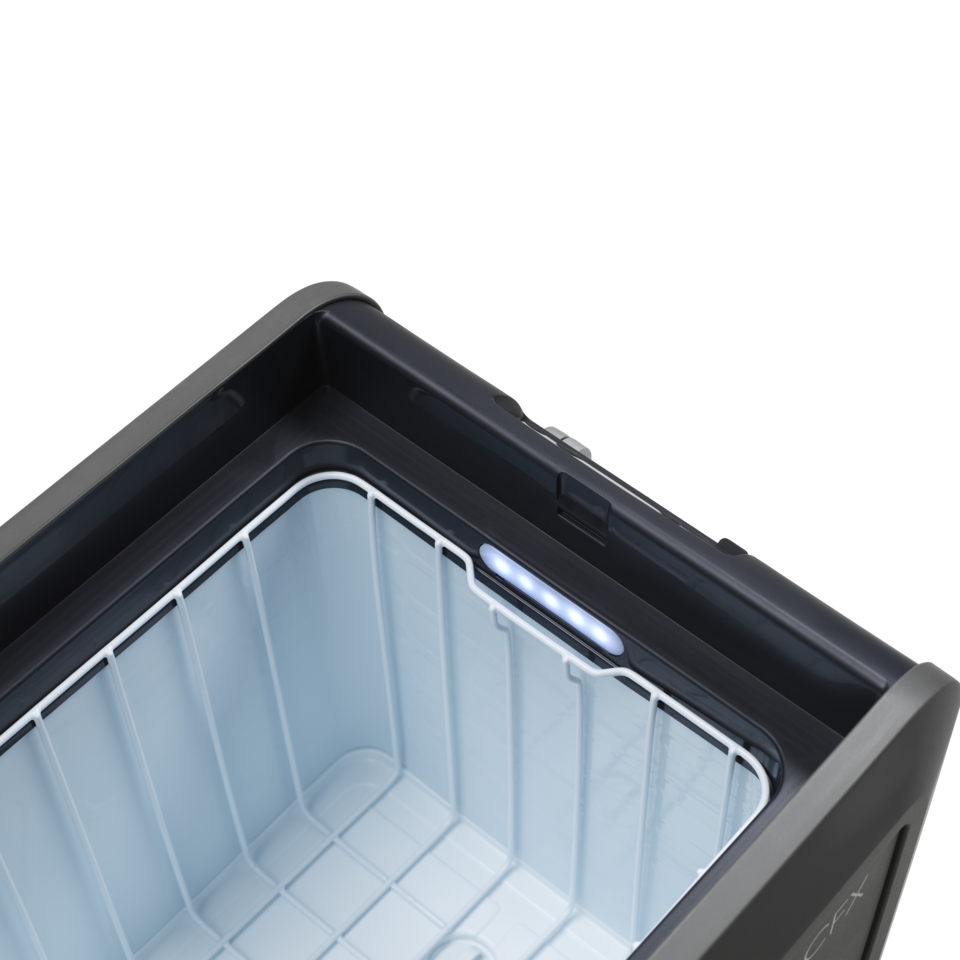

Interior light
Yes, LED
Cable length supply cable, [m]
2
(97000050753)
