DIODE DYNAMICS | Tundra 3rd Gen 2022-2025 Stage Series LED Bed Light Kit (DD7948)
Choose Your Color
SELECT OPTIONS
Choose Your Color
Choose Your Color
Description
Features
Direct fitment on the 2022+ Toyota Tundra.
Allows you to mount four LED rock lights in your truck bed.
10-watt, 800 lumen peak output.
Plug-and-play, simple installation.
Engineered and Assembled in USA.
Overview

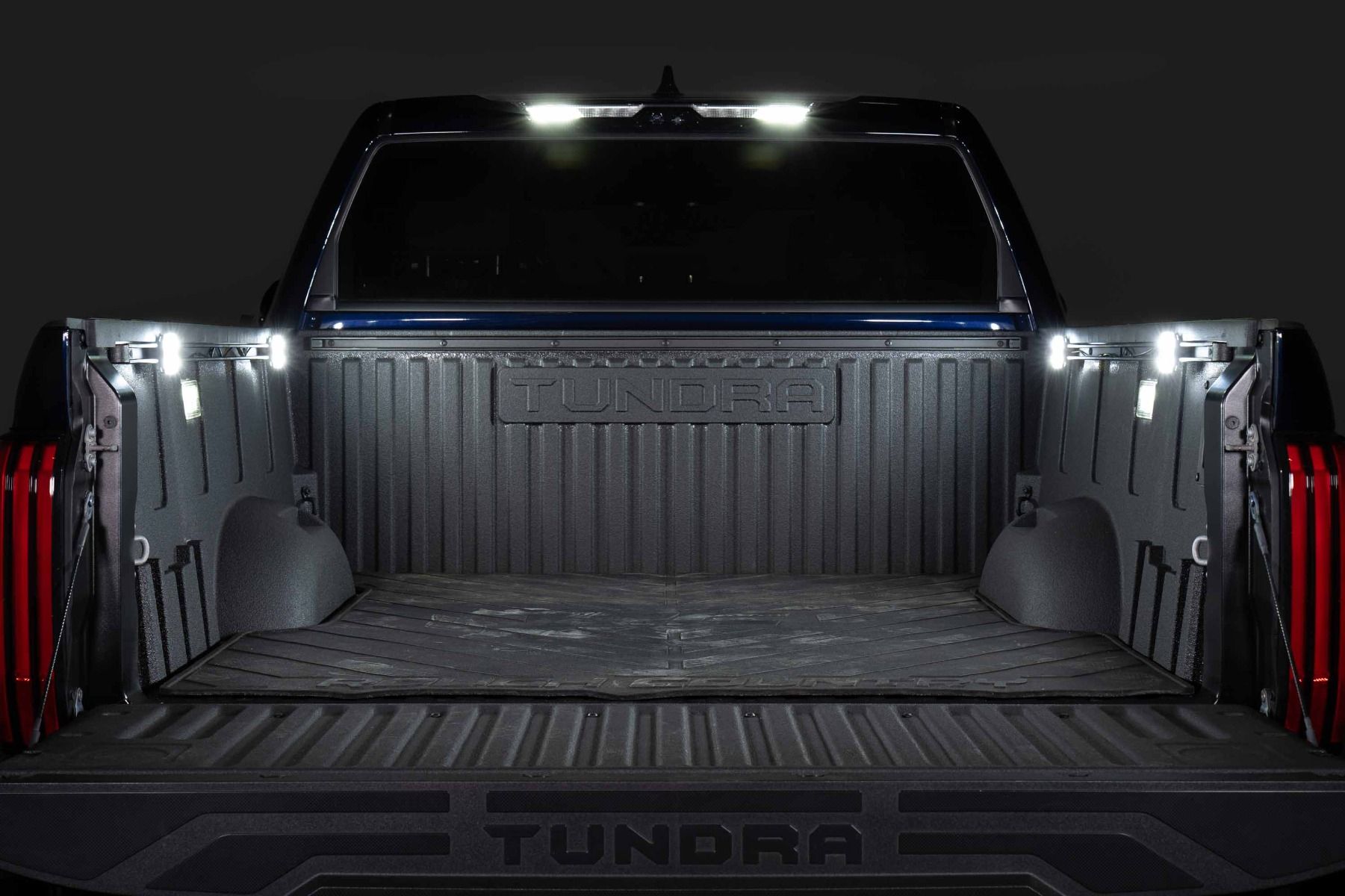

Add significantly more light output to your truck bed at night with our Stage Series LED Bed Light Kit for the Toyota Tundra! This kit allows you to mount four Stage Series LED Rock Lights to the bed rail on your truck bed, giving you a huge increase in light output. The included wiring harness plugs into your factory wiring, allowing the rock lights to illuminate when you open the tailgate, just like the factory bed lights.
Unmatched Light Output. The factory bed lights just don't provide enough light output when loading or unloading your truck bed at night. By pairing optically engineered lenses with high-powered LEDs, the Stage Series Rock Lights included in this kit provide a significant increase in output that's several times brighter than stock bed lights alone. Plus, they automatically come on when you open the tailgate!

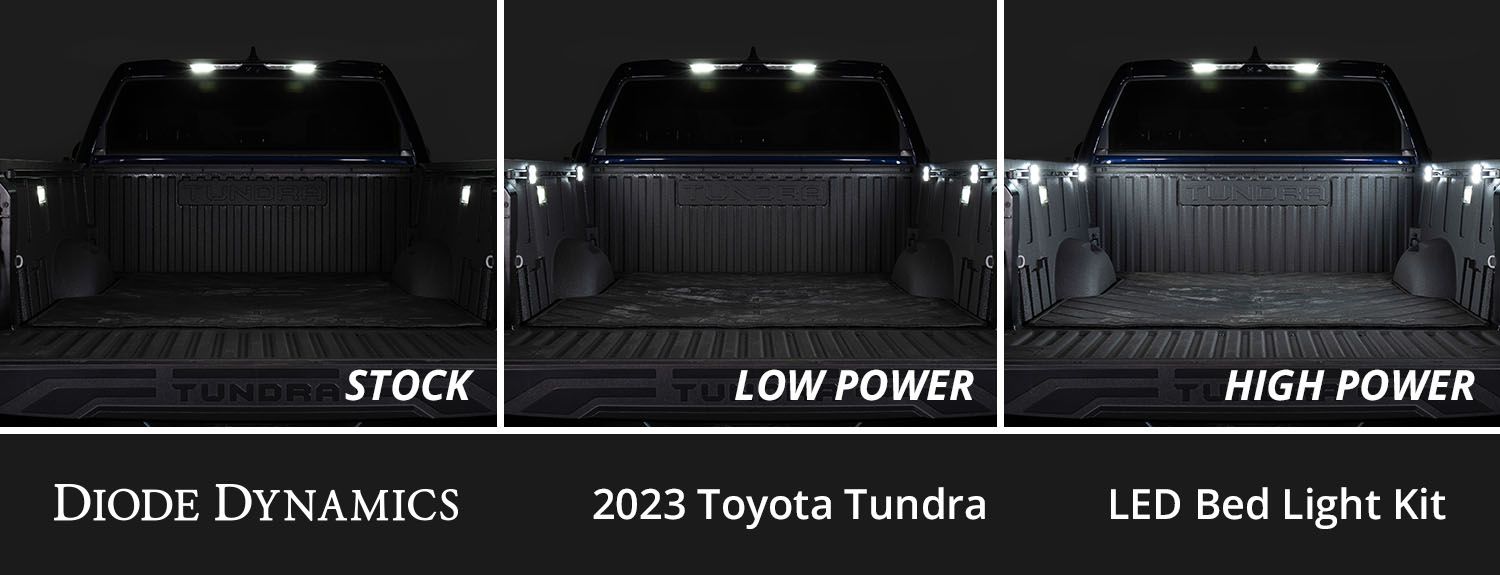

Dual Power Levels. The Stage Series Rock Lights included in this kit use a simple 3-wire system, allowing you to select a low-power or high-power mode. The included 3-way switch allows you to toggle between low and high power with ease, providing optimal output for any situation
Optically-Engineered, Interchangeable Lenses. When adding more light output to your truck bed, most options on the market are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating. And the best part? The lenses are interchangeable, and can be swapped out easily for a quick color change, with either clear or diffused options. Click here to find extra interchangeable lenses.

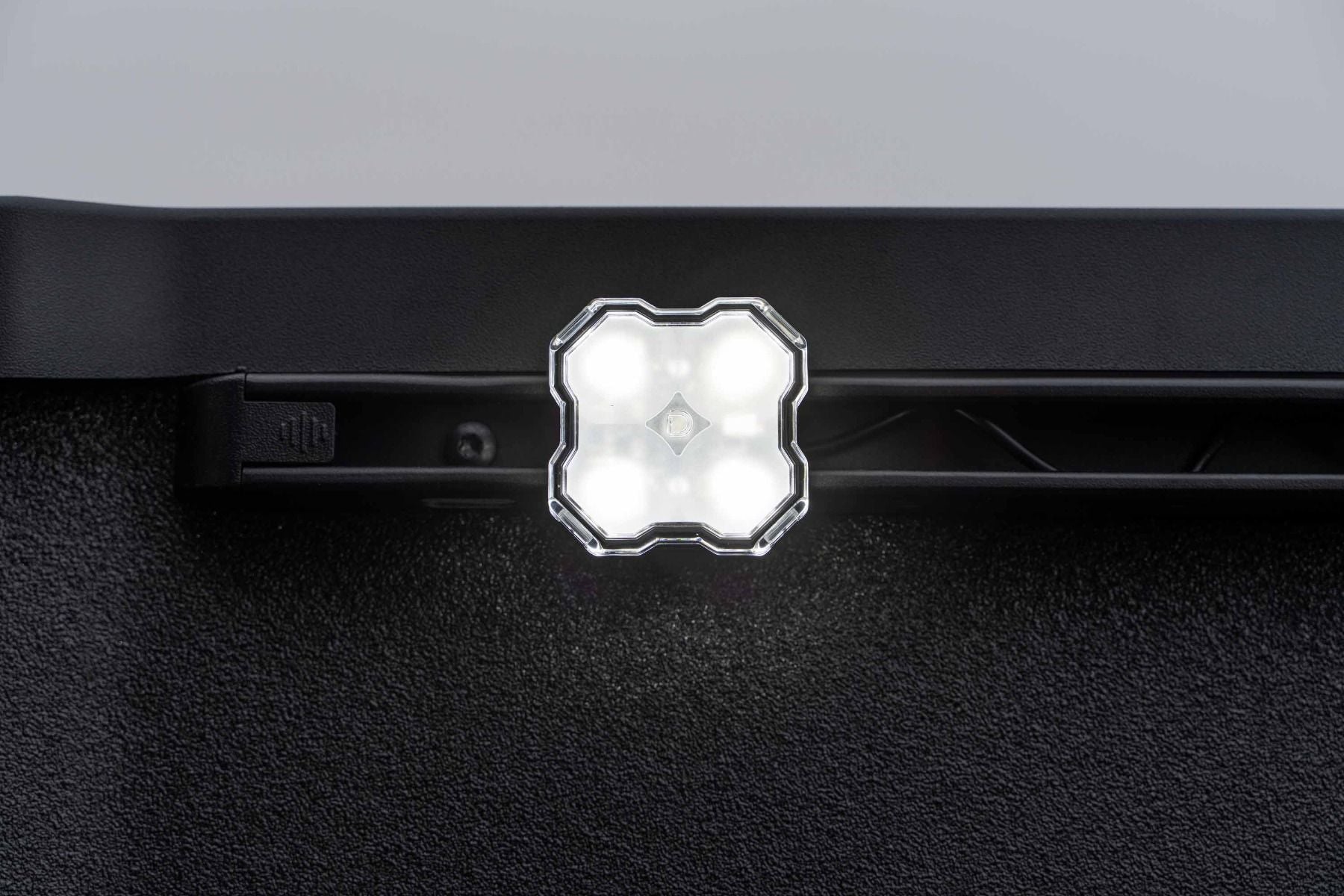

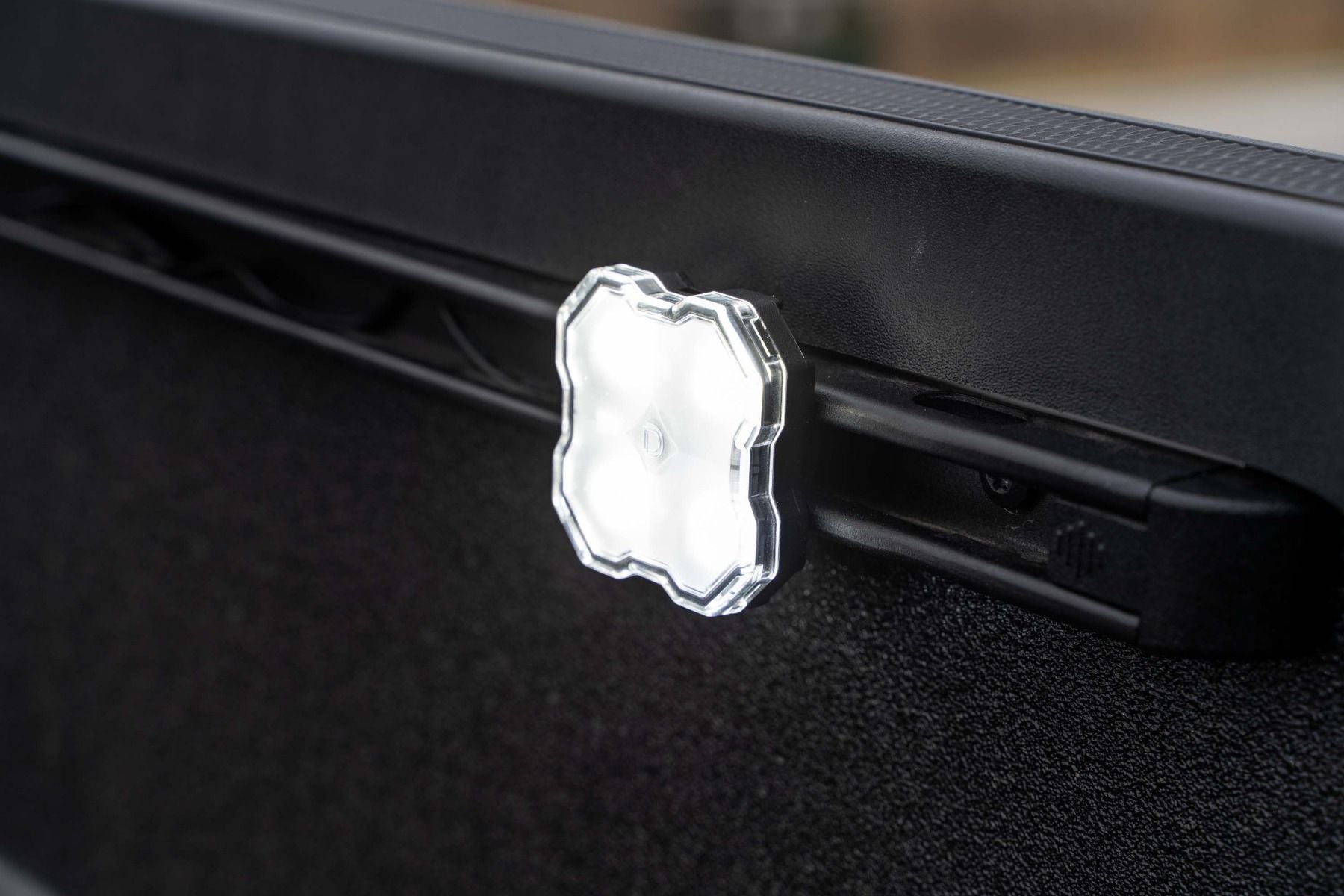

Simple Installation. The included wiring harness plugs directly into the factory bed light wiring for simple installation. The Stage Series LED Rock Lights will then mount onto the included T-Slot Nut to mount it along the factory bed rail.
Proven Reliability. We know your bed lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Bed Lights will handle whatever you throw at them.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

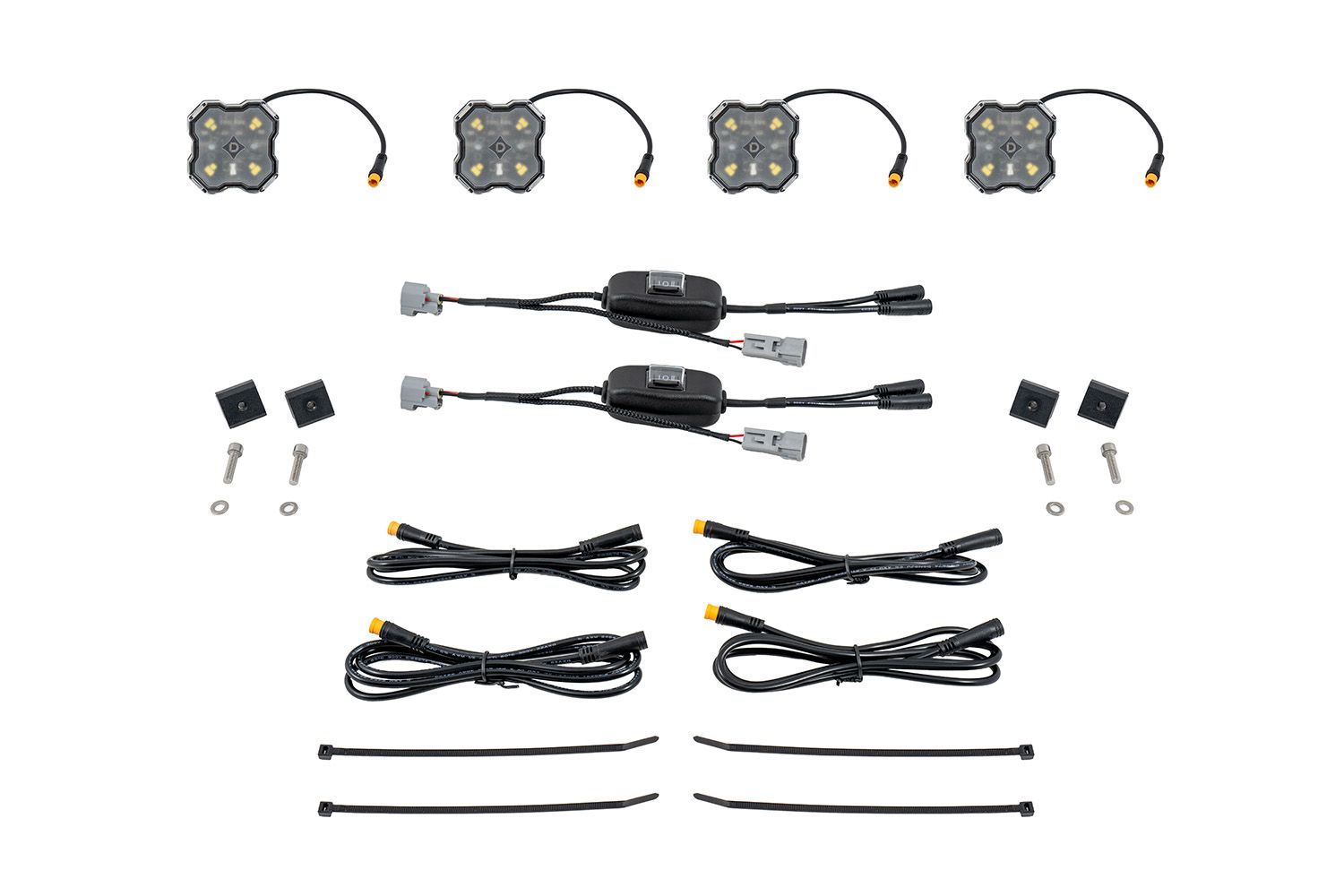

In the Box:
Four (4) Stage Series Rock Lights
One (1) Stage Series Bed Light Wiring Kit
Four (4) T-Slot Nuts
Mounting Hardware
Installation guide
Quantity: Four (4)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee
Fitment
Note: This kit is only compatible with trim levels with factory bed lights.
Make: Toyota
Model: Tundra
Years: 2022, 2023, 2024, 2025
Specifications
Measured Lumens: 800
Intensity (cd): 300
Color Temp (CCT): 5700K
Beam Angle: Round, 60°
Current (amps @ 13.2V): 1.1
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP68 Waterproof
Unit Weight (lb): 0.7
Product Weight (lb): 1.6
Shipped Weight (lb): 2.5
Make: Toyota
Model: Tundra
Years: 2022, 2023, 2024, 2025
100% Satisfaction Guarantee
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Modification: Minor Modification
Installation Guide: Click to download
Warranty
8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
Shipping
Domestic (U.S.) Shipping
All domestic (U.S.) orders ship with your choice of UPS or USPS, and all orders placed before 12 PM CST will ship the same day, if all items are in stock. Shipping costs are calculated at checkout, based on order size. Delivery usually takes just 3-5 days.
You will receive updates from our site when your order is shipped, along with a unique shipment number to ensure that your order is correctly accounted for. This allows you to easily reply to us if you have any concerns.
Have a question about your shipment? Just like any other question you might have, simply send us an email and our trained lighting and shipping experts will reply, usually the same day. Or, give us a call during normal business hours.
International Shipping
We ship to almost everywhere in the world using USPS shipping services, along with your country's postal service. Rates are calculated at checkout to ensure fair pricing. We normally offer standard mail, Priority International, and EMS Express. Please note that the shipping time can vary widely, based on your countries mail service and border policies.
Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.
Puerto Rico: As we use standard USPS, PR is considered a US territory for mailing purposes, and can be selected as such at checkout. Shipping will be domestic U.S. rates.
Canada: We ship to Canada every day! Most small orders will cost around $10 via standard mail. We also offer Priority and Express EMS. To see exact shipping rates, please view your options at checkout. We also offer UPS service to Canada.
Europe, Asia, and Australia: We ship to all other countries using standard mail. You can check the shipping cost at checkout, as it will be calculated based on your cart. We offer standard mail, Priority, and EMS Express.
Customs Fees for International Shipping
Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.
As we use only standard mail, our customers normally do not incur any type of import fees, customs fees, or tariffs for smaller shipments. However, this cannot be guaranteed, and any fees are the responsibility of the buyer. Please contact us if you have any concerns.
Part Numbers
The following part numbers are included with this listing:
| SKU | Price | Name | Weight | Driver | Components |
|---|---|---|---|---|---|
| DD7948 | $199.95 | Stage Series LED Bed Light Kit for Toyota Tundra/Tacoma, White Diffused | 2.5 lbs | AH0599 Rock Light M8 White Diffused (single), AS0203 Tundra/Tacoma Stage Series LED Bed Light Wiring Kit |
