Sale price$679.95
Choose Your Lens Color:

Choose Your Lens Color

Include RGBW Controller?:

Include RGBW Controller?

Quantity:

Description

Features
High-intensity light output
Aluminum heatsink with signature Ico Bezel shape
Thick, durable lenses, engineered to spread light
Engineered and Assembled in USA

Overview
Introducing the Stage Series Rock Light SXS Installer Kit from Diode Dynamics! This kit includes everything you need to install four rock lights in the wheel wells of your UTV. Stage Series Rock Lights set a new standard in the rock light category. These USA-assembled units offer unmatched light output in a compact size, making them the perfect solution to add more light underneath your Side-by-Side.

Unmatched Light Output. With a true power draw of over 10 watts, the Stage Series White Diffused Rock Light provides a peak output of 1000 lumens. Even with claims of high power, generic rock lights run at only a few watts, making the Diode Dynamics Rock Light a huge step up for the entire category.

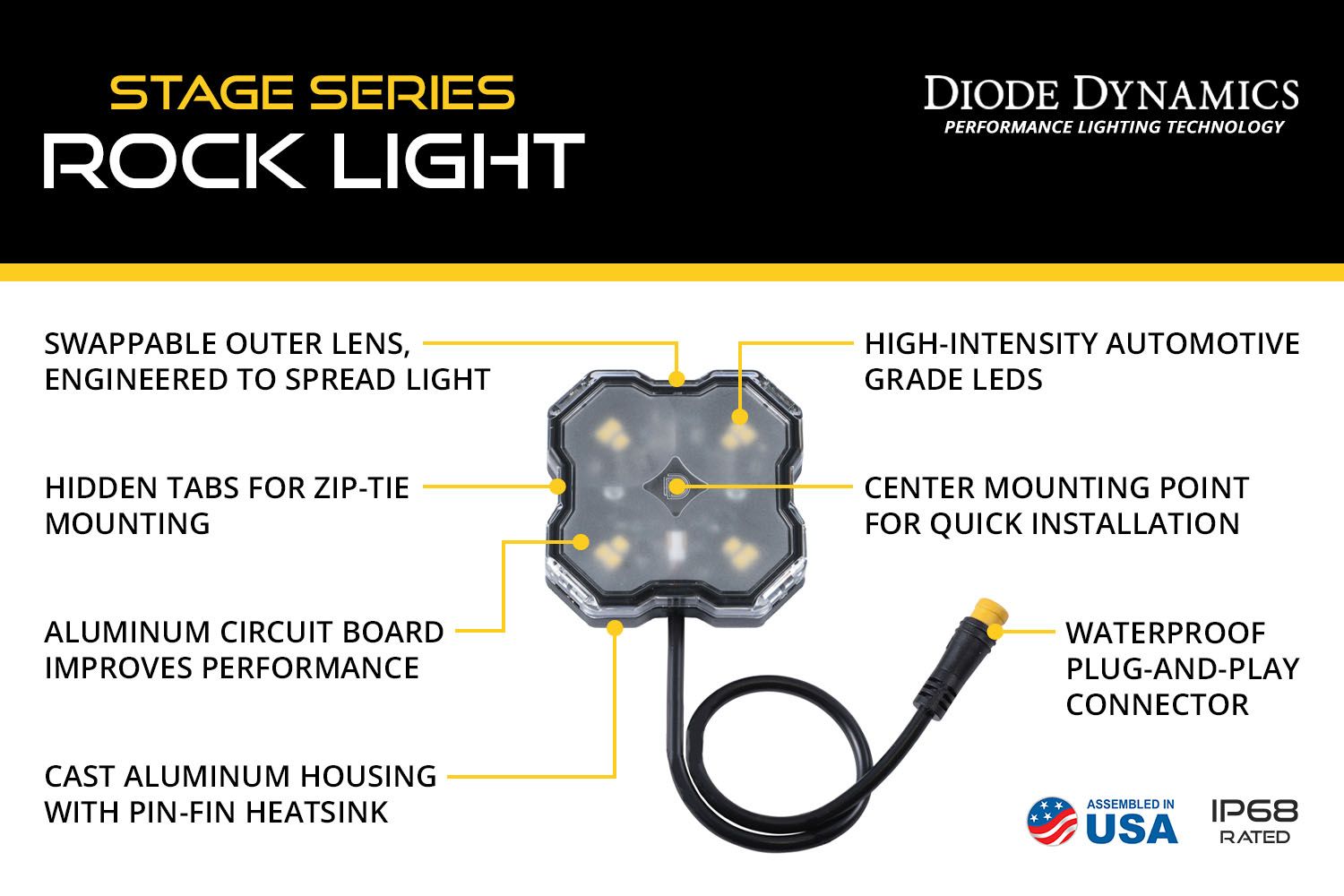

Optically-Engineered, Interchangeable Lenses. Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable, and can be swapped out easily, with either clear or diffused options. Click here to find extra interchangeable lenses.

Easy Install. The included roll bar mounts allow you to easily mount our Stage Series Rock Lights in the wheel wells of your SXS. Using the included clamps, simply mount the rock lights to the main frame support bars in the wheel wells!

Choose Your Color. The Stage Series Rock Light SXS Installer Kit is available in either cool white or RGBW multicolor. Both kits come standard with diffused lenses, providing excellent integration and light spread. White is a great option to get the maximum output possible. If you’re looking for more options, along with strobing, fading, and custom patterns, you’ll want to check out our RGBW Multicolor version!

Simple Connections. For maximum convenience, these kits include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection with the plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them.

Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

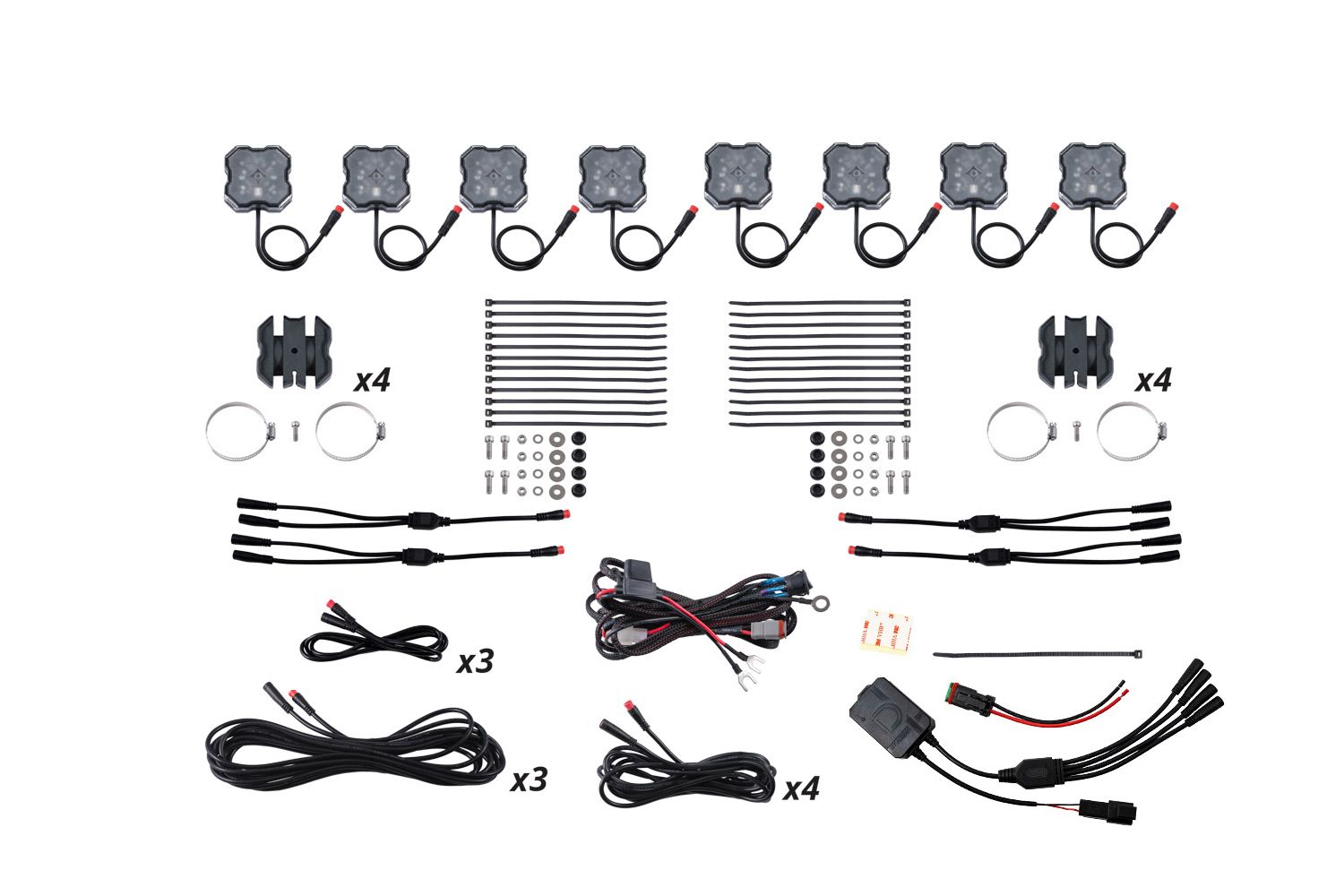

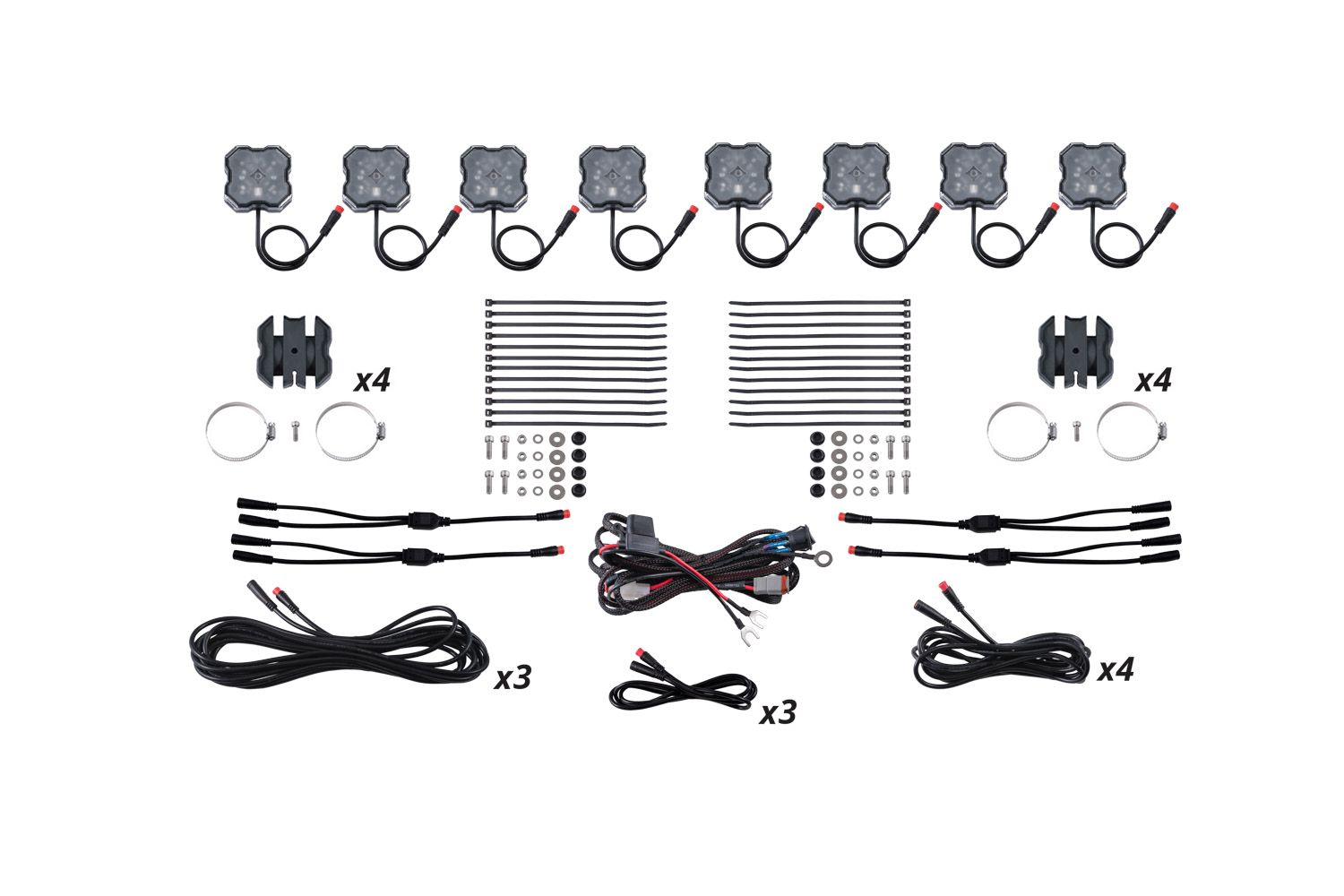

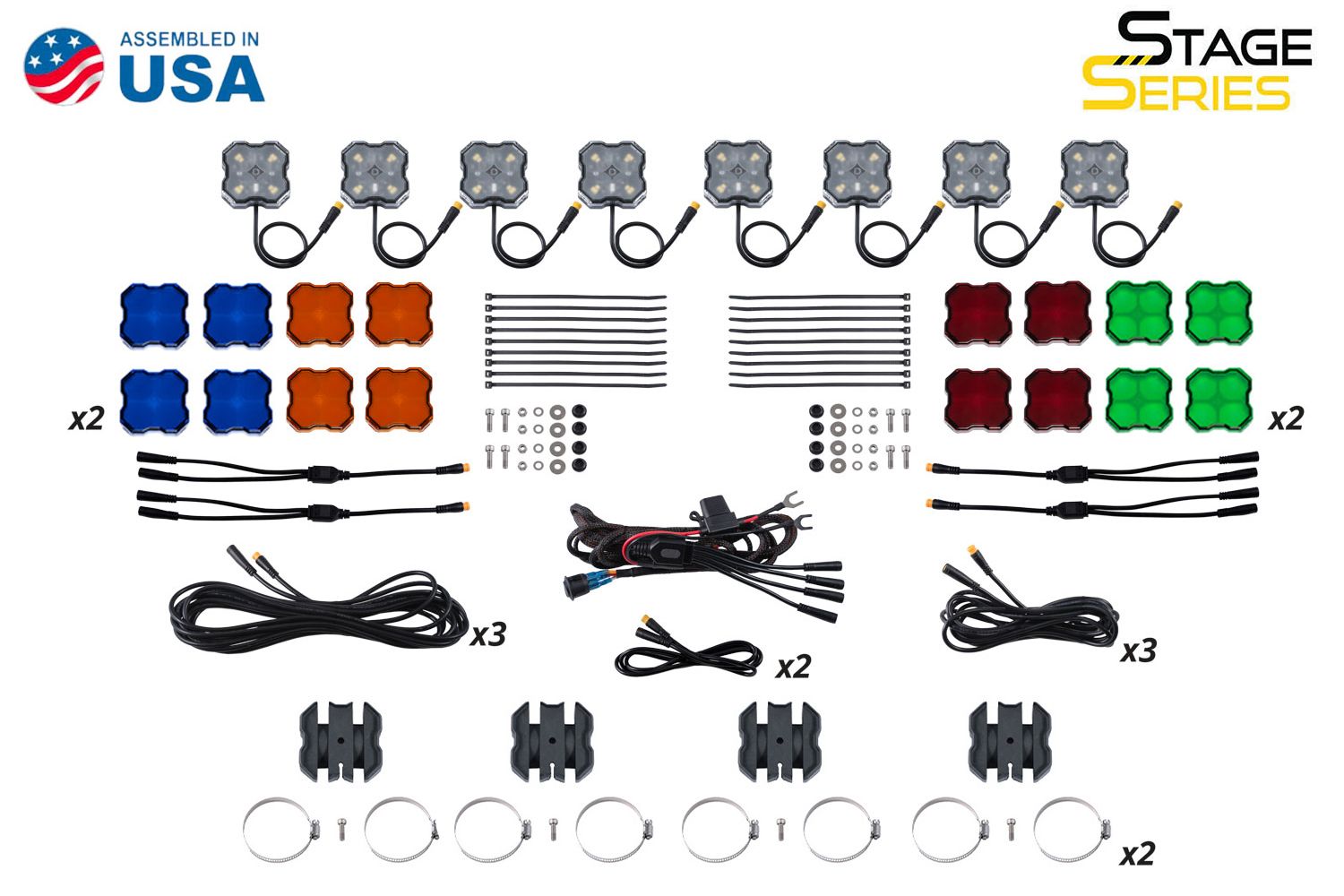

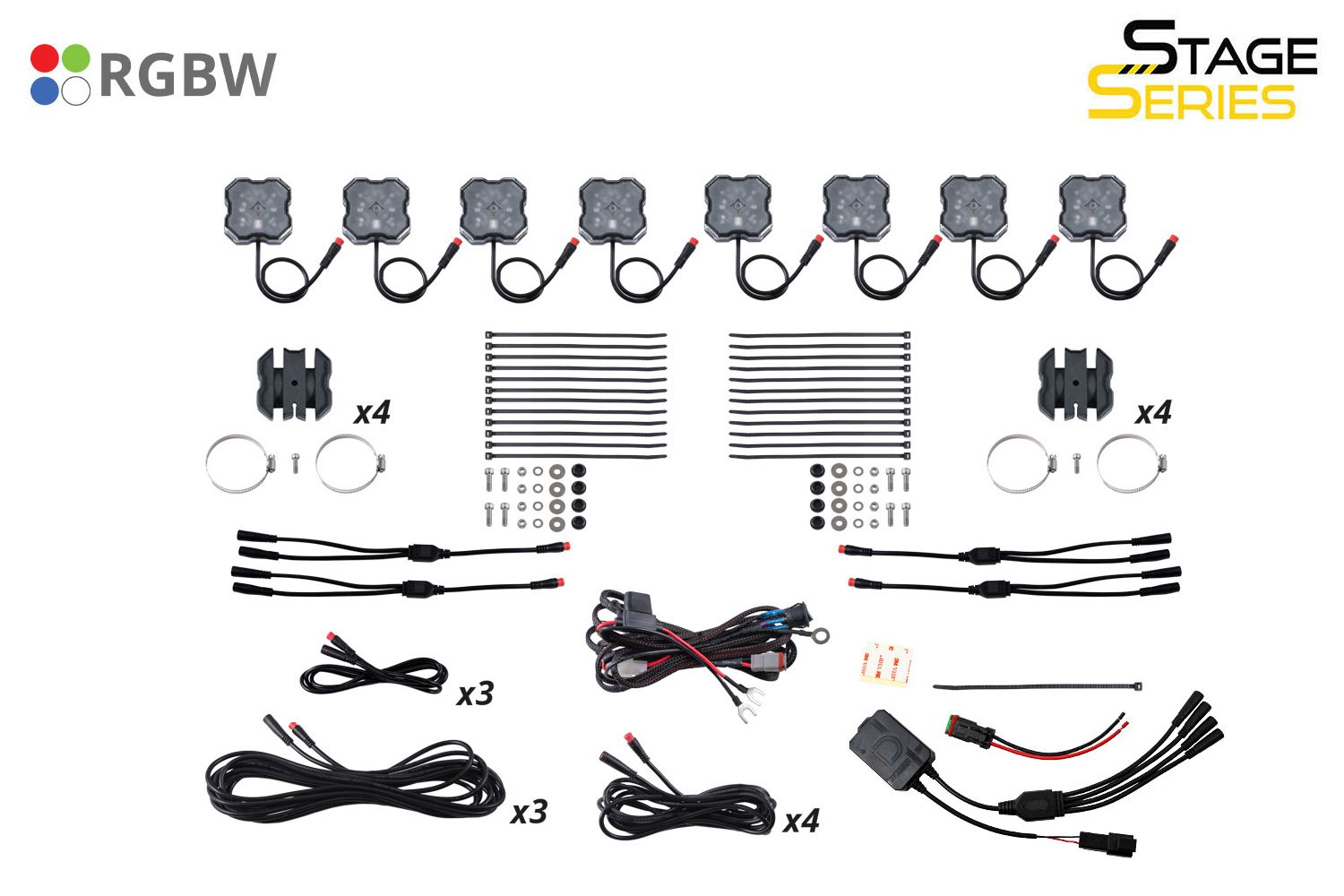

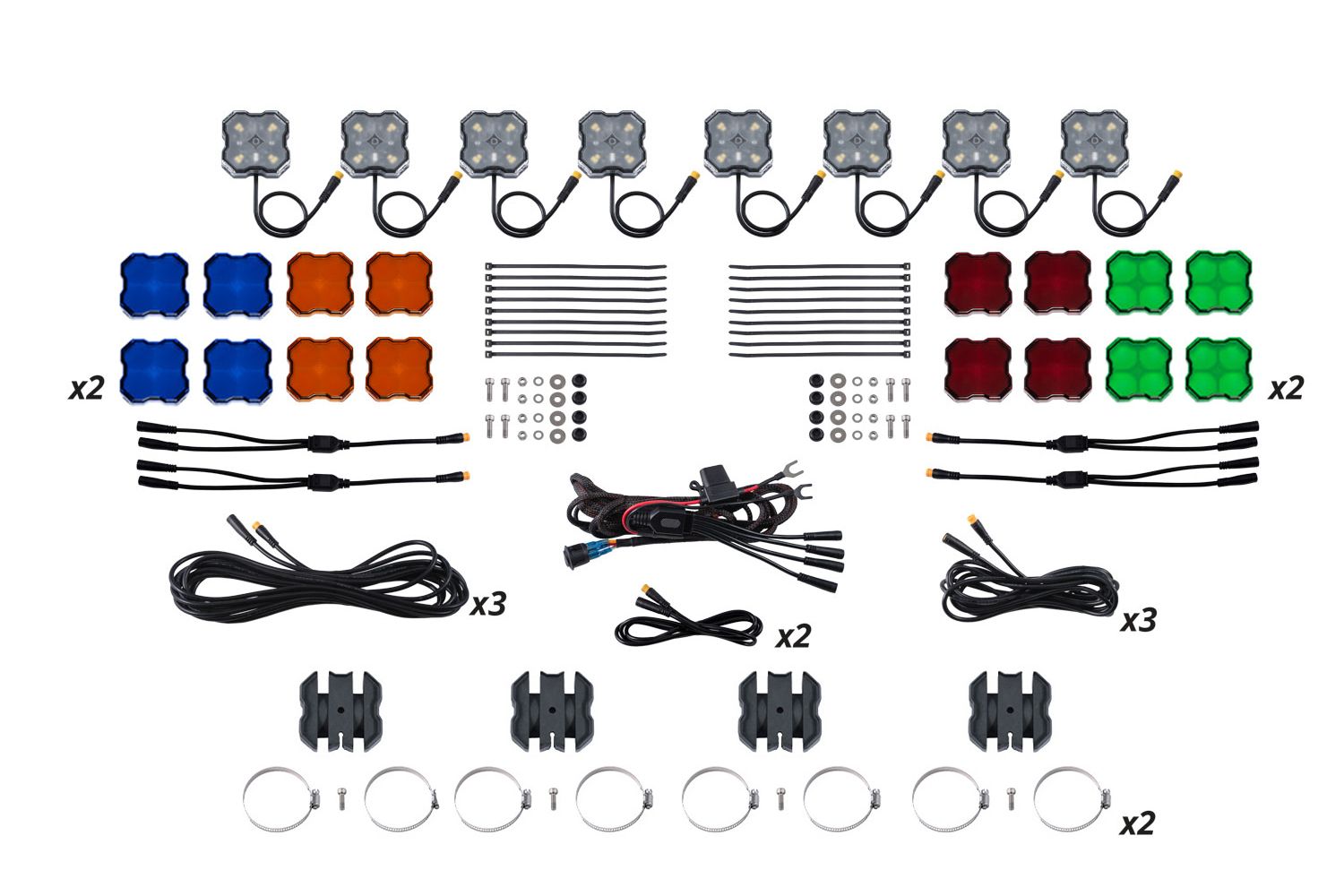

In the Box:
Eight (8) Stage Series White Diffused or RGBW Rock Lights
One (1) Rock Light Wiring Harness
Eight (8) Rock Light Tube Mount Adapters
One (1) Bluetooth RGBW M8 Controller (optional)
One (1) 1M Extension
Four (4) 3M Extensions
Three (3) 5M Extensions
Twenty-Four (24) Zip Ties
Installation guide

Quantity: Eight (8)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Specifications

NOTE: Specifications listed here are for each individual Rock Light.

Single-Color Rock Light
Lens Type High Power Output
(measured lumens)
Low Power Output
(measured lumens)
High Power Intesity
(candela)
No Lens 1000 lm 330 lm 360 cd
White Diffused 800 lm 240 lm 300 cd
Amber Diffused 410 lm 130 lm 150 cd
Green Diffused 160 lm 80 lm 105 cd
Red Diffused 70 lm 25 lm 31 cd
Blue Diffused 20 lm 5 lm 9 cd



RGBW Rock Light
LED Color/Lens Type Measured Output
(lumens)
Peak Intesity
(candela)
White Diffused 75 lm 30 cd
Green Diffused 60 lm 25 cd
Red Diffused 50 lm 20 cd
Blue Diffused 20 lm 10 cd



What do these terms mean?
Color Temp (CCT): 5700K
Beam Angle: Round, 60°
Power (watts): High Power: 10, Low Power: 2.5, RGBW: 4.596
Operating Voltage: 9-16V
Current (amps @ 13.2V): High Power: 0.8 , Low Power: 0.2, RGBW: 0.36
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP68 Waterproof

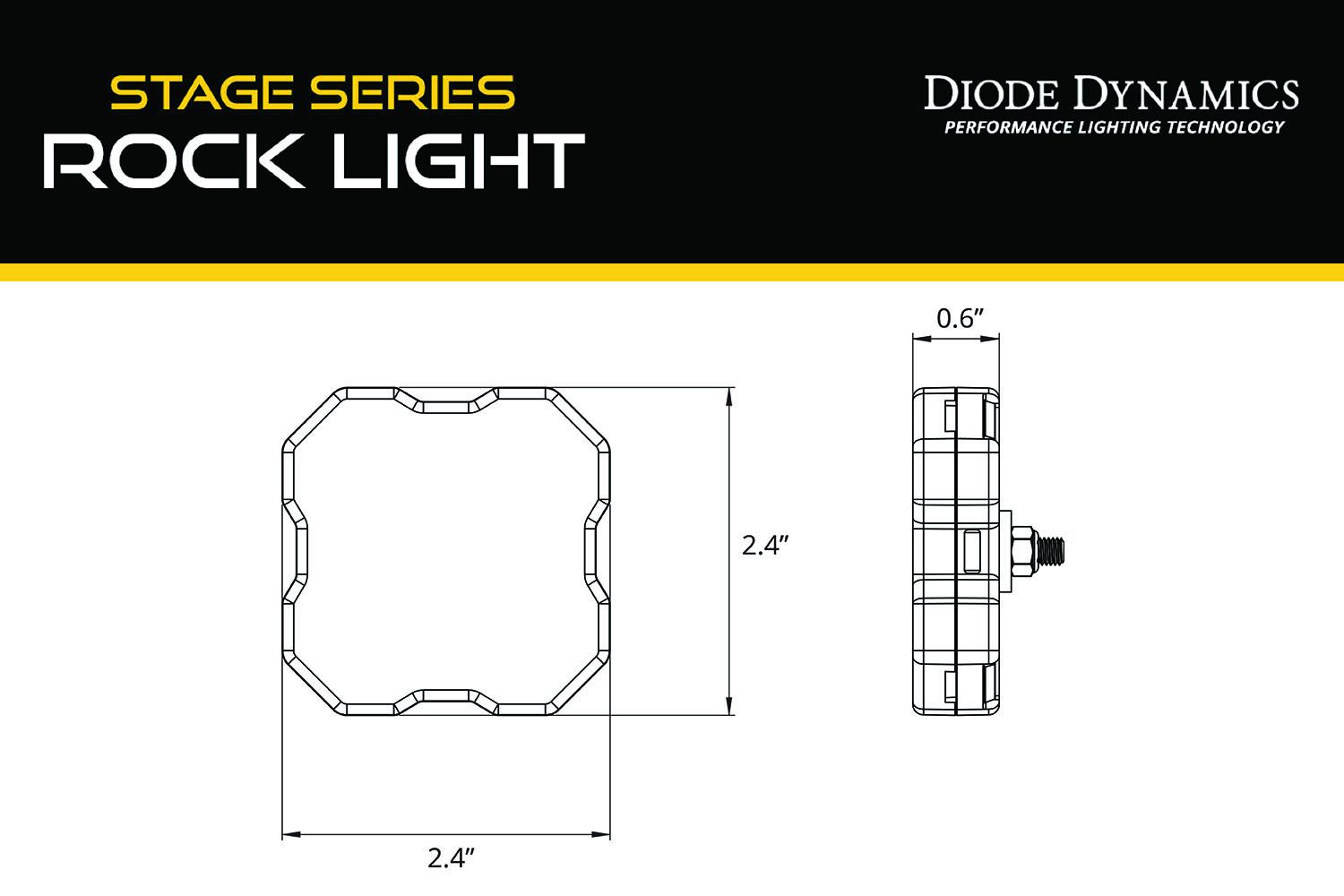

Product Dimensions (in): 2.4x2.4x0.6
Shipped Weight (lb): 4.7
100% Satisfaction Guarantee

Installation

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Modification: Basic Wiring Only

Installation Guide: Click to download

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.

Shipping

Domestic (U.S.) Shipping

All domestic (U.S.) orders ship with your choice of UPS or USPS, and all orders placed before 12 PM CST will ship the same day, if all items are in stock. Shipping costs are calculated at checkout, based on order size. Delivery usually takes just 3-5 days.

You will receive updates from our site when your order is shipped, along with a unique shipment number to ensure that your order is correctly accounted for. This allows you to easily reply to us if you have any concerns.

Have a question about your shipment? Just like any other question you might have, simply send us an email and our trained lighting and shipping experts will reply, usually the same day. Or, give us a call during normal business hours.


International Shipping

We ship to almost everywhere in the world using USPS shipping services, along with your country's postal service. Rates are calculated at checkout to ensure fair pricing. We normally offer standard mail, Priority International, and EMS Express. Please note that the shipping time can vary widely, based on your countries mail service and border policies.

Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.

Puerto Rico: As we use standard USPS, PR is considered a US territory for mailing purposes, and can be selected as such at checkout. Shipping will be domestic U.S. rates.

Canada: We ship to Canada every day! Most small orders will cost around $10 via standard mail. We also offer Priority and Express EMS. To see exact shipping rates, please view your options at checkout. We also offer UPS service to Canada.

Europe, Asia, and Australia: We ship to all other countries using standard mail. You can check the shipping cost at checkout, as it will be calculated based on your cart. We offer standard mail, Priority, and EMS Express.


Customs Fees for International Shipping

Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.

As we use only standard mail, our customers normally do not incur any type of import fees, customs fees, or tariffs for smaller shipments. However, this cannot be guaranteed, and any fees are the responsibility of the buyer. Please contact us if you have any concerns.

Part Numbers

The following part numbers are included with this listing:

SKU Price Name Weight Driver Components
DD7753C $679.95 Stage Series SXS Rock Light Installer Kit, RGBW M8 w/Controller (8-pack) 7.2 lbs AS0104 Rock Light M8 RGBW 4-Pack Wiring Kit, AS0106 Rock Light M8 RGBW 2-Pack Wiring Kit, AH0591 Rock Light M8 RGBW (single), DD3066 Bluetooth RGBW M8 Controller 1 ch, DD7465 Rock Light Magnet Mount Adapter Kit
DD7753 $599.95 Stage Series SXS Rock Light Installer Kit, RGBW M8 (8-pack) 7 lbs DD7464 Rock Light Tube Mount Adapter Kit, DD7447 Rock Light RGBW M8 4-Pack, DD3066 Bluetooth RGBW M8 Controller 1 ch
DD7752 $679.95 Stage Series SXS Rock Light Installer Kit, White Diffused M8 (8-pack) 8.1 lbs DD7464 Rock Light Tube Mount Adapter Kit, DD7442 Rock Light White Diffused M8 4-Pack
