DIODE DYNAMICS | Stage Series Fog Pocket Kit for 2021-2025 Ford Bronco (w/ Steel Bumper)

Description

Features
Bolt-on fitment for 2021+ Ford Bronco with steel bumper.
Adds SAE-compliant fog lights, and powerful offroad lighting.
Harnesses included for independent control of road-legal and offroad lighting.
Backlight feature provides amber accent light.
Highly durable powdercoated stainless steel bracket.
Engineered and assembled in USA.

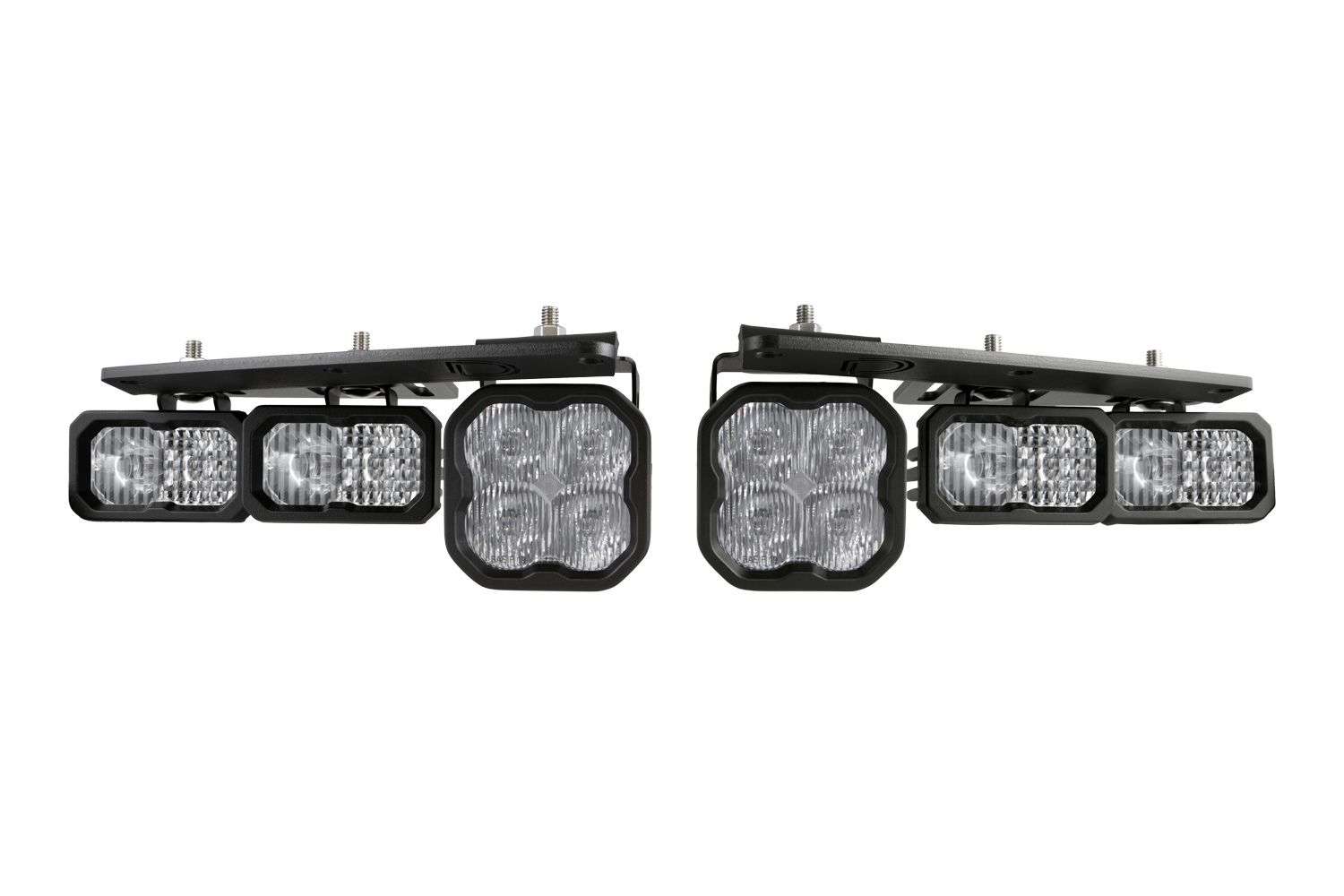

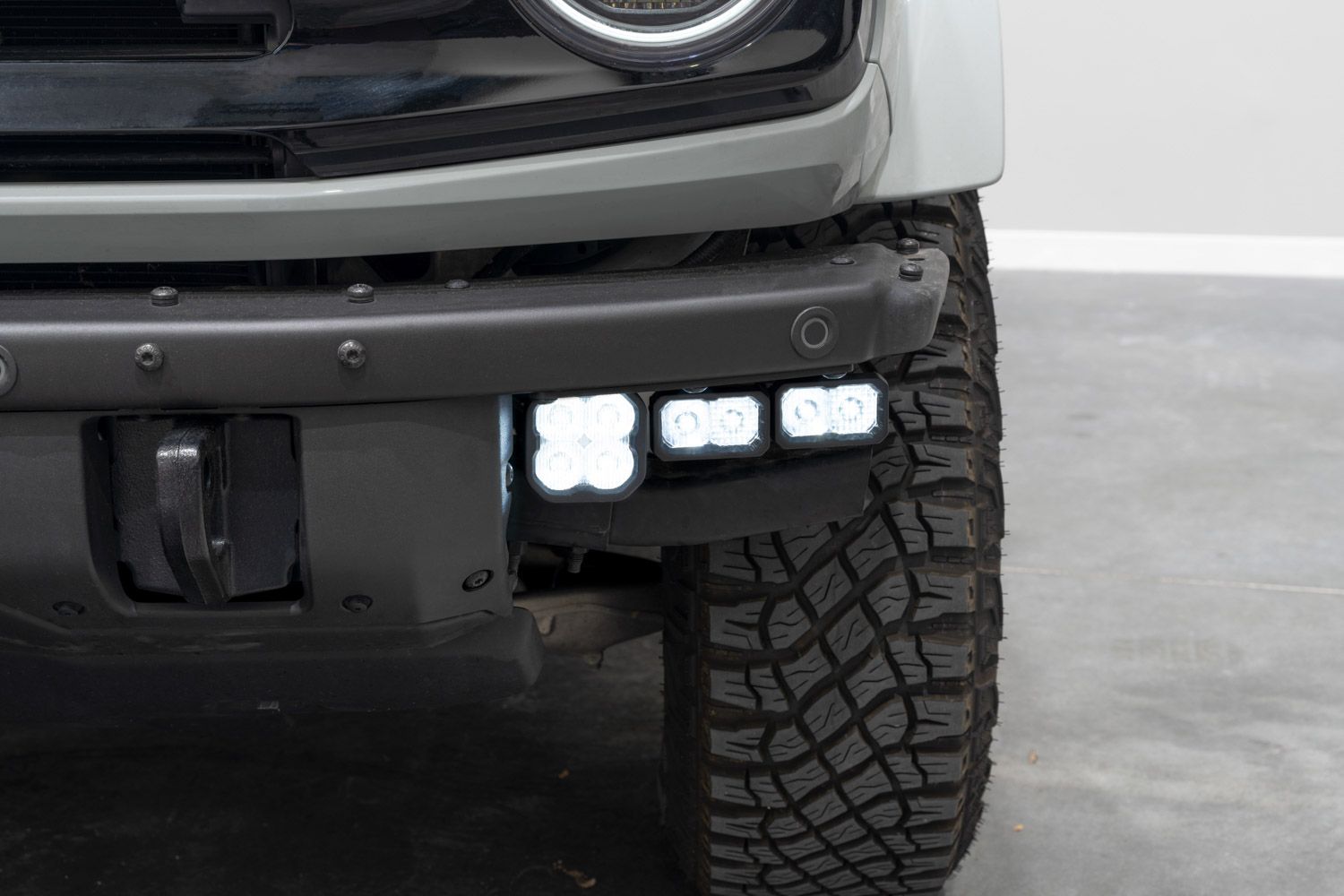

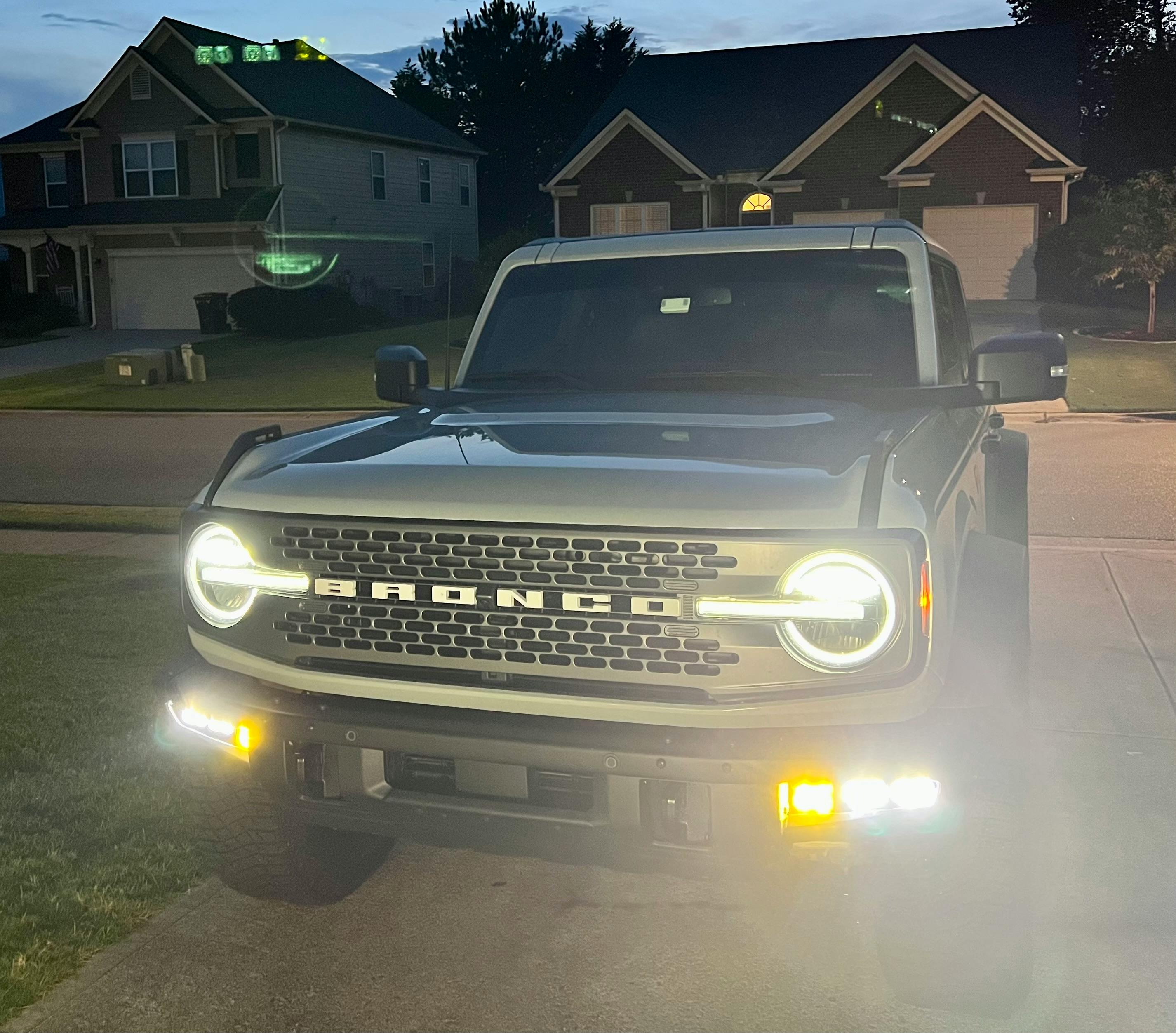

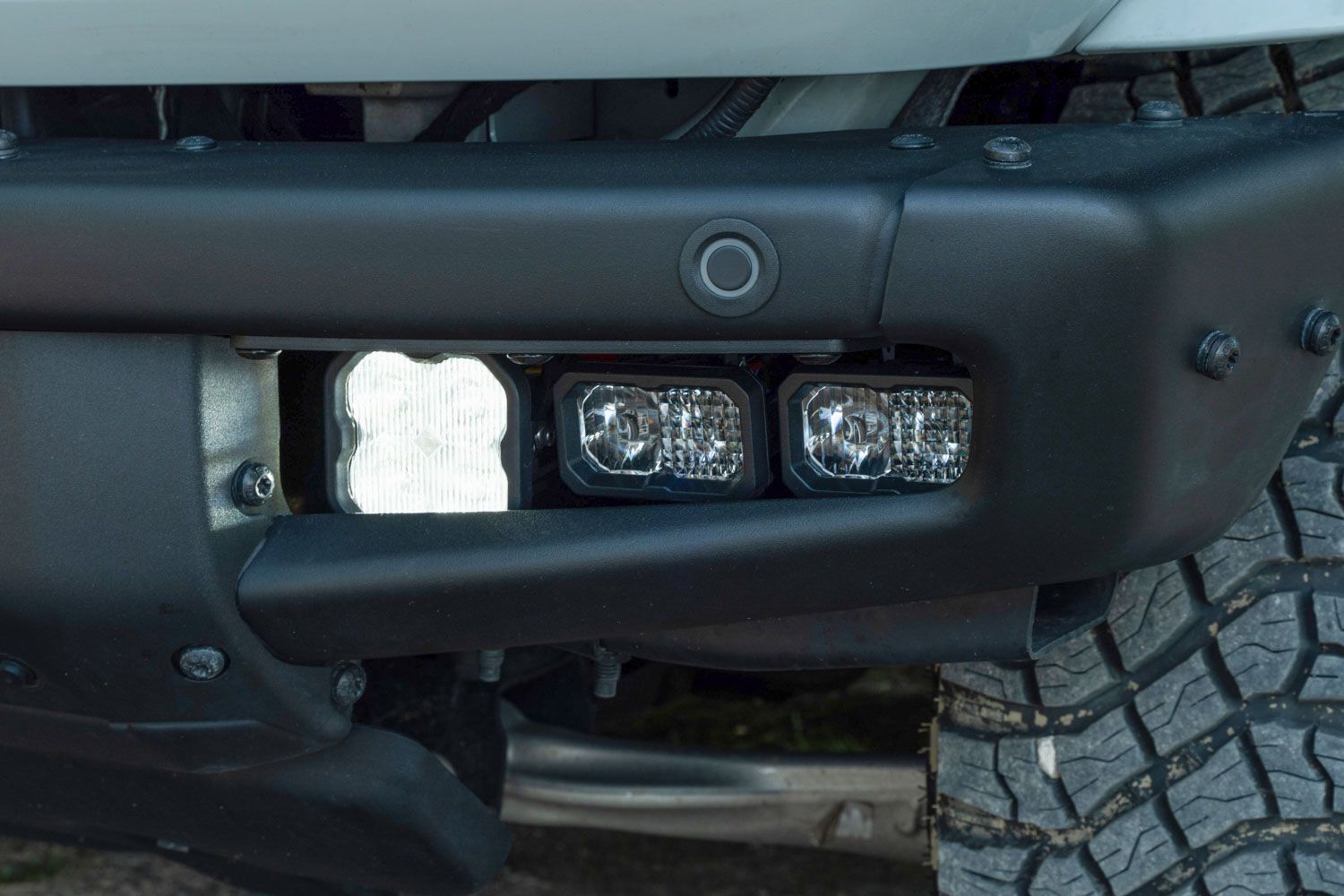

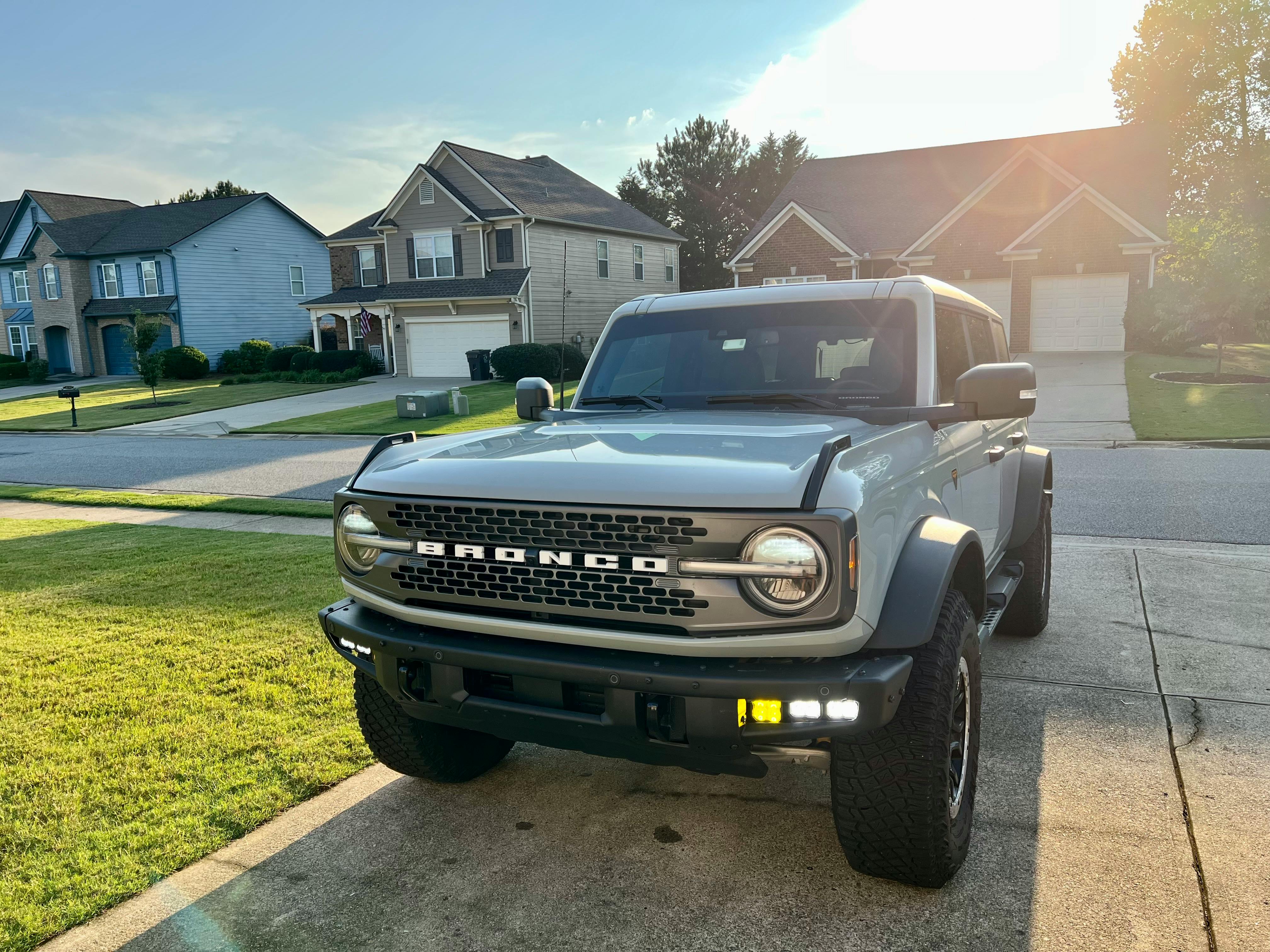

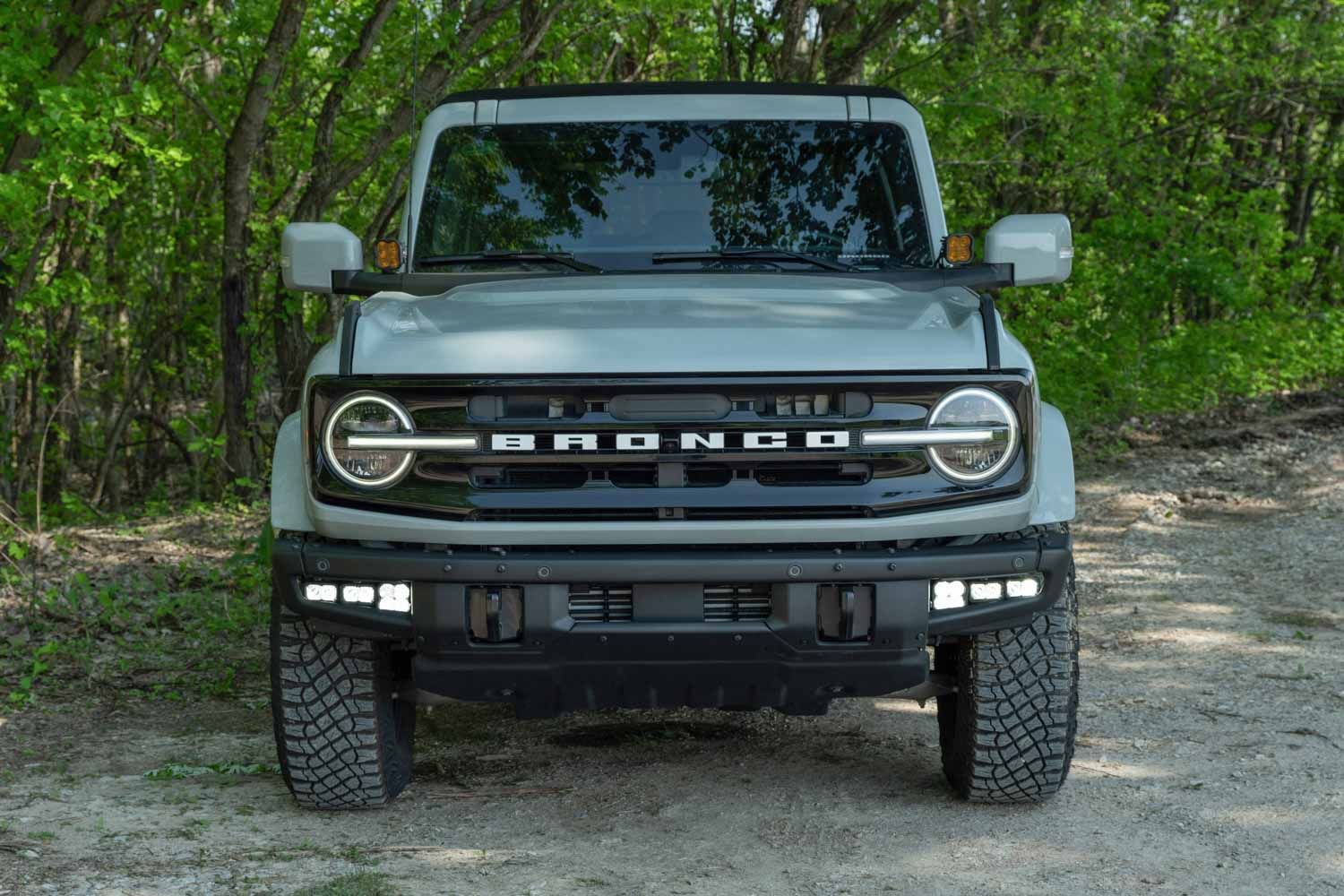

Overview. If you are looking to add some serious functionality to your Bronco, look no further! The Stage Series Fog Pocket Kit for the 2021+ Ford Bronco from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount two SS3 LED Pods and four SSC2 LED pods in the factory bumper openings. With the included harnesses, you'll be able to switch between road-legal fog lights and offroad lights with ease using your factory aux switch bank.

Lighting for Every Situation. This kit includes two SS3 LED Pods in the SAE-compliant fog beam pattern and four SSC2 LED pods in the combo beam pattern. This combination provides ideal light output whether you are on or offroad!

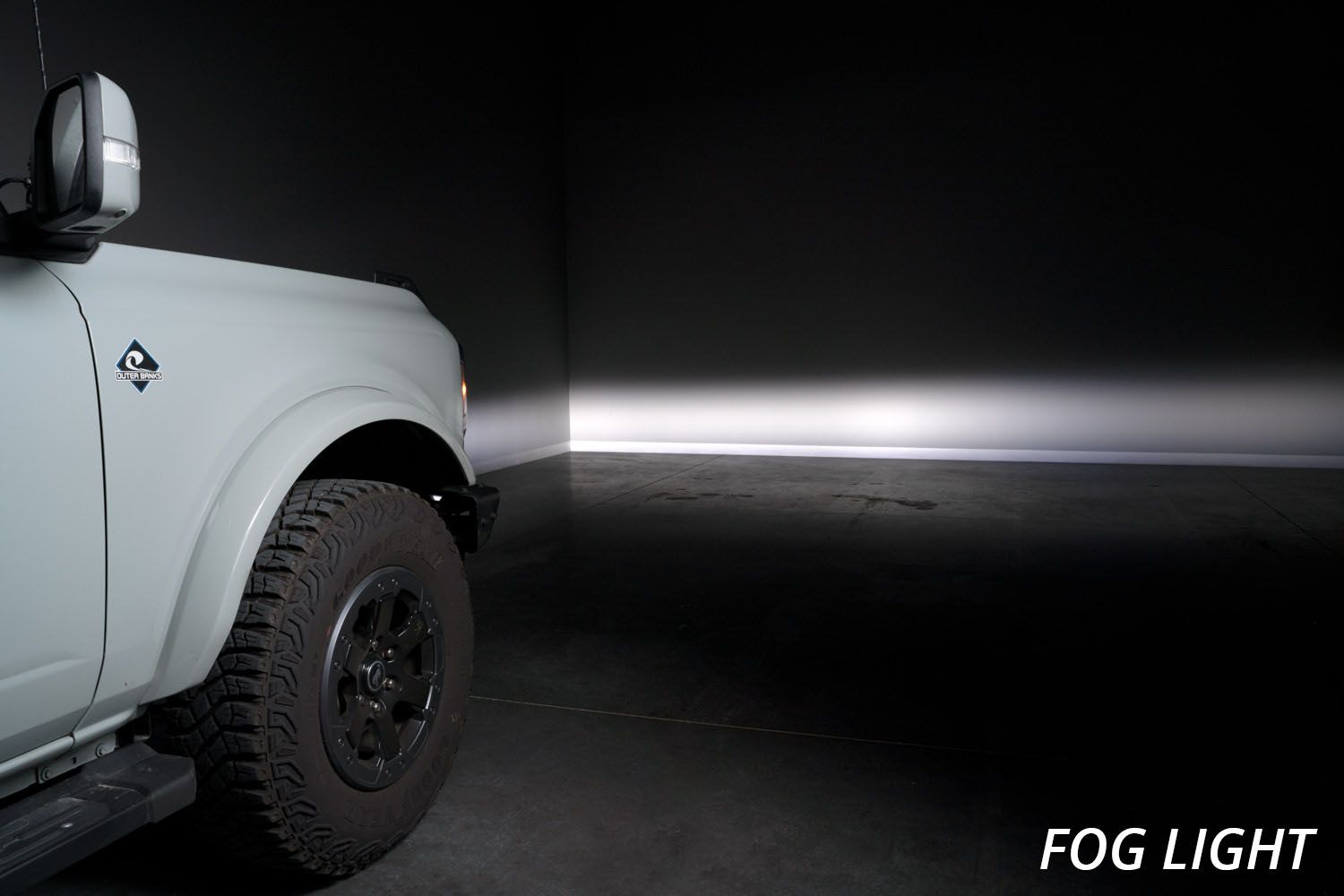

SS3 SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your vehicle.

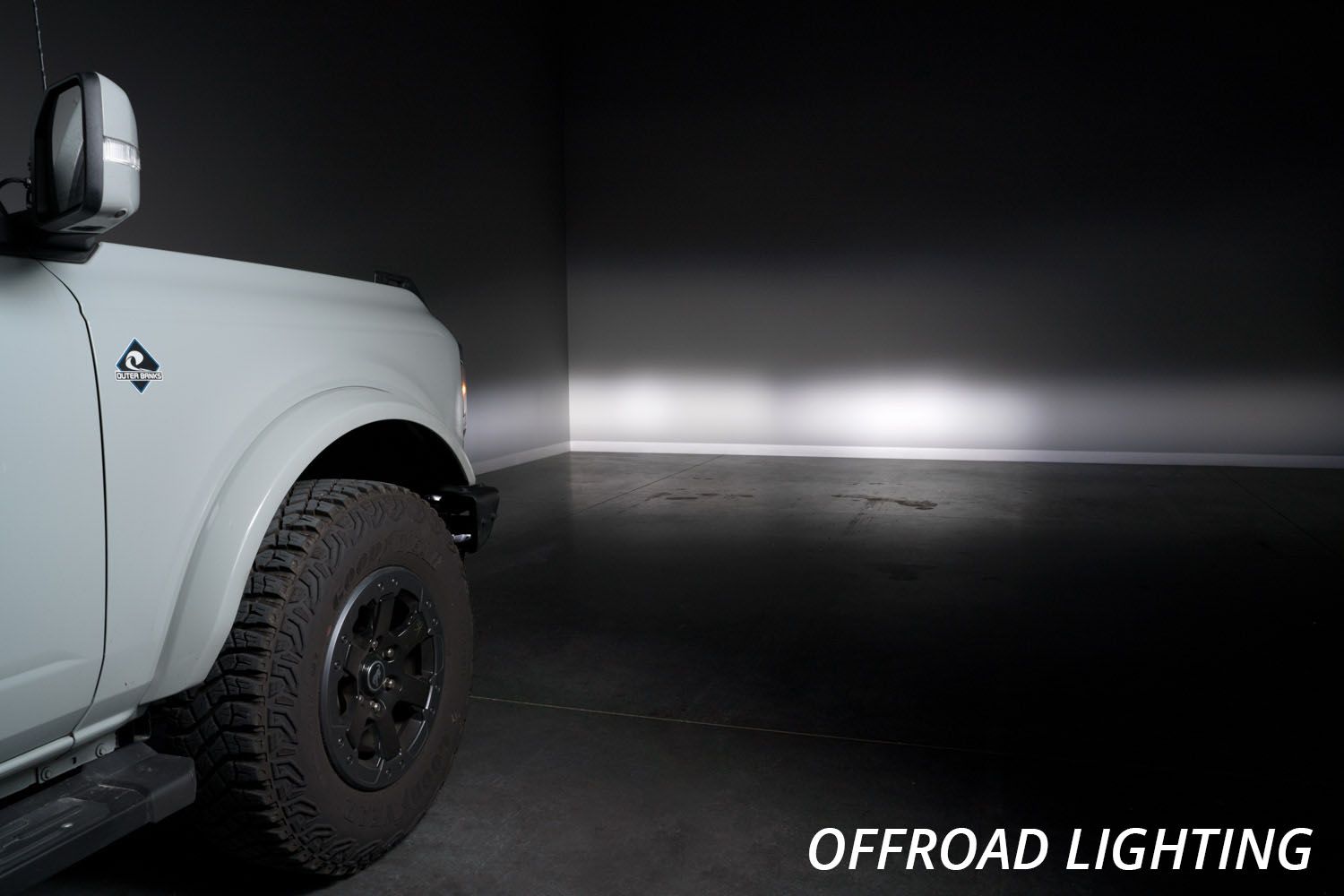

SSC2 Combo pattern combines both the Driving and Flood optics, and provides maximum visibility. It shines light downrange in a focused, rectangular 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

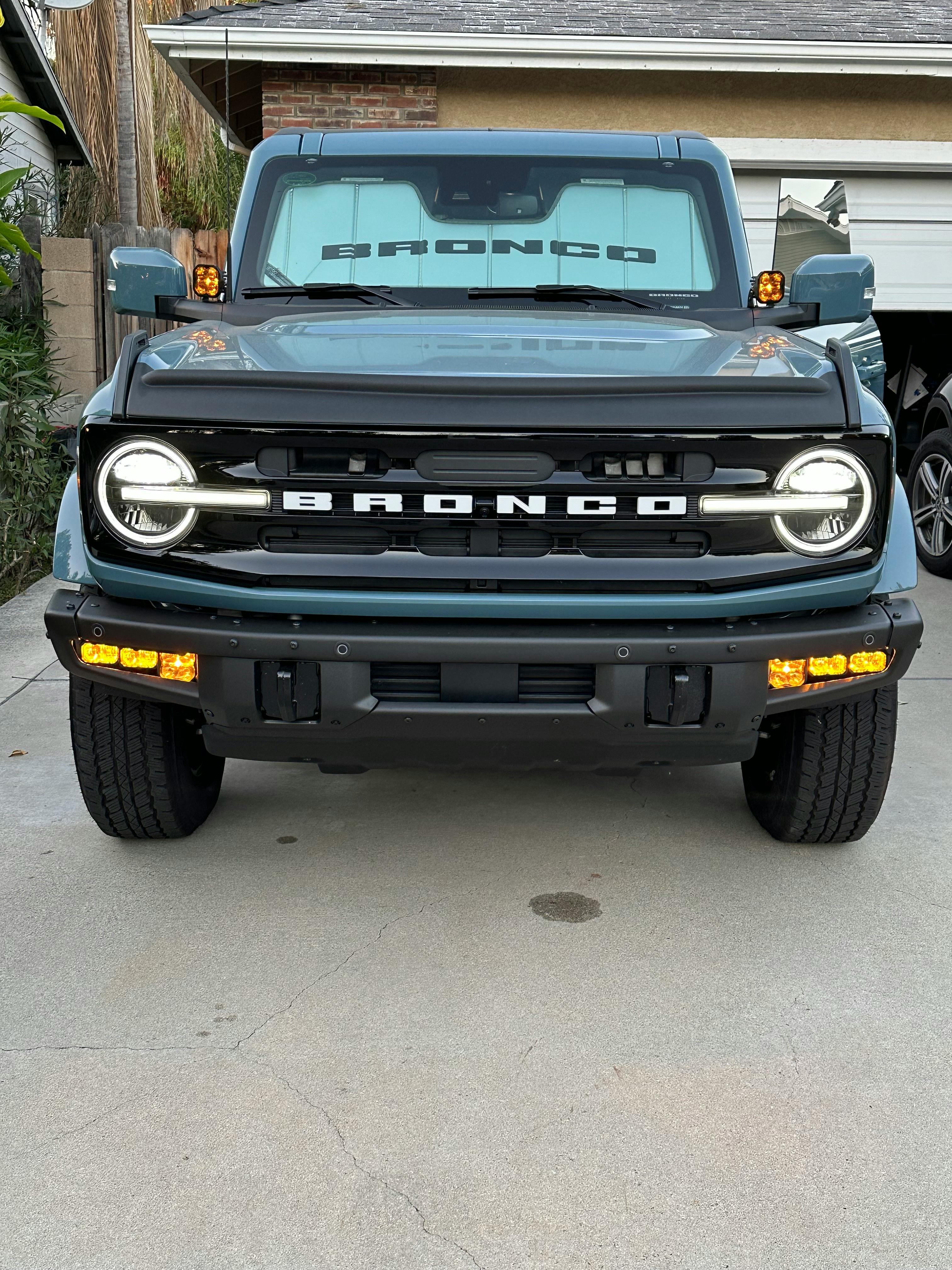

White or Yellow Fog. The SS3 fog pods included with this kit are available in both cool white and selective yellow LED pod options. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The SSC2 offroad pods in both options are 6000K cool white.

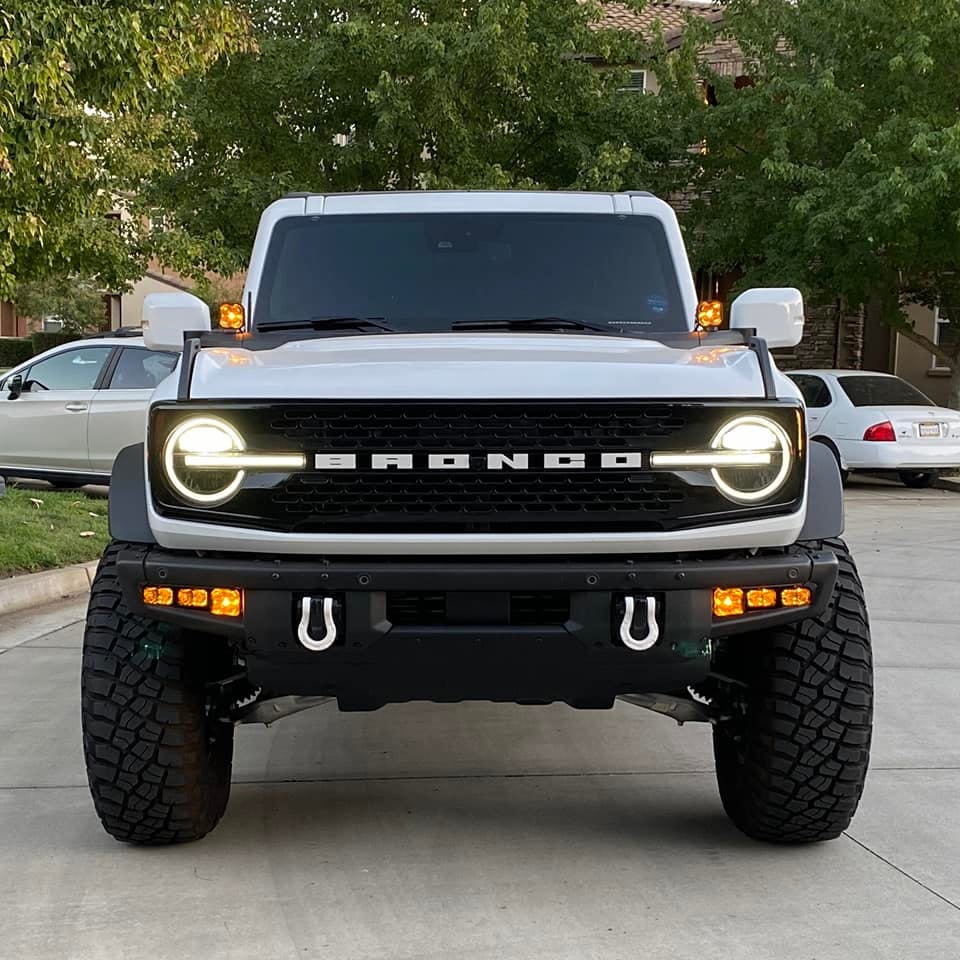

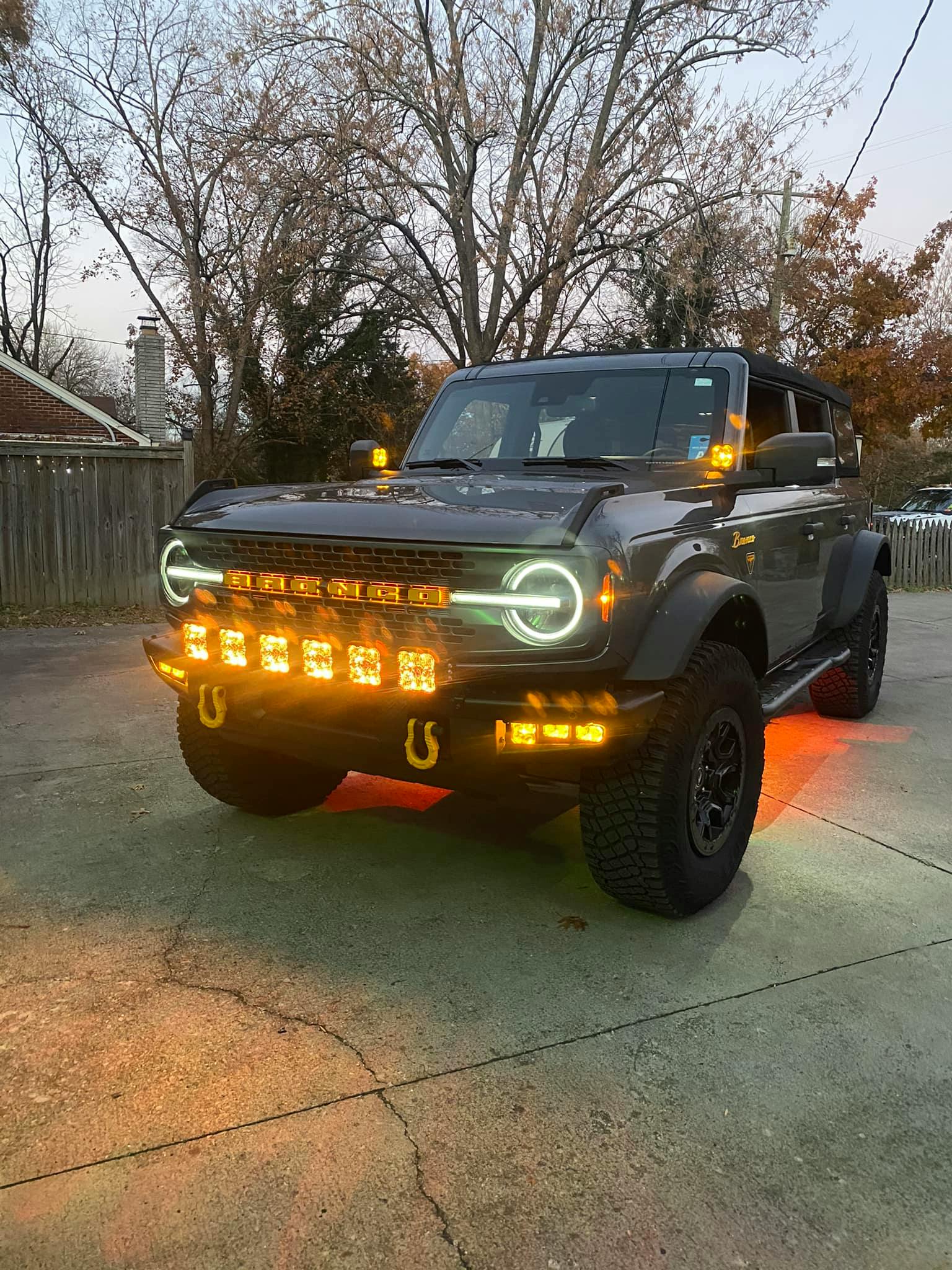

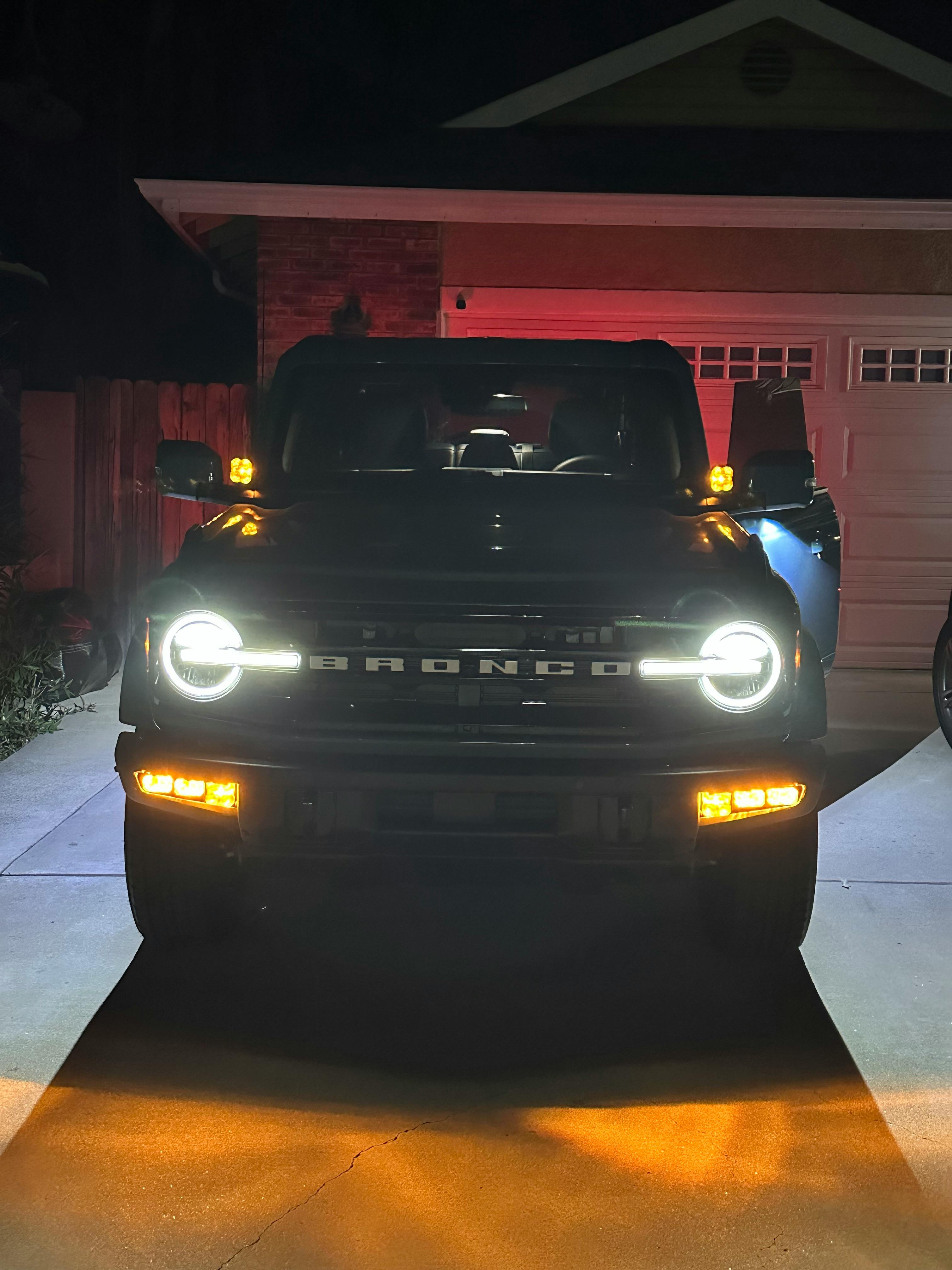

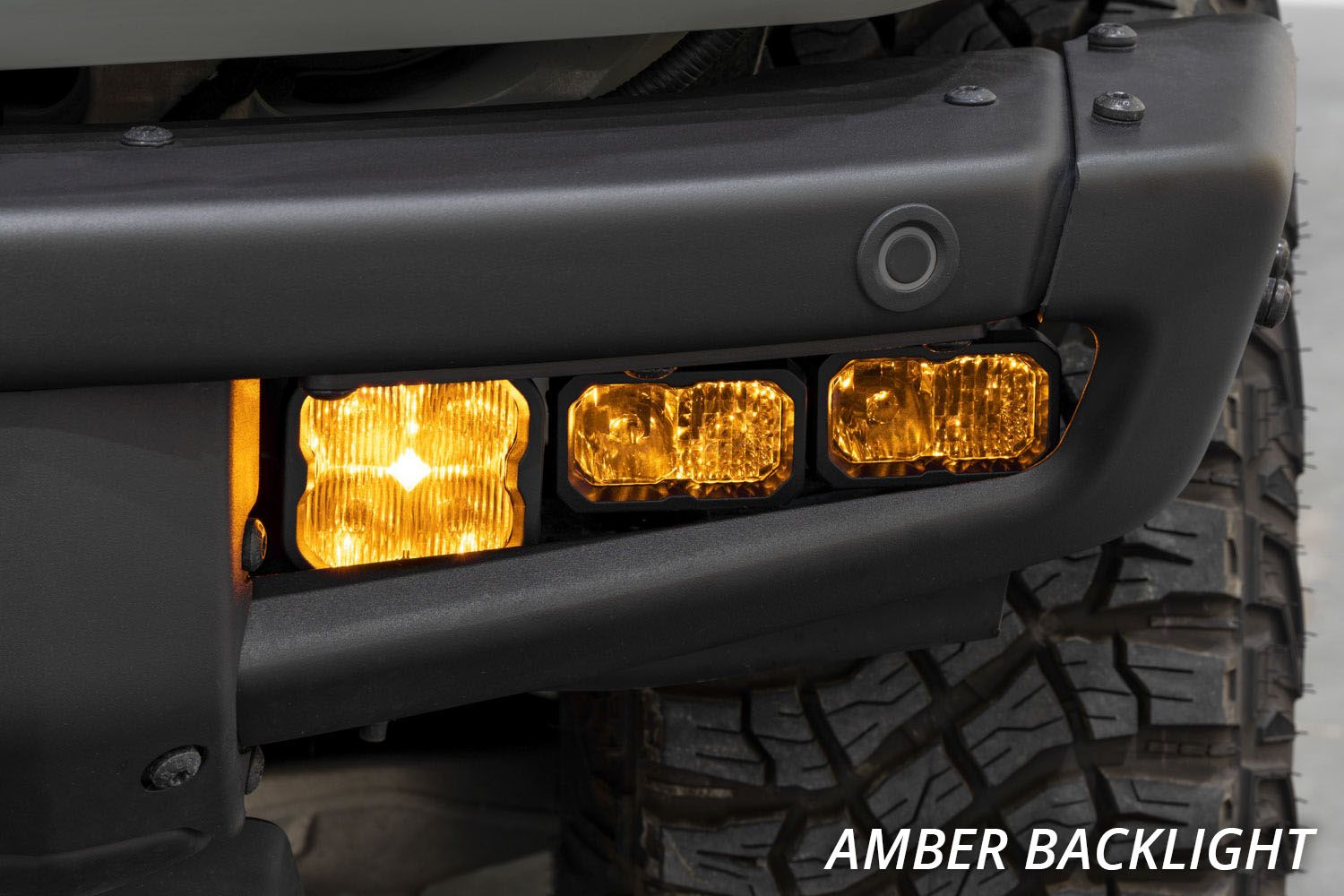

Backlight Functionality. Each pod in this kit includes a distinctive Amber backlight feature that can be controlled separately using the factory aux switches. The backlight on each pod included with the kit fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Sport, Pro, or Max. This kit is available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model features our SS3 Max LED pods, which have been designed with cutting-edge automotive emitters for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer. Click the Specifications tab to see more information or view our full specification guides here: SSC2, SS3.

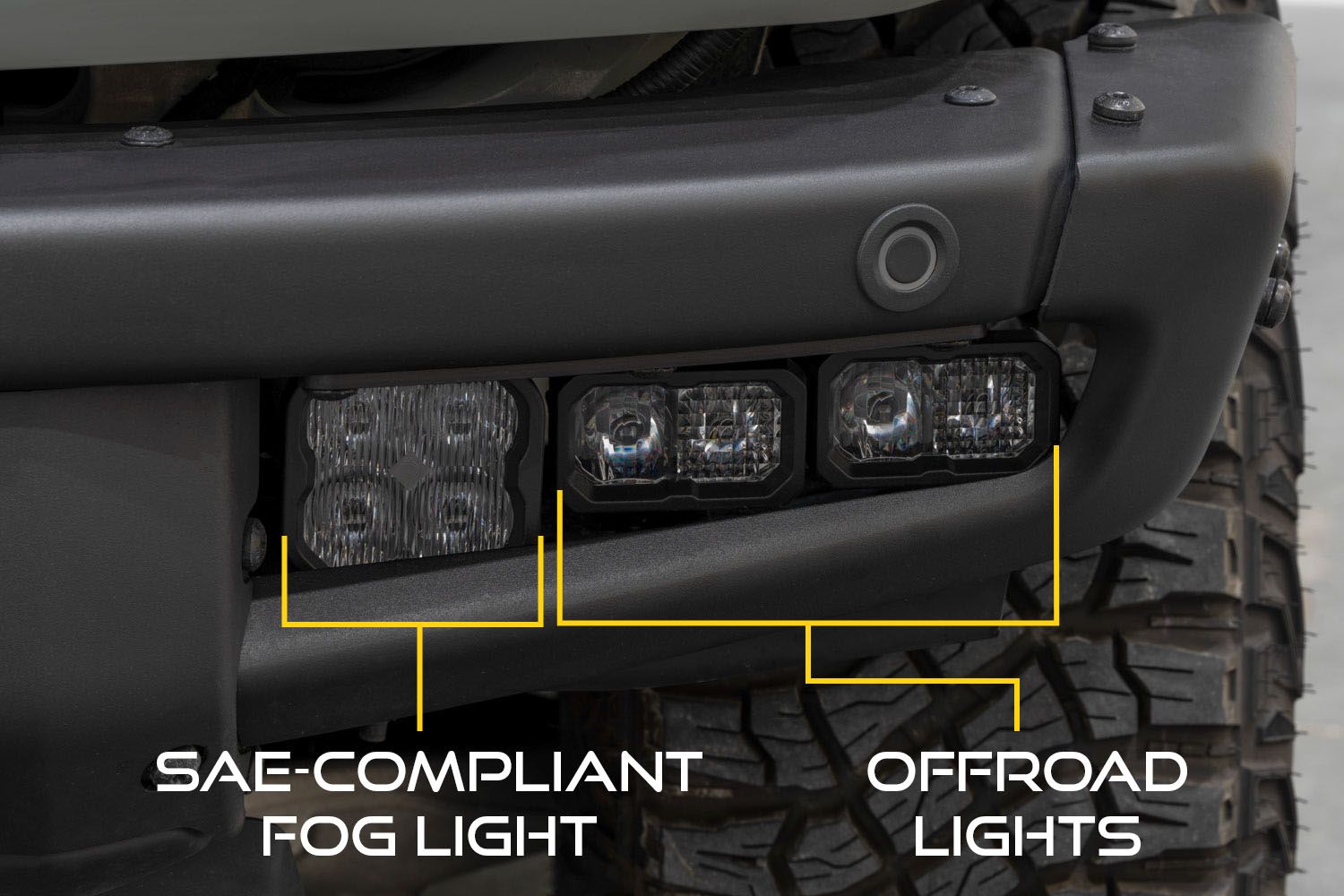

Separate Switches. With the included harnesses, the two SS3 pods and four SSC2 pods in this kit can be controlled independently, allowing you to switch between road-legal fog lights and offroad lights with ease. This kit was designed to allow the SS3 fog pods to operate in the same way factory-installed fog lights do, automatically turning on when they are switched on and when your headlights are turned on. The off-road lights in this kit can be controlled either through factory aux switches or the included 3-way toggle switch.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

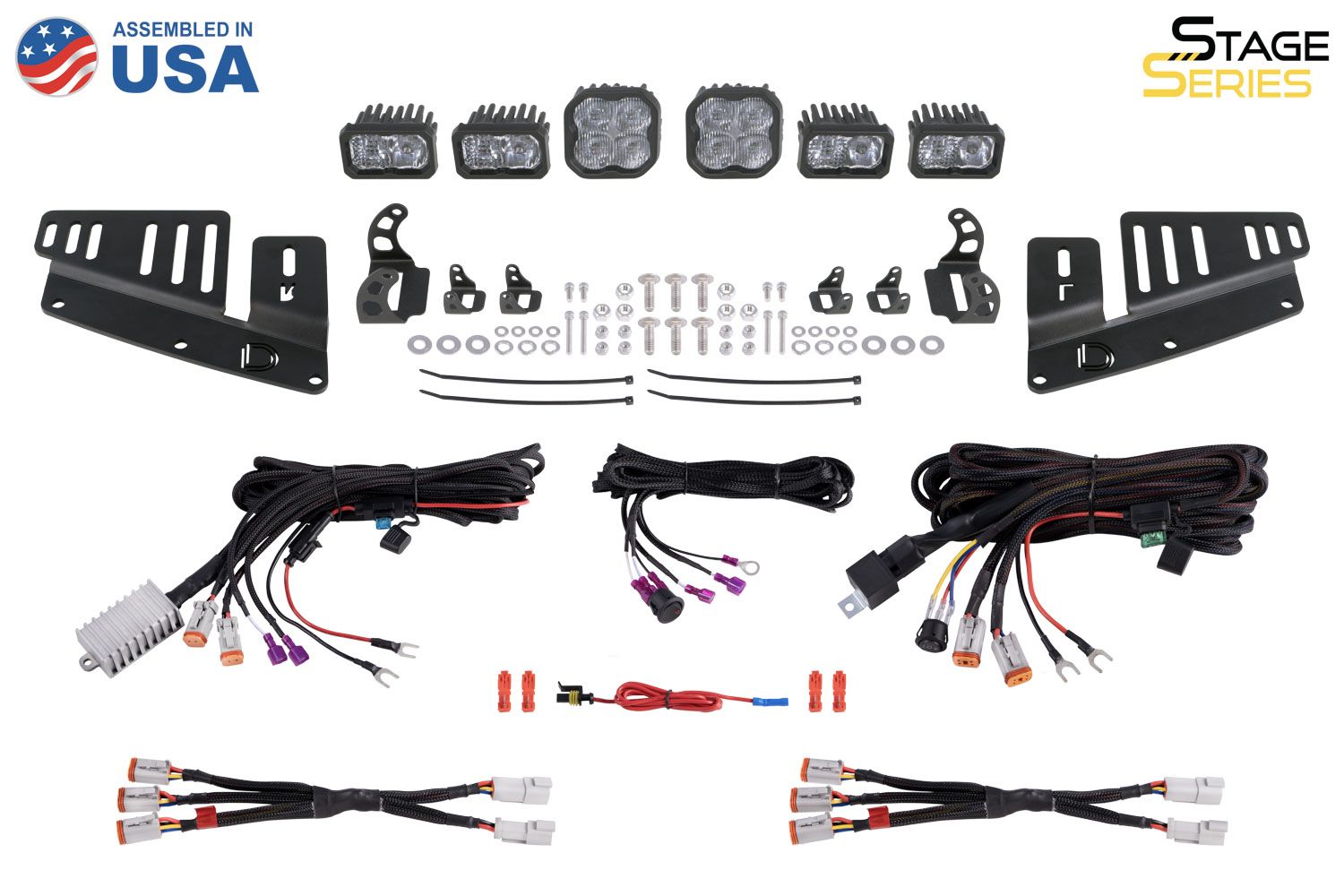

In the Box:
Sport/Pro
Two (2) Ford Bronco fog pocket brackets
Two (2) Sport or Pro SS3 LED pods
Four (4) Sport or Pro SSC2 LED pods
One (1) dual-output fog harness
One (1) Heavy Duty Dual Output 4-pin harness
Two (2) 3-way backlight splitters
Four (4) zip ties
Mounting hardware and guide

Max
Two (2) Ford Bronco fog pocket brackets
Two (2) Max SS3 LED pods
Four (4) Pro SSC2 LED pods
One (1) dual-output fog harness
One (1) Heavy Duty Dual Output 4-pin harness
Two (2) 3-way backlight splitters
Four (4) zip ties
Mounting hardware and guide

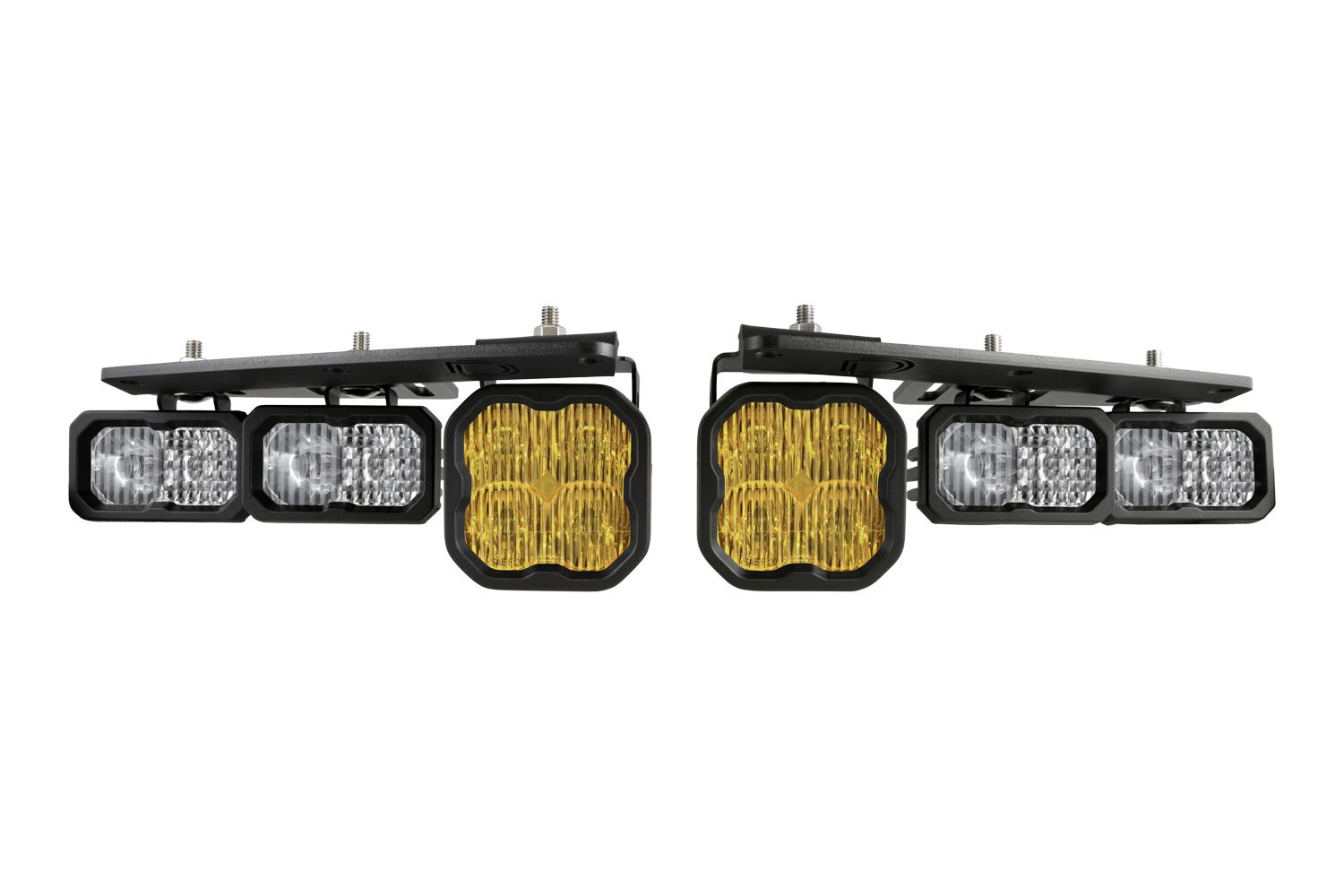

The "Yellow" kits include two Yellow SS3 LED pods, and four White SSC2 LED pods.

Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment
Note: This kit is not compatible with models that use a plastic bumper. If your vehicle uses the plastic bumper, click here.

Application: Fog Light
Make: Ford
Model: Bronco
Years: 2021, 2022, 2023, 2024, 2025

Specifications

NOTE: Specifications listed here are for each individual pod.

What do these terms mean?
SS3 Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7, Max: 3
SSC2 Current (amps @ 12.8V): Sport: 0.6, Pro: 2
SS3 Operating Voltage: 9-30V
SSC2 Operating Voltage: 9-16V
Datasheet(s) (click to download): SS3 Sport White Standard, SS3 Sport Yellow Standard, SS3 Pro White Standard, SS3 Pro Yellow Standard, SS3 Max White Standard, SS3 Max Yellow Standard, SSC2 Sport White Standard, SSC2 Sport Yellow Standard, SSC2 Pro White Standard, SSC2 Pro Yellow Standard
Power (watts): SS3 Sport: 14.5, SS3 Pro: 36, SS3 Max: 38.5, SSC2 Sport: 7.7, SSC2 Pro: 25.6
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
Unit Weight (lb): 7.6
Product Weight (lb): 15.1
Shipped Weight (lb): 17
Application: Fog Light
Make: Ford
Model: Bronco
Years: 2021, 2022, 2023, 2024, 2025
100% Satisfaction Guarantee

Installation

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download
