DIODE DYNAMICS | SSC2 SAE White Pro Flush Mount LED Pod (One)

Description

25.6 watts (per pod)

Features

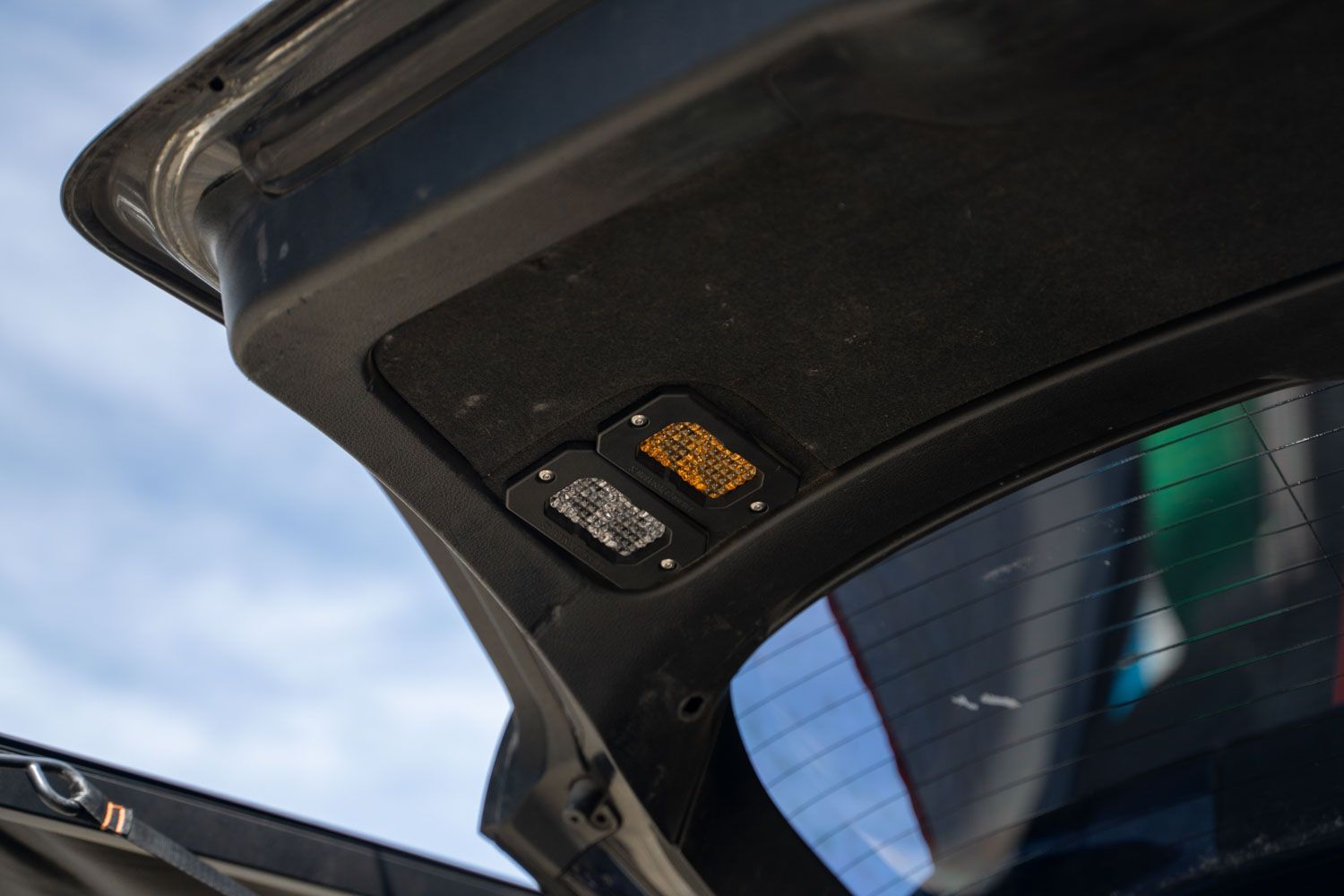

Allows for flush installation on bumpers and truck beds
Modern TIR optics for the highest intensity on the market
Backlighting available in amber or red
Durable powdercoated aluminum construction
Integrated Deutsch-style connector
Pin-fin heatsink design
Designed, torture tested and assembled in USA

Overview
Add LED pods to your bumper, truck bed, or anywhere else you can think of with our Stage Series 2" Flush Mount Pod Kit! Featuring higher output intensity than any other 2” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included flush mount bezel, the Stage Series 2" Flush Mount Kit is extremely versatile and once installed has a clean, factory-style appearance.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series 2" collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series 2" serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series 2" is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

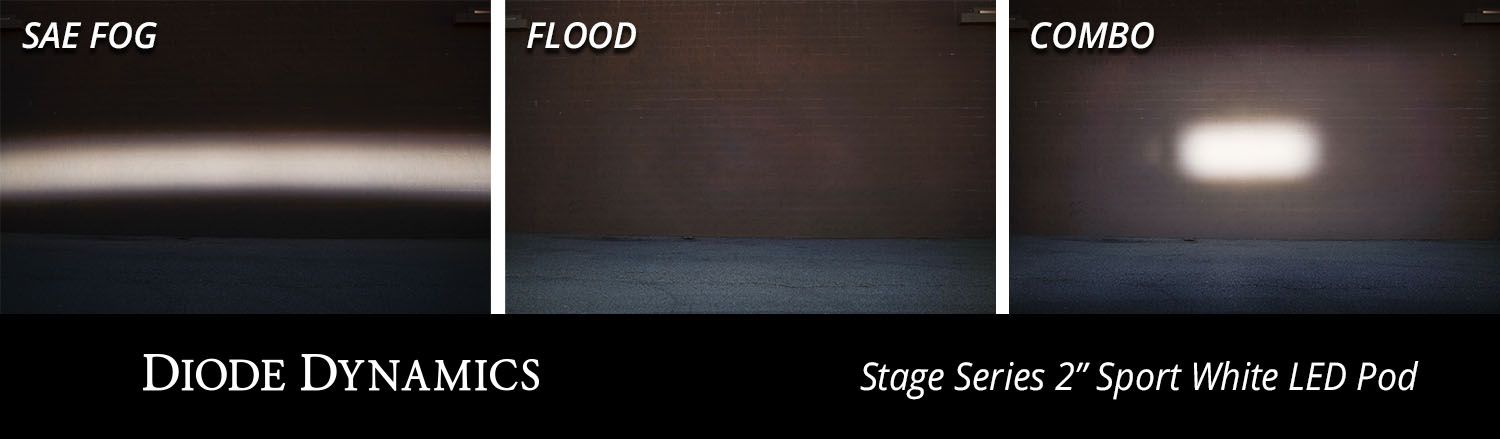

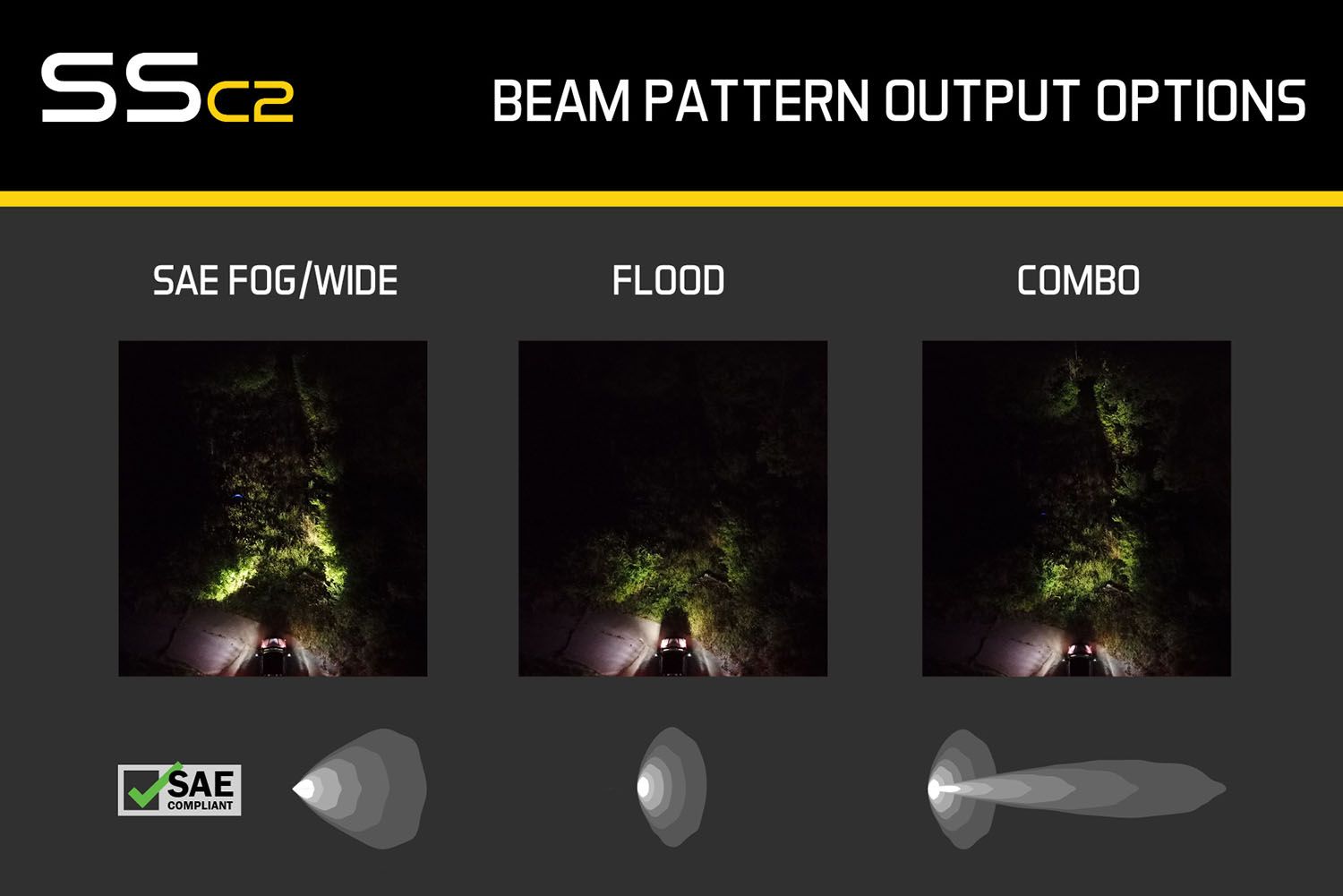

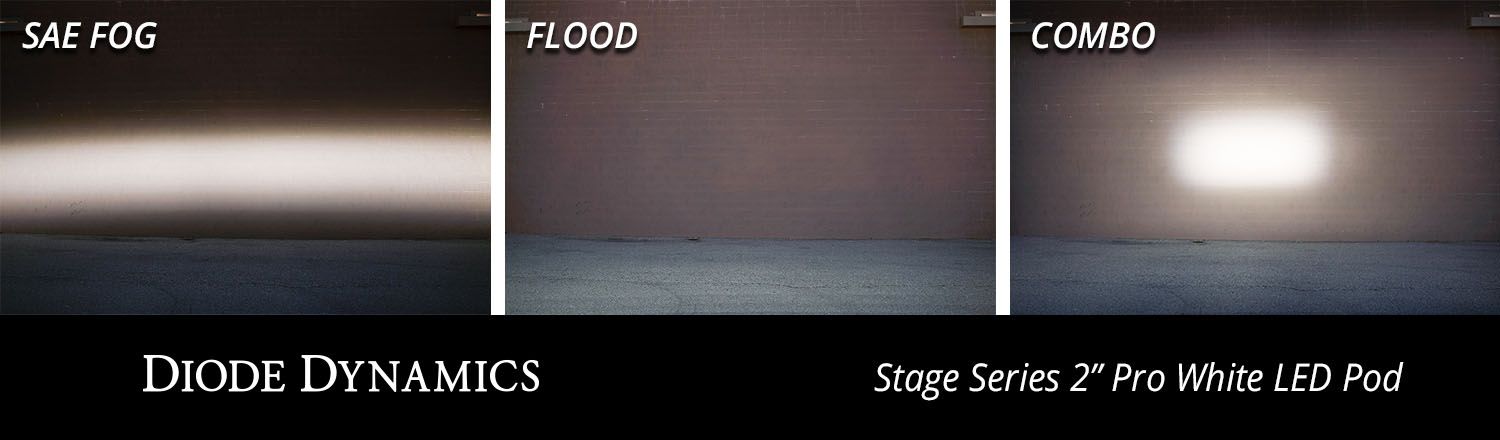

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! Click here to learn more: Beam Pattern Comparison Video.

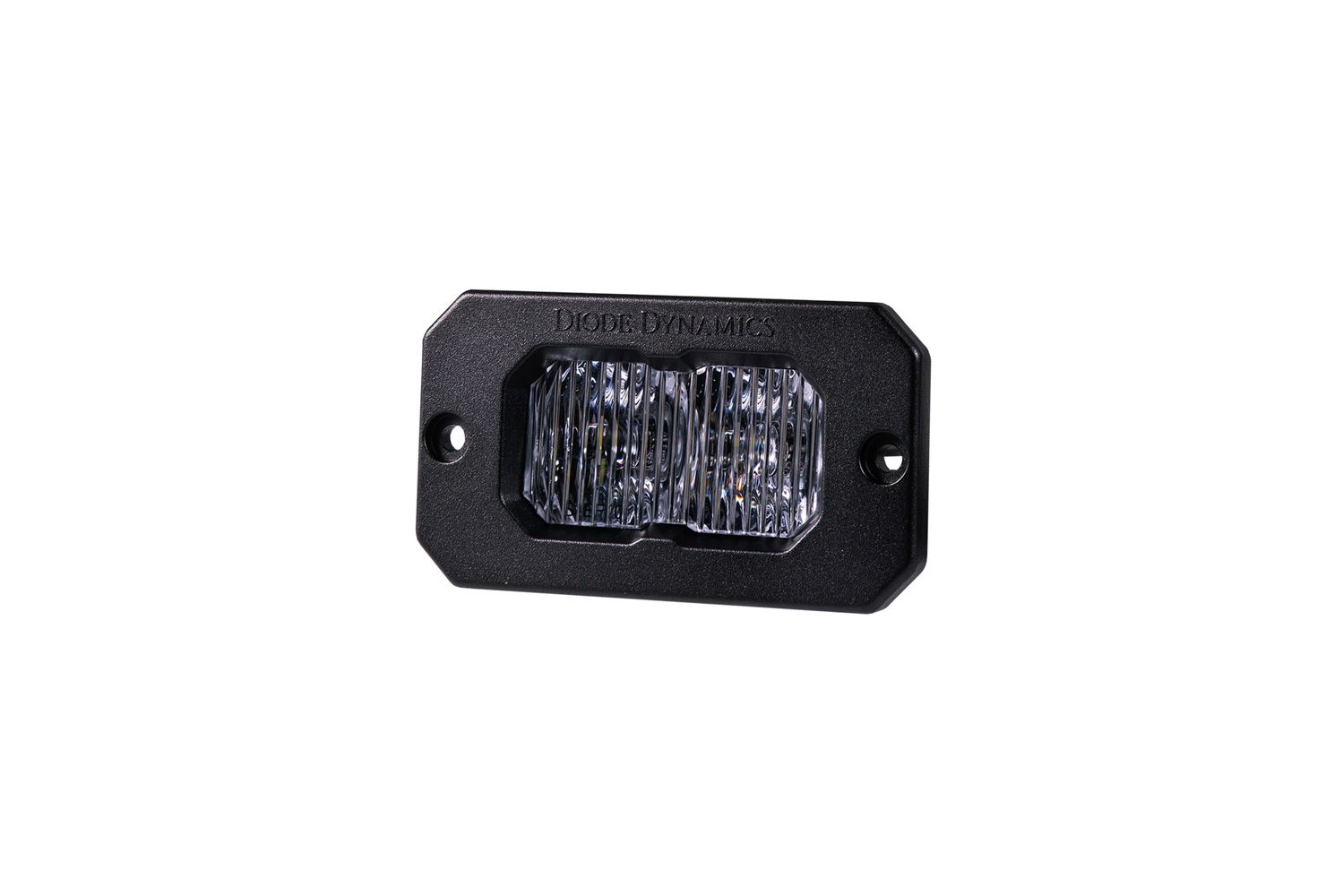

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

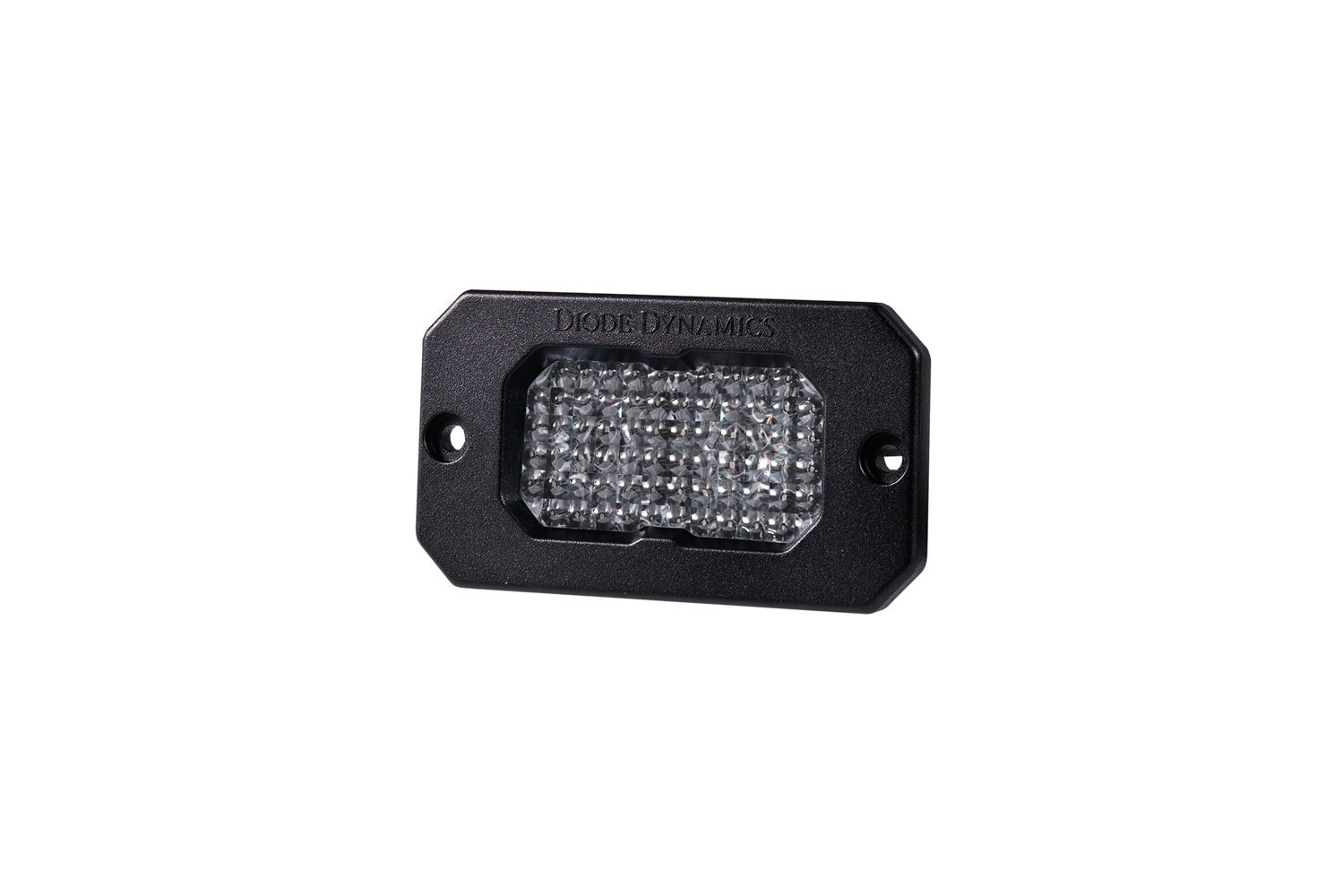

Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.

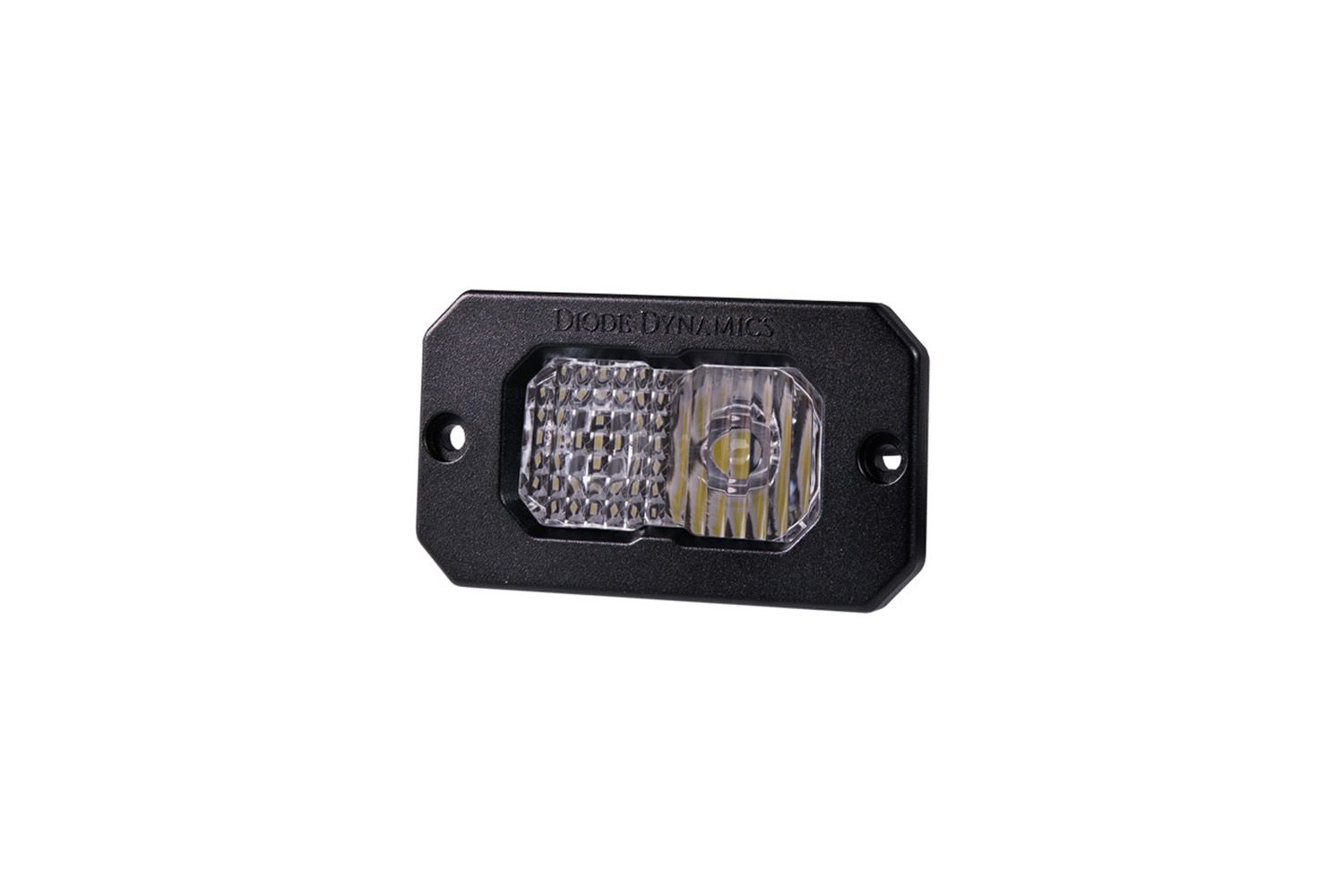

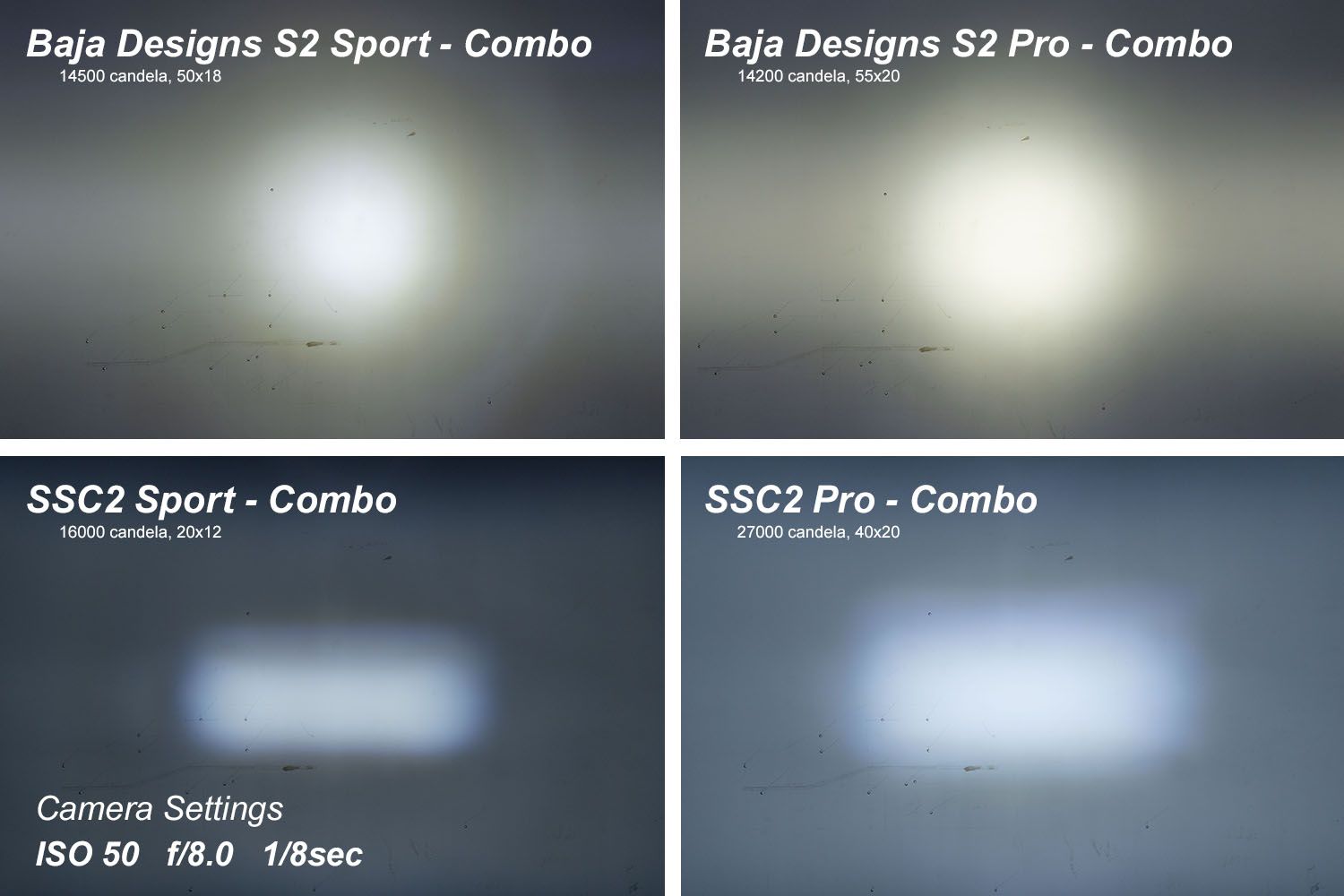

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

Not just off road. When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The Stage Series 2" Yellow LED Pod can be found here. We also offer replacement lenses that allow you to change the color or optic of your Stage Series 2" Pods.

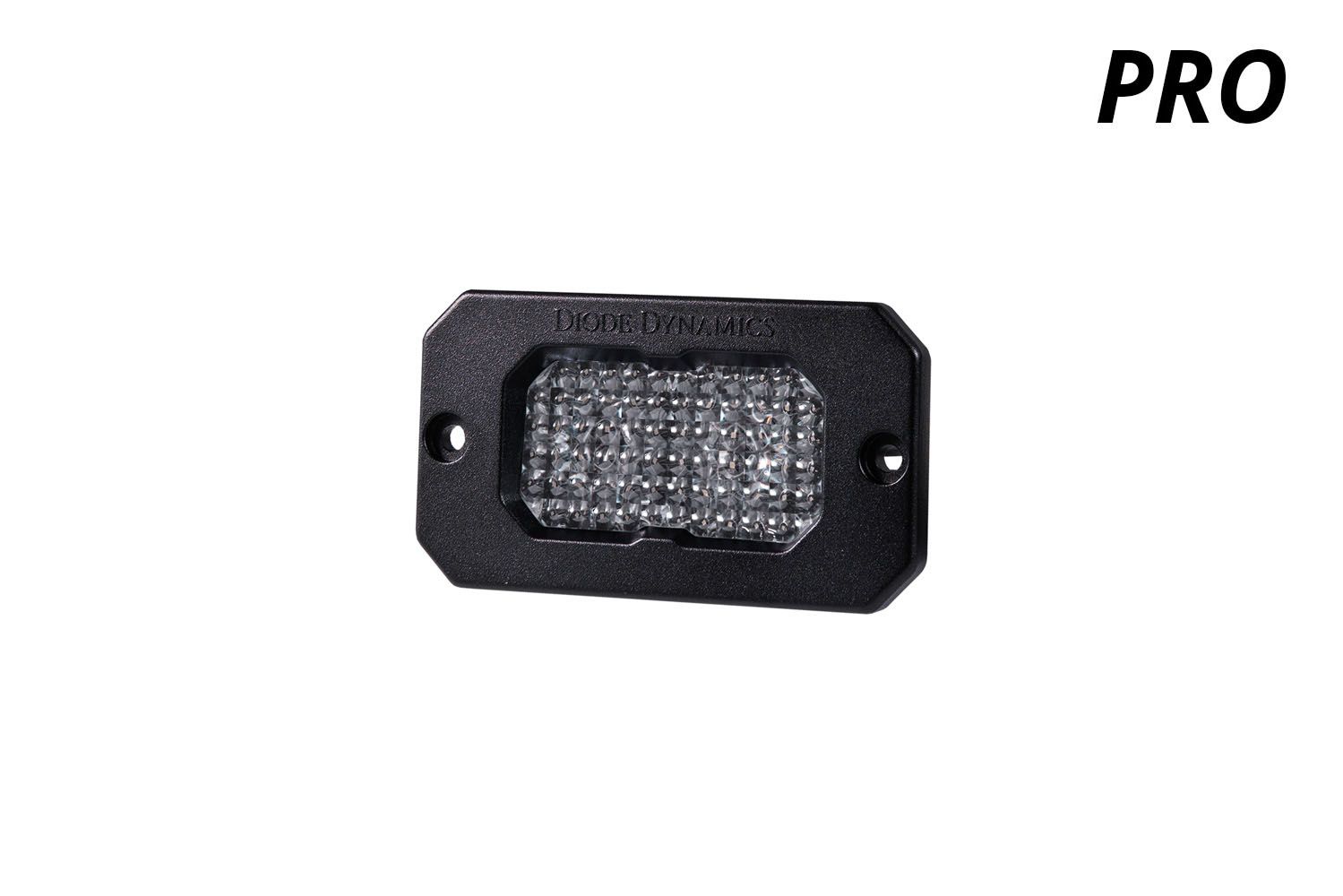

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information or click here.

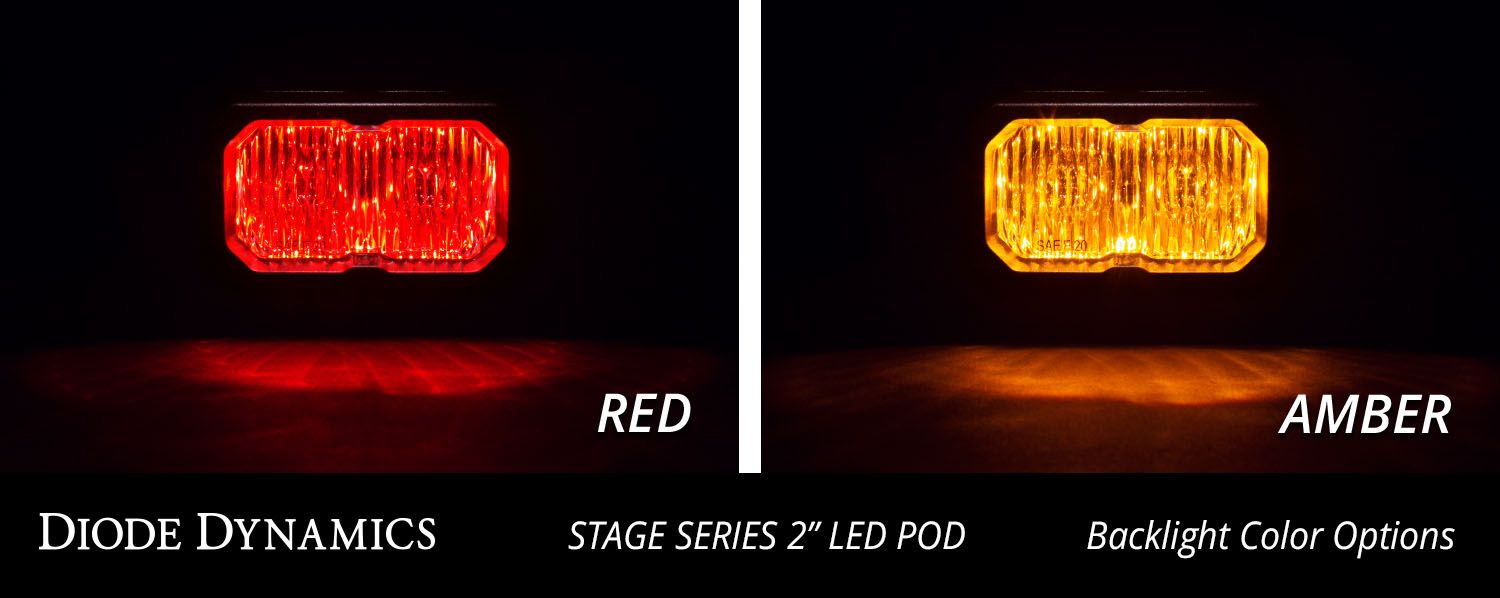

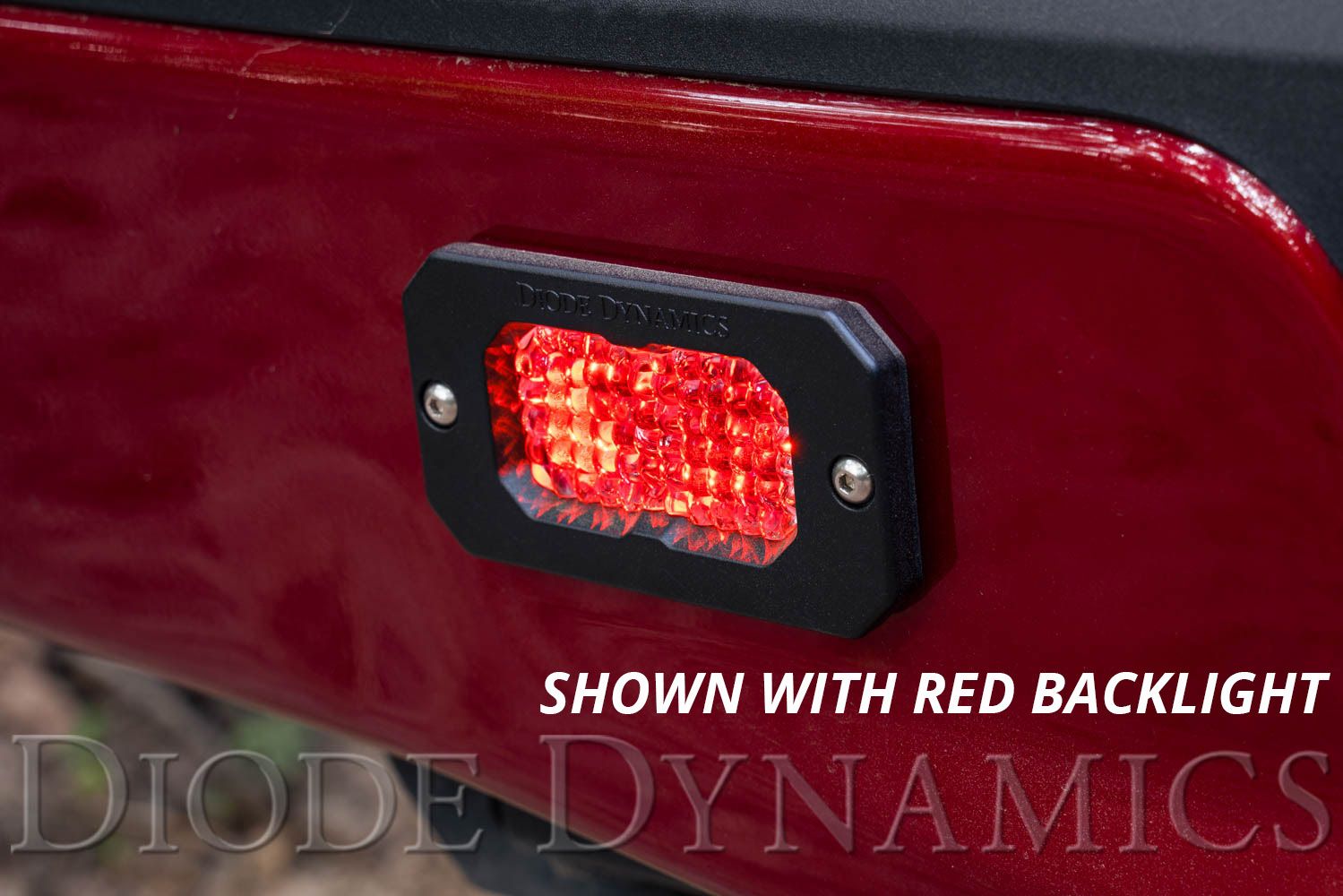

Backlight Functionality. The Stage Series 2" LED Pod includes a distinctive backlight feature, in your choice of amber or red. The SSC2's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Simple connections. All Stage Series 2" LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness. Our Heavy Duty Dual Output 4-Pin Harness can be used to power up to four Stage Series 2" pods.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

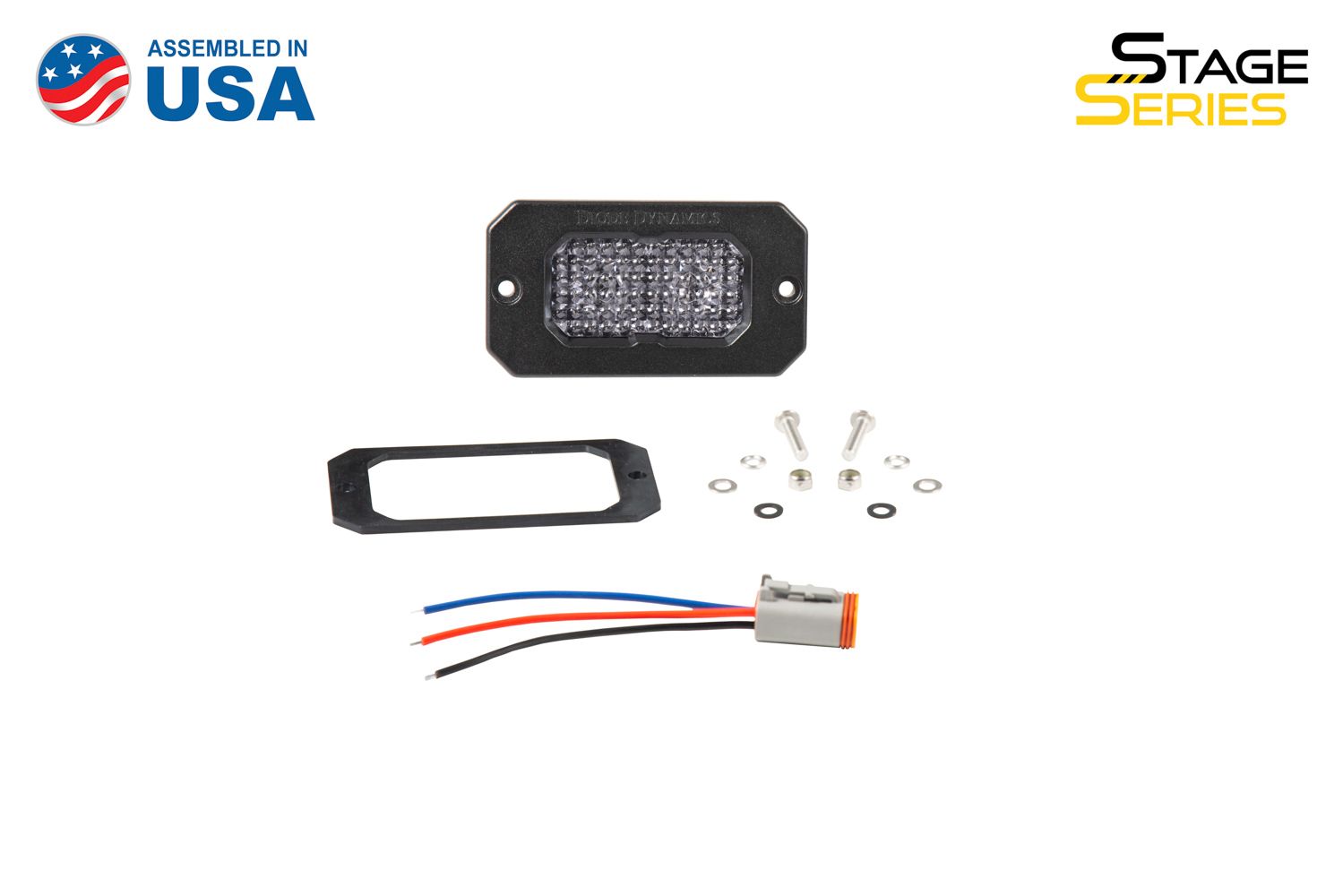

In the Box:
One (1) Stage Series 2" LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware

Quantity: One (1)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Specifications

What do these terms mean?
Datasheet(s) (click to download): SSC2 Pro White Flush Mount
Color Temp (CCT): 6000K
Power (watts): Main Beam: 25.6, Backlight: 0.7
Operating Voltage: 9-16V
Current (amps @ 12.8V): Main Beam: 2, Backlight: 0.06
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof

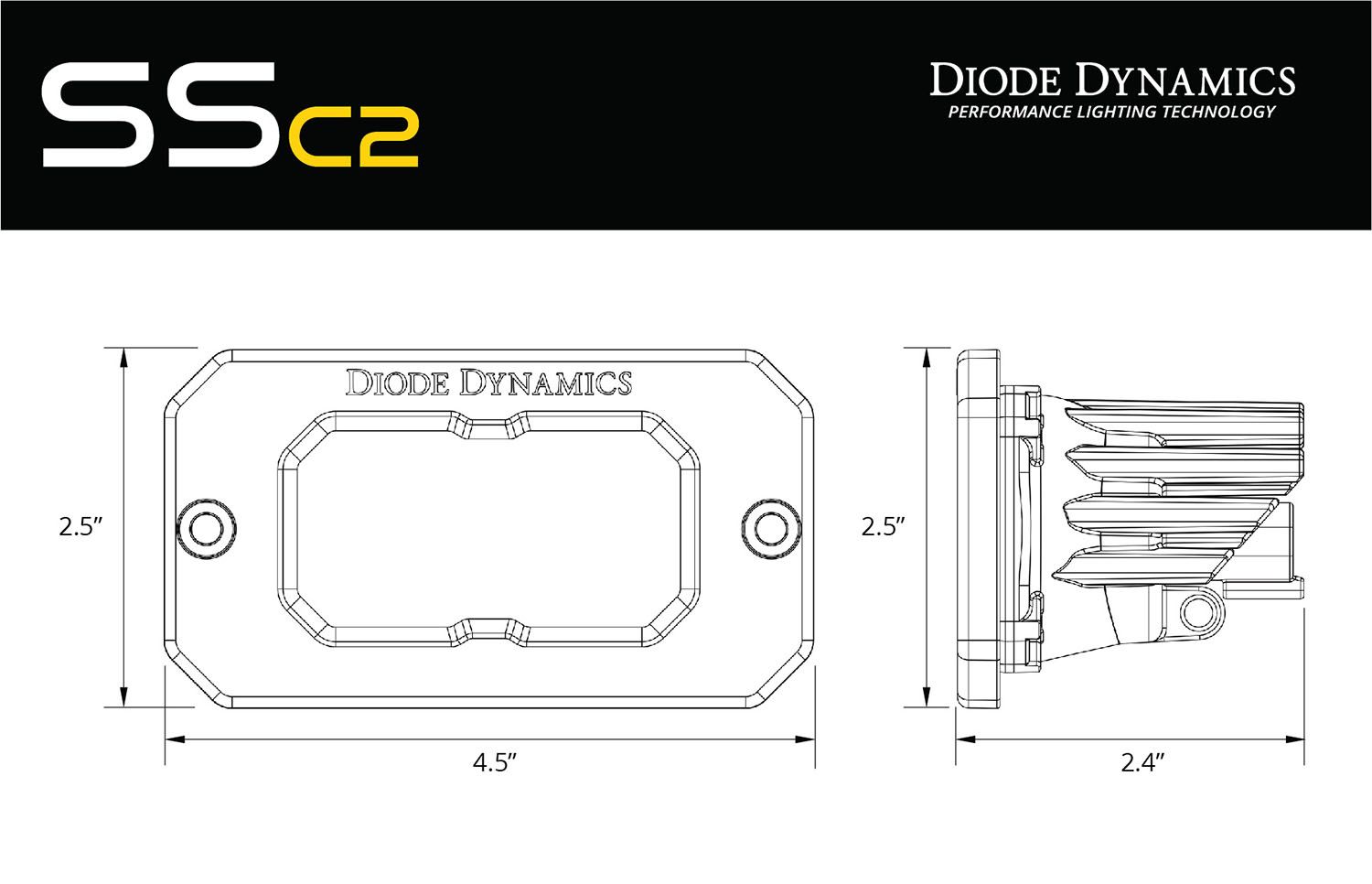

Product Dimensions (in): 2.5 x 4.5 x 2.4
Unit Weight (lb): 0.1
Product Weight (lb): 1.0
100% Satisfaction Guarantee

Installation

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Installation Guide: Click to download

Wiring Instructions: Click here

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
