DIODE DYNAMICS | SS6 LED Fog Light Kit for 2020-2022 Ford Super Duty (w/ LED Fog Lights)
Choose Your Optic and Color
SELECT OPTIONS
Choose Your Optic and Color
Choose Your Optic and Color
Description
Features
Direct fitment on 2020-2022 Ford Super Duty.
Replaces the factory fog lights with two 6" light bars.
Road legal output as fog lights.
Plug-and-play wiring harness included to power light bars.
CAD-designed for perfect fitment and OEM-like appearance.
Utilizes existing mounting points for simple installation - no cutting or drilling required.
Overview

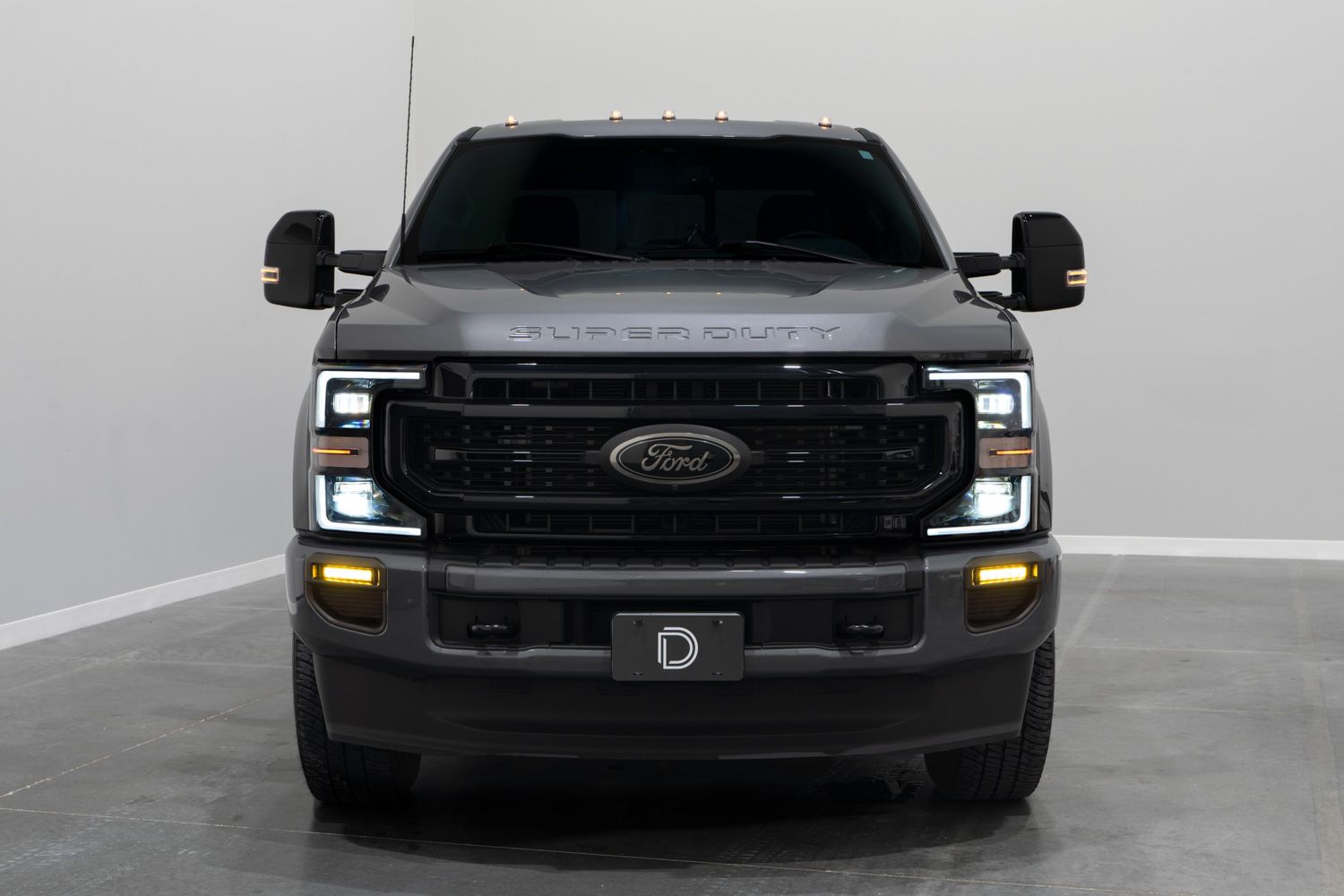

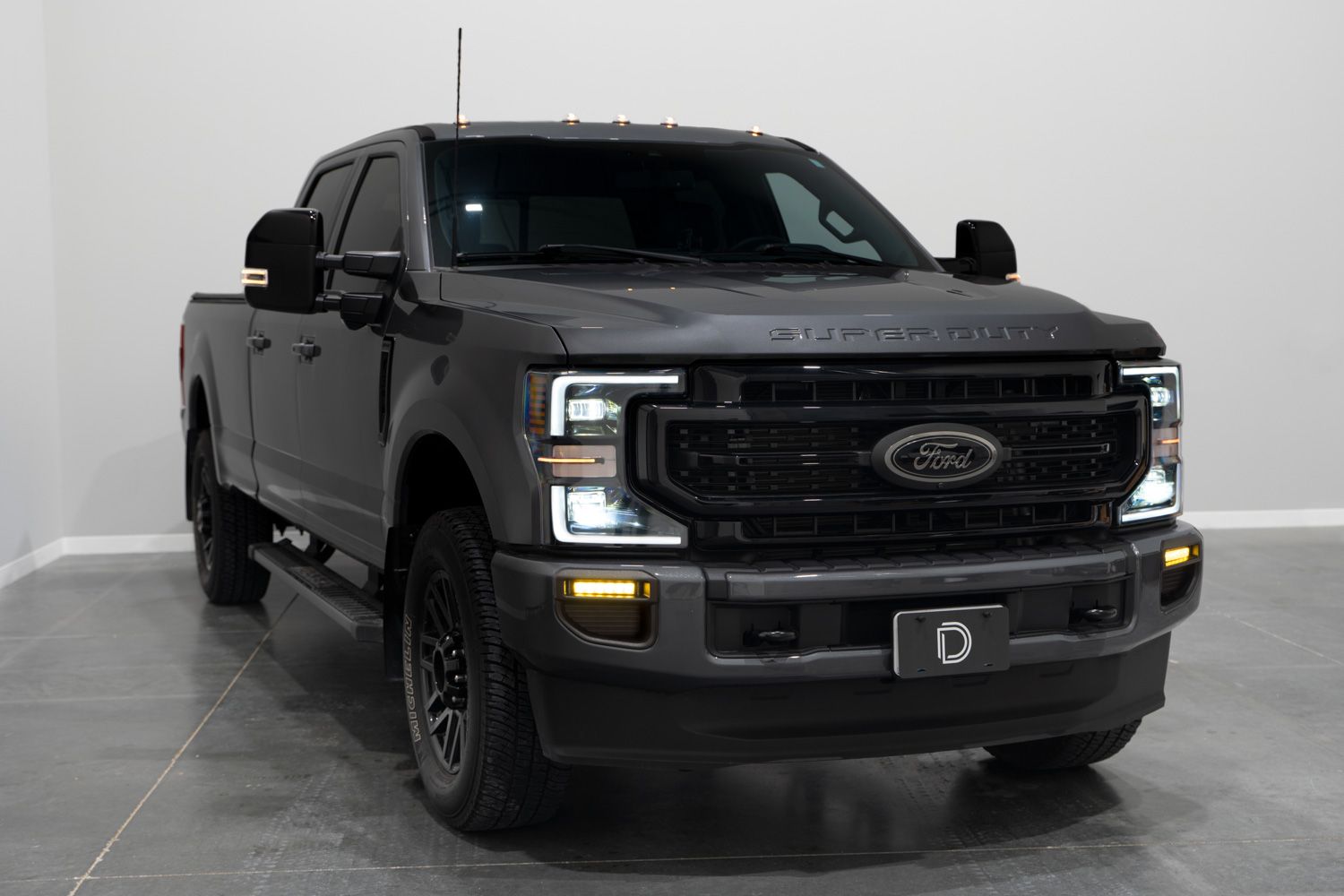

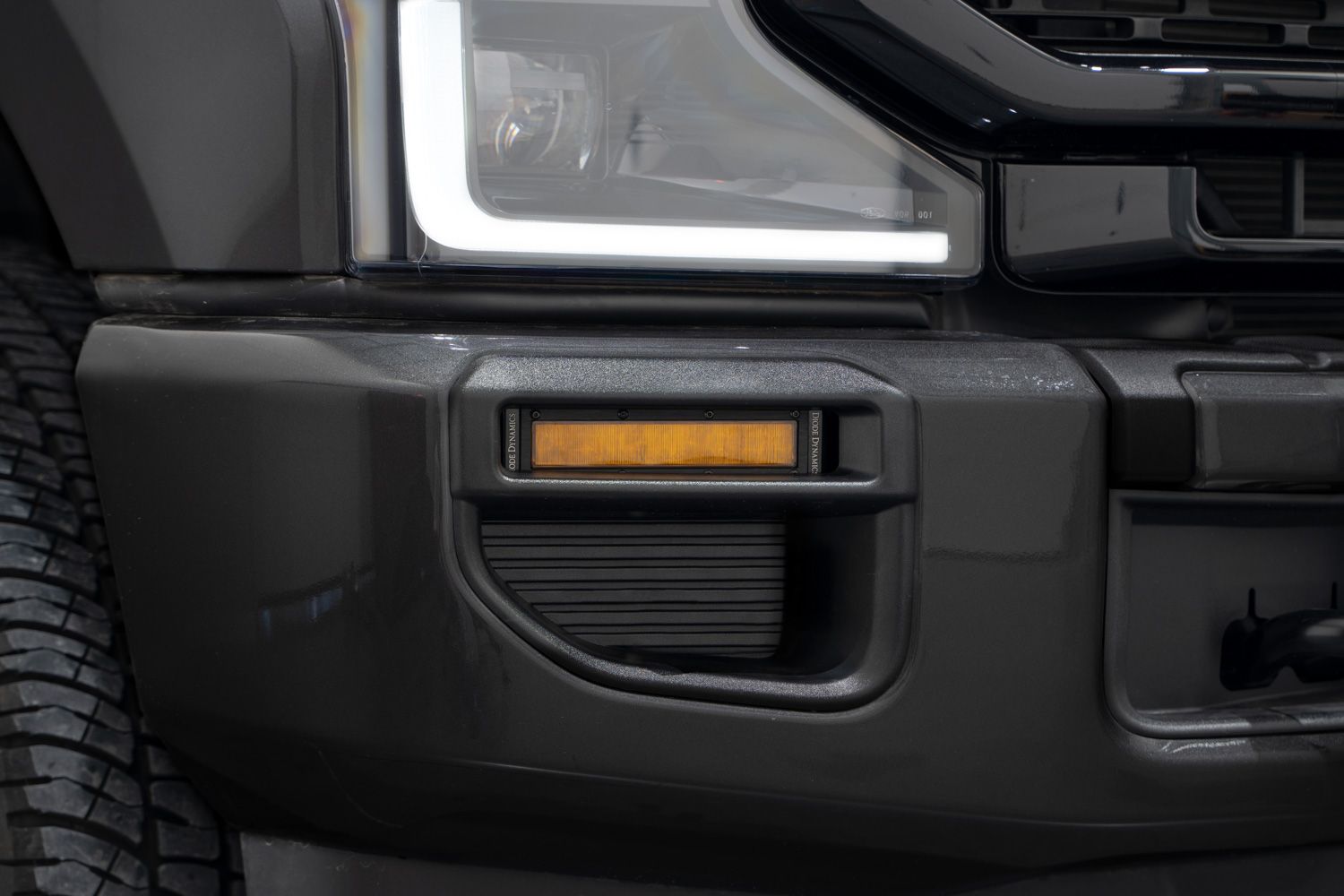

Perfect Fitment. The SAE LED Fog Light Kit for the 2020-2022 Ford Super Duty from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in place of the factory LED fog light housings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Street Legal Output. This kit isn't just for off road! It is legal for on-road use as fog lights (Please check your local laws and regulations for aiming, installation, and applicability). Wire adapters are included to connect the lights to your factory fog light connectors - no additional wiring needed!

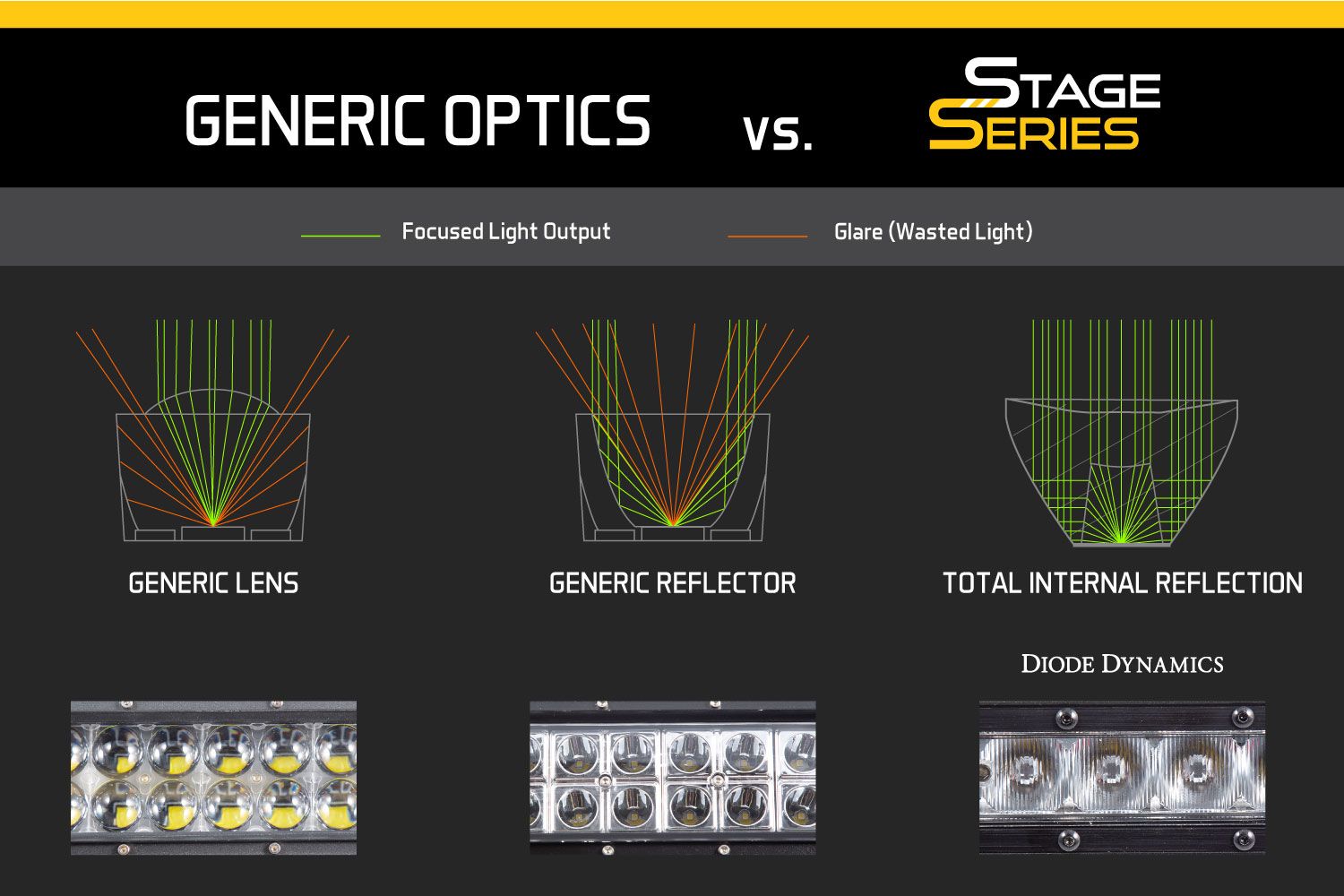

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.
Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

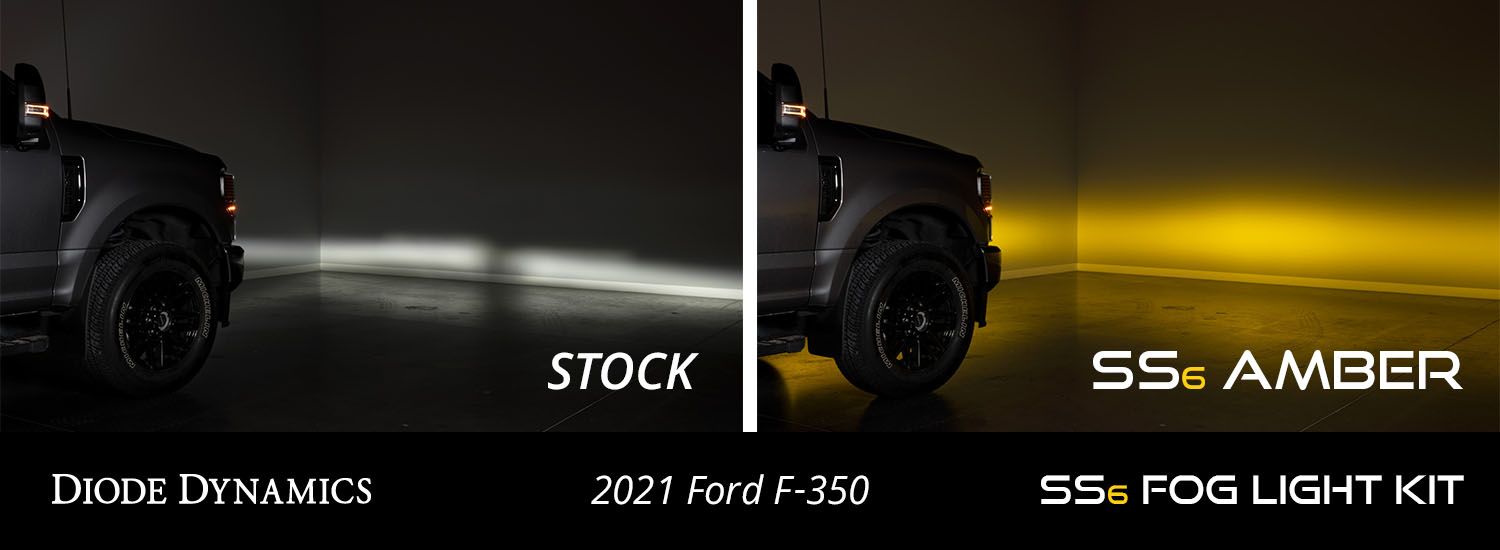

The SAE Fog/Wide pattern pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

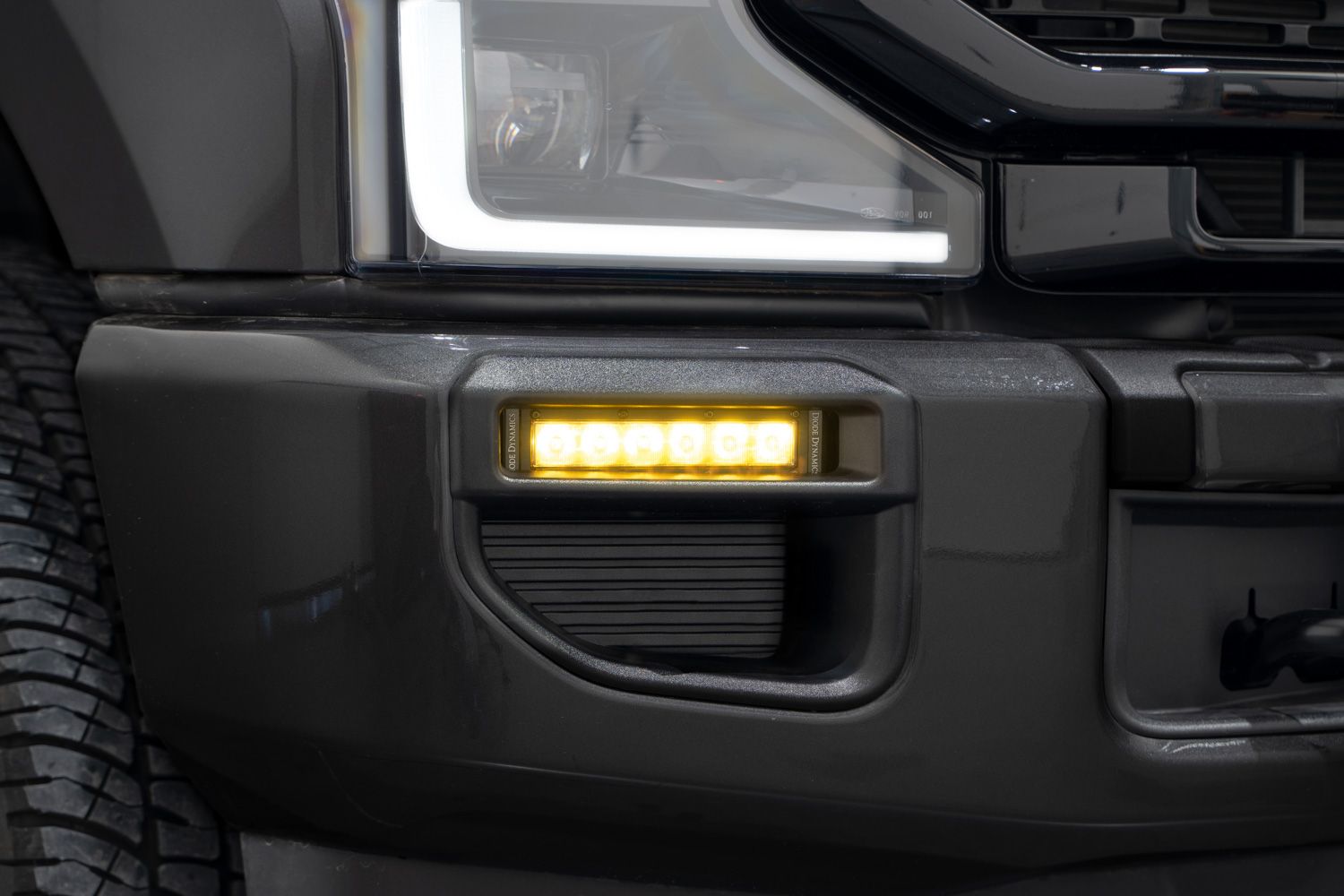

White or Amber. The Stage Series light bars included with this kit are available in a cool white or amber color. The white is a 6000K color temperature, which is a true white output, without any blue. The amber is a brilliant deep yellow color, perfect for hazards or high contrast in poor weather.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

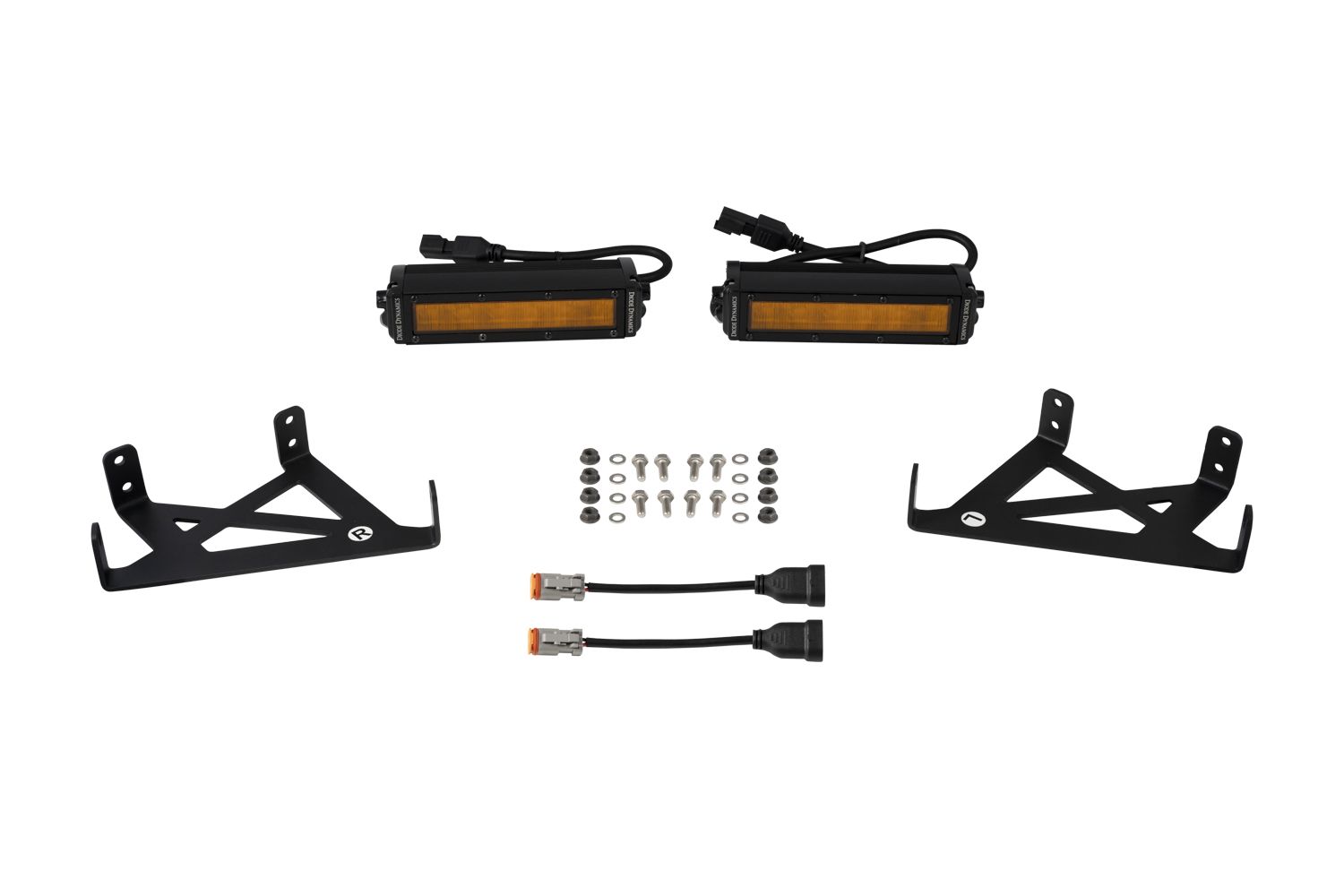

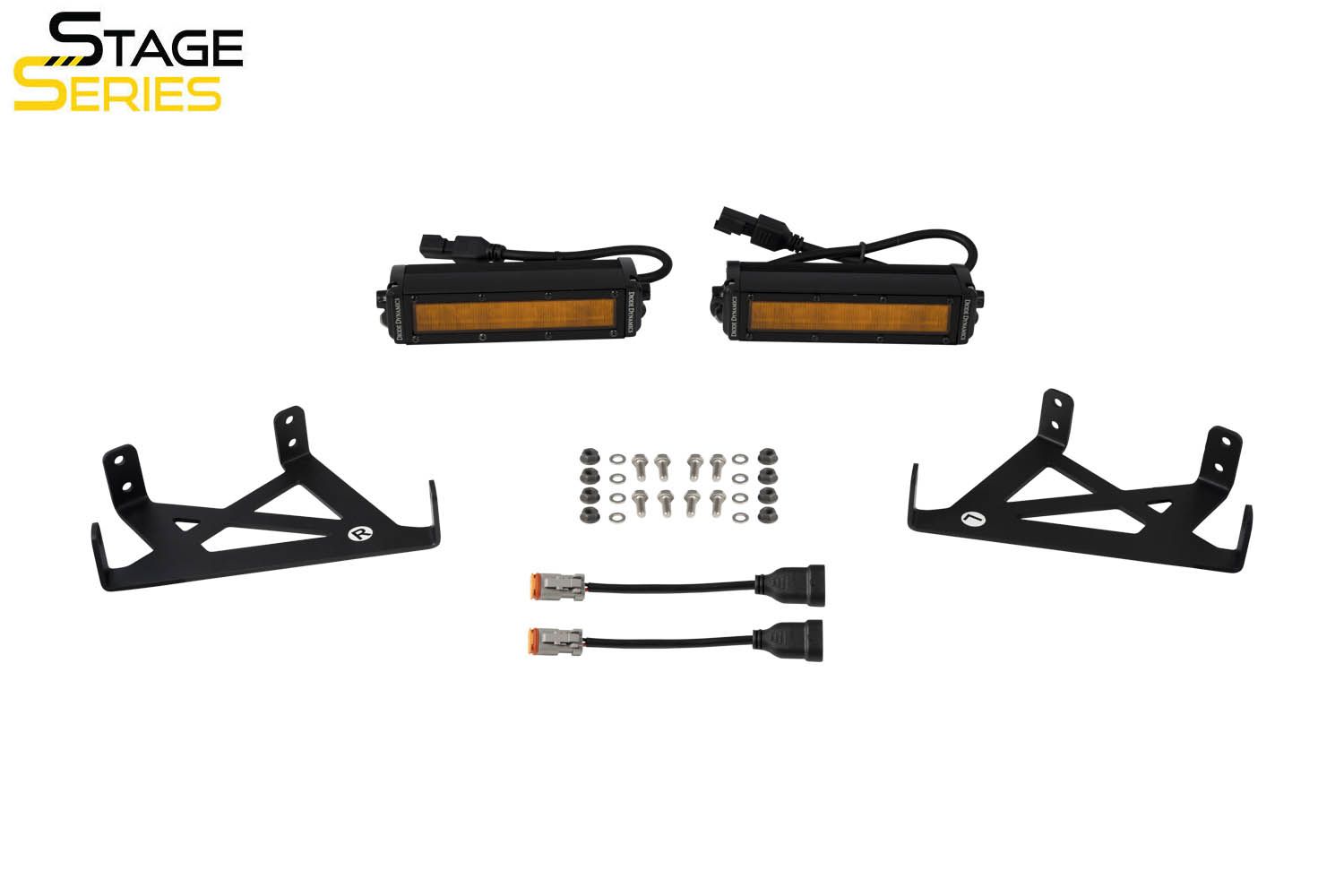

In the Box:
One (1) Ford Super Duty 2020-2022 SS6 Fog Mounting Kit
Two (2) SS6 Stage Series 6-inch Light Bars
Two (2) 9006 DT Adapters
Installation Guide
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee
Fitment
NOTE: This kit is compatible with F250/F350/F450/F550 models with optional or standard LED fog lamps installed. If you have halogen fog lights from the factory, please see our SS3 Fog, Elite Series Fog, or Fog Pocket Kit instead.
Application: Fog Light
Make: Ford
Model: Super Duty F250/F350/F450/F550
Years: 2020, 2021, 2022
Specifications
| Lens Color/Optics |
Peak Beam Intensity |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| White Wide | 13,000 cd | 130 lux | 1,400 lm | 2,280 lm | 6000K White |
| Amber Wide | 7,400 cd | 74 lux | 800 lm | 1,140 lm | 2000K Amber |
What do these terms mean?
Beam Angle: Wide, 100°x8°
Power (watts): 26.6
Operating Voltage: 9-24V
Current (amps @ 14V): 1.9
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input, 9006
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Powdercoated Steel, Stainless Steel Brackets
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Unit Weight (lb): 2.78
Product Weight (lb): 5.56
Shipped Weight (lb): 7
Application: Fog Light
Make: Ford
Model: Super Duty F250/F350/F450/F550
Years: 2020, 2021, 2022
100% Satisfaction Guarantee
Installation
Installation Time: 2-3 hours
Tools Needed: Basic Toolset
Modification: None
Installation Guide: Click to download
Warranty
8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
Shipping
Domestic (U.S.) Shipping
All domestic (U.S.) orders ship with your choice of UPS or USPS, and all orders placed before 12 PM CST will ship the same day, if all items are in stock. Shipping costs are calculated at checkout, based on order size. Delivery usually takes just 3-5 days.
You will receive updates from our site when your order is shipped, along with a unique shipment number to ensure that your order is correctly accounted for. This allows you to easily reply to us if you have any concerns.
Have a question about your shipment? Just like any other question you might have, simply send us an email and our trained lighting and shipping experts will reply, usually the same day. Or, give us a call during normal business hours.
International Shipping
We ship to almost everywhere in the world using USPS shipping services, along with your country's postal service. Rates are calculated at checkout to ensure fair pricing. We normally offer standard mail, Priority International, and EMS Express. Please note that the shipping time can vary widely, based on your countries mail service and border policies.
Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.
Puerto Rico: As we use standard USPS, PR is considered a US territory for mailing purposes, and can be selected as such at checkout. Shipping will be domestic U.S. rates.
Canada: We ship to Canada every day! Most small orders will cost around $10 via standard mail. We also offer Priority and Express EMS. To see exact shipping rates, please view your options at checkout. We also offer UPS service to Canada.
Europe, Asia, and Australia: We ship to all other countries using standard mail. You can check the shipping cost at checkout, as it will be calculated based on your cart. We offer standard mail, Priority, and EMS Express.
Customs Fees for International Shipping
Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.
As we use only standard mail, our customers normally do not incur any type of import fees, customs fees, or tariffs for smaller shipments. However, this cannot be guaranteed, and any fees are the responsibility of the buyer. Please contact us if you have any concerns.
Part Numbers
The following part numbers are included with this listing:
| SKU | Price | Name | Weight | Driver | Components |
|---|---|---|---|---|---|
| DD7583 | $339.95 | SS6 LED Fog Light Kit for 2020-2022 Ford Super Duty, White Wide | 7 lbs | DD5022P SS6 White SAE Fog/Wide Light Bar (pair), DD7582P F-250 2020-2022 SS6 Fog Mounting Kit | |
| DD7584 | $339.95 | SS6 LED Fog Light Kit for 2020-2022 Ford Super Duty, Amber Wide | 7 lbs | DD5044P SS6 Amber SAE Fog/Wide Light Bar (pair), DD7582P F-250 2020-2022 SS6 Fog Mounting Kit |
