DIODE DYNAMICS | RGBW Bluetooth Controller (DD3066)

Description

Bluetooth RGBW Controller
Full multicolor control, or True White for everyday driving
20 adjustable patterns, plus custom modes, camera match, and audio sync
Easily group multiple controllers for multi-zone control
Fully waterproof and shockproof

Overview
Full RGBW. Full multicolor, with no sacrifice. Unlike other RGB controllers on the market that produce a mixed white color, this controller is full RGBW, with an independent White channel. After you have fun with colors, just select True White for a crisp, clean white output for everyday use.

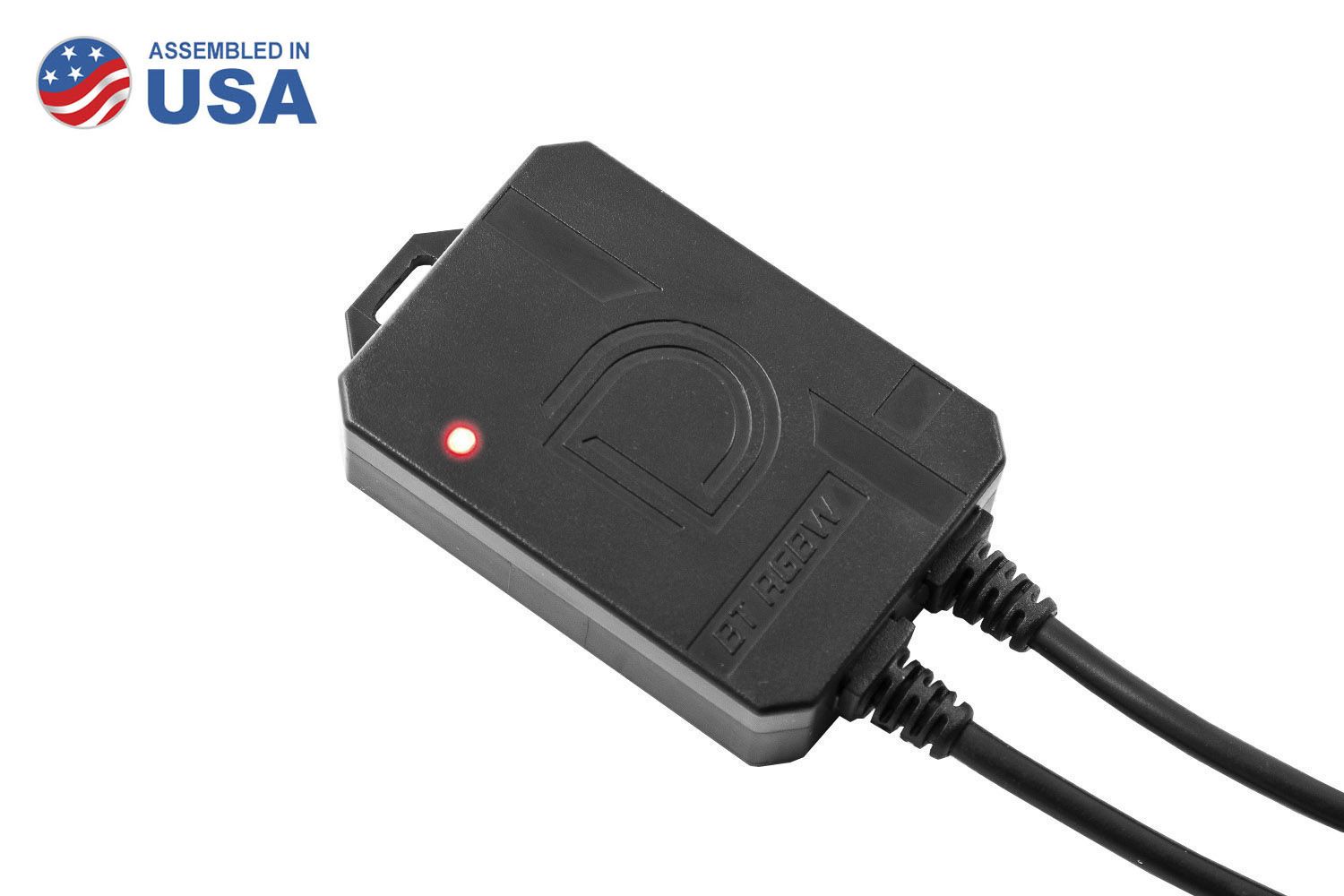

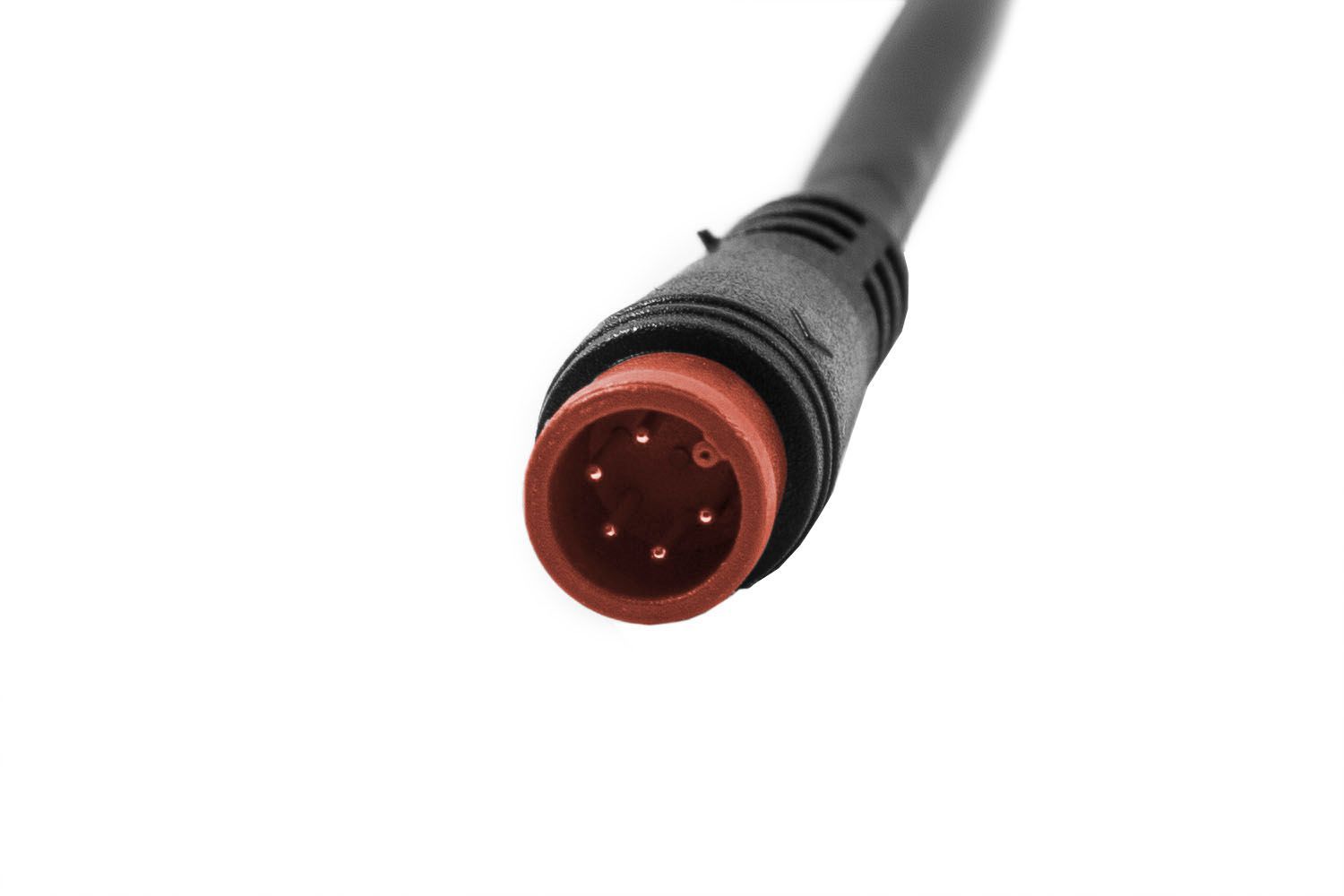

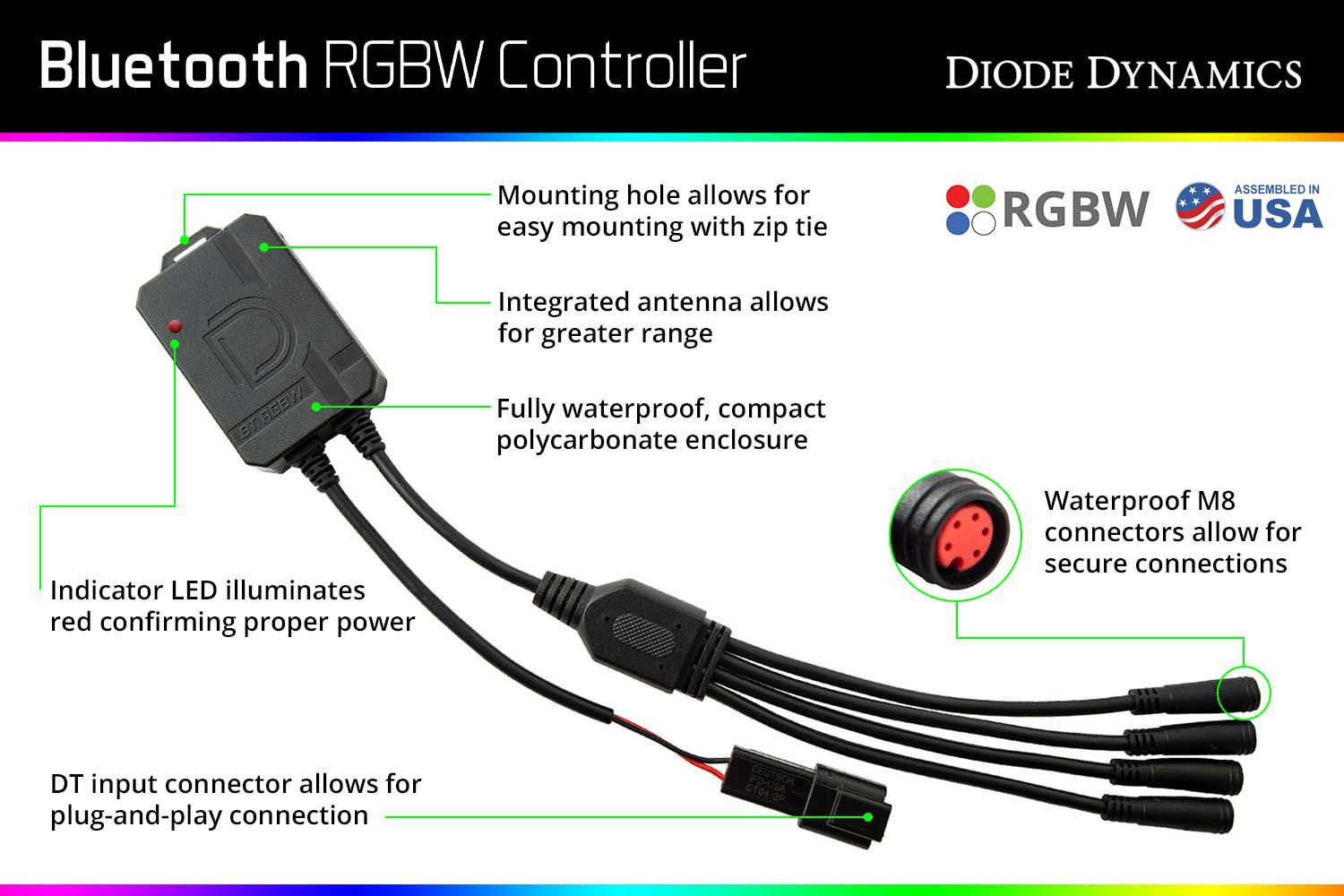

Easy Connection. With plug-and-play input and output connectors, simply plug in to any standard 12V signal - we recommend parking lights or direct battery. Then, connect the outputs directly to your Diode Dynamics multicolor products, with no cutting, crimping, or splicing. The M8 controller features a fully waterproof, compact polycarbonate enclosure, along with M8 output connectors for secure connections. A red indicator LED is also included to confirm proper power and a mounting tab and mounting pad surface for easy mounting.

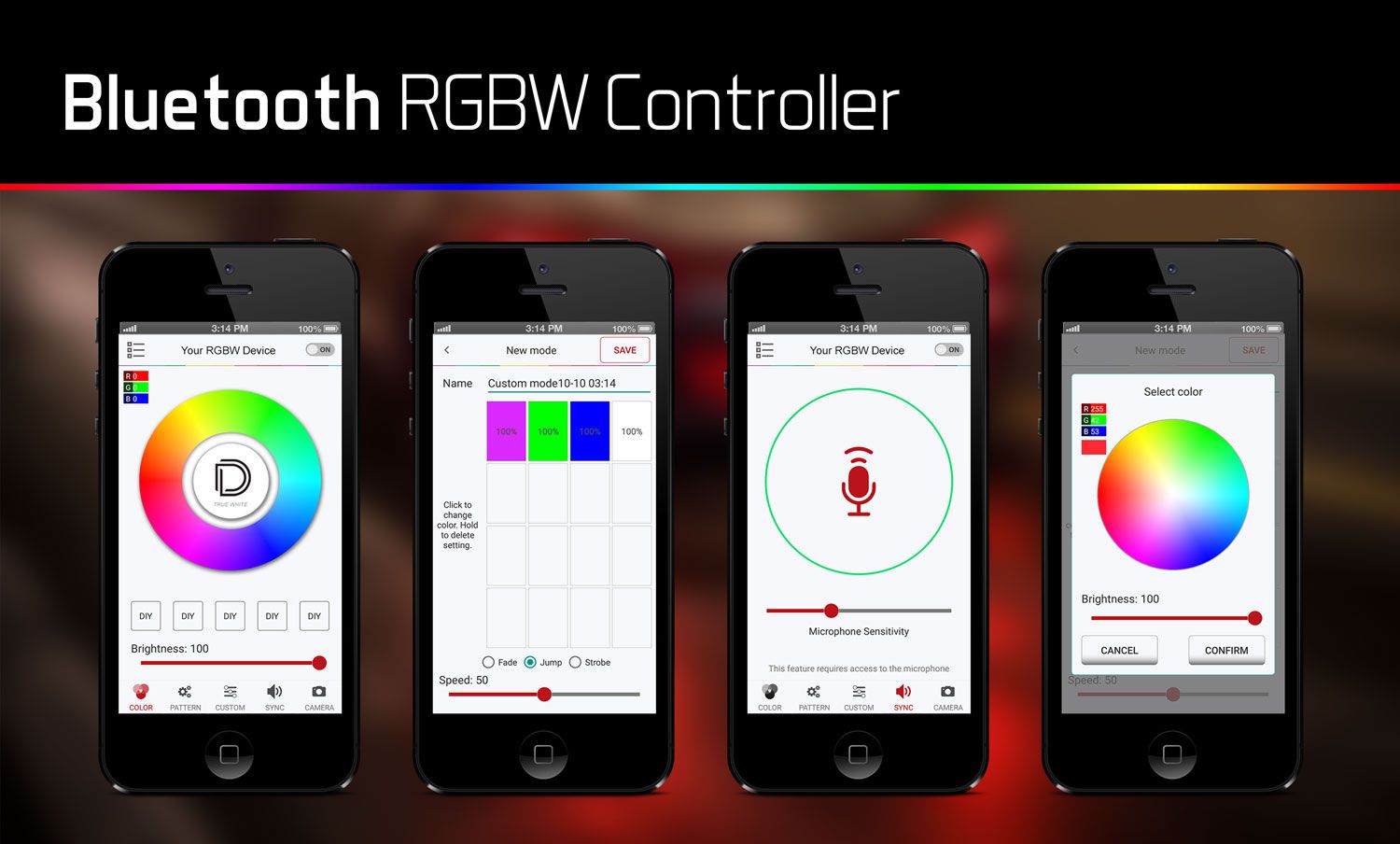

App Control. With the Diode Dynamics multicolor app, you can of course choose any color under the sun, including True White. There's preset patterns too, including strobe, fade, and more. But it's the extras that really make this controller special. Simple features like Preset Colors make it easy to use, and fun features like Camera Match and Music Sync make it fun to show off! Don't see a pattern you like? Just program your own, and save it for later! This controller is the most fully-featured in terms of control and features on the market.

Instant Function. Don't wait around to see your lights. This controller will light up immediately to the previous setting when it gets power, no need to access the app. And connecting to the controller takes seconds, not minutes. Instant response, instant control, for an excellent user experience.

Get a Few. If you have more than one RGBW device, consider picking up an extra controller. The Group feature allows you to connect and control multiple units in the same app, controlling them all at once (Grouped) or selecting one at a time, in a multizone setup. Even pick names so you can keep track of what's what, and really show off what your lights can do. Up to eight controllers can be accessed in one app session.

Purpose-Built. Introducing the only RGBW controller on the market that is purpose-built for automotive LEDs. Assembled in USA, it is designed to handle standard automotive power, and will power any common-positive 12V RGBW lighting products. With a fully-waterproof, durable potting, and robust components allowing up to 4A output per channel, this is the most reliable, low-cost RGBW controller on the market!

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Compatibility
Works with all Diode Dynamics RGBW products
Works with many generic RGBW products
Works with RGB products (multicolor only, no white control)

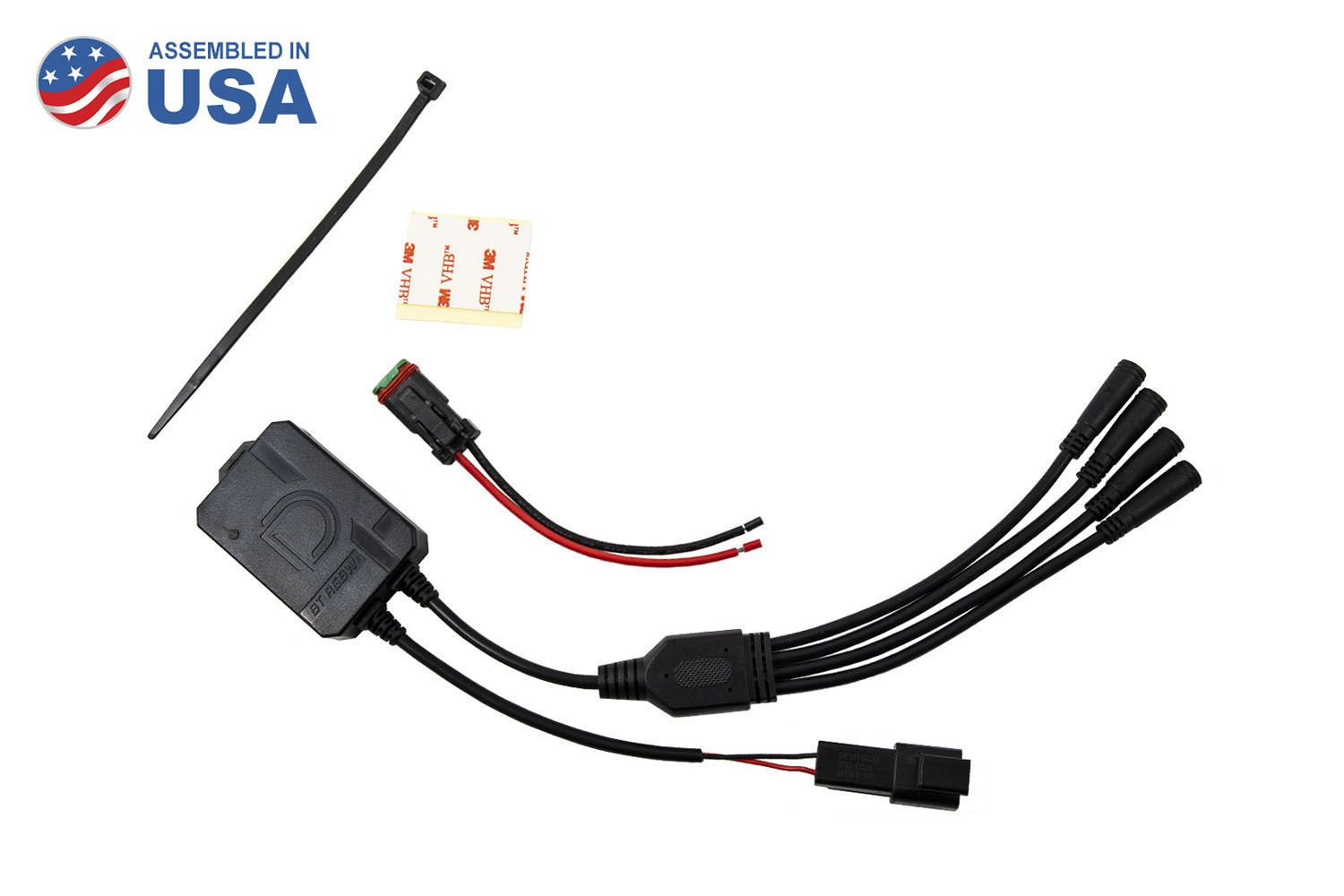

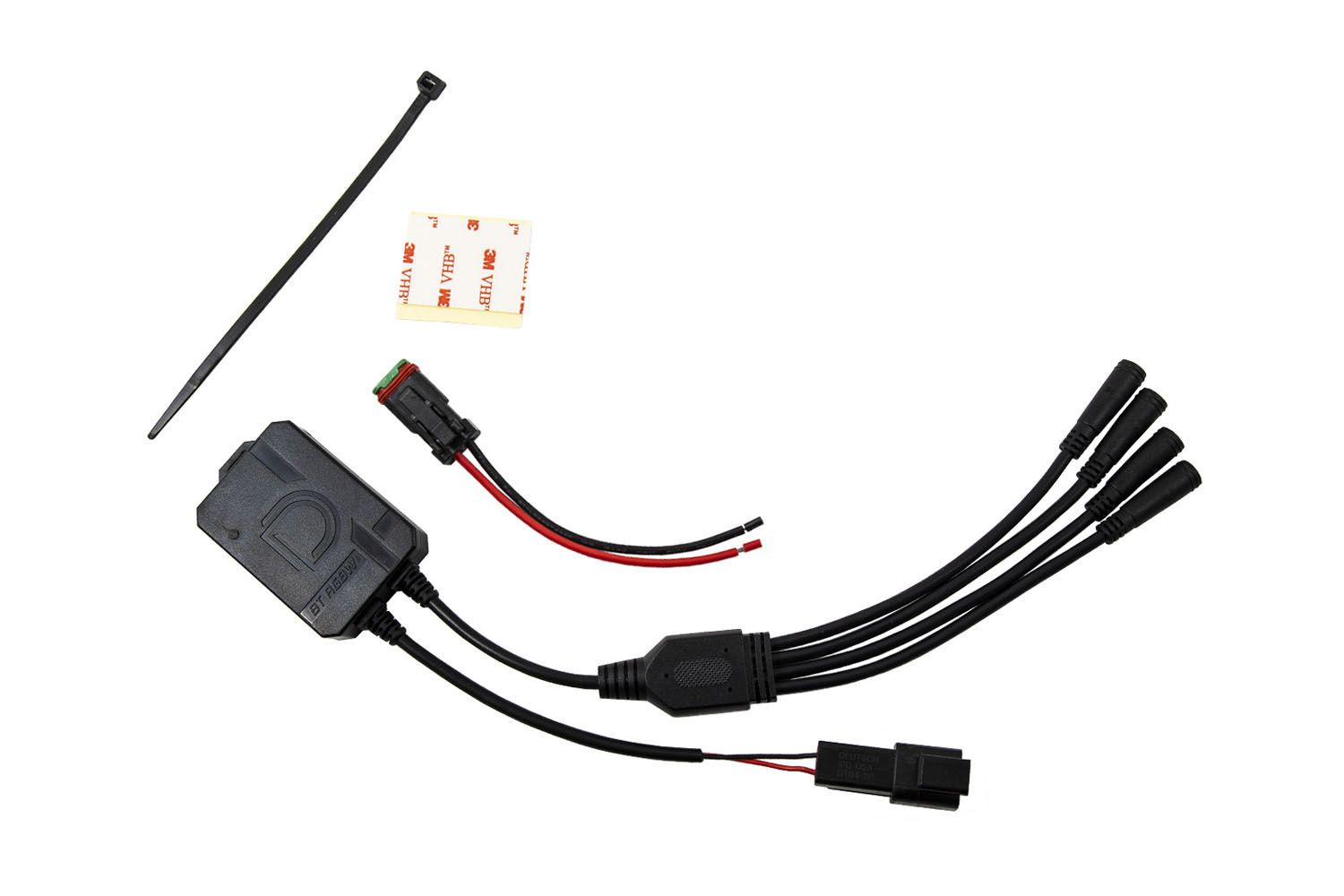

In the Box:
One (1) Bluetooth RGBW Controller with M8 output connectors
One (1) Deutsch DT pigtail
Installation/troubleshooting card

Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Specifications

Spec Diagram: Download
Current Max: 4A per channel
Power (watts): 96
Operating Voltage: 9-16V
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input, M8 Input
Driver Features: Waterproof
Intrusion Ratings: IP67 Weatherproof
100% Satisfaction Guarantee

Installation

This controller should be used to power other RGBW LED products.

Installation Time: 10-20 minutes

Tools Needed: None

Modification: Basic Wiring Only

Installation Guide: Click to download
