DIODE DYNAMICS | Ram 1500 2019-2024 Stage Series Fog Pocket Kit

Description

Features
Bolt-on fitment for 2019-2023 Ram 1500.
Adds brighter SAE-compliant fog lights.
Plug-and-play, no modification needed.
Backlight feature provides amber accent light.
Highly durable powdercoated stainless steel bracket.
Engineered and assembled in USA.

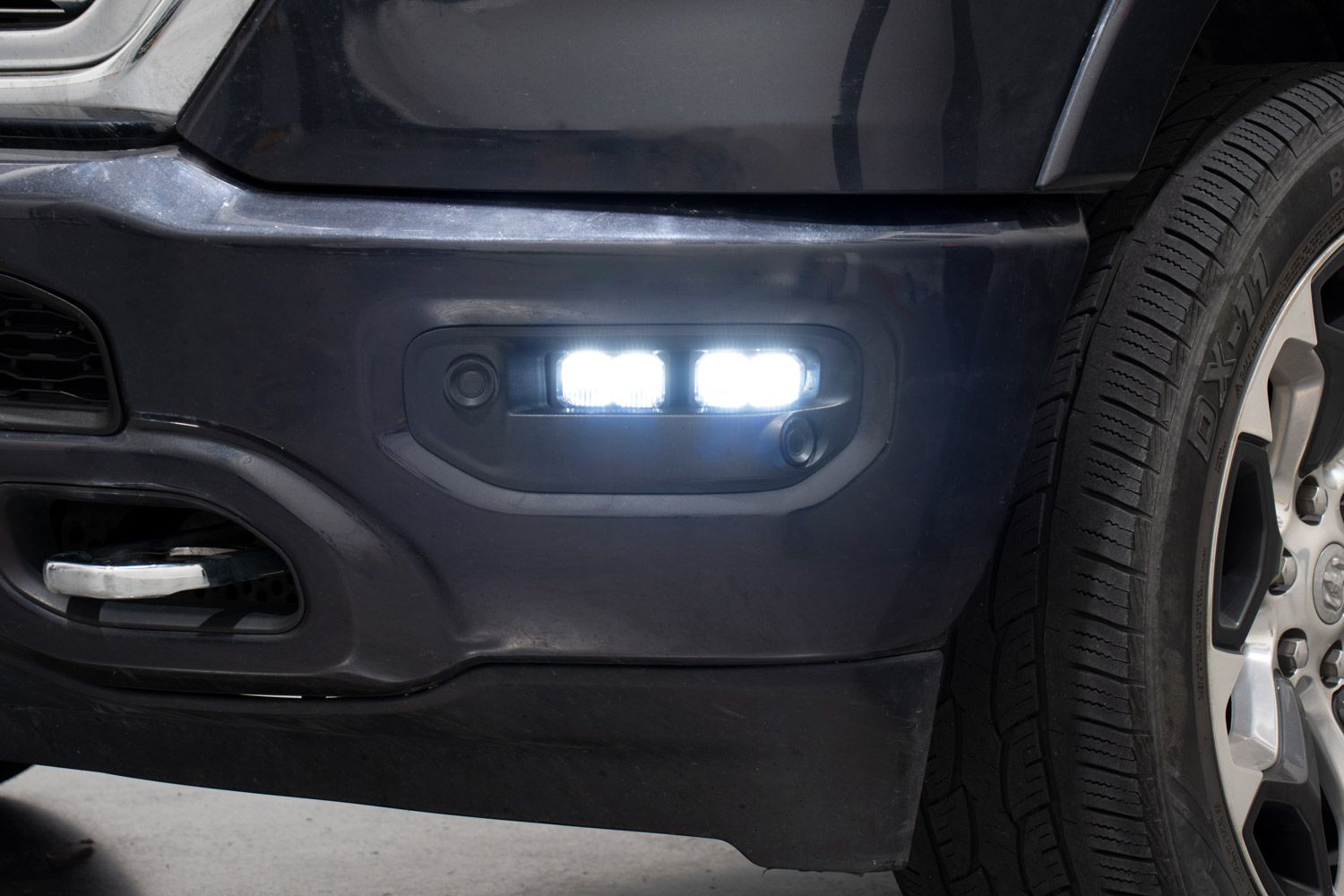

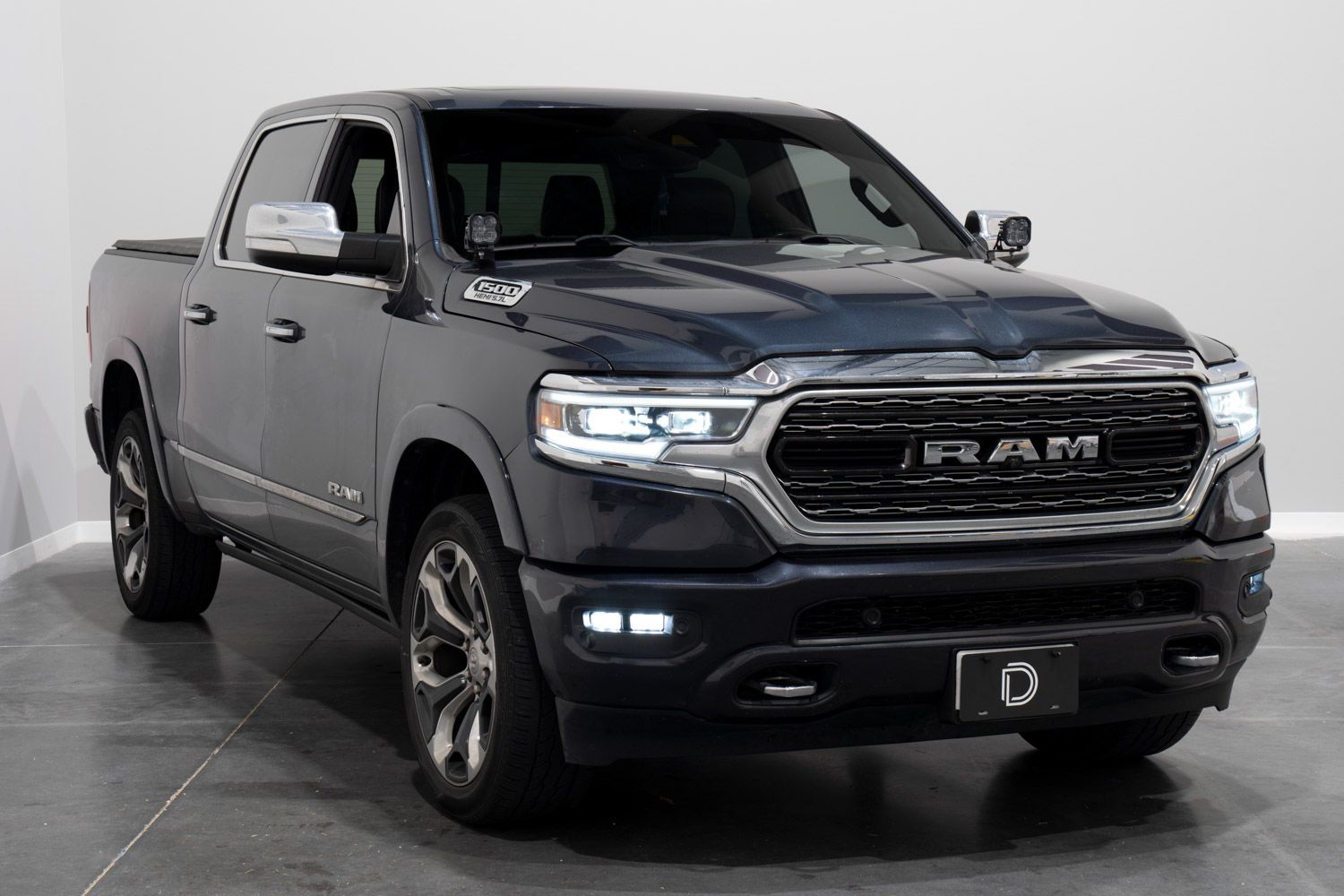

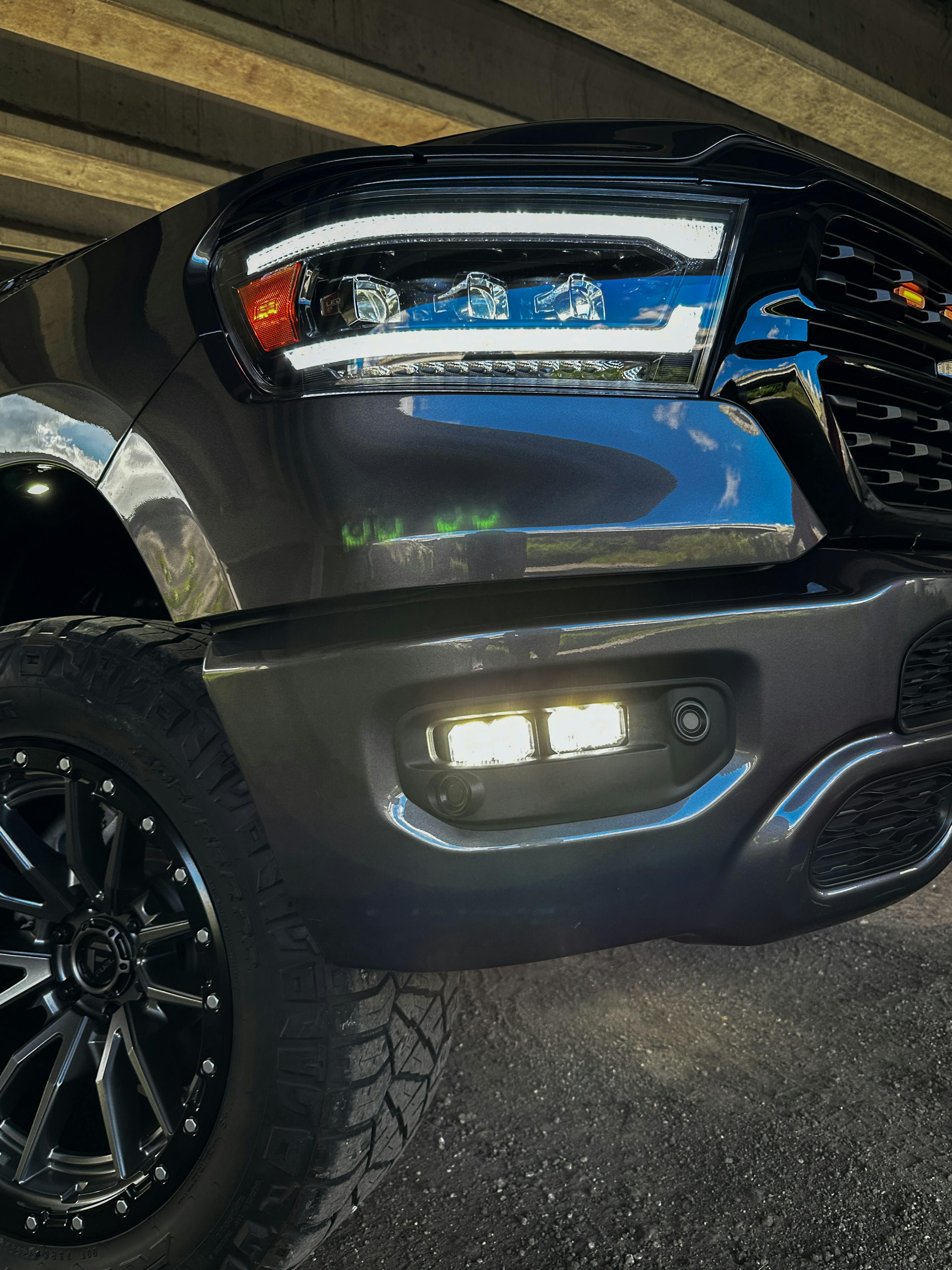

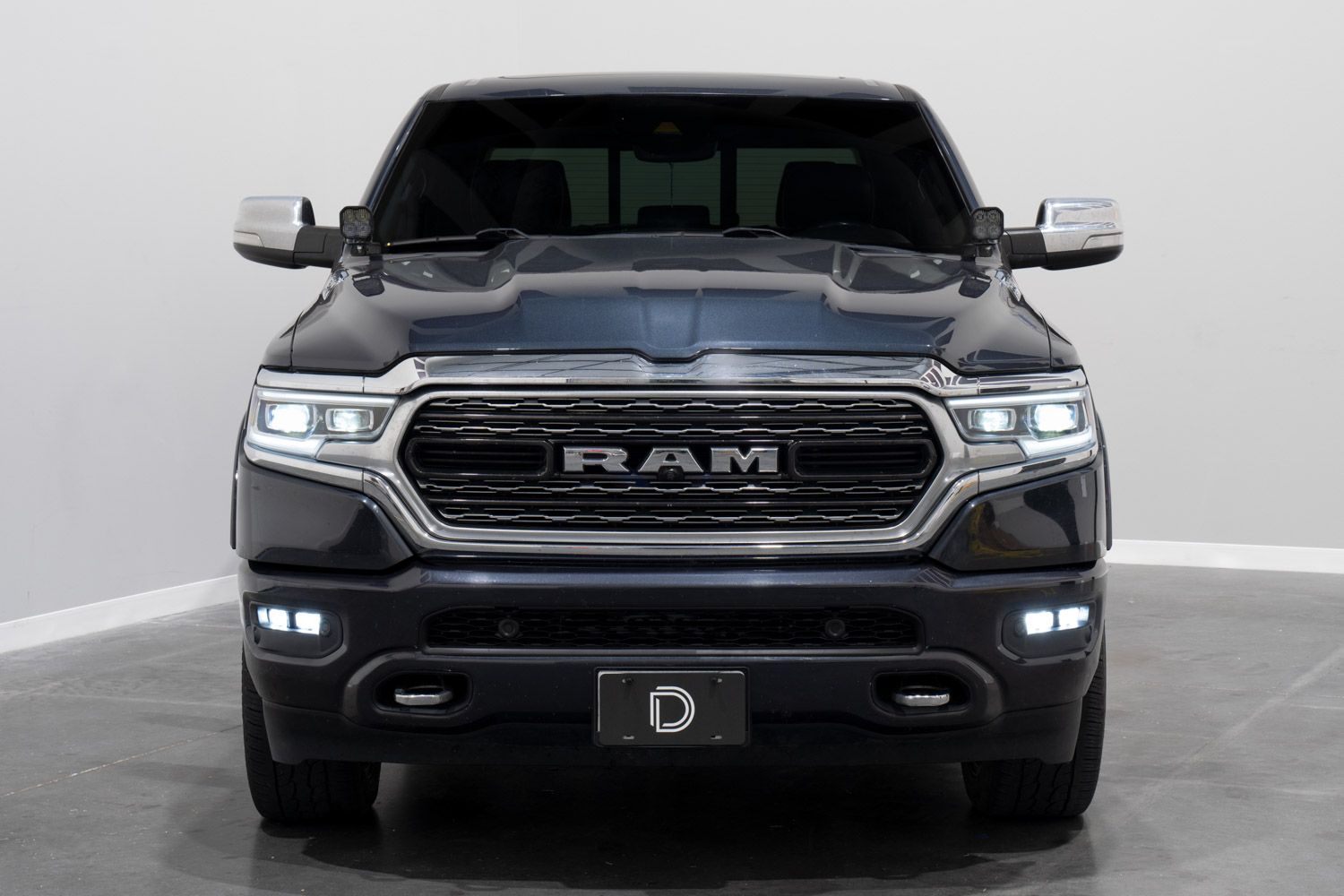

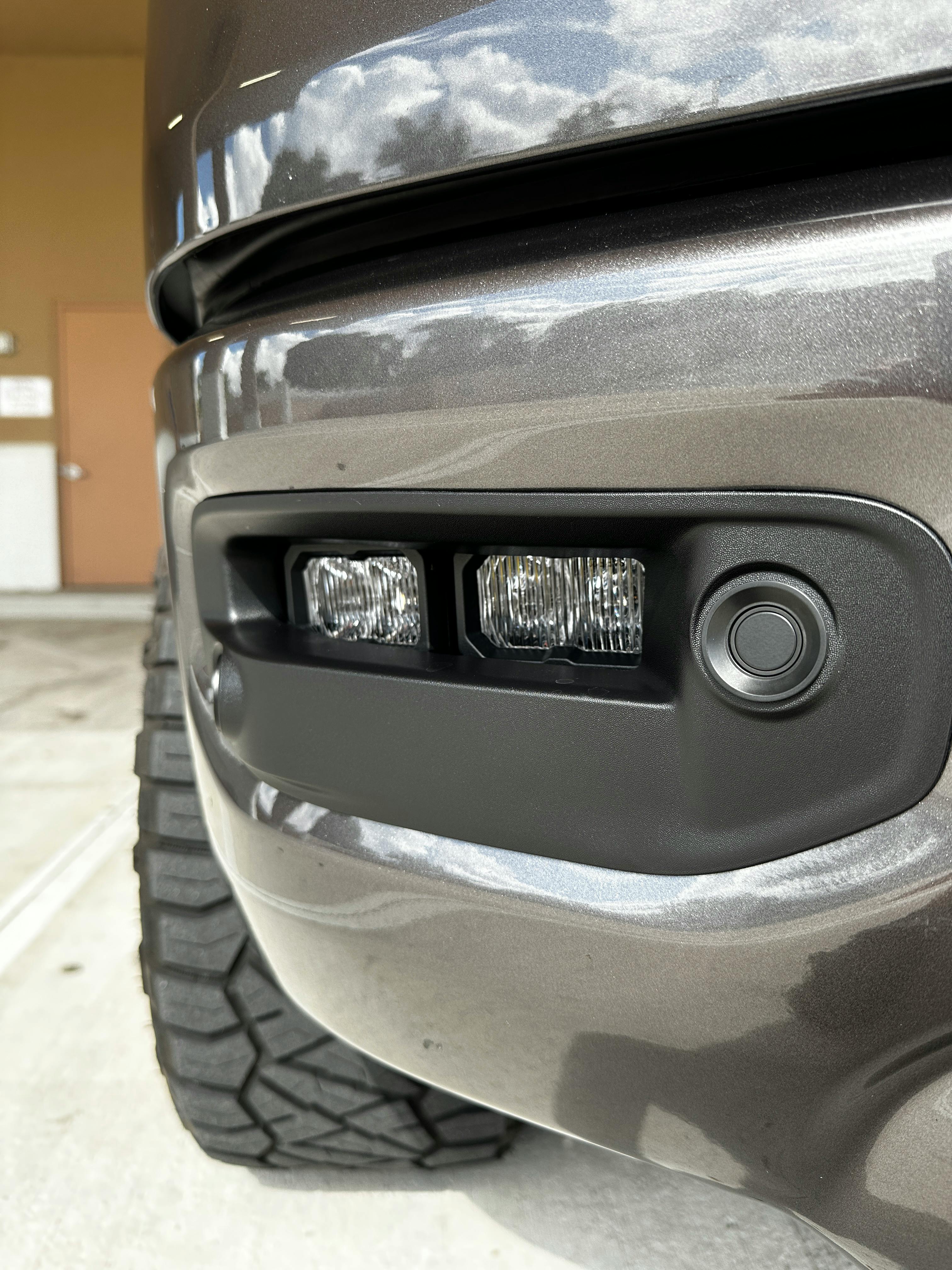

Overview. If you are looking to add an aggressive offroad appearance to your Ram 1500 while still having road-legal fog lights, look no further! The Stage Series Fog Pocket Kit for the 2019-2023 Ram 1500 from Diode Dynamics adds four road-legal SSC2 fog pods in place of your factory fog lights, for a significant increase in light output.

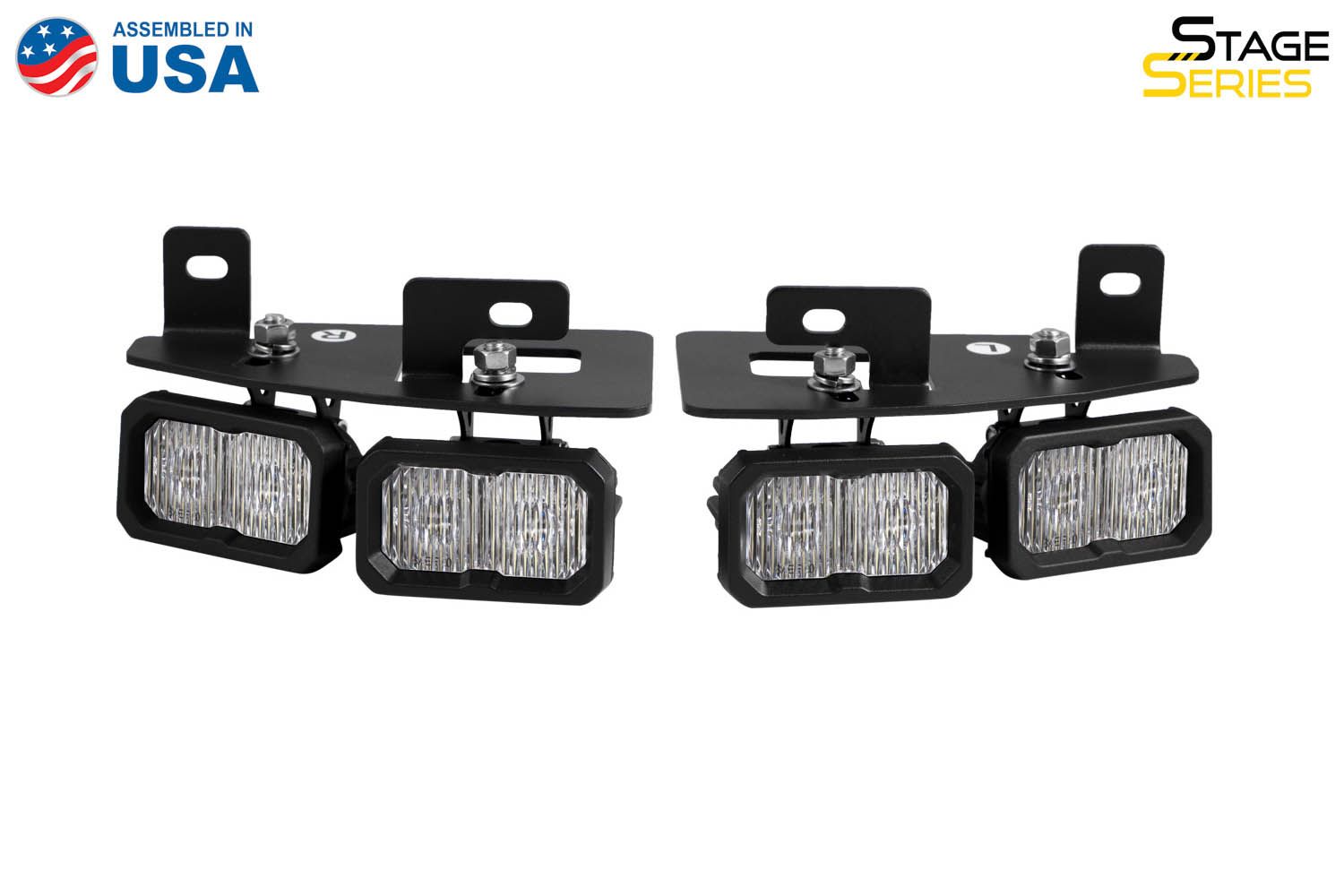

Unmatched Light Spread. This kit includes four SSC2 LED Pods in the SAE-compliant fog beam pattern. The unique design of the fog pocket brackets allows you to aim the inside pods straight ahead, while the outer pods are slightly offset allowing for an even further spread of light.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your vehicle.

When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

For states that require them, we also offer snap-on covers for your Stage Series LED Pods. These covers are available in a variety of colors and keep your Stage Series Pod clean and protected from dirt, dust, or whatever else the road throws your way!

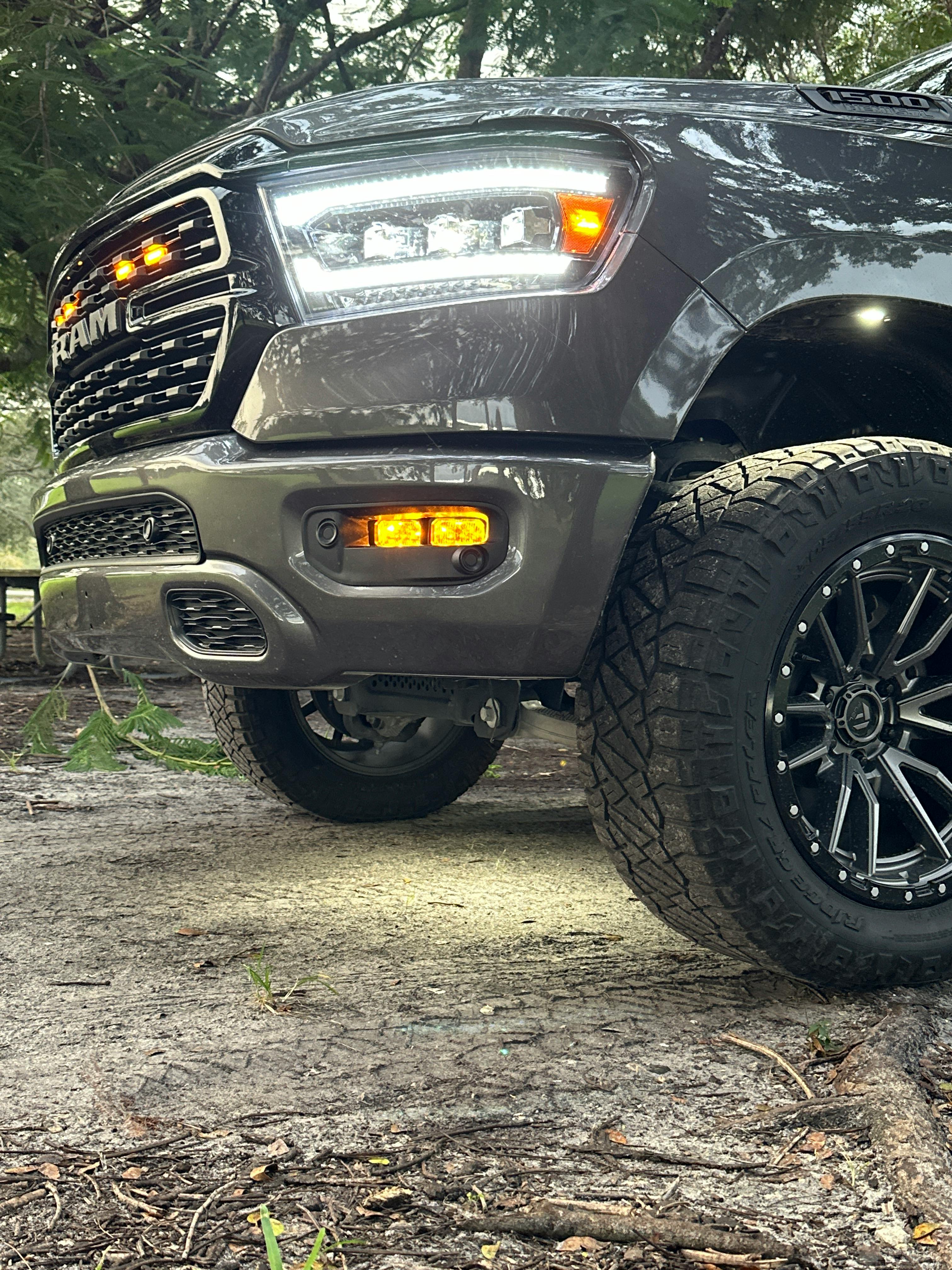

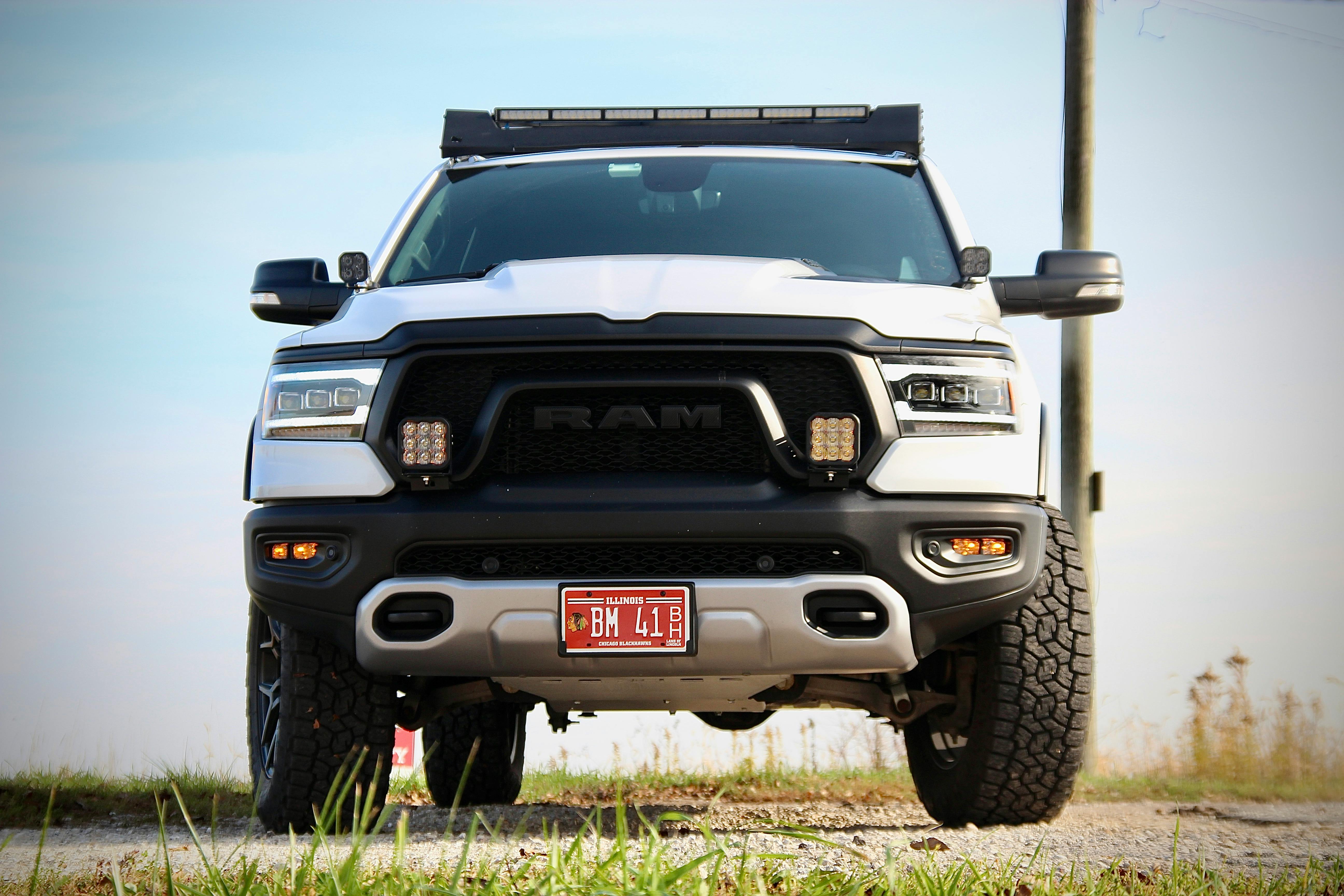

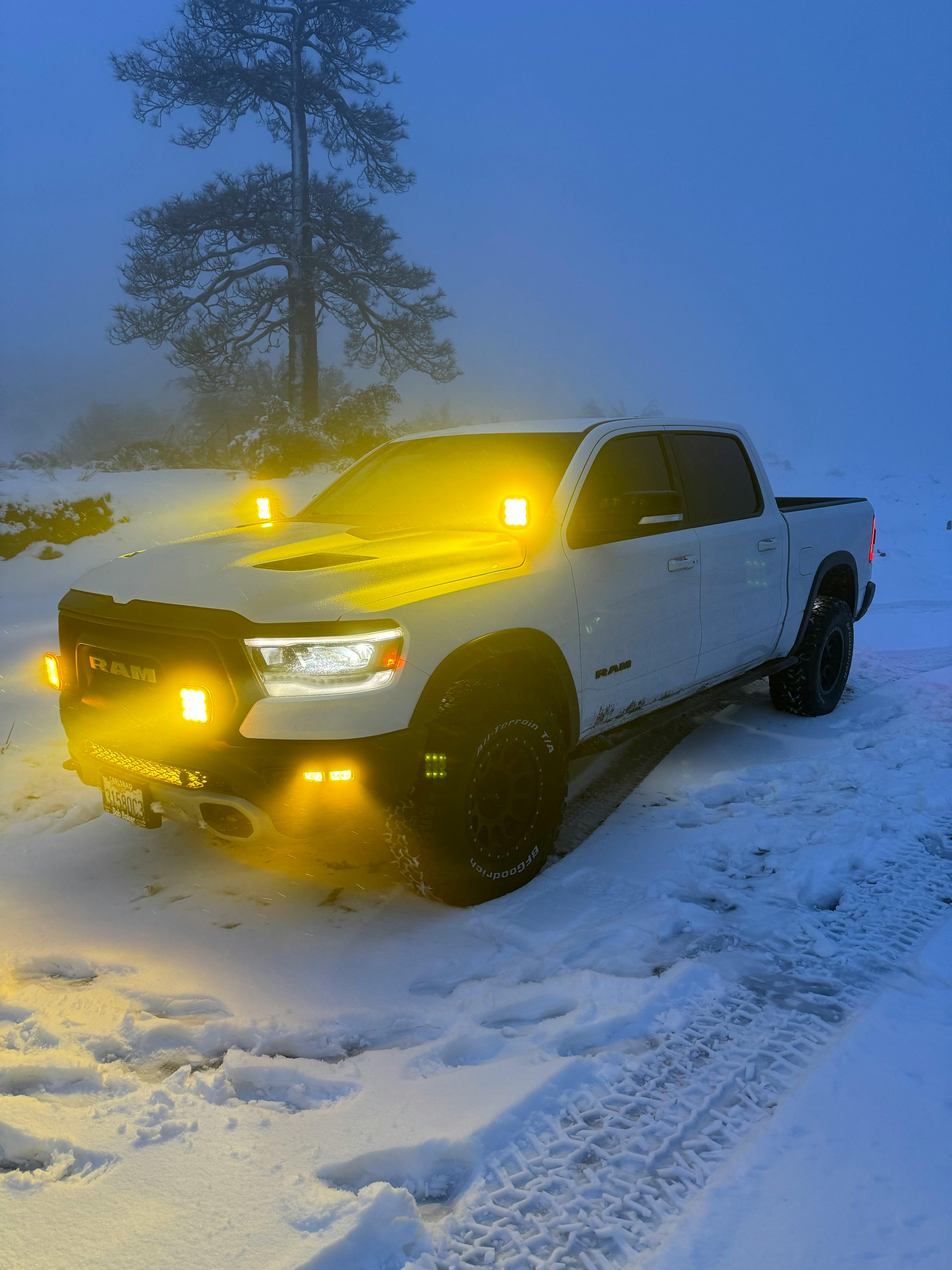

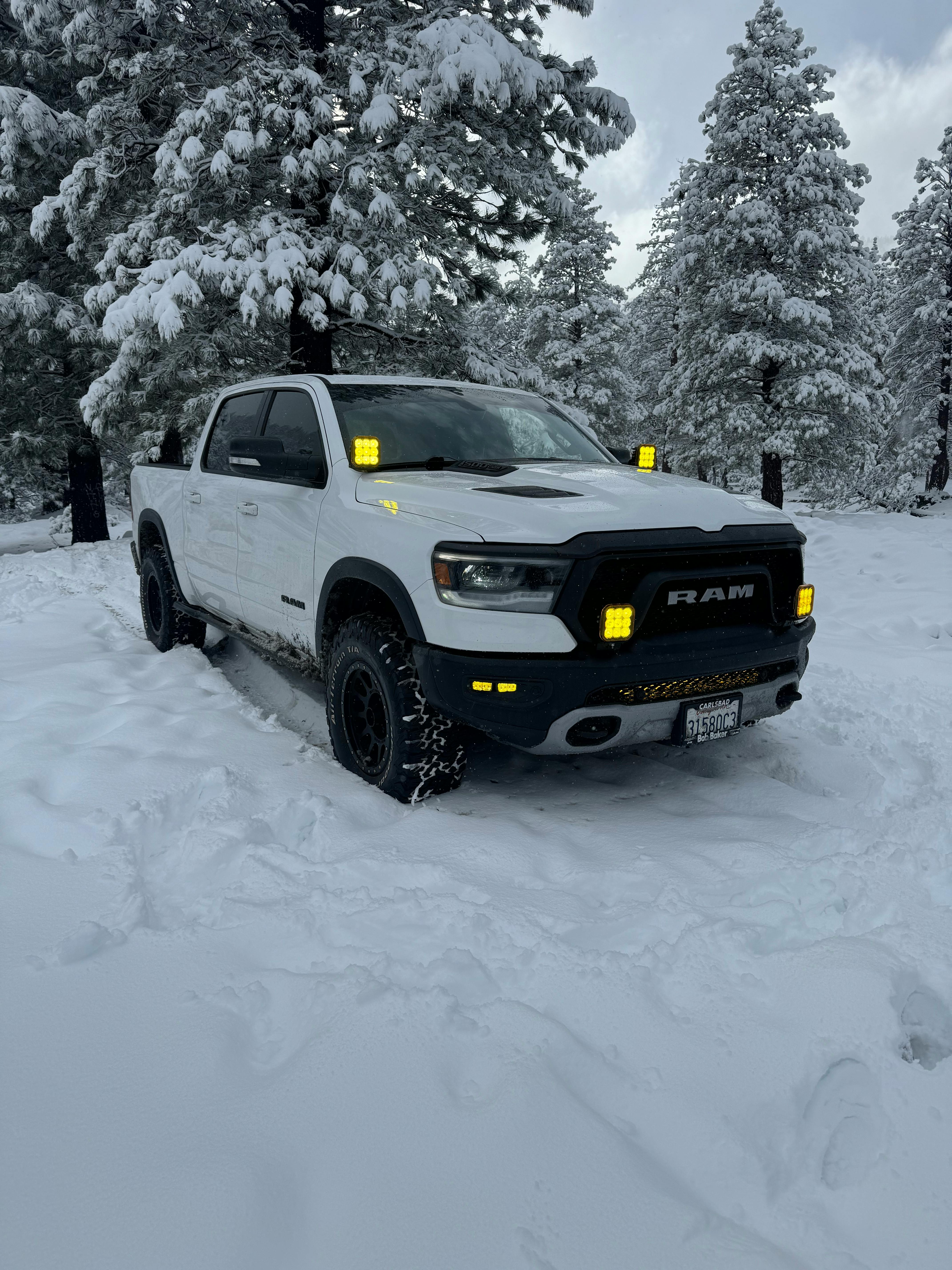

White or Yellow Fog. The SSC2 fog pods included with this kit are available in both cool white and selective yellow LED pod options. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

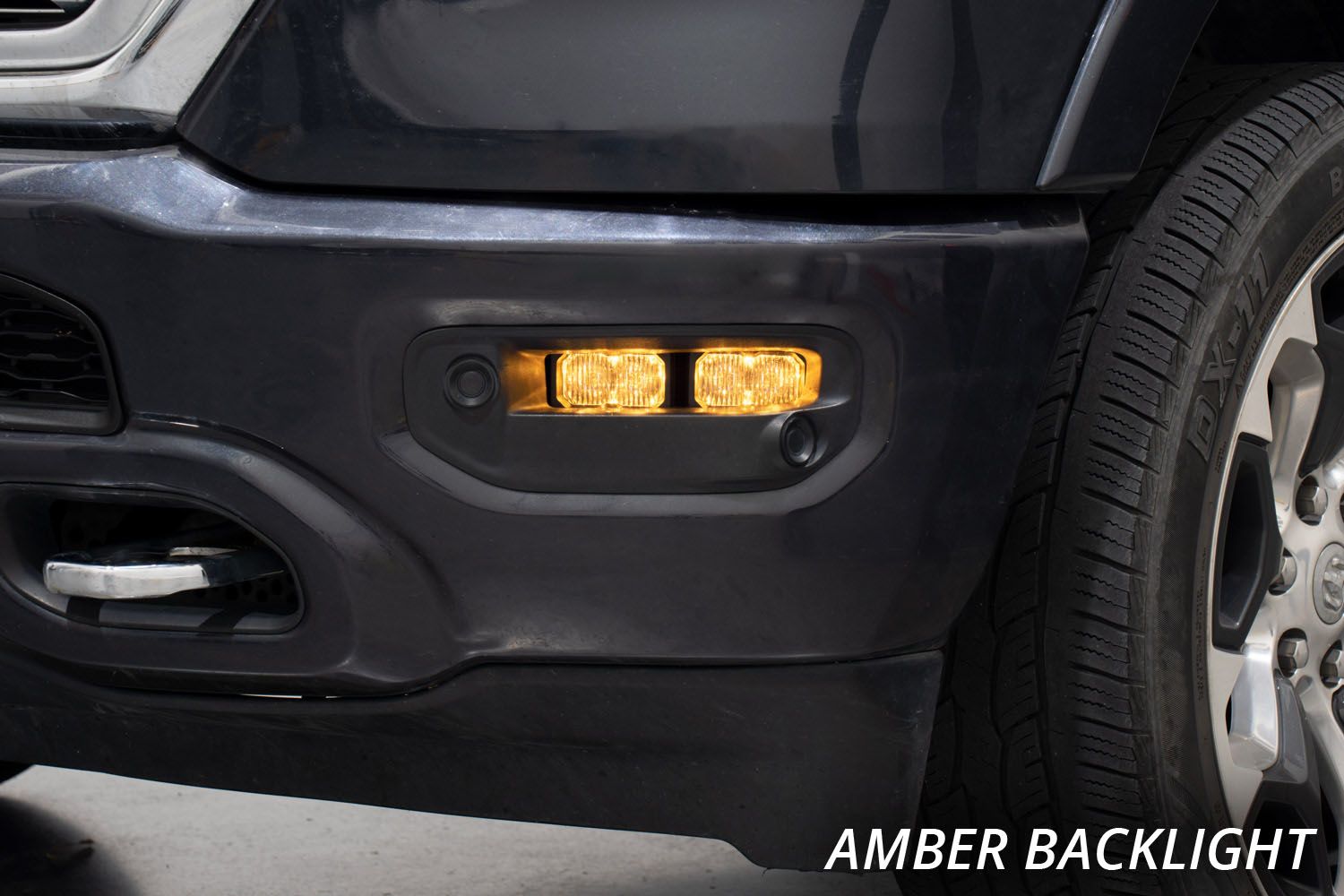

Backlight Functionality. Each pod in this kit includes a distinctive Amber backlight feature. This integrated backlight gives you an additional accent light, along with the main beam. The backlight on each SSC2 fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. The backlight is powered using the included H11-size adapter to tap your desired vehicle function.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

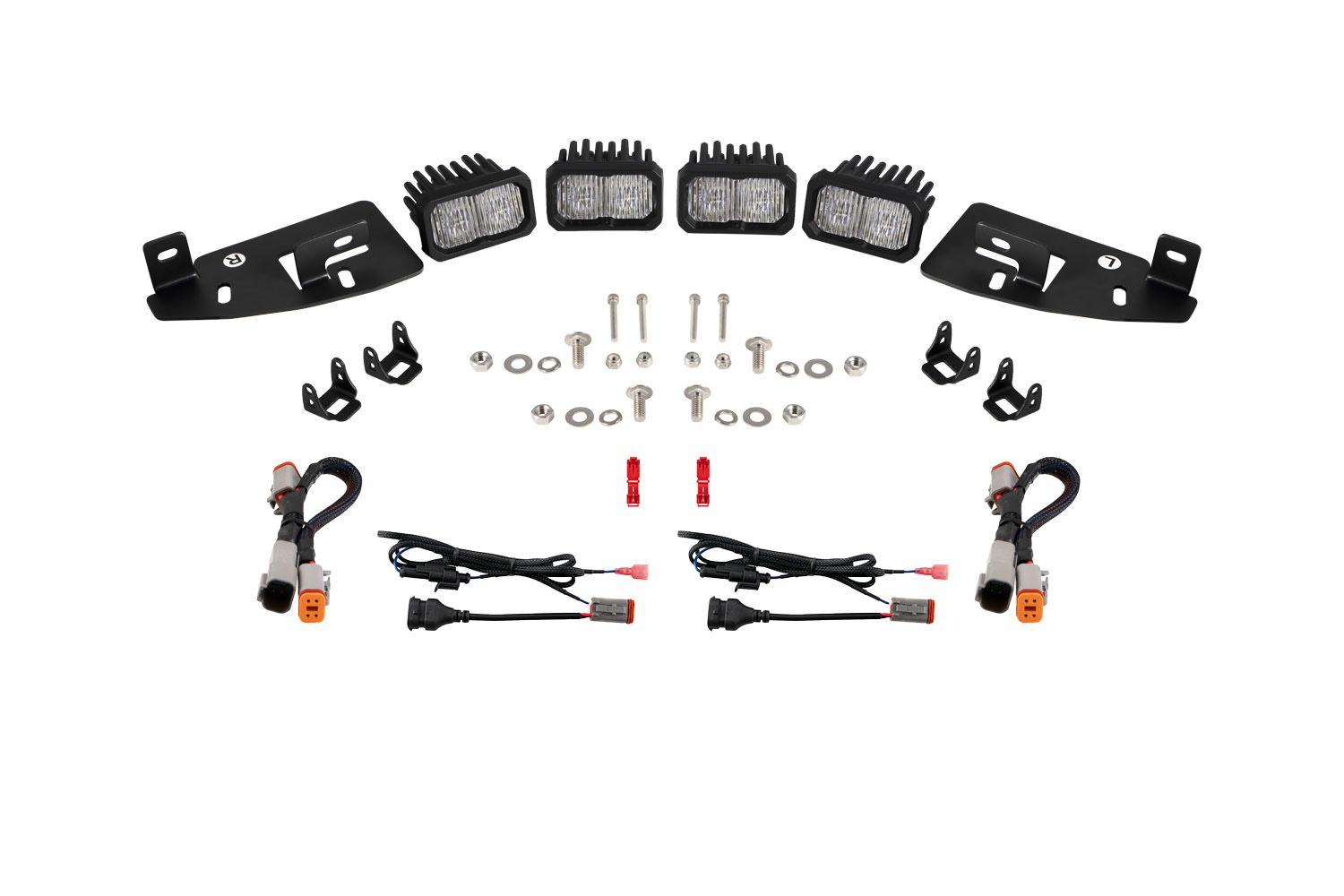

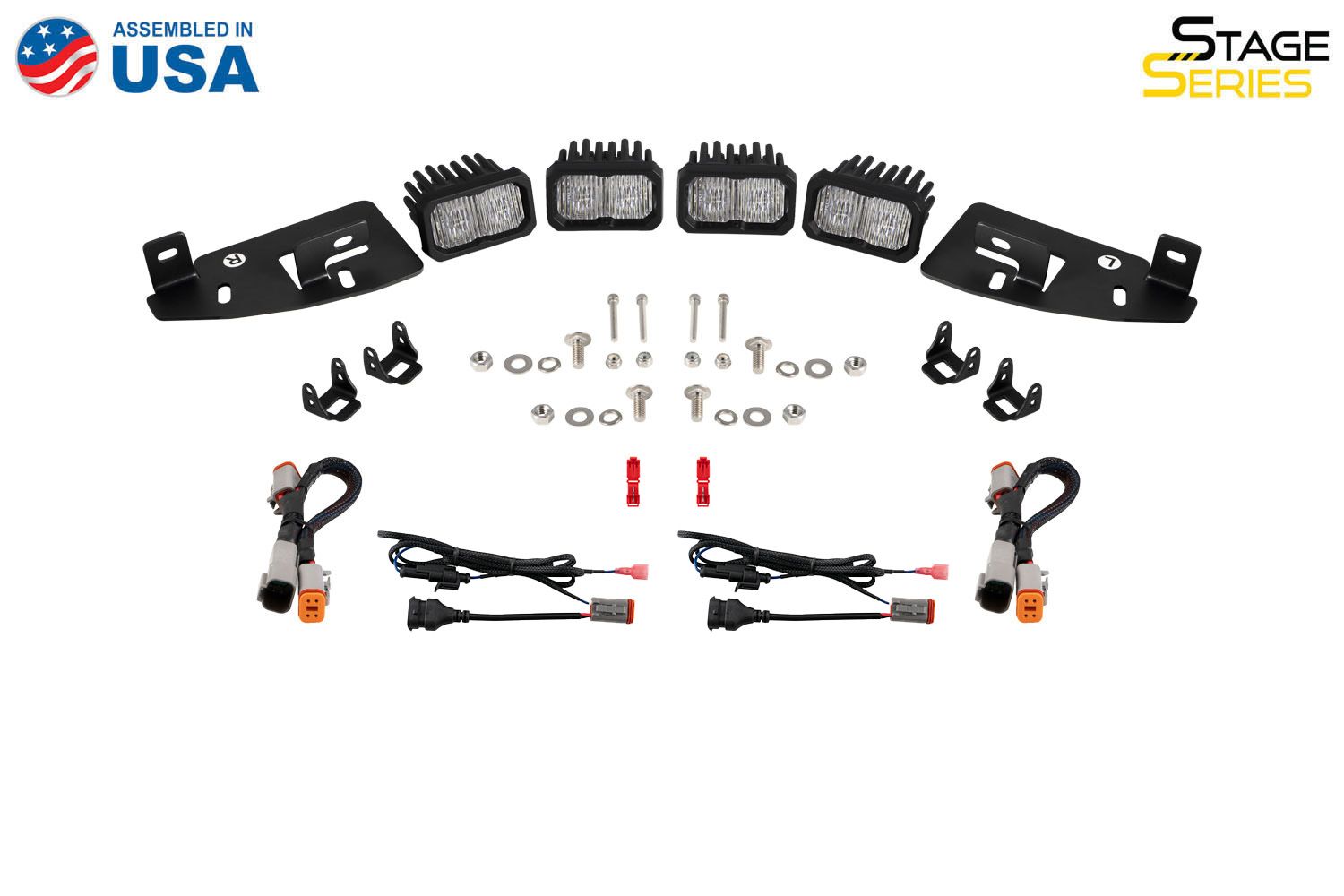

In the Box:
Four (4) Stage Series 2" LED Pods

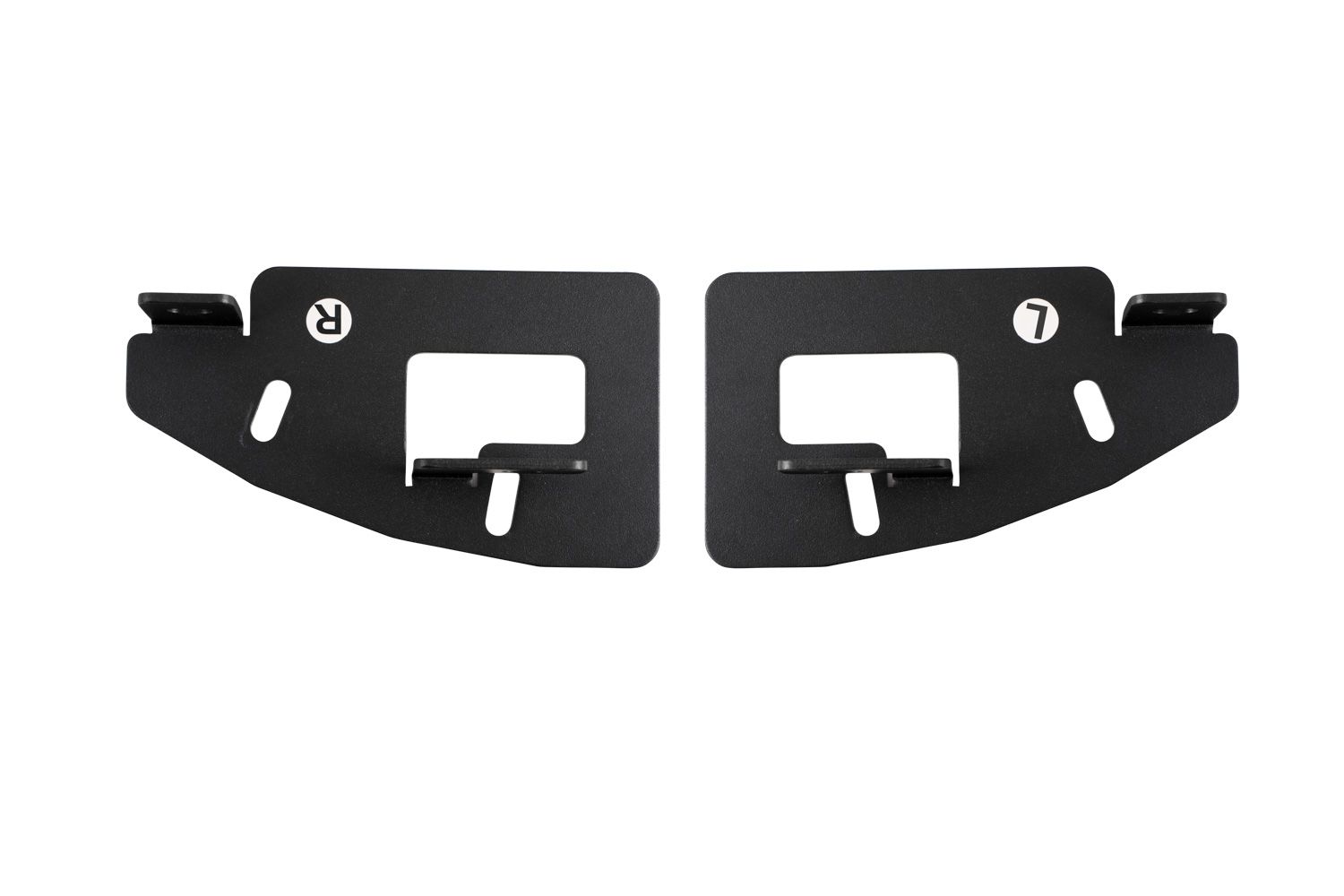

Two (2) Ram 2019-2024 Fog Pocket Brackets
One (1) H11 4-Pin DT Backlight Tap Wire Kit
Two (2) CrossLink Splitter Harnesses

Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment
NOTE: This kit is not compatible with Big Horn and Tradesman trim levels equipped with halogen fog lights from the factory.

Application: Fog Light
Make: Ram
Model: 1500
Years: 2019, 2020, 2021, 2022, 2023, 2024

Specifications

NOTE: Specifications listed here are for each individual pod.

What do these terms mean?
Datasheet(s) (click to download): SSC2 Sport White Standard, SSC2 Sport Yellow Standard
Power (watts): Main Beam: 7.7, Backlight: 0.7
Operating Voltage: 9-16V
Current (amps @ 12.8V): Main Beam: 0.6, Backlight: 0.06
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input, Spade Terminals
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
Product Weight (lb): 6.00
Shipped Weight (lb): 7.5
Application: Fog Light
Make: Ram
Model: 1500
Years: 2019, 2020, 2021, 2022, 2023, 2024
100% Satisfaction Guarantee

Installation

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: Basic Wiring Only

Installation Guide: Click to download

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
