DIODE DYNAMICS | Multicolor Solid-State Relay Harness (One) (DD3041)
SELECT OPTIONS
Description
Features
Used for any LED installation, in place of standard relay
Activate LEDs from two independent factory signals, with no errors
Designed to power multicolor controllers with Deutsch plugs
Up to 8 amp draw at 12 volts, or 96 watts DC
Fully waterproof and shockproof, validated for -40 to 185F operation
Overview
Like a relay, but better. The Multicolor Solid-State Relay Harness from Diode Dynamics allows multicolor controllers or other devices to draw power directly from the battery, while still using your factory signals for activation. It works like a traditional relay harness, but better!
No errors. An increasing number of vehicles have computer-controlled factory signals. They flicker or shut off when too much power is used, making it impossible to use factory signals to power aftermarket lighting. You may have wired in traditional relay harnesses in the past to solve this, but those can have trouble if the signal flickers, and have to be custom-wired for each installation.
Designed for function. At Diode Dynamics, we are committed to delivering fully-designed lighting solutions that work correctly on the vehicle, not just on the bench. To accomplish this, we designed the Multicolor Solid-State Relay module with two independent low-impedance signal pickups, compatible with factory signals or microcontrollers, PWM filtering (50% duty cycle minimum), robust solid-state switches, and a fused battery harness. With its solid-state design, it will be more reliable over time than traditional relays, at a similar cost.
Use it (almost) anywhere. The Solid-State Relay Harness can be used anywhere you'd use a standard relay harness, except for HID components, due to ignition voltage spikes. For multicolor controllers, LED light bars, worklights, or any other LED, you can use it to run from your factory signals, and deliver up to 8 amps or 96 watts directly from your battery. Unlike a standard relay harness, this module has two independent input signals, to activate power any time either signal is turned on (for example, DRL or parking light).
Included when needed. This harness is included in Diode Dynamics multicolor LED products, when there are known issues with the factory signals. Currently, this includes 2015-2018 Dodge Challenger Multicolor LED Board Kits.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
Quantity: One (1)
Extras:
Solid-State Relay module
Fused battery connection wire
Two (2) T-taps for input signals
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee
Specifications
Max load: 8A at 12V DC, 96 watts
Input voltage (power): 12-16V
Input voltage (signal): 5-16V, PIC microcontroller compatible
Signal input waveform: Minimum 50% duty cycle, 100 hz to generate flicker-free "on" signal
Fuse: 15A
Operating Voltage: 5-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input, T-Tap Inputs
Intrusion Ratings: IP68 Waterproof
Shipped Weight (lb): 0.48

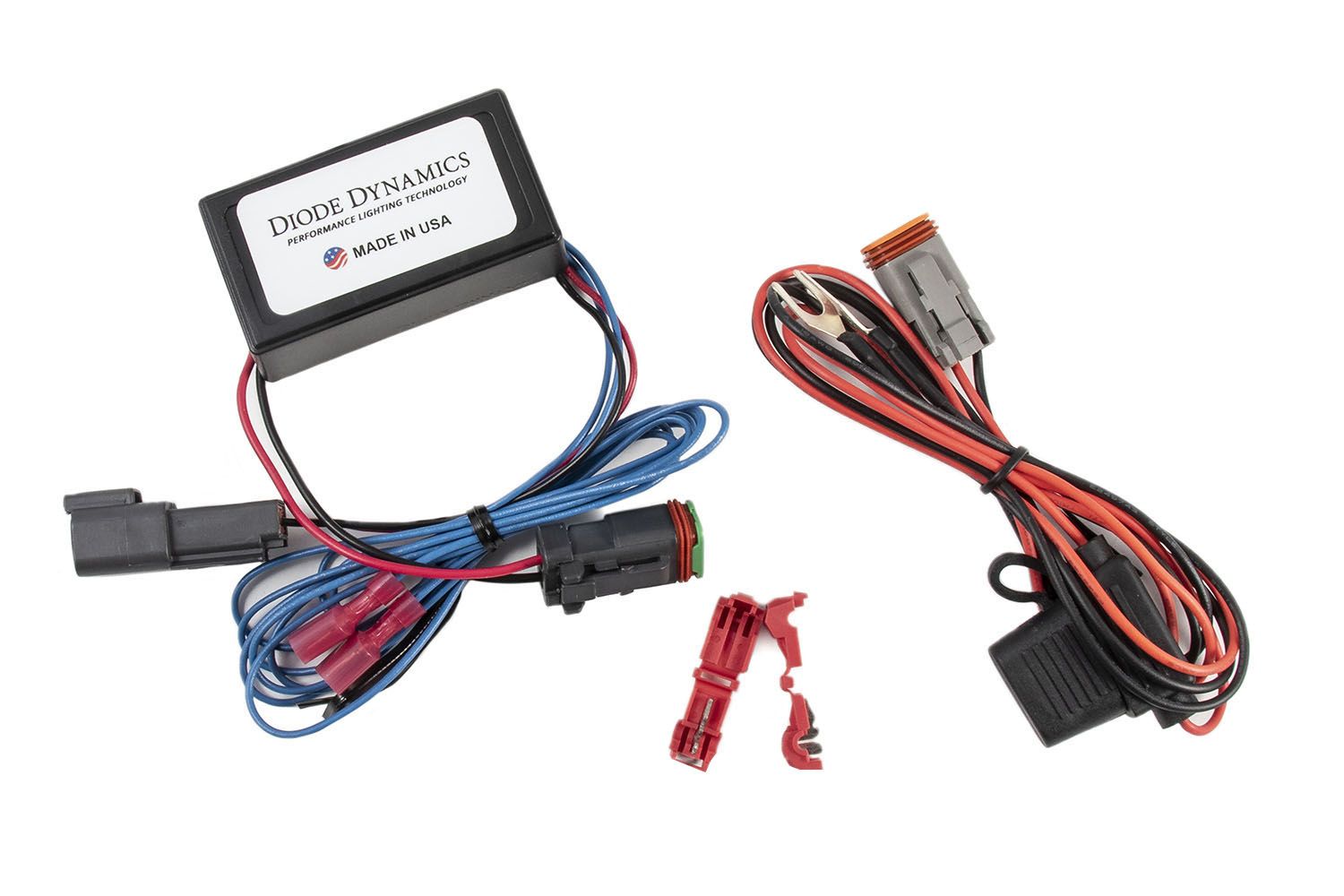

In the box:
Solid-State Relay module
Fused battery connection wire
Two (2) T-taps for input signals
100% Satisfaction Guarantee
Installation
Installation Time: 5-10 minutes
Tools Needed: Basic Toolset
Modification: Basic Wiring Only
Installation Guide: Click to download
Warranty
3 Year Replacement Limited Warranty
All Diode Dynamics products come with a 3 Year Worry-Free Warranty.
If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
