DIODE DYNAMICS | Jeep JL Wrangler 2018-2024 Hood LED Lightbar Kit

Description

Features
CAD-designed for perfect fitment on 2018+ Jeep JL Wrangler.

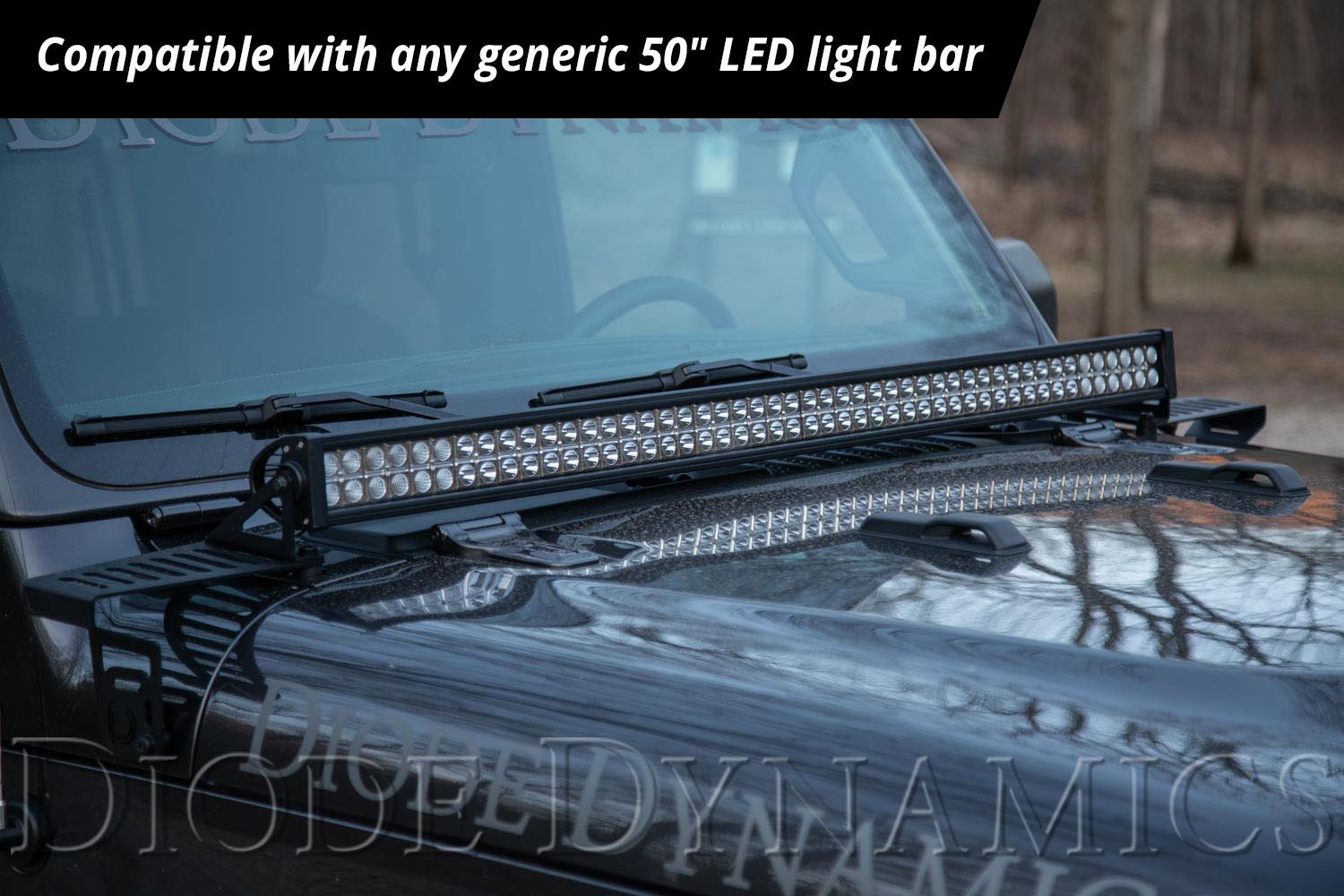

Allows you to mount one 50" light bar across the hood.
Includes OEM-style automotive grade hardware designed specifically for this kit.
Designed to eliminate excess wind noise.
Utilizes existing mounting points for easy installation - no cutting or drilling required.
Highly durable powdercoated steel construction.
Control through factory aux switch bank using the included harness.

Overview

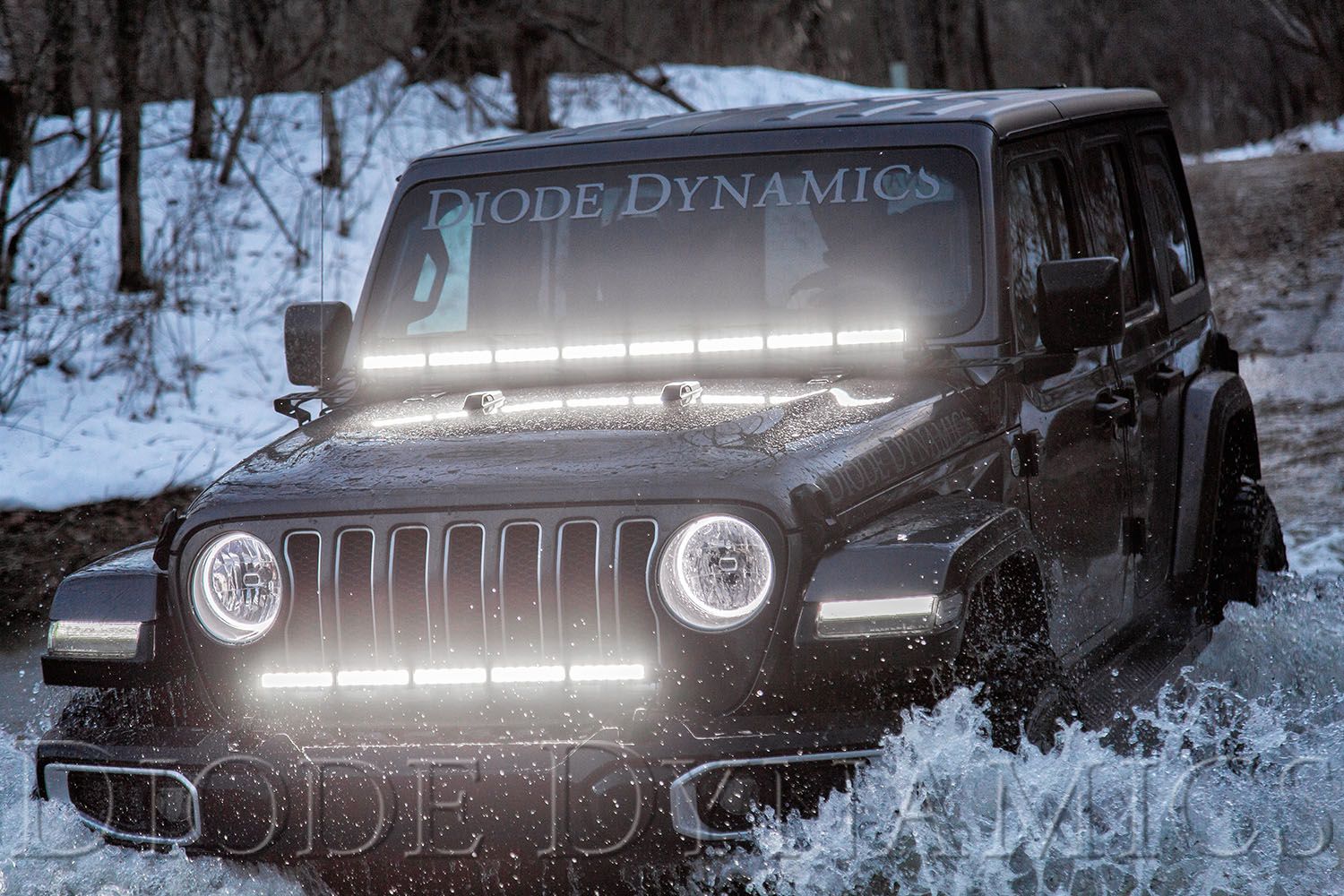

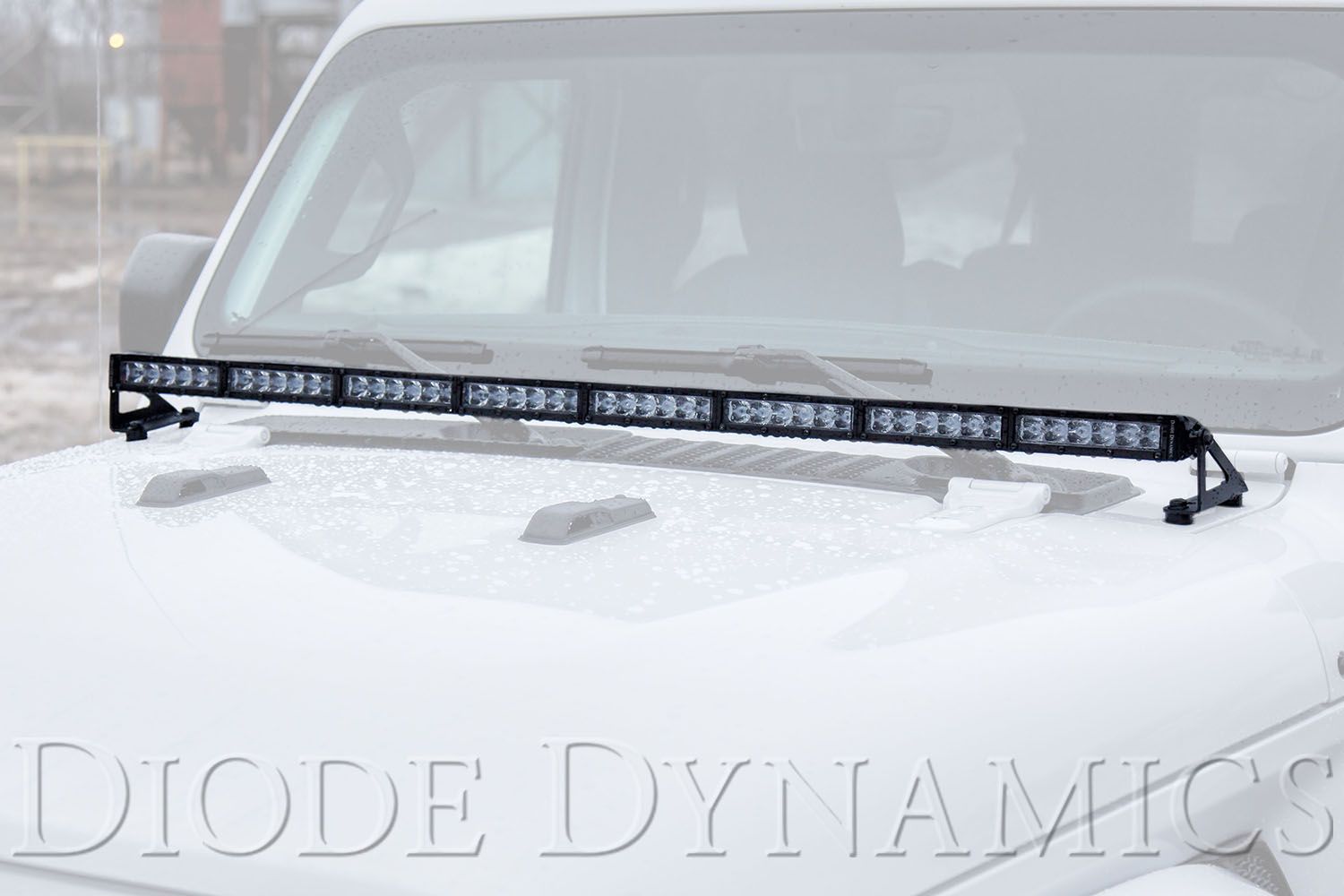

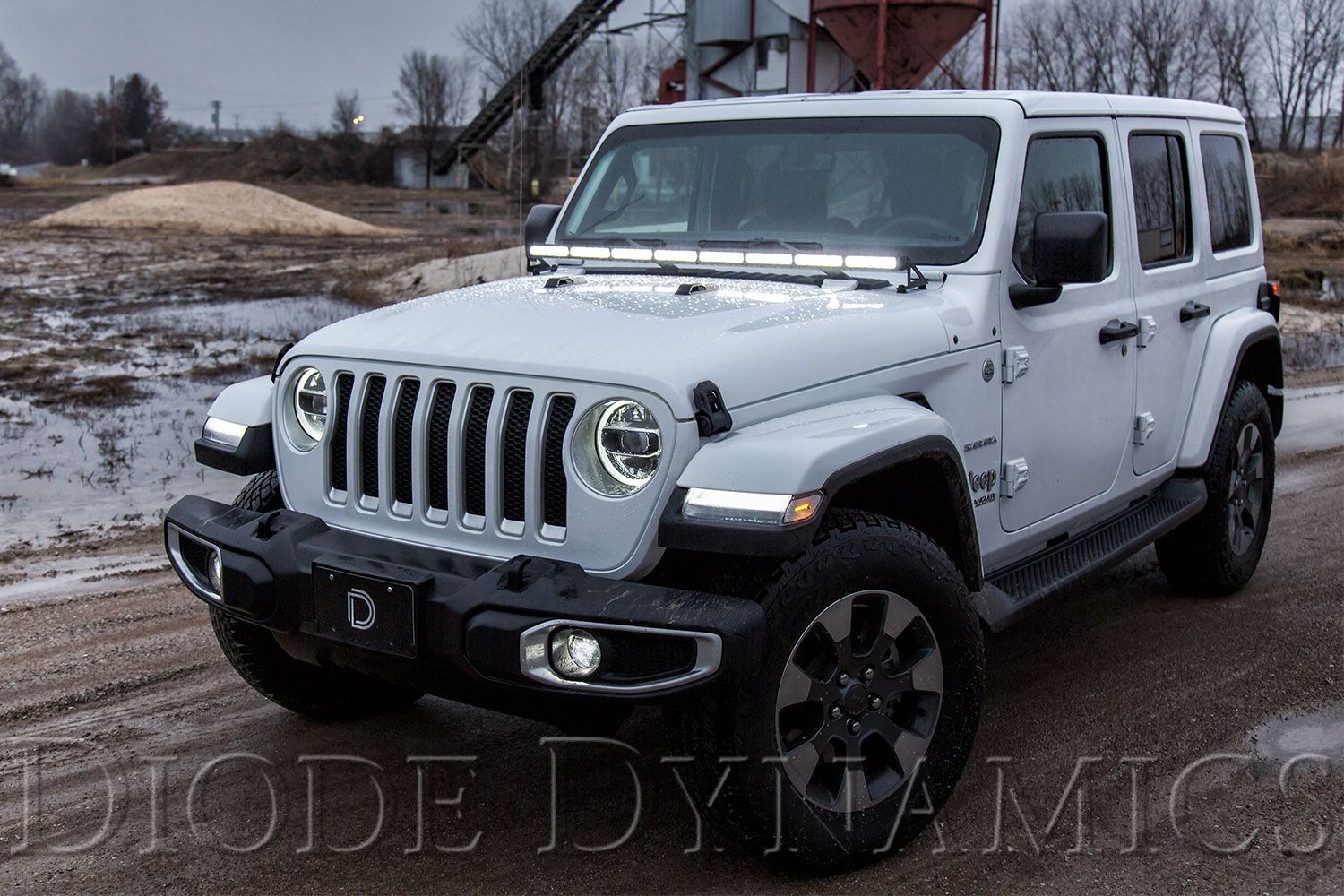

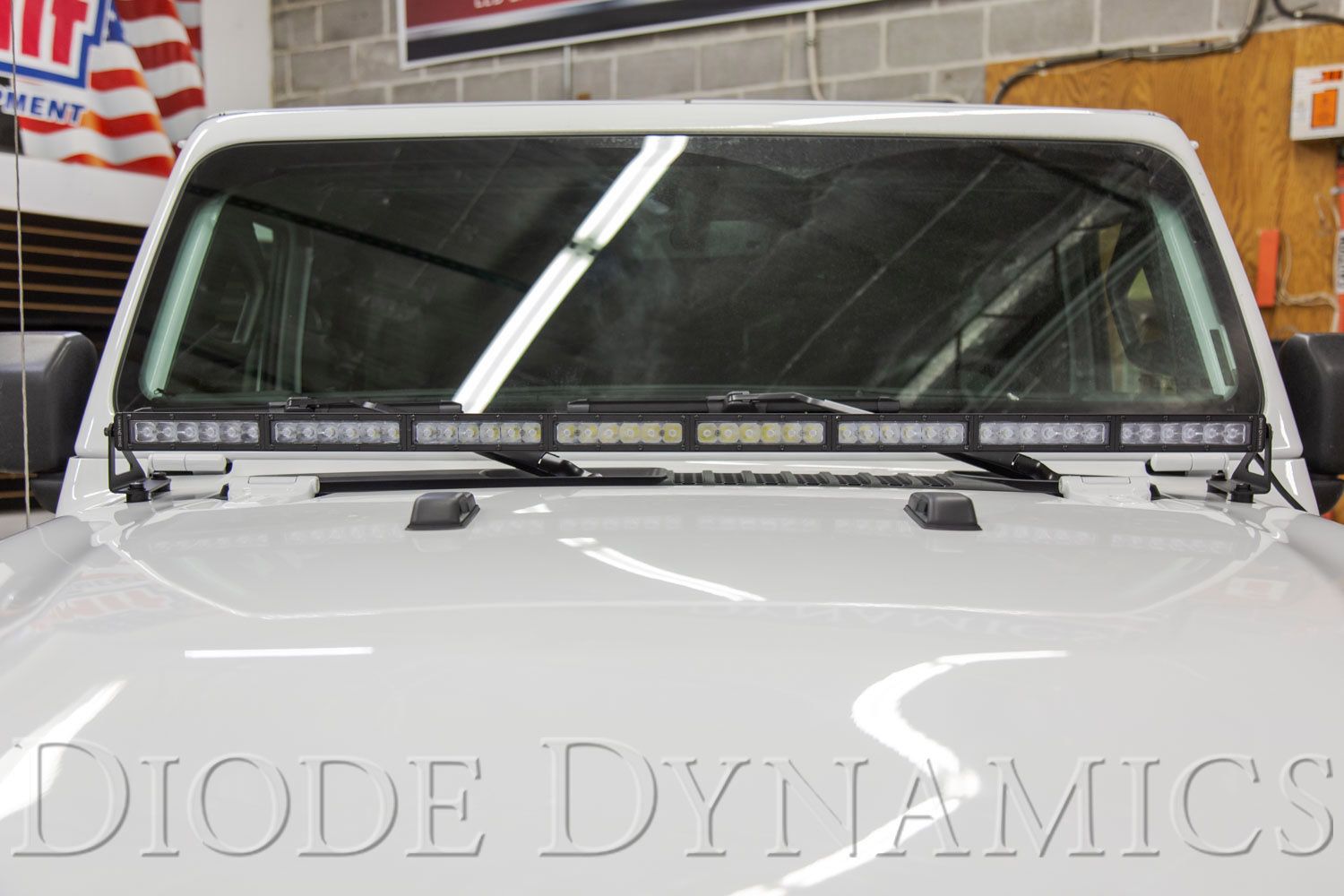

Perfect fitment. The Hood LED Light Bar Kit for the 2018-2024 Jeep Wrangler from Diode Dynamics allows you to easily mount a 50" light bar across the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! When installed along with our fully-customizable JL Wrangler Cowl Mount Brackets, you can easily mount multiple pods on either side of the 50" light bar as well.

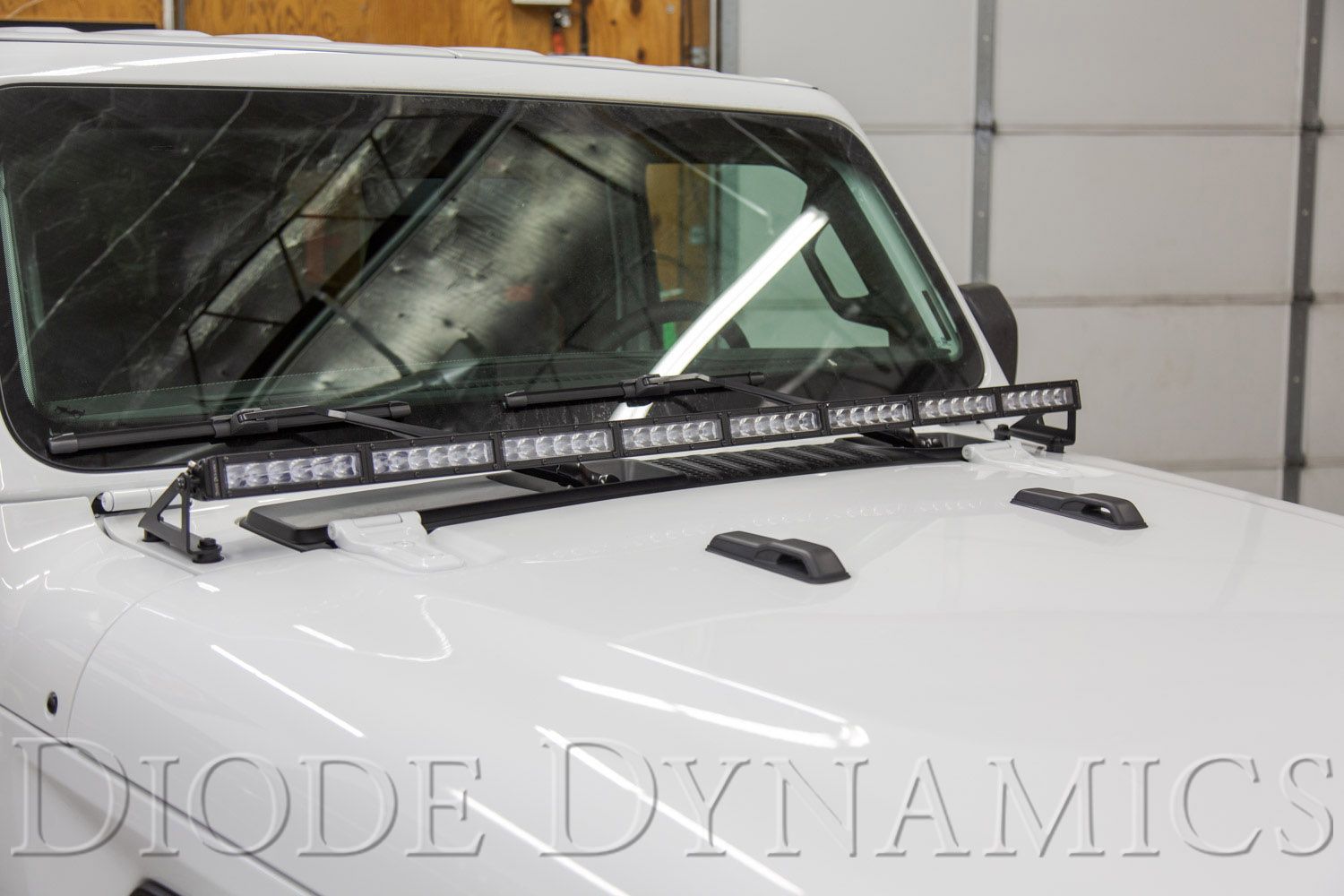

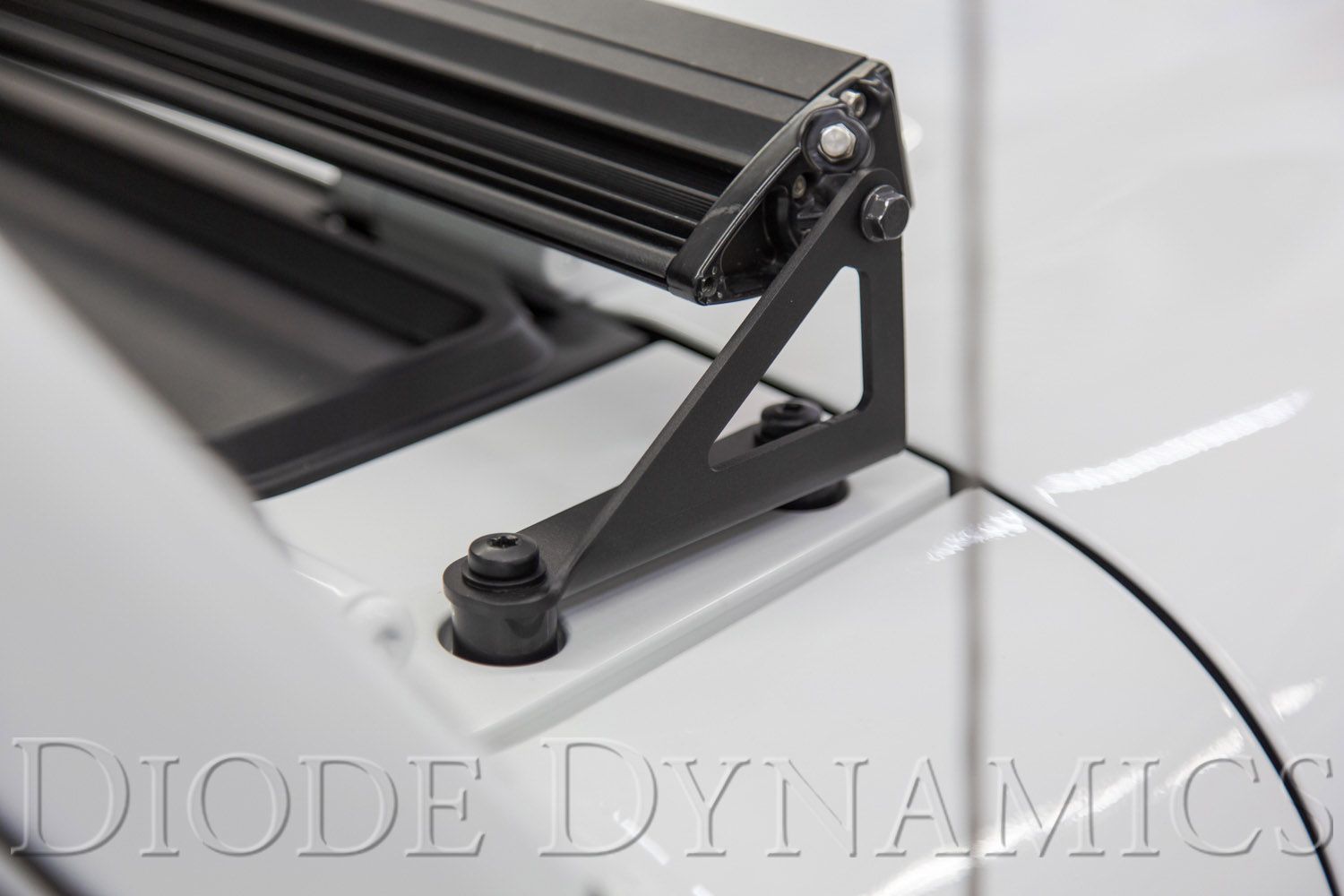

Low profile. These L-shaped brackets were designed in-house specifically for our Stage Series light bar. They were designed to be low profile and won't block visibility while driving or block the wiper nozzles. This also means you won't hear whistling or major wind noise like you may have experienced with other light bar brackets.

Not your average hardware. The hardware included with this kit is OEM-style, automotive grade hardware. This hardware isn't from the hardware store - it was custom designed for this kit with integrated washers and the same OEM finish as the factory hardware. The Delrin spacers are long-lasting and won't wear over time.

Control through aux switch bank. Included with the kit is our new OEM aux switch adapter wire. This wire allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy Duty Single-Output Wiring Harness is also included to mount a switch and connect directly to the battery.

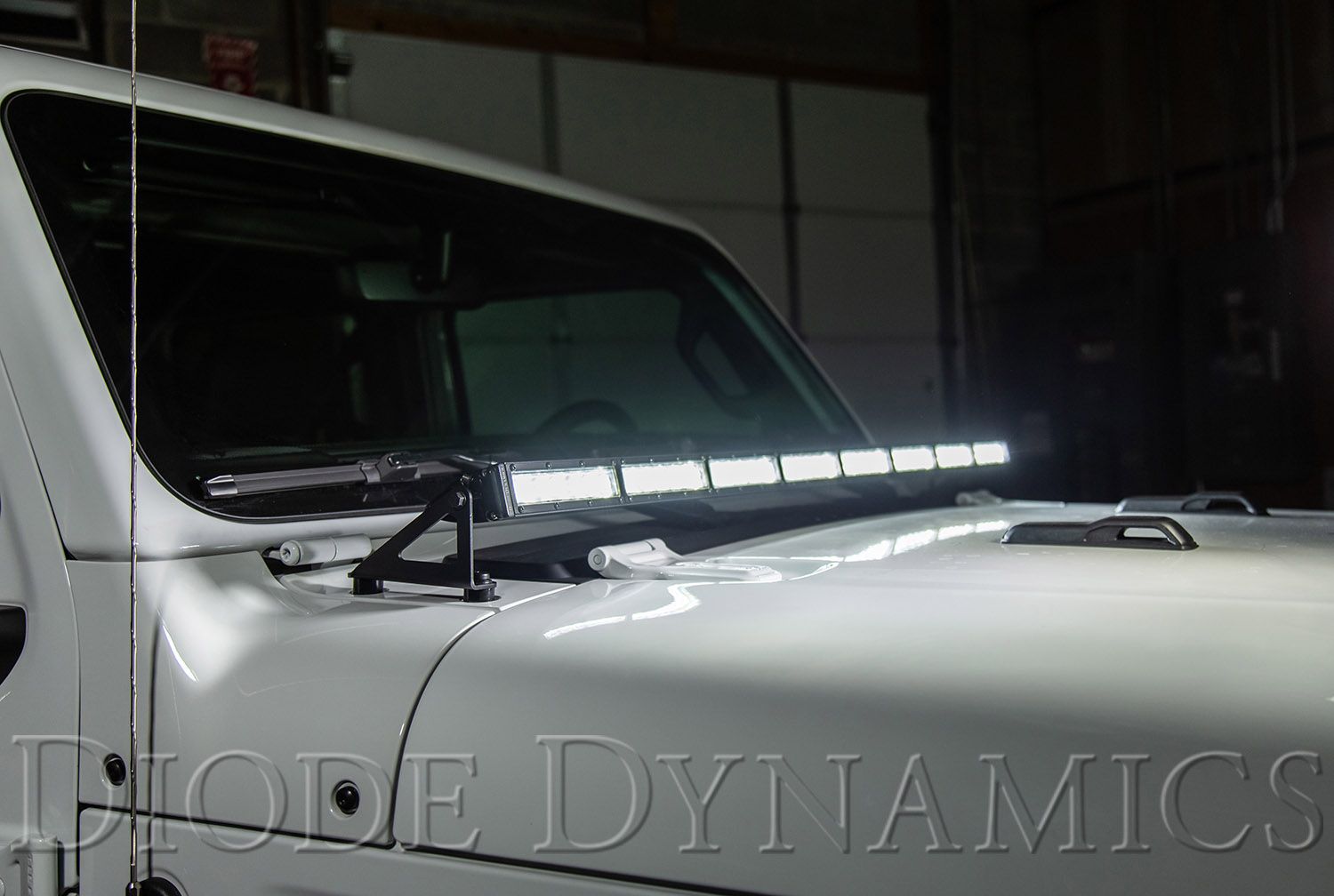

Designed for performance. You may think that you'll get lots of glare from light bouncing off the hood. However, thanks to custom-engineering TIR optics, Diode Dynamics Stage Series LED light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. The Driving optic easily shines right over the hood, even with the low mounting position. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Pattern. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 50" Combo Light Bar features six driving lenses in the middle with two flood lenses on the outer edges.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

In the Box:

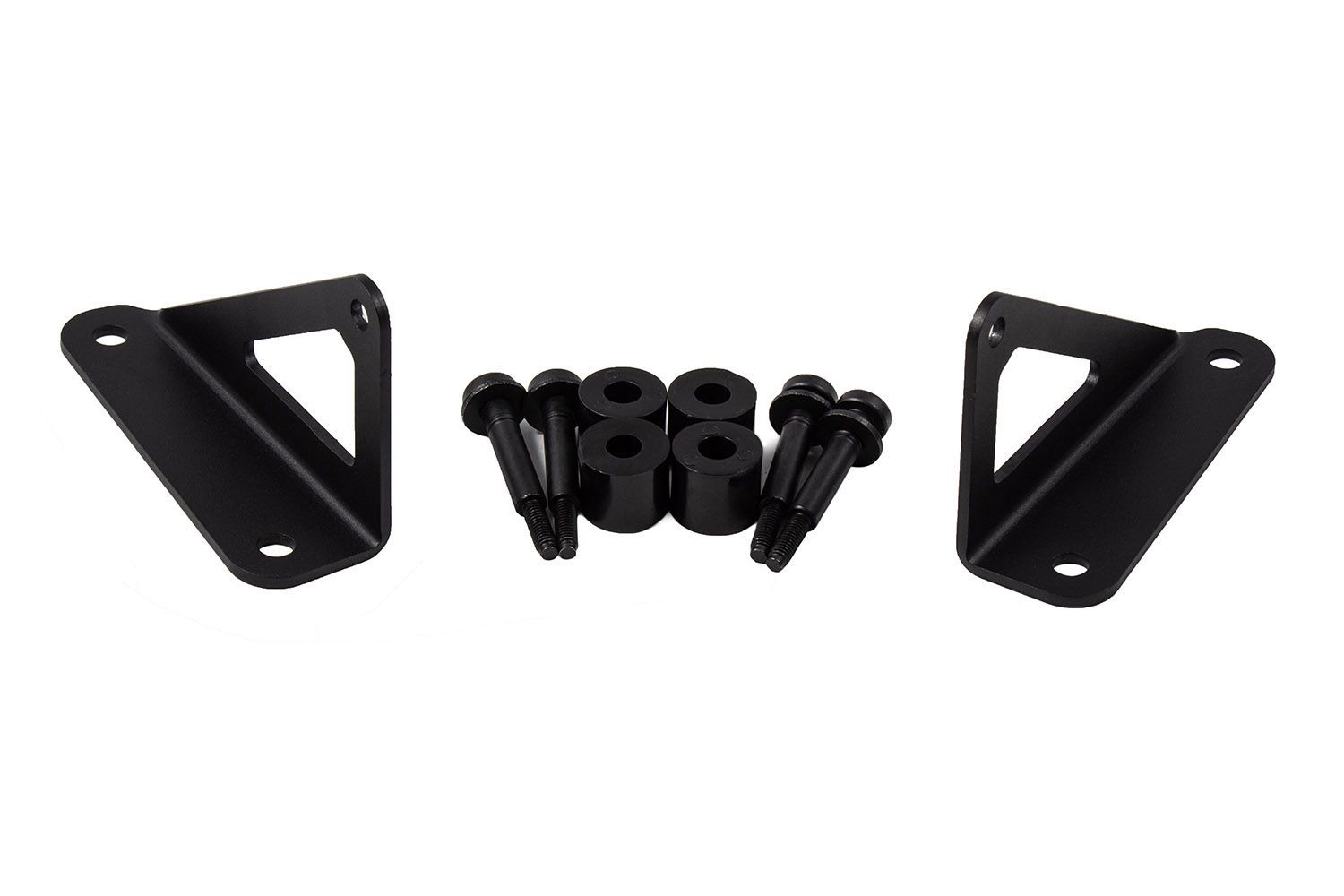

Brackets Only:
Two (2) Application-specific hood brackets
Four (4) Delrin spacers
Four (4) OEM-style automotive grade bolts
Installation Guide

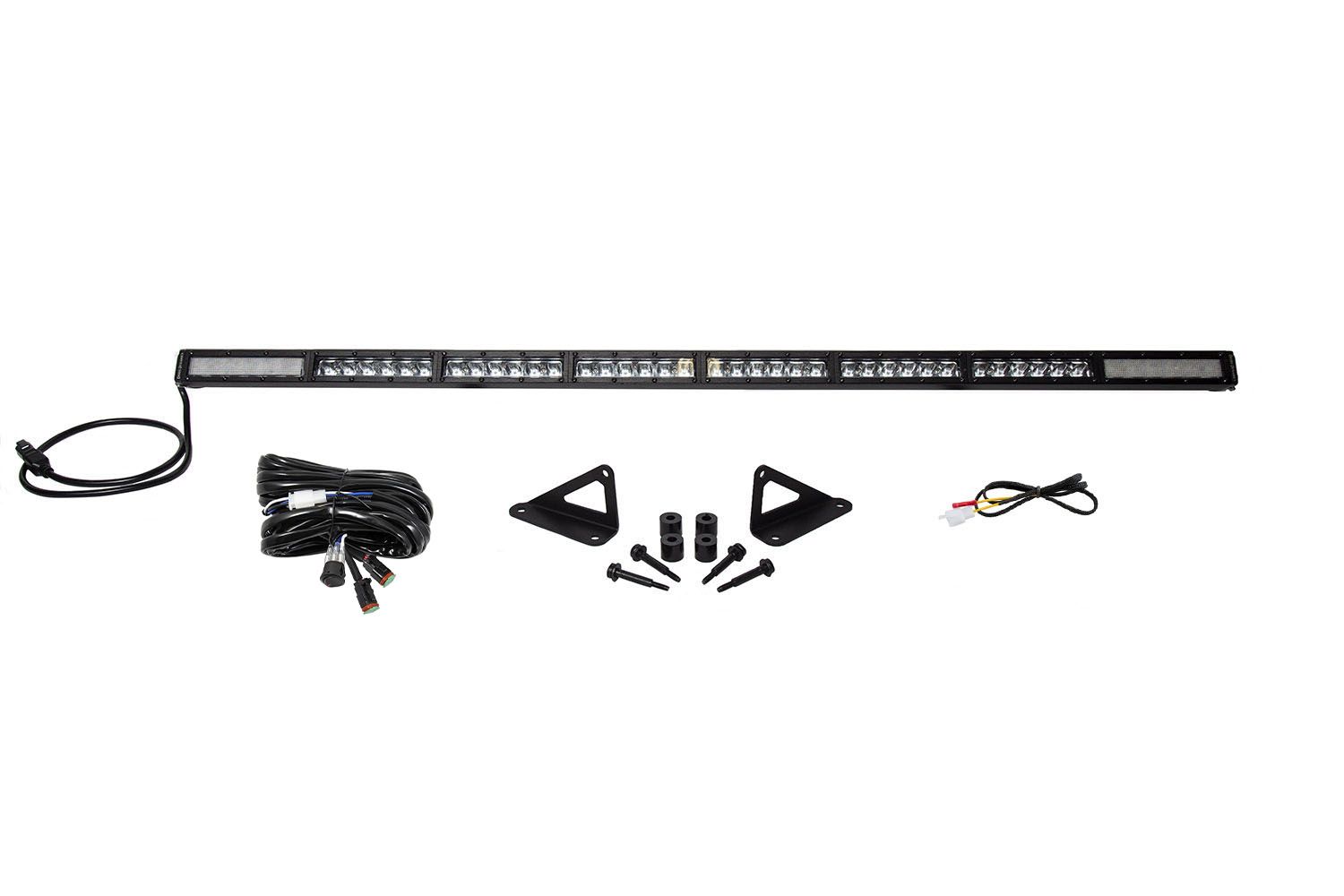

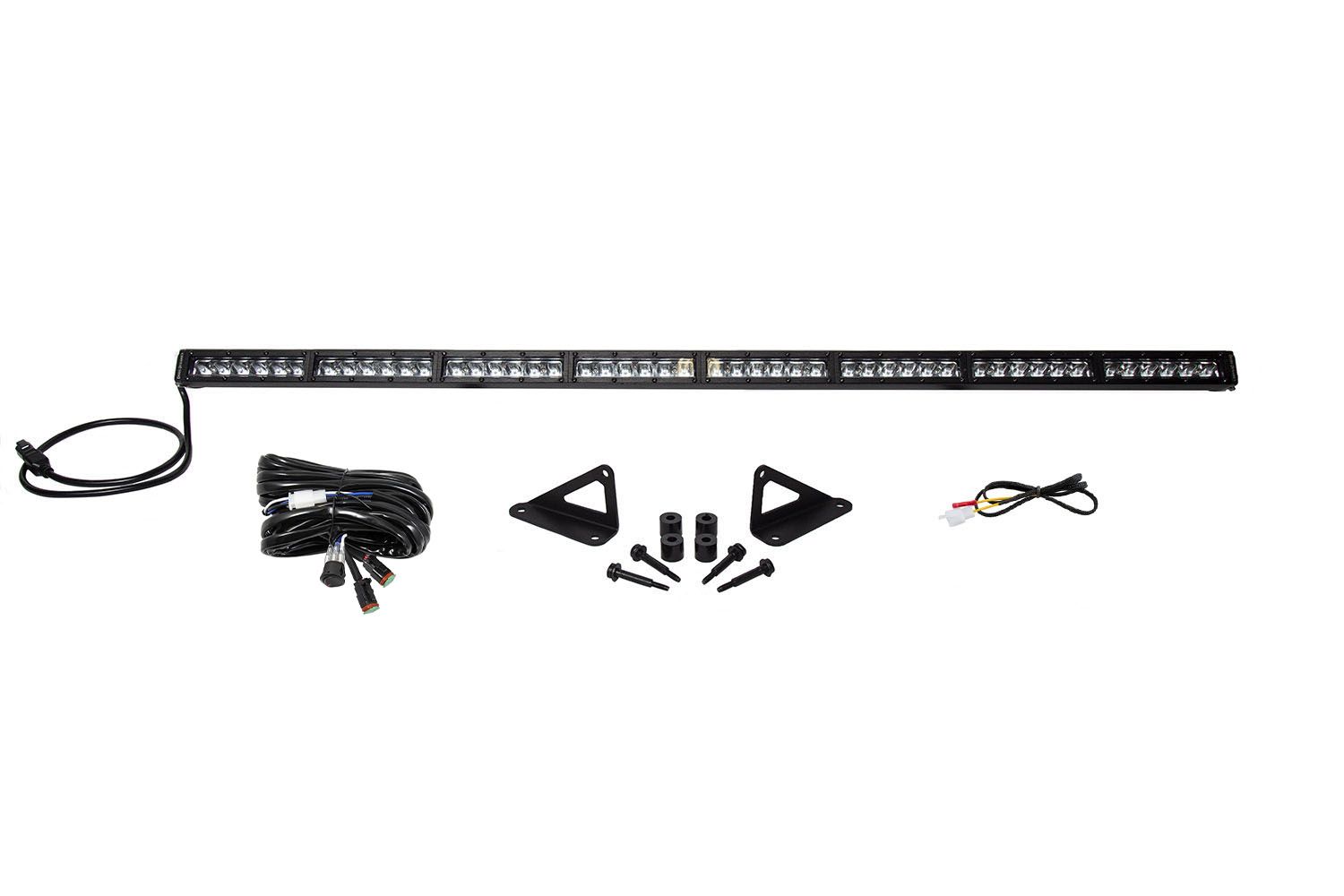

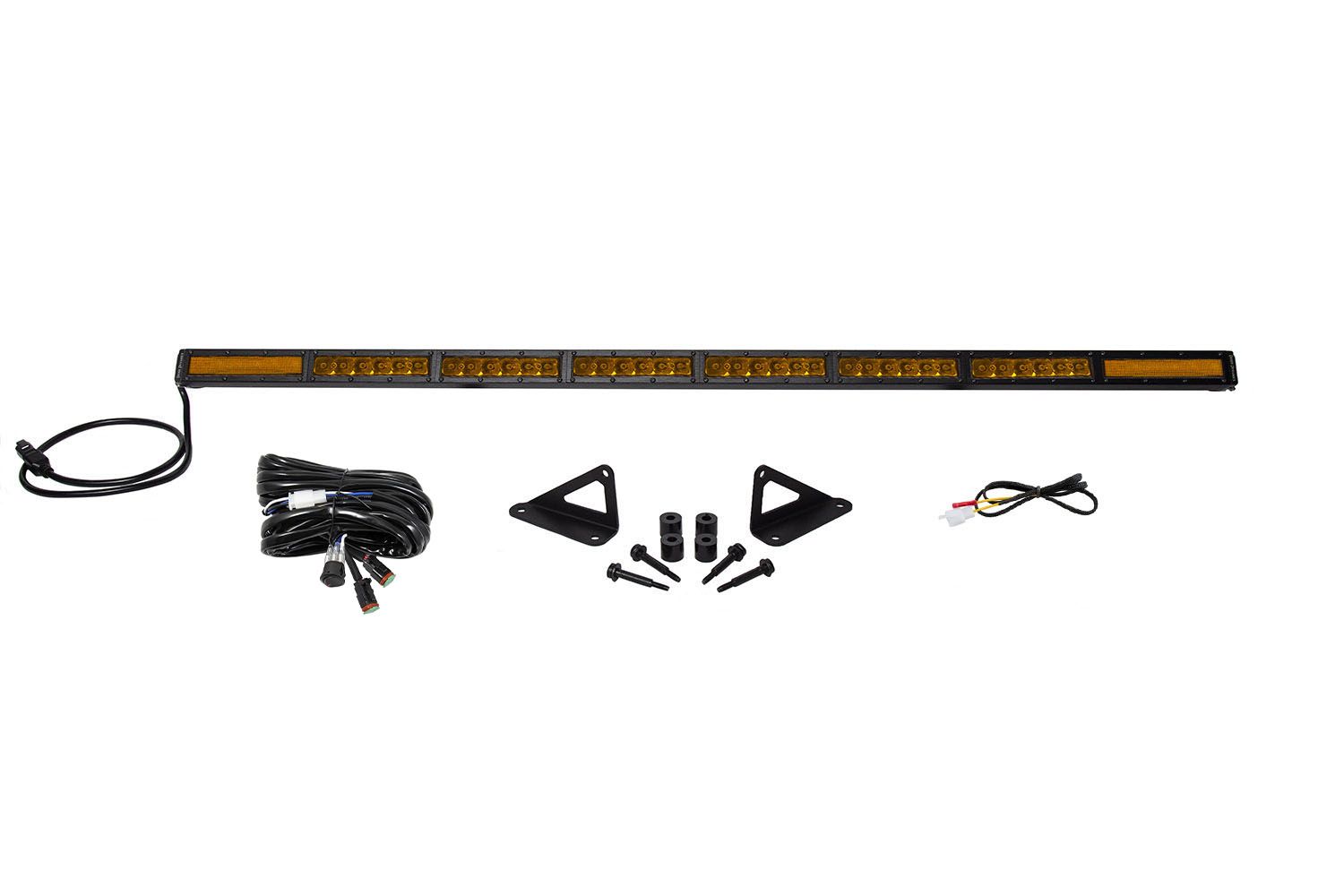

Hood Bracket Light Bar Kit:
Two (2) Application-specific hood brackets
One (1) SS50 Stage Series 50" Light Bars
One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
One (1) Aux Switch Adapter Wire
Four (4) Delrin spacers
Four (4) OEM-style automotive grade bolts
Installation Guide
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment
NOTE: This kit is compatible with the Sport, Sport S, Sahara, and Rubicon trim levels, but is not compatible with the Mojave trim level or the 392.

Make: Jeep
Model: Wrangler
Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

What do these terms mean?
Color Temp (CCT): 2000K, 6000K
Beam Angle: Combo (Driving and Flood)
Power (watts): 259
Operating Voltage: 9-24V
Current (amps @ 14V): 18.5
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Product Dimensions (in): 49x3x1.63 If you would like CAD for your project, please contact us.
Make: Jeep
Model: Wrangler
Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
Electrical Compatibility: No electrical issues (tested and confirmed)
100% Satisfaction Guarantee

Installation

Bracket Kit Installation Guide: Click to download

Installation Time: 20-30 minutes

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download
