DIODE DYNAMICS | Jeep JL Wrangler 2018-2024 Bumper LED Lightbar Kit

Description

Features
Direct fitment on 2018+ Jeep Wrangler.
CAD-designed for perfect fitment and OEM-like appearance.
Designed to eliminate excess wind noise.
Highly durable powdercoated steel construction.
Utilizes existing mounting points and hardware for a simple installation.
Control through factory aux switch bank using the included harness.

Overview
Perfect Fitment.The Bumper LED Light Bar Kit for the 2018+ Jeep Wrangler from Diode Dynamics allows you to mount either a single SS30 Stage Series 30" LED Light Bar or dual Stage Series 30" LED Light Bars on the factory front bumper. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! A low profile design eliminates whistling or major wind noise you may have experienced with other light bar brackets as well.

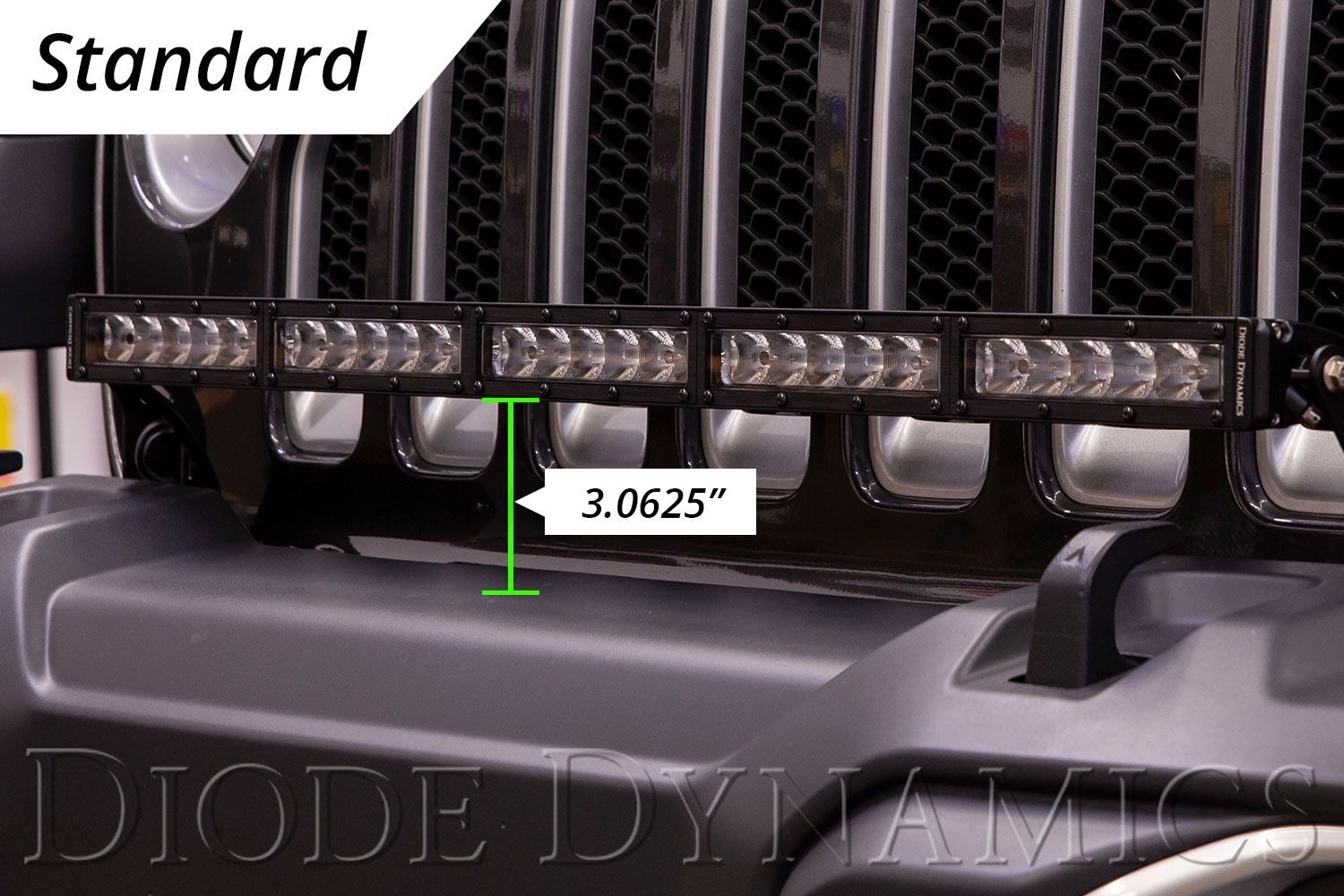

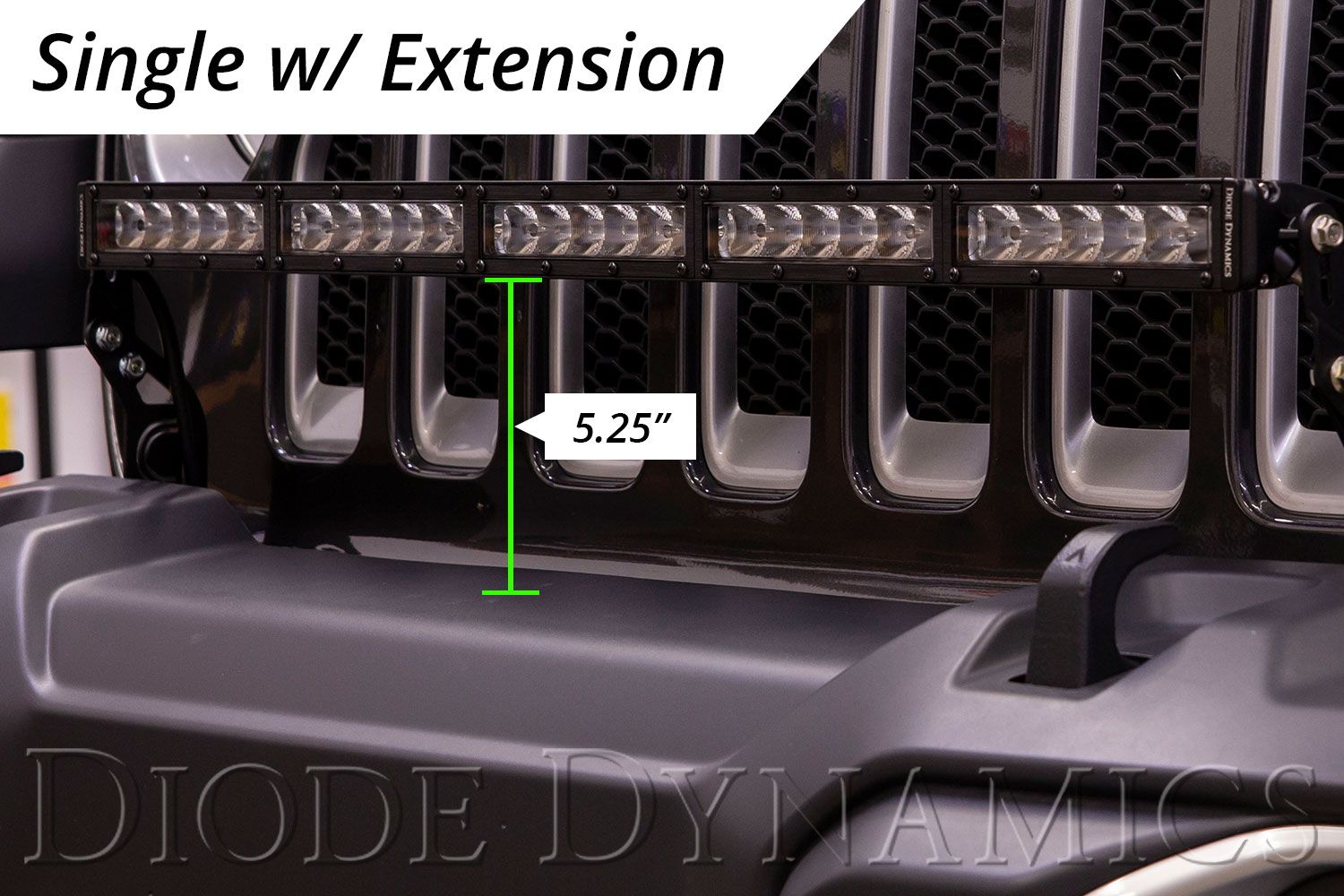

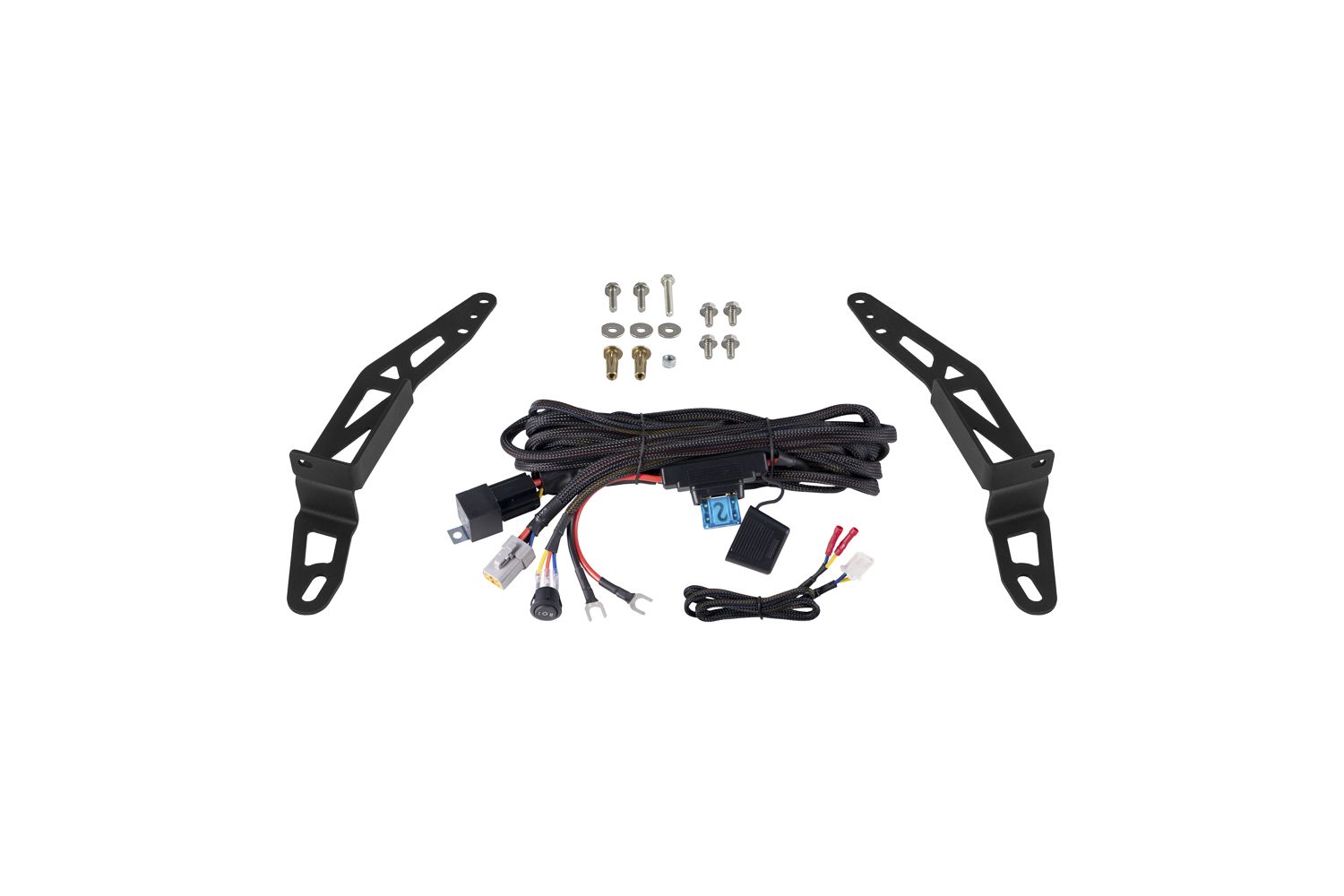

Choose your look. This kit can be mounted in different ways to achieve the look you're after! Mount a single light bar using the base brackets, or use the included extension brackets to allow clearance for a winch or mount a second light bar for maximum light output. The brackets, without the light bars or harnesses, are available separately and are compatible with any generic 30" LED light bar.

Control through aux switch bank. Included with the kit is our new OEM aux switch adapter wire. This wire allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy Duty Dual/Single-Output Wiring Harness is also included to mount a switch and connect directly to the battery.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

In the Box:

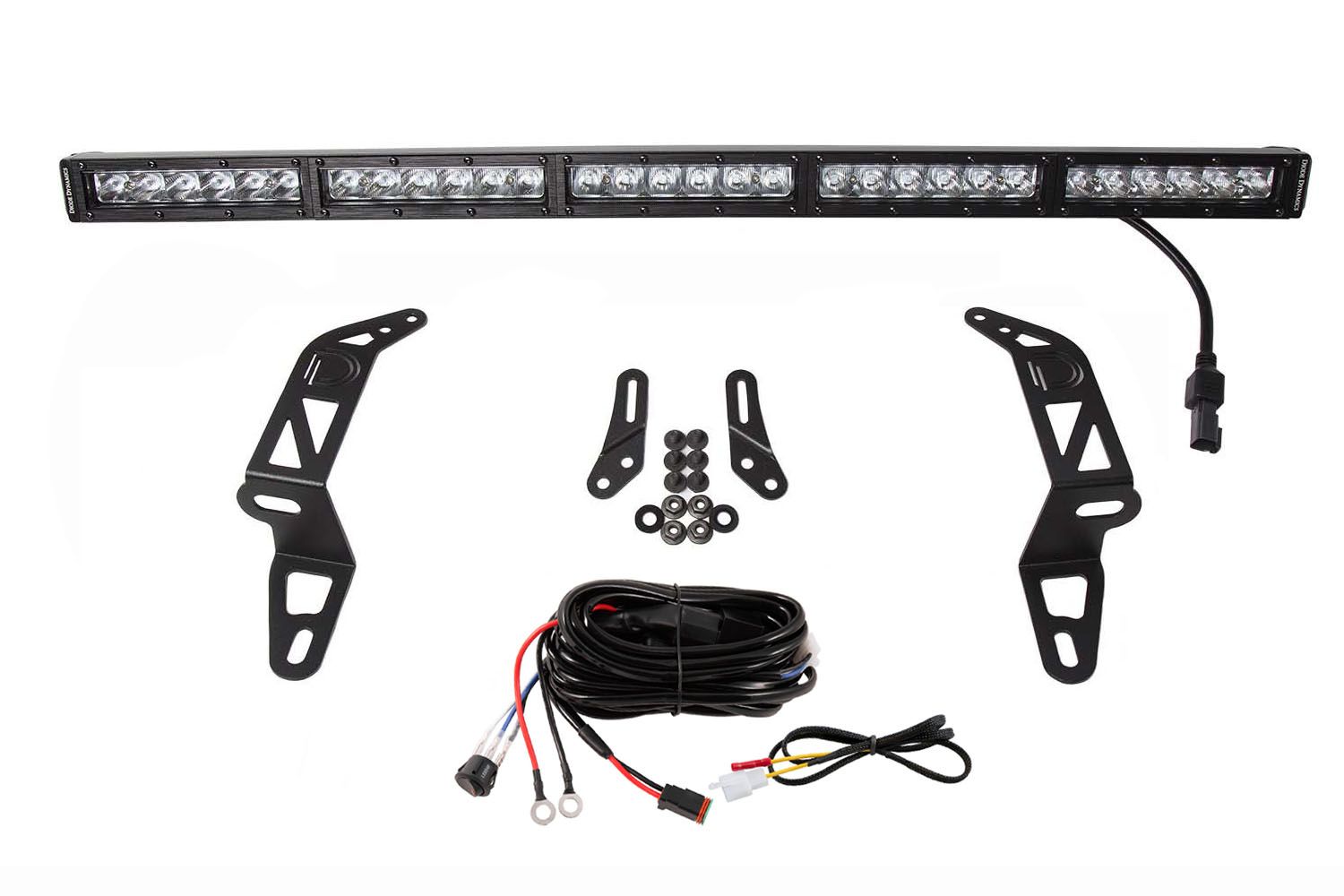

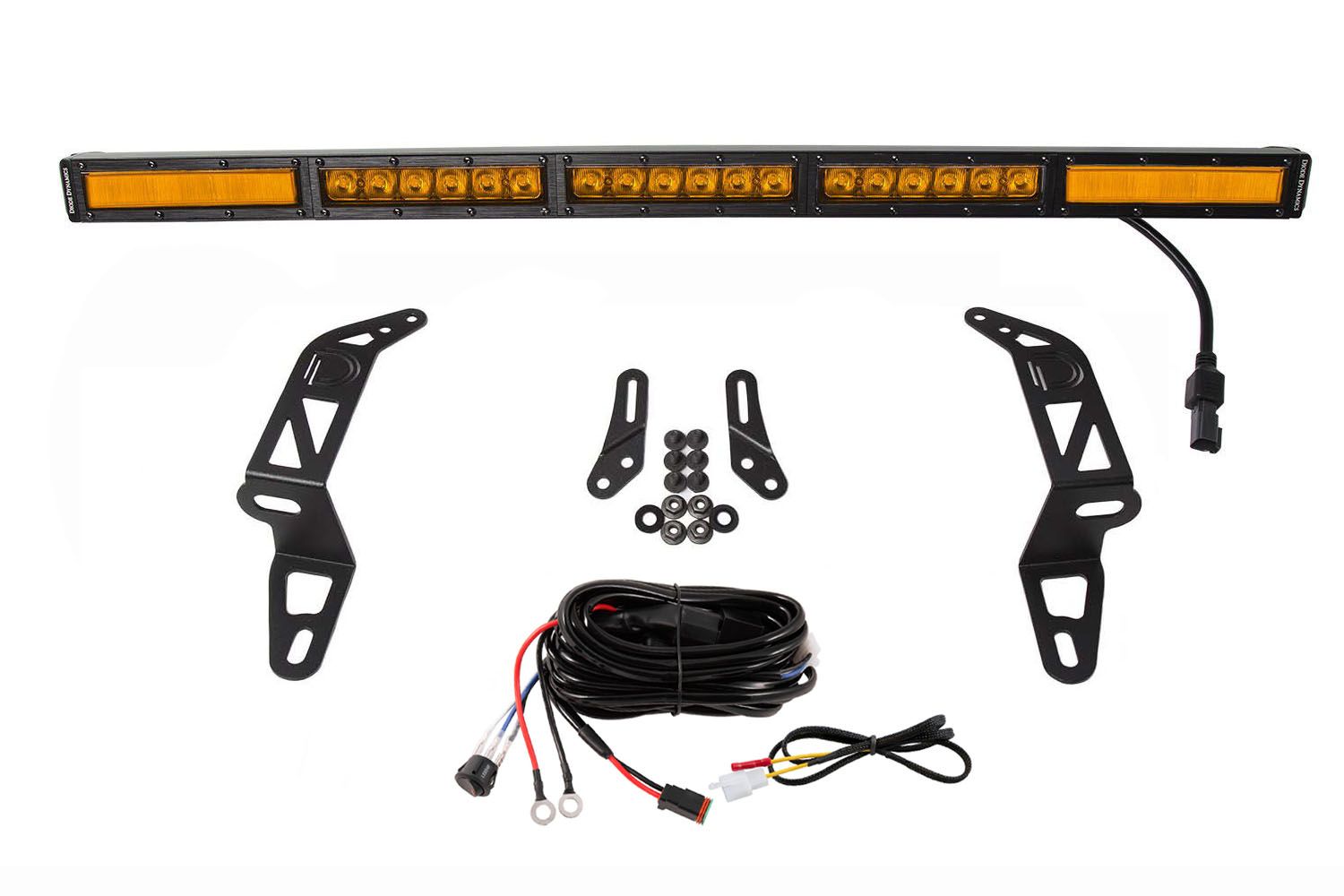

Single 30" Kit:

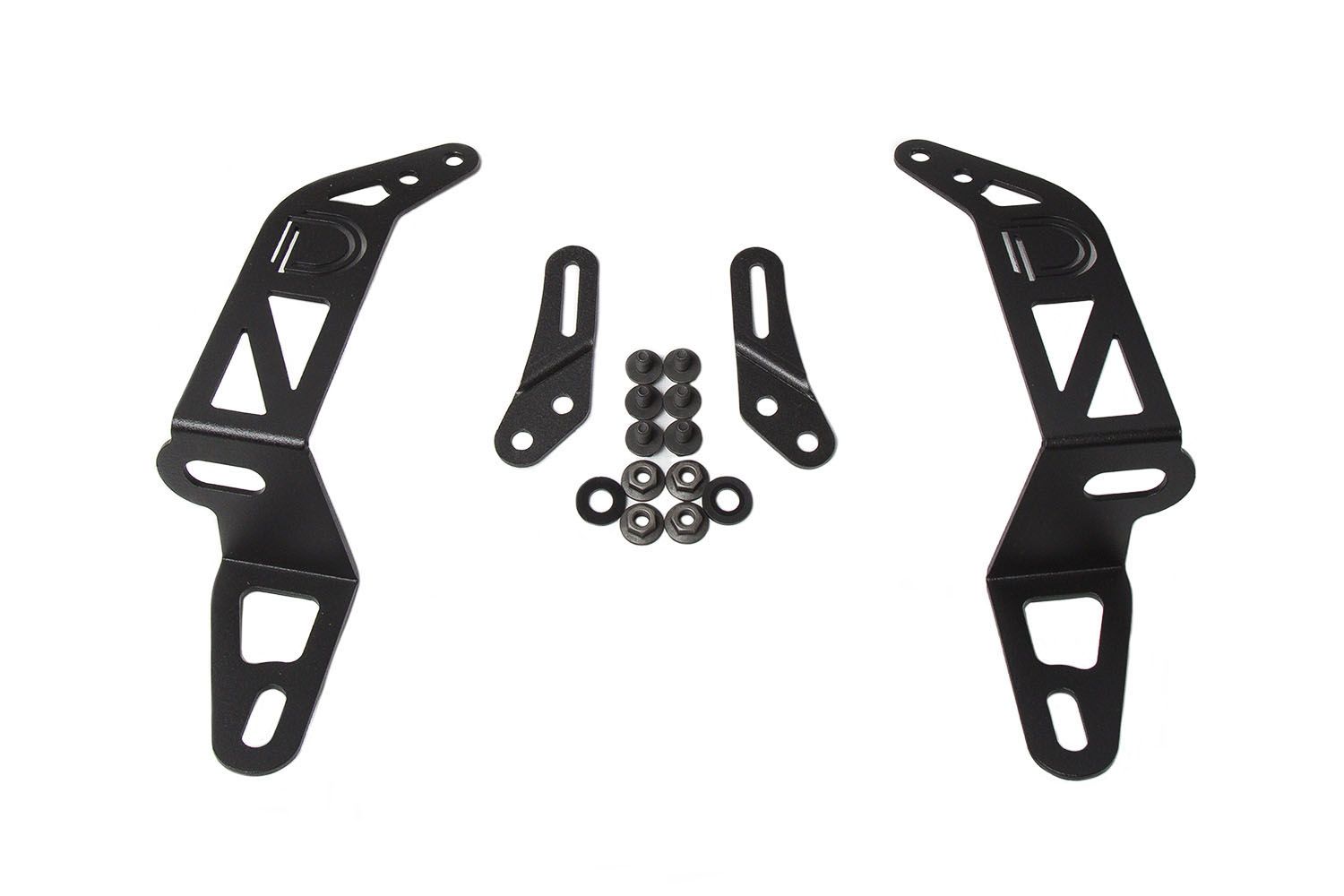

Two (2) Application-specific heavy-duty steel brackets for installation on 2018+ Jeep Wrangler
Two (2) Extension brackets
One (1) SS30 Stage Series 30" Light Bar
One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
One (1) Aux Switch Adapter Wire
All Necessary Hardware
Installation Guide

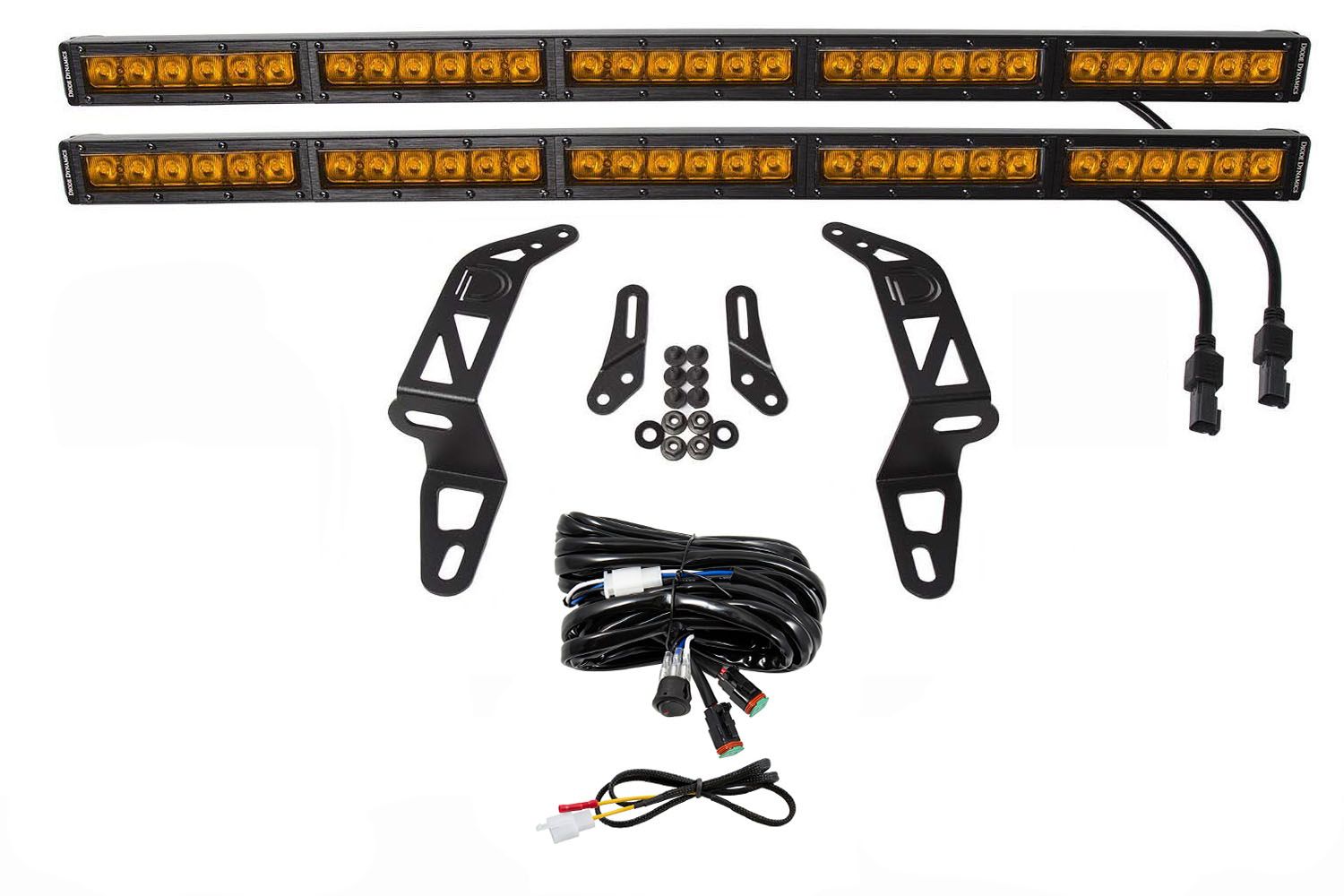

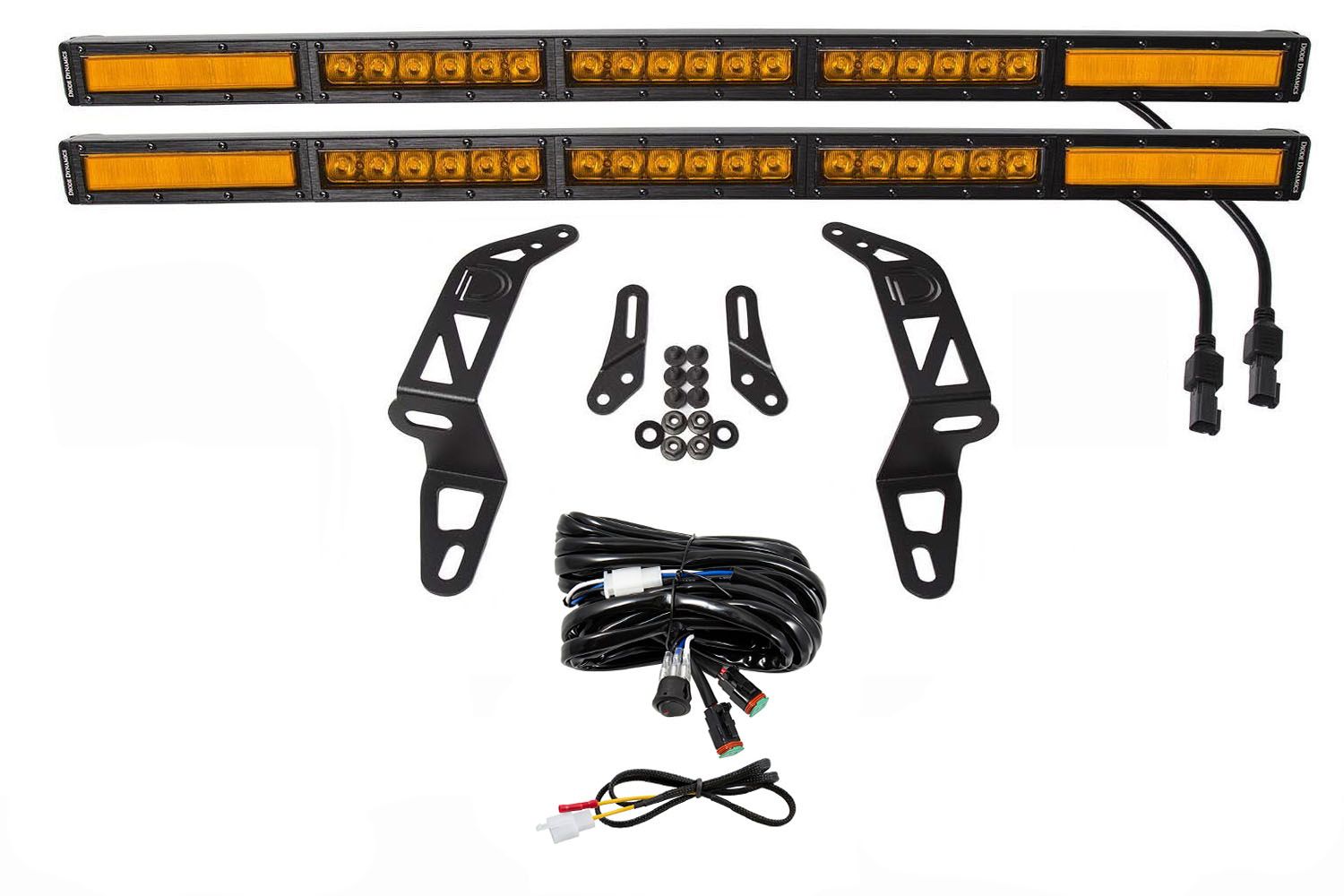

Dual 30" Kit:
Two (2) Application-specific heavy-duty steel brackets for installation on 2018+ Jeep Wrangler
Two (2) Extension brackets
Two (2) SS30 Stage Series 30" Light Bars
One (1) Heavy Duty Dual Output 2-Pin Offroad Wiring Harness
One (1) Aux Switch Adapter Wire
All Necessary Hardware
Installation Guide
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment
This Lightbar Kit is compatible with all Sport, Sport S, Sahara, and Rubicon trim levels.

Make: Jeep
Model: Wrangler
Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

What do these terms mean?
Color Temp (CCT): 2000K, 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood)
Power (watts): 137.2
Operating Voltage: 9-24V
Current (amps @ 14V): 9.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB
Cooling: Passive, heatsink
Product Dimensions (in): 31x3x1.63 If you would like CAD for your project, please contact us.
Make: Jeep
Model: Wrangler
Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
Electrical Compatibility: No electrical issues (tested and confirmed)
100% Satisfaction Guarantee

Installation

Installation Time: 20-30 minutes

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download
