DIODE DYNAMICS | Jeep Gladiator 2020-2024 Cowl Mount LED Brackets
Choose Your Kit
Choose Your Optic and Color
SELECT OPTIONS
Choose Your Kit
Choose Your Optic and Color
Choose Your Kit
Choose Your Optic and Color
Description
Features

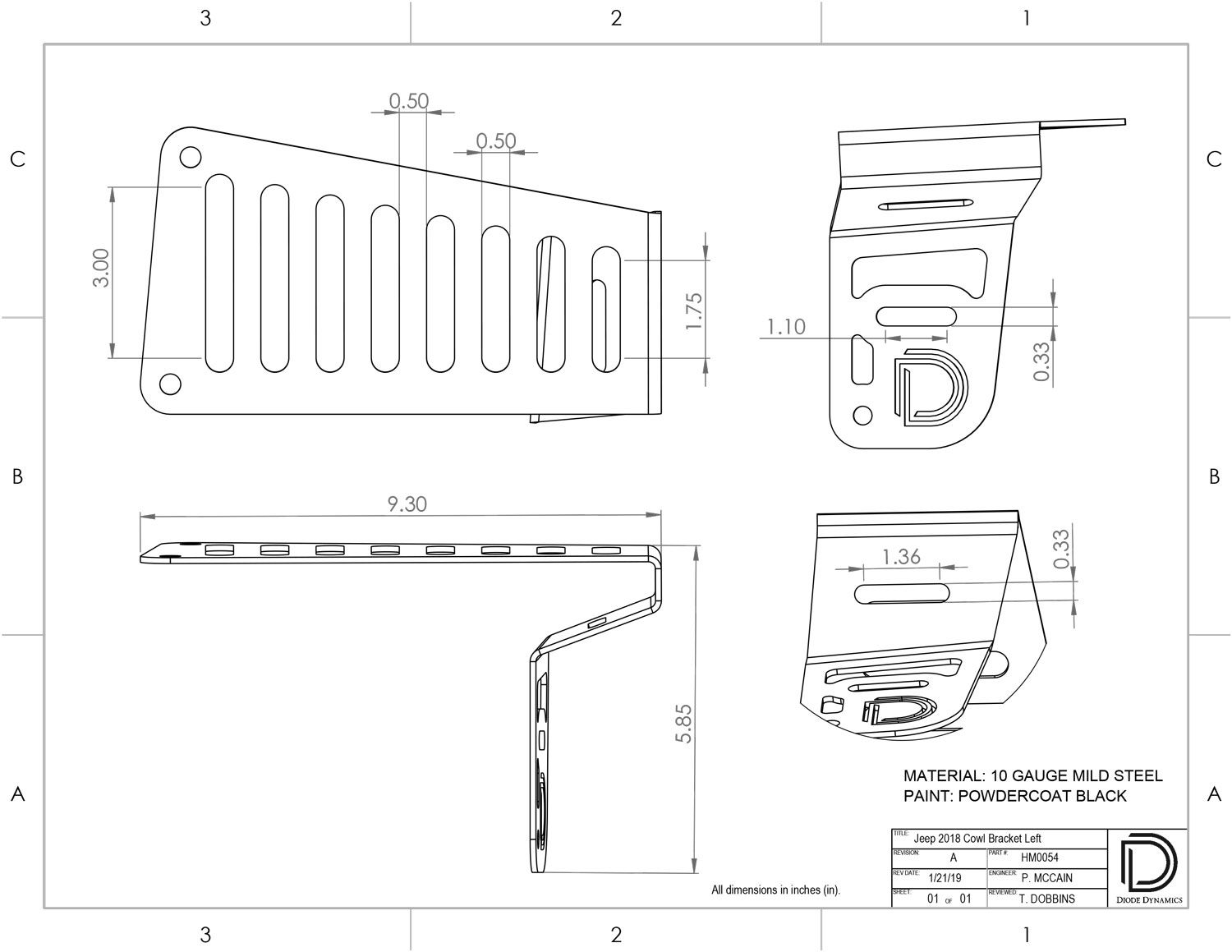

CAD-designed for perfect fitment on 2020+ Jeep Gladiator.
Features multiple mounting points for endless mounting options.
Compatible with any pod, worklight, or small light bar.
Designed to eliminate excess wind noise

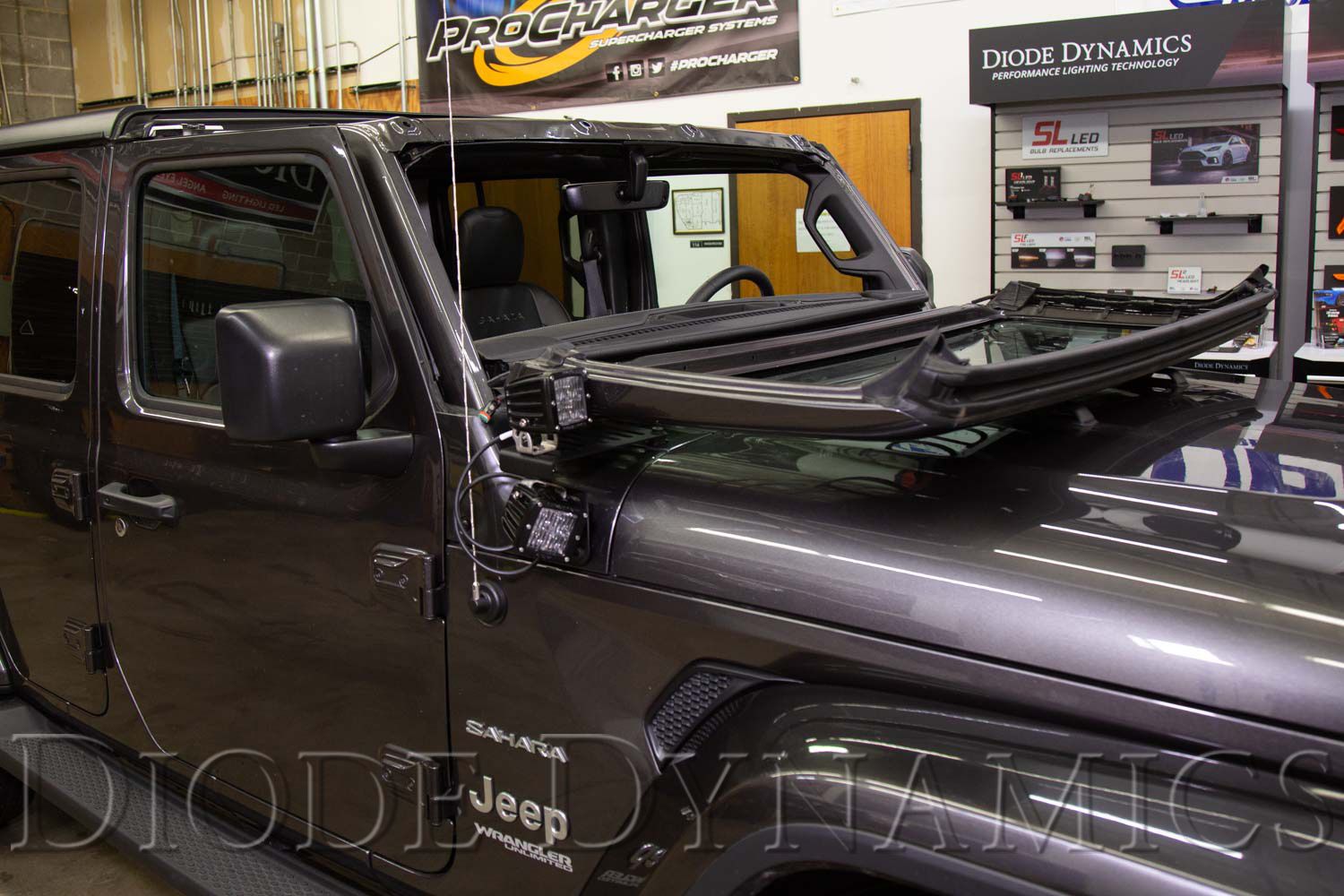

When a set of standard pods is mounted on the outer slot, they allow you to still fold down the windshield.
Includes OEM-style automotive grade hardware designed specifically for this kit.

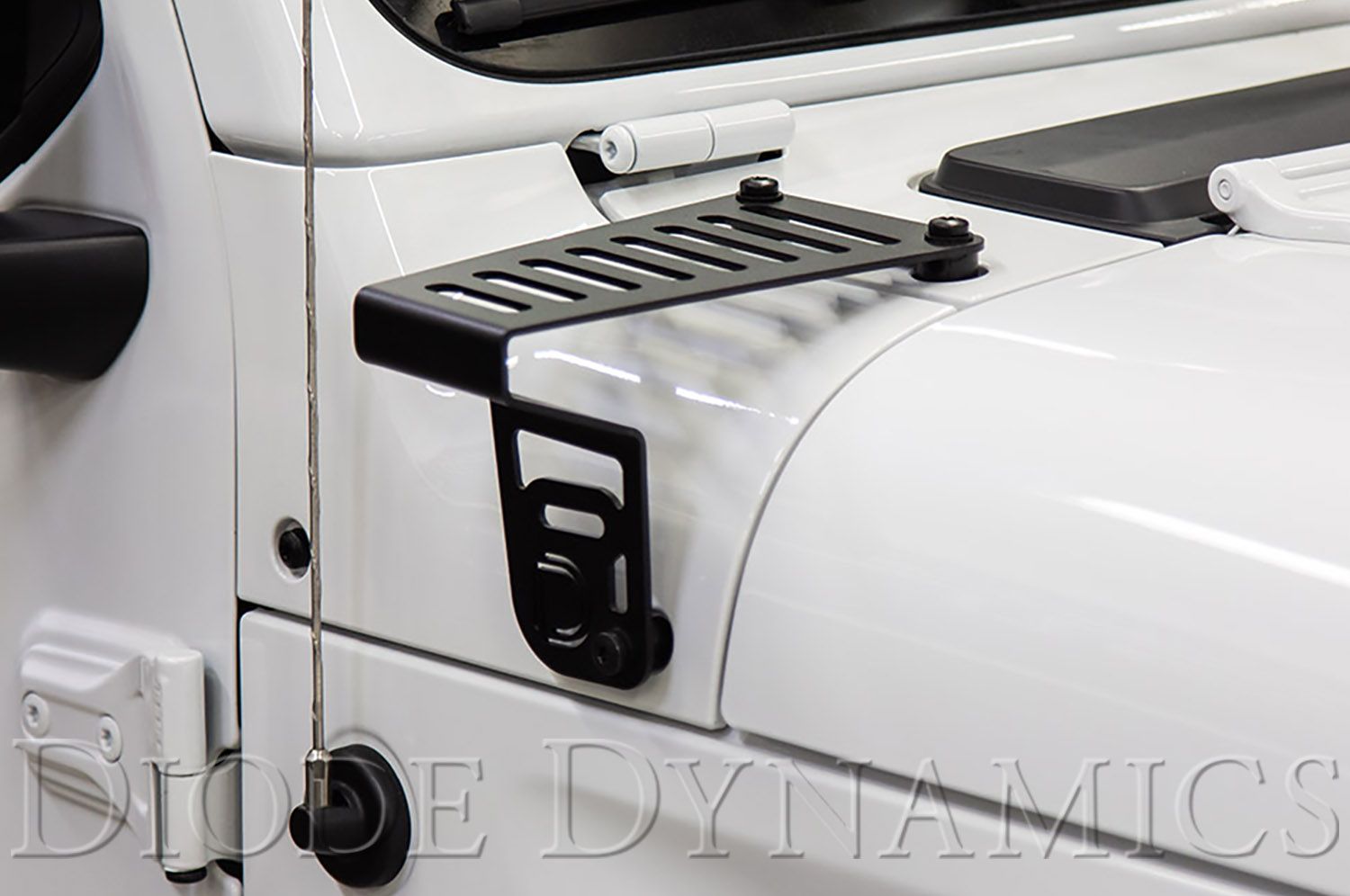

Utilizes existing mounting points for easy installation - no cutting or drilling required.

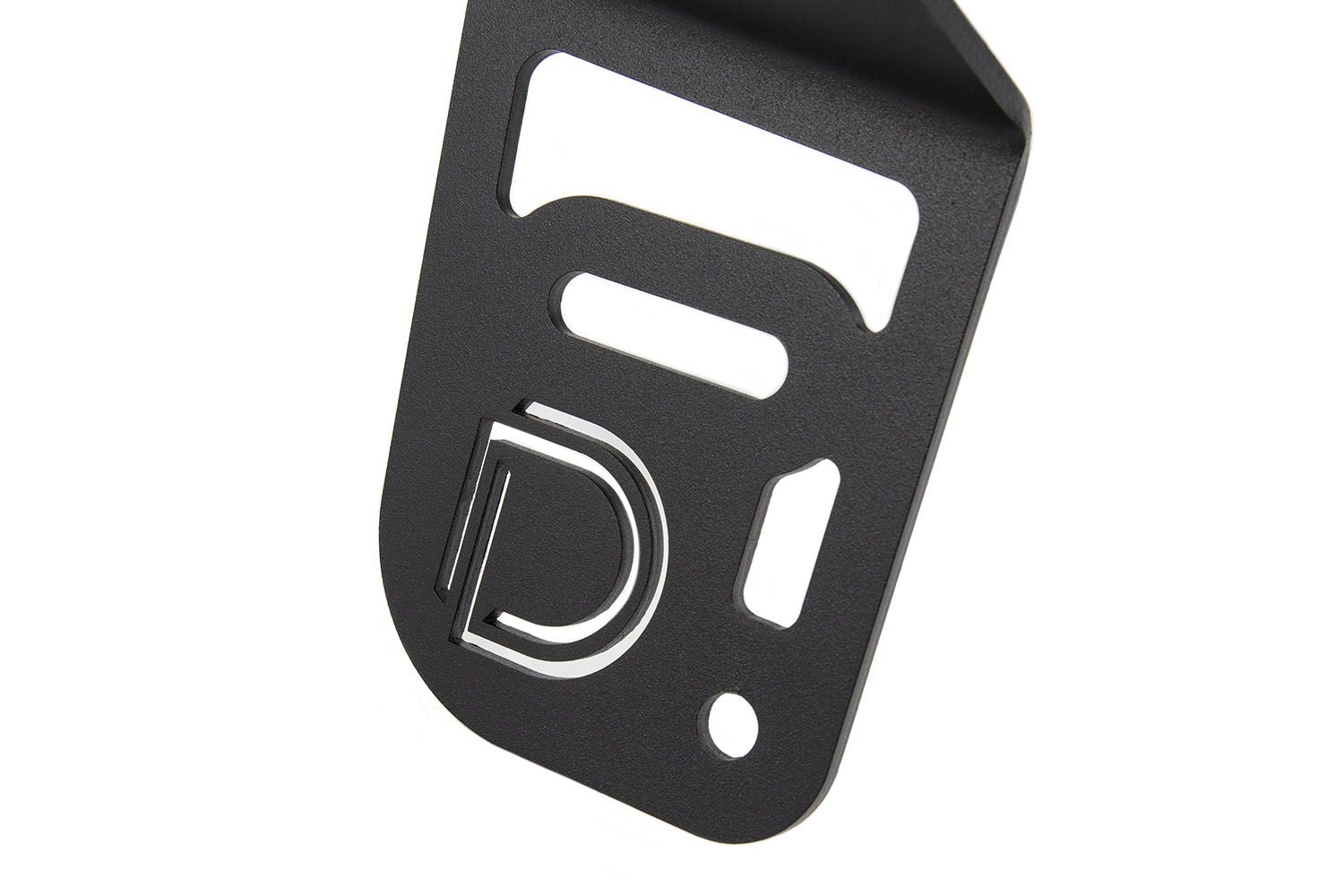

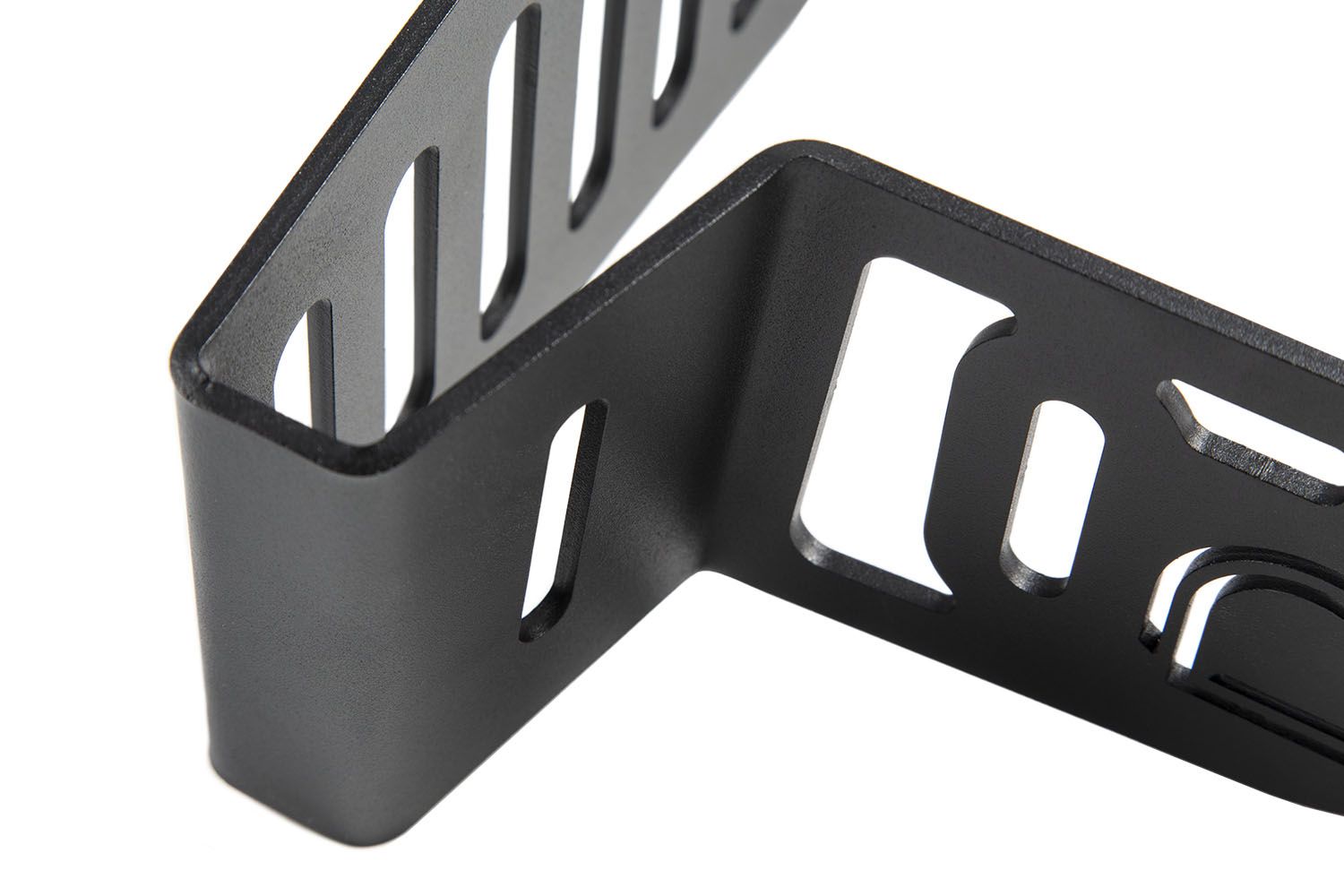

Highly durable powdercoated steel construction.
Overview

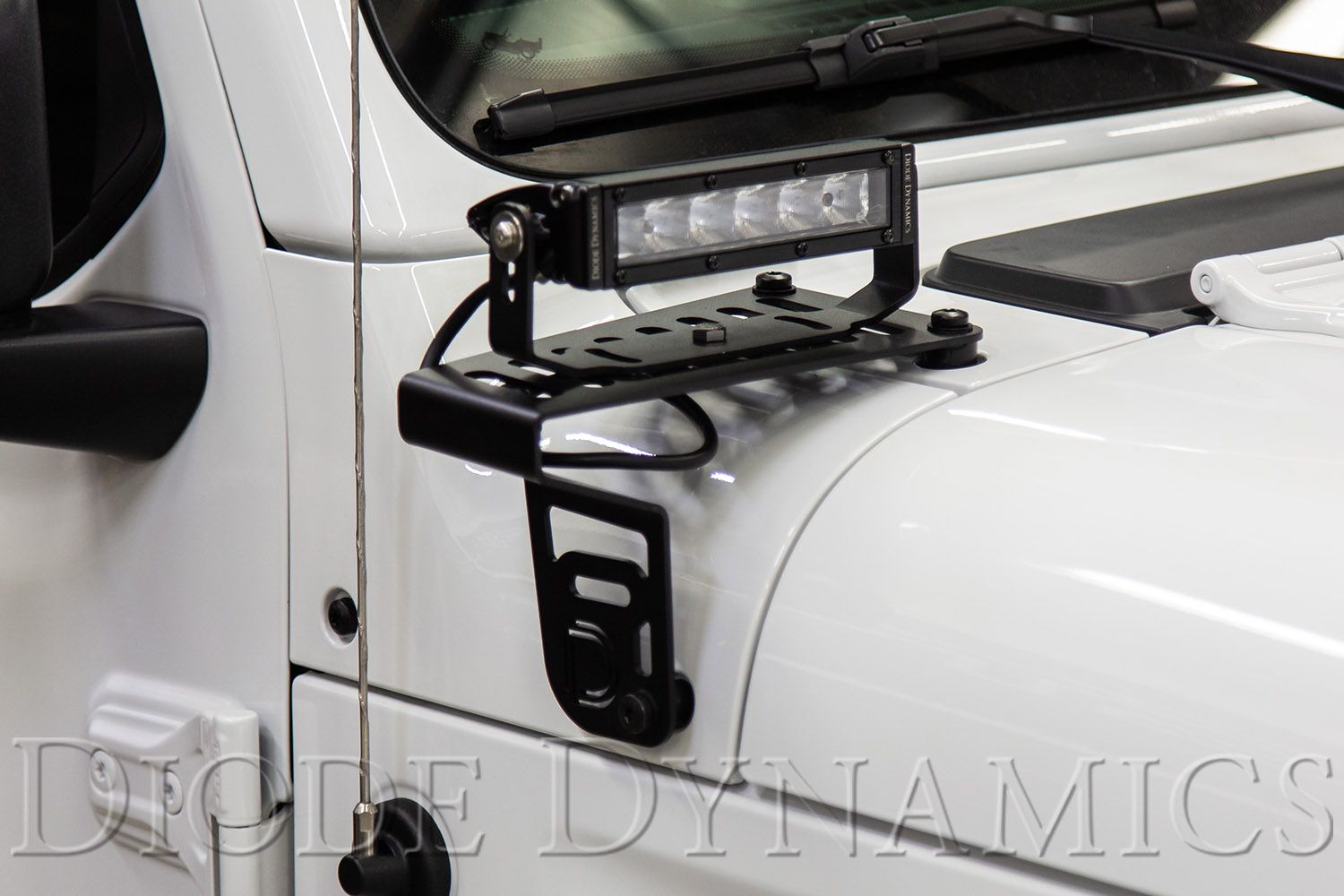

Perfect fitment. The Cowl Mount LED Light Bar Kit for the 2020+ Jeep Gladiator from Diode Dynamics allows you to easily mount just about any auxiliary lighting you can think of. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! A low profile design eliminates whistling or major wind noise as well. They also feature a low profile design, which eliminates excess whistling or major wind noise.

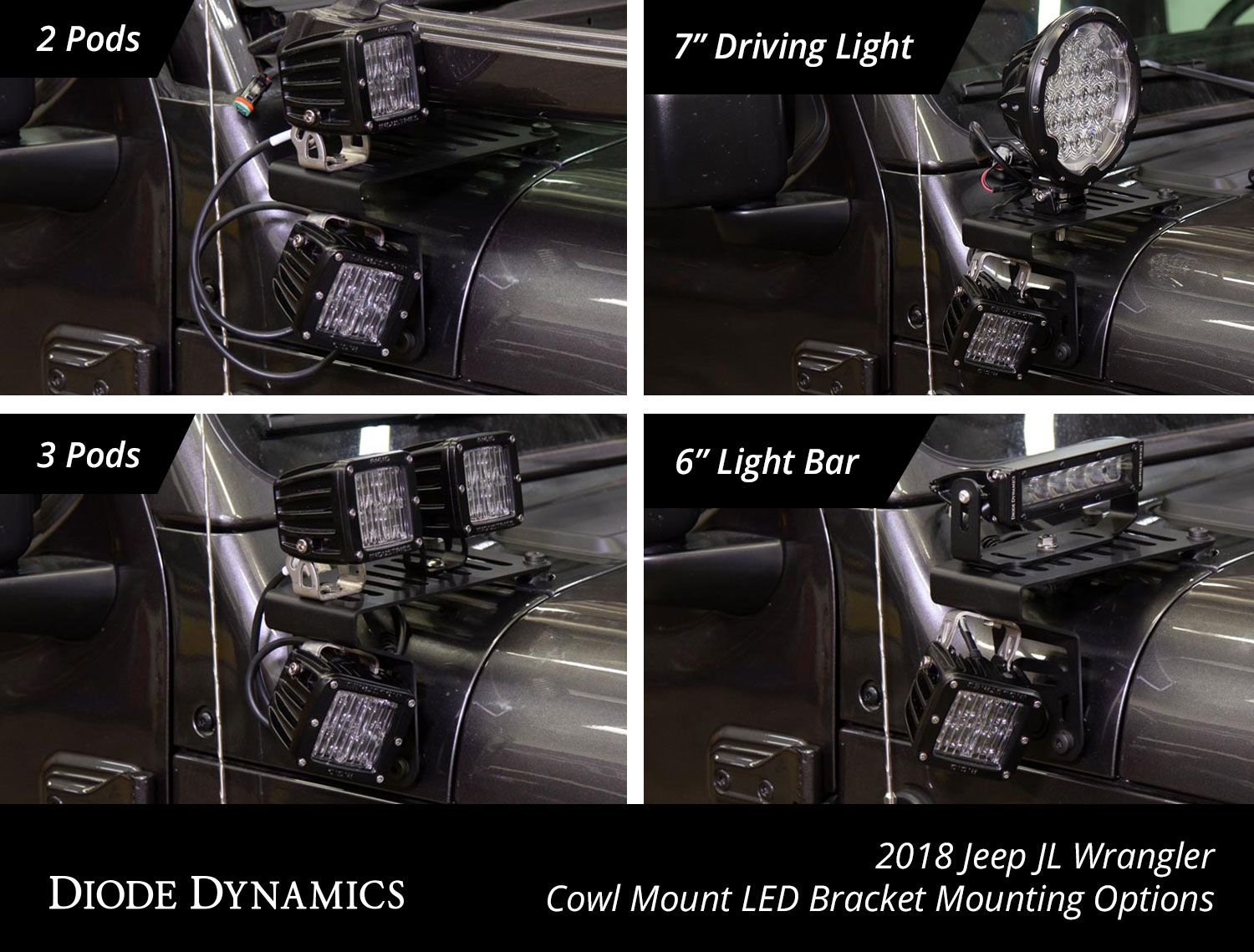

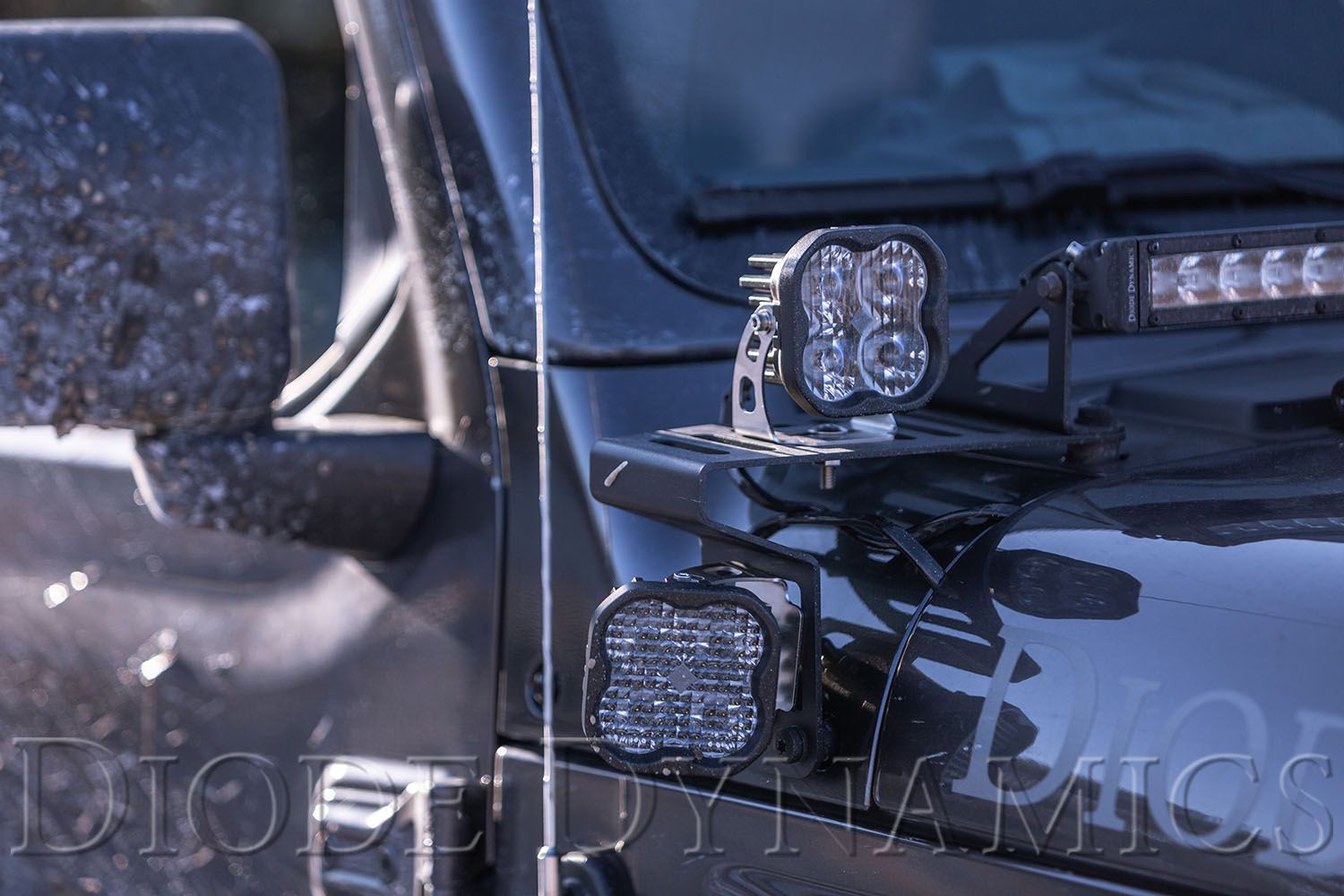

Endless mounting options. These brackets were designed with a variety of different mounting points for endless mounting options. You can mount multiple pods, a larger worklight, or even a small light bar to achieve the look you're after! There are even slots on the side of the bracket to mount ditch lights. When standard pods are installed on the outer slot, you can fold the windshield down without removing your auxiliary lighting. When installed along with our Gladiator Hood Light Bar Kit, you can easily mount a 50" Stage Series light bar across the hood as well.
Not your average hardware. The hardware included with this kit is OEM-style, automotive grade hardware. This hardware isn't from the hardware store - it was custom designed for this kit with integrated washers and the same OEM finish as the factory hardware. The Delrin spacers are long-lasting and won't wear over time.
Control through aux switch bank. Included with the full light bar kit is our new OEM Auxiliary Switch Dual-Output Wiring Harness. This harness allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy Duty Dual-Output Wiring Harness is also included to mount a switch and connect directly to the battery.
Designed for performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

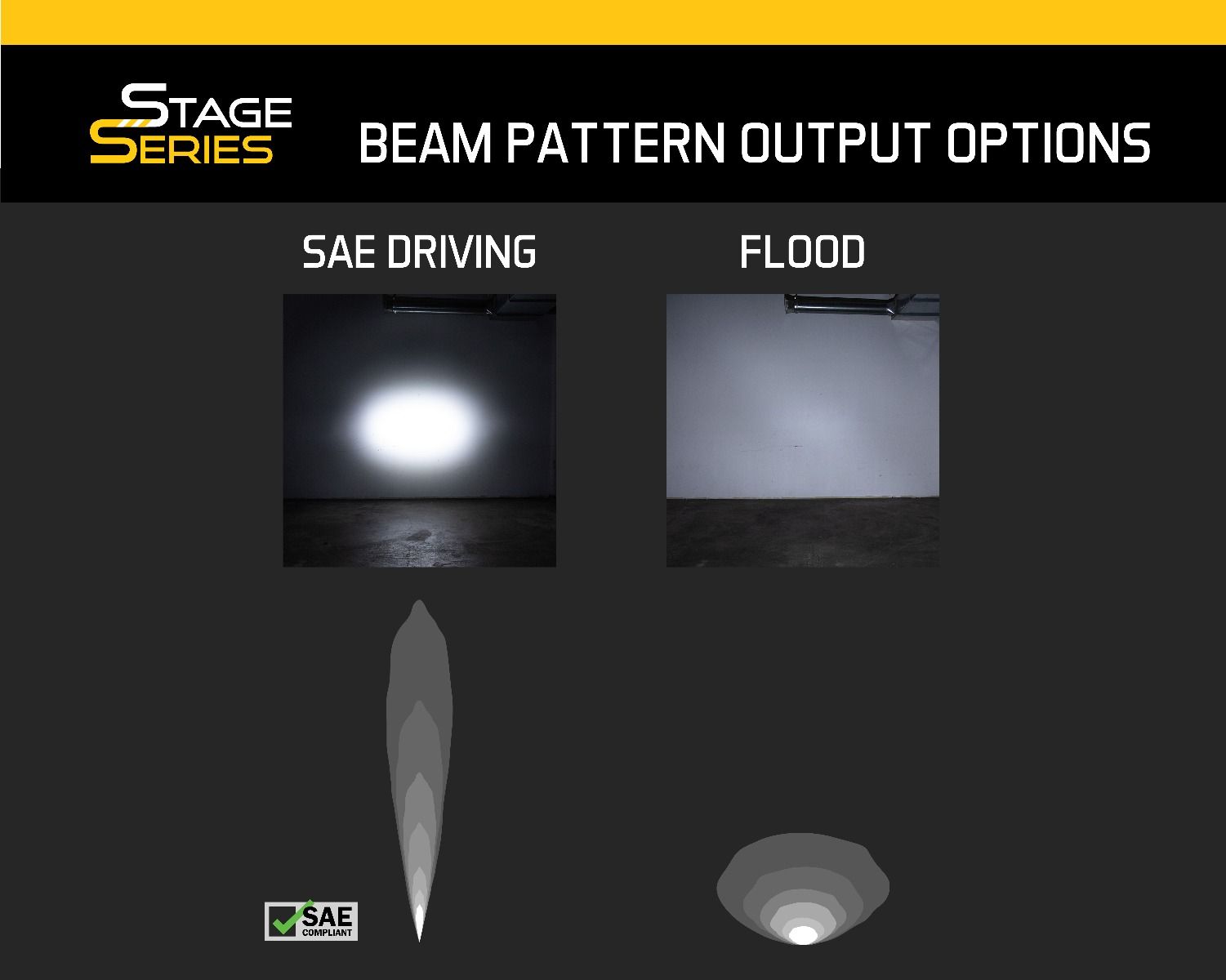

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
In the Box:

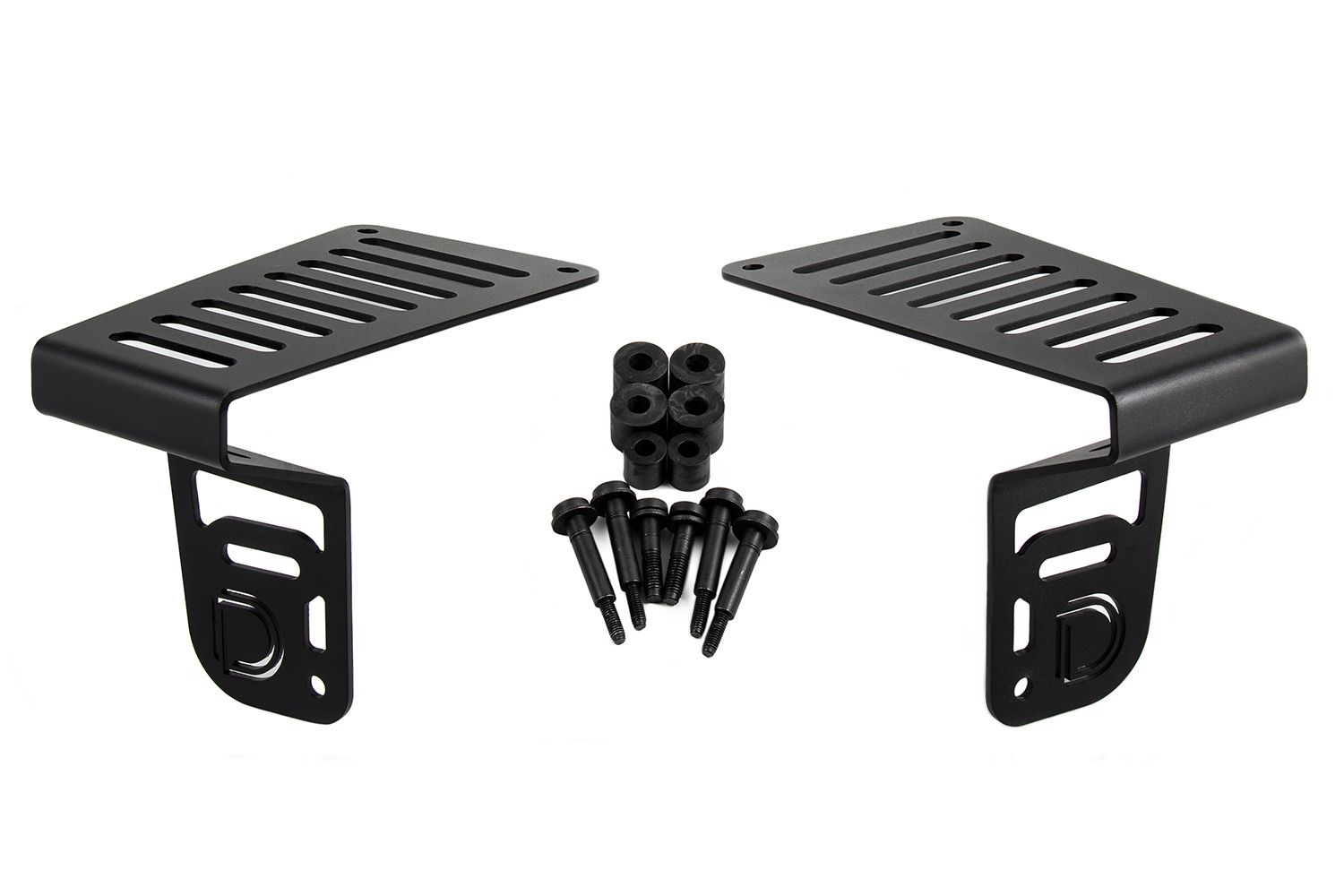

Brackets Only:
Two (2) Application-specific cowl mount brackets for installation on 2020-2024 Jeep Gladiator
Six (6) Delrin spacers
Six (6) OEM-style automotive-grade bolts
Installation Guide

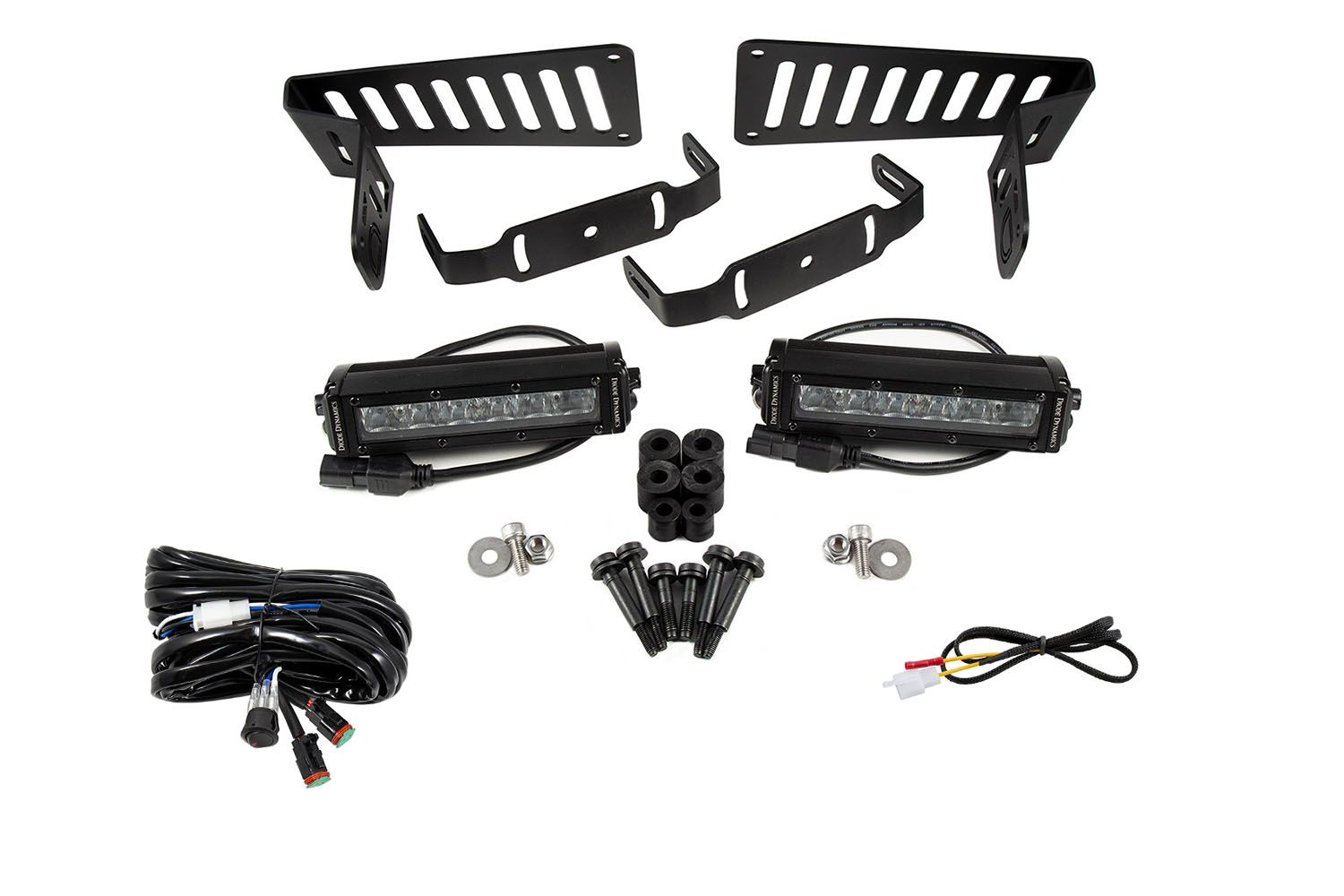

Cowl Mount Bracket Light Bar Kit:
Two (2) Application-specific cowl mount brackets for installation on 2020-2024 Jeep Gladiator
Two (2) U-brackets
Two (2) SS6 Stage Series 6" Light Bars
One (1) OEM Auxillary Switch Dual-Output Harness
One (1) Light Duty Dual-Output Harness
Six (6) Delrin spacers
Six (6) OEM-style automotive-grade bolts
Installation Guide

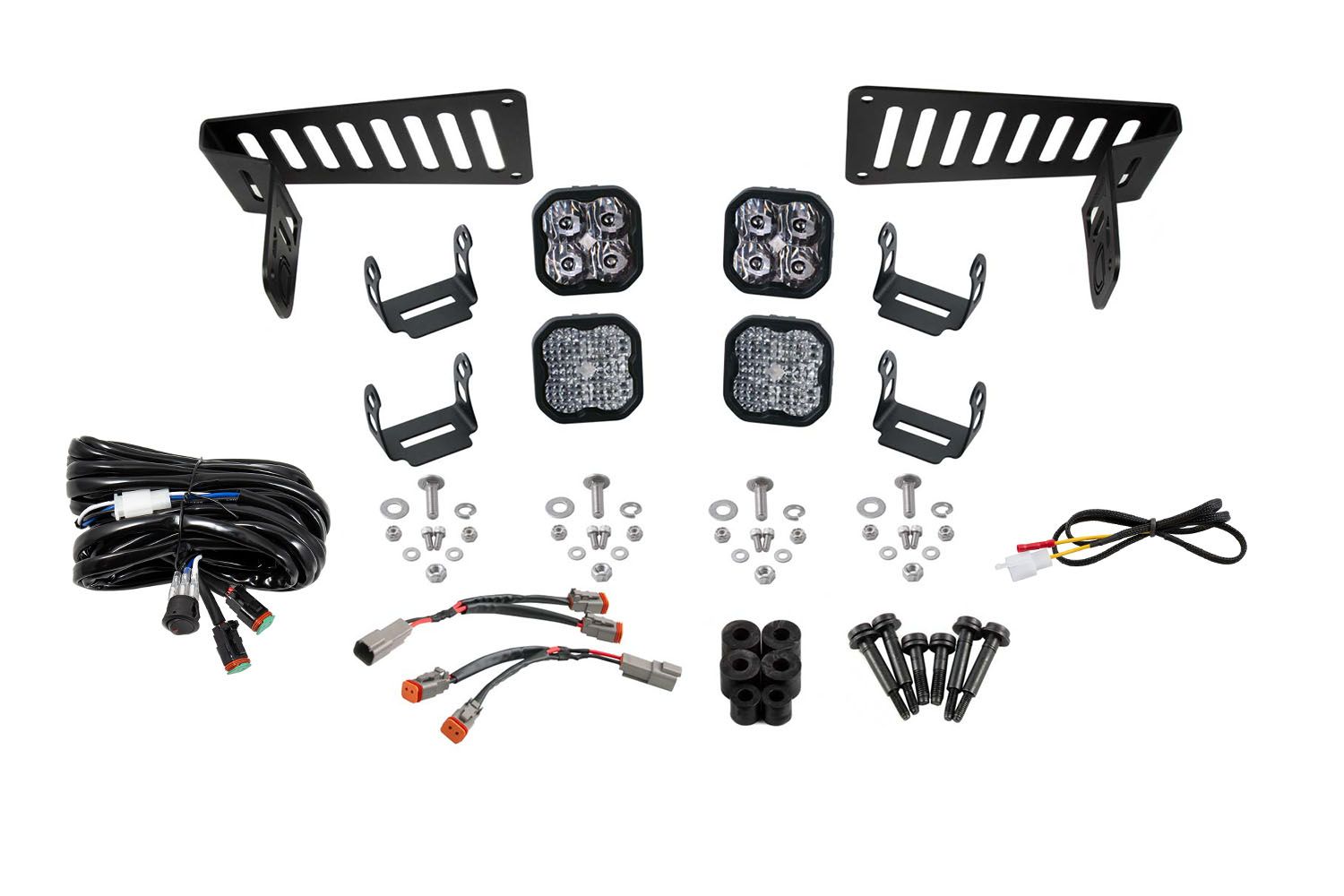

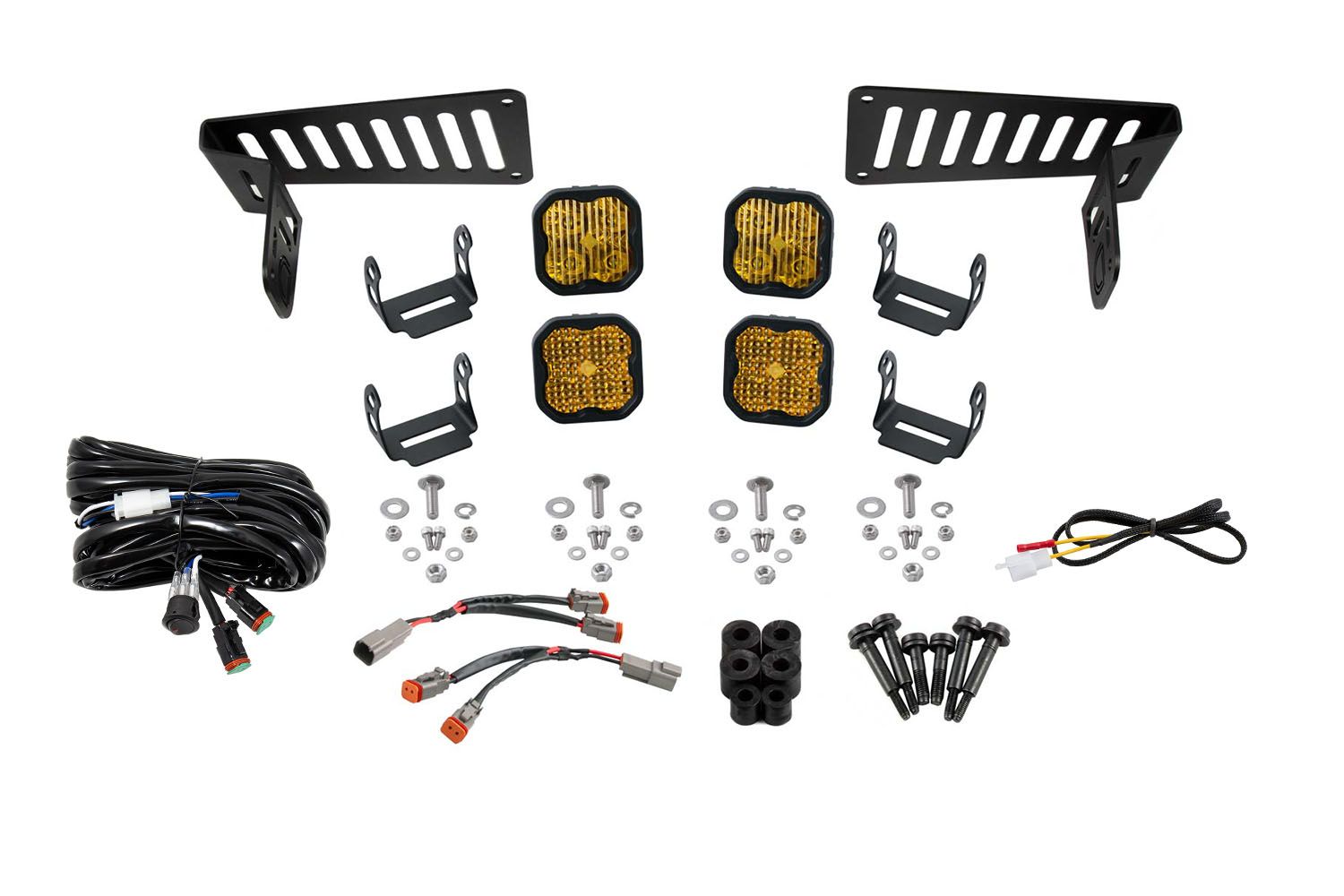

Cowl Mount Bracket SS3 Pod Kit:
Two (2) Application-specific cowl mount brackets for installation on 2020-2024 Jeep Gladiator
Four (4) Universal SS3 Mounting Brackets
Two (2) SS3 LED Pods, Driving Optic
Two (2) SS3 LED Pods, Flood Optic
One (1) OEM Auxillary Switch Dual-Output Harness
One (1) Heavy Duty Dual-Output Harness
Two (2) 2-Way DT Splitters
Six (6) Delrin spacers
Six (6) OEM-style automotive-grade bolts
Universal SS3 mounting hardware
Installation Guide
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee
Fitment
NOTE: This kit is compatible with all Sport, Sport S, Overland, and Rubicon trim levels. This kit IS NOT compatible with the Mojave trim level.
Make: Jeep
Model: Gladiator
Years: 2020, 2021, 2022, 2023, 2024
Electrical Compatibility: No electrical issues (tested and confirmed)
Specifications
NOTE: Specifications listed here are for each individual pod/light bar.
SS3 LED Pods
| Lens Color/Optics |
Peak Beam Intensity |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| White Driving Sport | 54,700 cd | 547 lux | 1,520 lm | 2,262 lm | 6000K White |
| White Driving Pro | 66,500 cd | 665 lux | 3,000 lm | 5,796 lm | 6000K White |
| White Flood Sport | 1,750 cd | 18 lux | 1,520 lm | 2,262 lm | 6000K White |
| White Flood Pro | 3,100 cd | 31 lux | 3,000 lm | 5,796 lm | 6000K White |
| Yellow Driving Sport | 53,500 cd | 535 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Yellow Driving Pro | 60,900 cd | 609 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| Yellow Flood Sport | 1,600 cd | 16 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Yellow Flood Pro | 2,850 cd | 29 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
SS6 LED Lightbars
| Lens Color/Optics |
Peak Beam Intensity |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| White Driving | 55,000 cd | 550 lux | 1,400 lm | 2,280 lm | 6000K White |
| White Flood | 2,000 cd | 20 lux | 1,400 lm | 2,280 lm | 6000K White |
| Amber Driving | 33,000 cd | 330 lux | 800 lm | 1,140 lm | 2000K Amber |
| Amber Flood | 1,200 cd | 12 lux | 800 lm | 1,140 lm | 2000K Amber |
What do these terms mean?
Datasheet(s) (click to download): SS3 Sport White Standard, SS3 Sport Yellow Standard, SS3 Pro White Standard, SS3 Pro Yellow Standard
Color Temp (CCT): 2000K, 3000K, 6000K
Beam Angle: Driving, 20°x8°, Flood, 80°x50°
Power (watts): Sport: 14.5, Pro: 36, Bar: 26.6
Operating Voltage: 9-16V
Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7, Bar: 1.9
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Rubber Gasket
Cooling: Passive, heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof, IP68 Waterproof
Product Dimensions (in): 7x3x1.63 If you would like CAD for your project, please contact us.
Make: Jeep
Model: Gladiator
Years: 2020, 2021, 2022, 2023, 2024
Electrical Compatibility: No electrical issues (tested and confirmed)
100% Satisfaction Guarantee
Installation
Bracket Kit Installation Guide: Click to download
Installation Time: 20-30 minutes
Tools Needed: Basic Toolset
Modification: None
Warranty
8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
Shipping
Domestic (U.S.) Shipping
All domestic (U.S.) orders ship with your choice of UPS or USPS, and all orders placed before 12 PM CST will ship the same day, if all items are in stock. Shipping costs are calculated at checkout, based on order size. Delivery usually takes just 3-5 days.
You will receive updates from our site when your order is shipped, along with a unique shipment number to ensure that your order is correctly accounted for. This allows you to easily reply to us if you have any concerns.
Have a question about your shipment? Just like any other question you might have, simply send us an email and our trained lighting and shipping experts will reply, usually the same day. Or, give us a call during normal business hours.
International Shipping
We ship to almost everywhere in the world using USPS shipping services, along with your country's postal service. Rates are calculated at checkout to ensure fair pricing. We normally offer standard mail, Priority International, and EMS Express. Please note that the shipping time can vary widely, based on your countries mail service and border policies.
Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.
Puerto Rico: As we use standard USPS, PR is considered a US territory for mailing purposes, and can be selected as such at checkout. Shipping will be domestic U.S. rates.
Canada: We ship to Canada every day! Most small orders will cost around $10 via standard mail. We also offer Priority and Express EMS. To see exact shipping rates, please view your options at checkout. We also offer UPS service to Canada.
Europe, Asia, and Australia: We ship to all other countries using standard mail. You can check the shipping cost at checkout, as it will be calculated based on your cart. We offer standard mail, Priority, and EMS Express.
Customs Fees for International Shipping
Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.
As we use only standard mail, our customers normally do not incur any type of import fees, customs fees, or tariffs for smaller shipments. However, this cannot be guaranteed, and any fees are the responsibility of the buyer. Please contact us if you have any concerns.
Part Numbers
The following part numbers are included with this listing:
| SKU | Price | Name | Weight | Driver | Components |
|---|---|---|---|---|---|
| DD6089 | $119.95 | Cowl Mount LED Bracket Kit for 2018-2024 Jeep JL Wrangler/Gladiator | 5.01 lbs | HM0058 Jeep 2018 Cowl M8 Short, HM0059 Jeep 2018 Cowl M6 Long, HP0201 Jeep 2018 Upper Spacer, HP0202 Jeep 2018 Lower Spacer | |
| DD6553 | $509.95 | SS3 Cowl LED Bracket Kit for 2018-2024 Jeep JL Wrangler/Gladiator, White Sport | 17.9 lbs | DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD4080 DT Splitter 2way Long (one), DD6120P SS3 LED Pod Sport White SAE Driving Standard (pair), DD6121P SS3 LED Pod Sport White Flood Standard (pair), DD6089 Jeep 2018+ Cowl Bracket Kit | |
| DD6555 | $509.95 | SS3 Cowl LED Bracket Kit for 2018-2024 Jeep JL Wrangler/Gladiator, Yellow Sport | 17.9 lbs | DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD4080 DT Splitter 2way Long (one), DD6124P SS3 LED Pod Sport Yellow Driving Standard (pair), DD6125P SS3 LED Pod Sport Yellow Flood Standard (pair), DD6089 Jeep 2018+ Cowl Bracket Kit | |
| DD6554 | $729.95 | SS3 Cowl LED Bracket Kit for 2018-2024 Jeep JL Wrangler/Gladiator, White Pro | 17.9 lbs | DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD6260P SS3 Universal Bracket Kit (pair), DD4080 DT Splitter 2way Long (one), DD6129P SS3 LED Pod Pro White Flood Standard (pair), DD6278P SS3 LED Pod Pro White Driving Standard - No Brackets (pair), DD6089 Jeep 2018+ Cowl Bracket Kit | |
| DD6556 | $729.95 | SS3 Cowl LED Bracket Kit for 2018-2024 Jeep JL Wrangler/Gladiator, Yellow Pro | 17.9 lbs | DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD4080 DT Splitter 2way Long (one), DD6132P SS3 LED Pod Pro Yellow Driving Standard (pair), DD6133P SS3 LED Pod Pro Yellow Flood Standard (pair), DD6089 Jeep 2018+ Cowl Bracket Kit | |
| DD6092 | $399.95 | SS6 Cowl LED Bracket Kit for 2018-2023 Jeep JL Wrangler/Gladiator, White Driving | 13.84 lbs | DD4033 Offroad Harness Dual Light Duty, DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD6001P Stage Series 6in U Bracket (pair), DD5014S SS6 White Driving Lightbar, DD6089 Jeep 2018+ Cowl Bracket Kit | |
| DD6094 | $399.95 | SS6 Cowl LED Bracket Kit for 2018-2024 Jeep JL Wrangler/Gladiator, Amber Driving | 13.84 lbs | DD4033 Offroad Harness Dual Light Duty, DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD6001P Stage Series 6in U Bracket (pair), DD5036S SS6 Amber Driving Lightbar, DD6089 Jeep 2018+ Cowl Bracket Kit |
