Sale price$559.95
Choose Your Kit:

Choose Your Kit

Choose Your Optic and Color:

Choose Your Optic and Color

Quantity:

Description

Features
Direct fitment on the 2014-2019 Toyota 4Runner.
Allows you to mount one or two 30” light bar(s) in the lower grille opening.
CAD-designed for perfect fitment and OEM-like appearance.
Utilizes existing mounting points for easy installation - no cutting or drilling required.

Overview

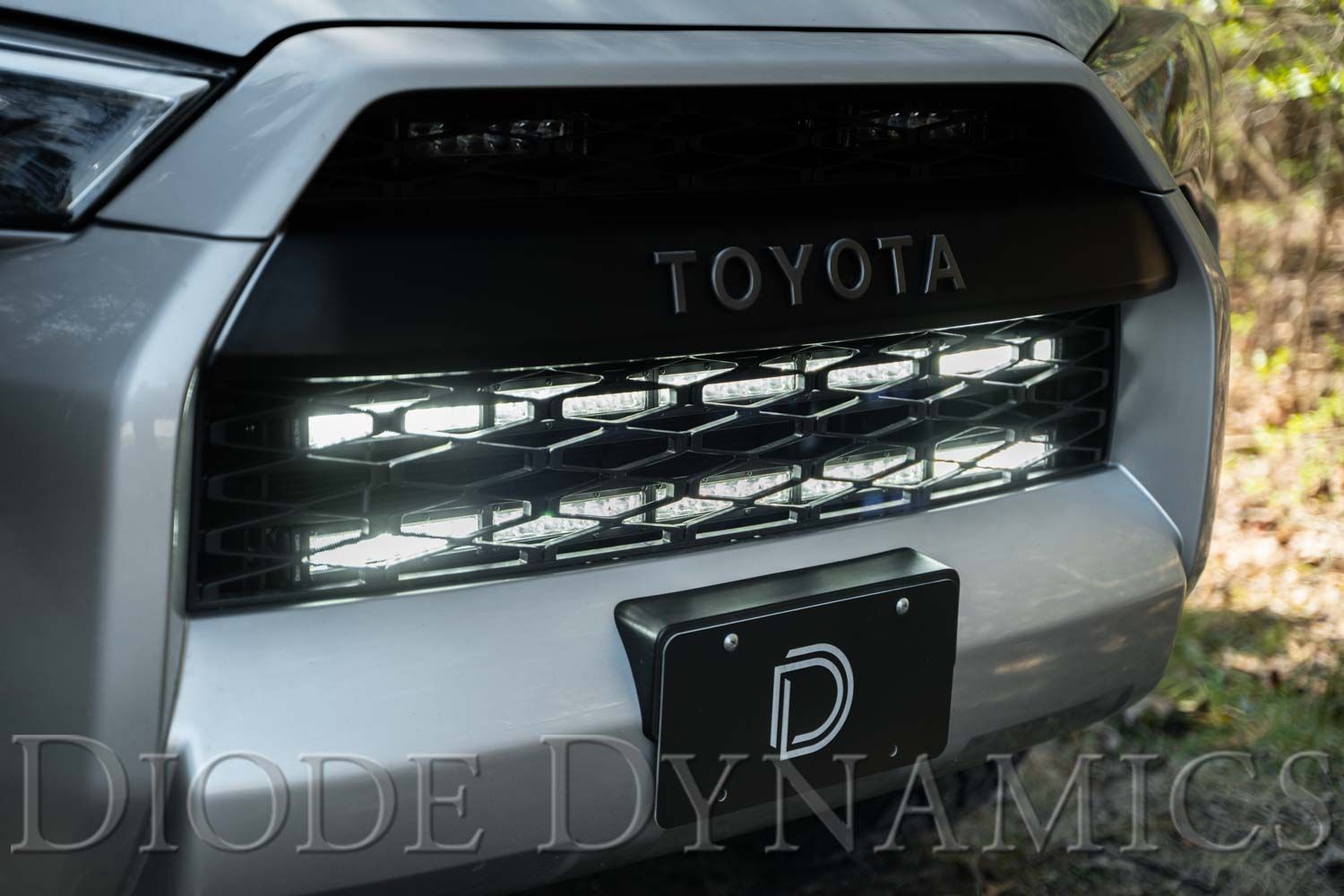

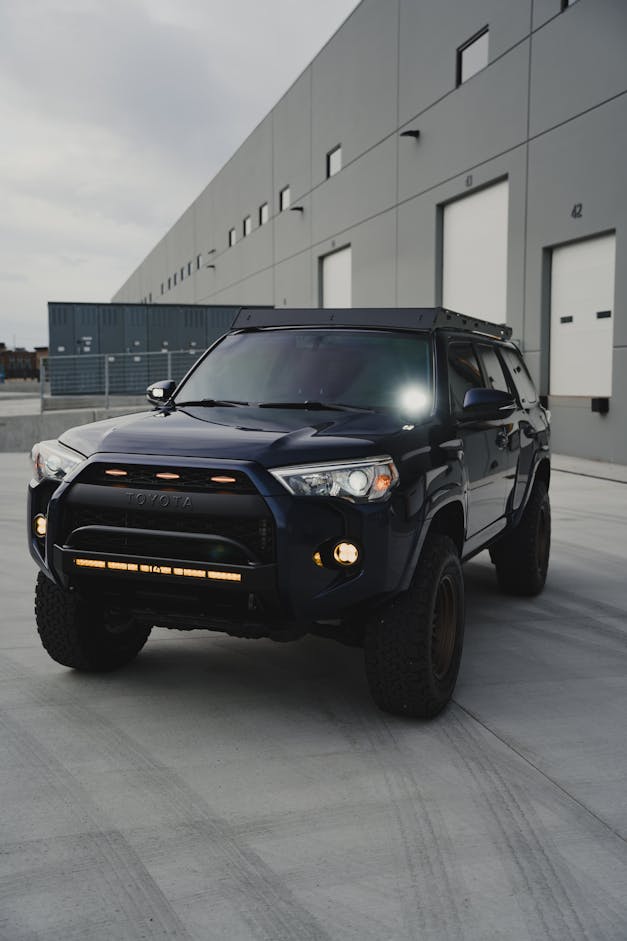

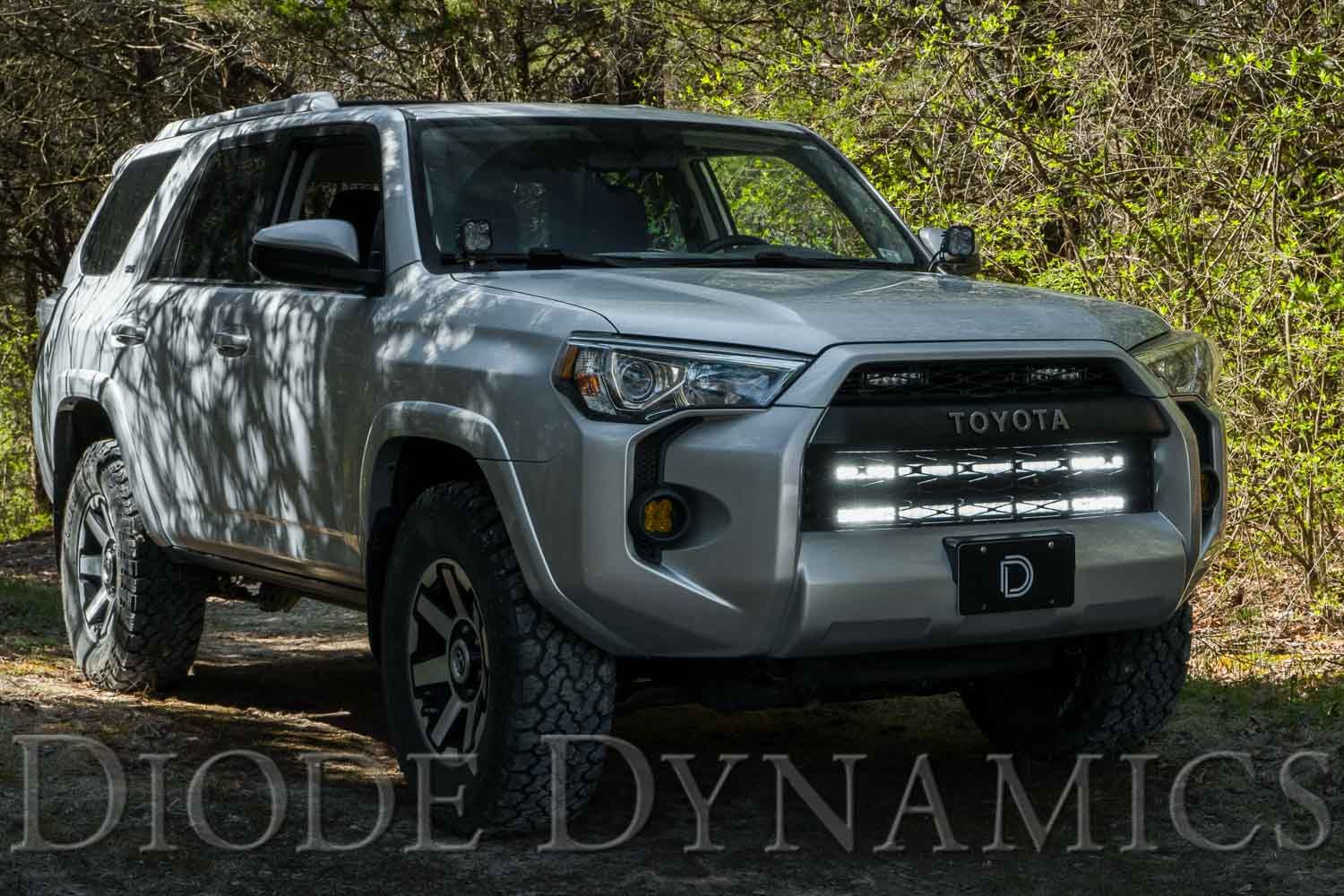

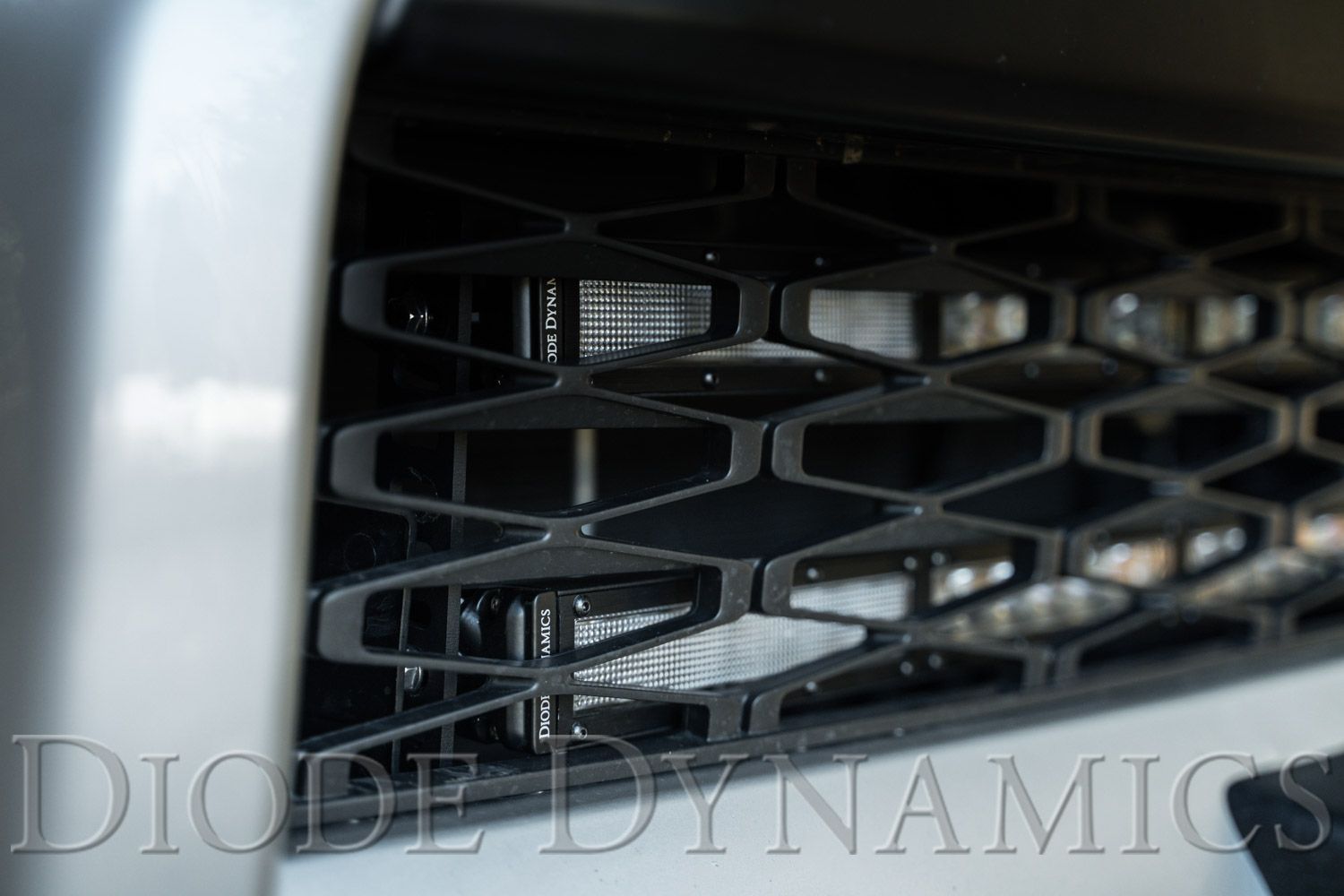

Perfect Fitment. The Stealth LED Lightbar Kit for the 2014-2019 Toyota 4Runner from Diode Dynamics allows you to mount either a single SS30 Stage Series 30" LED Light Bar or dual Stage Series 30" LED Light Bars in the lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory grille for a clean, OEM-like appearance.

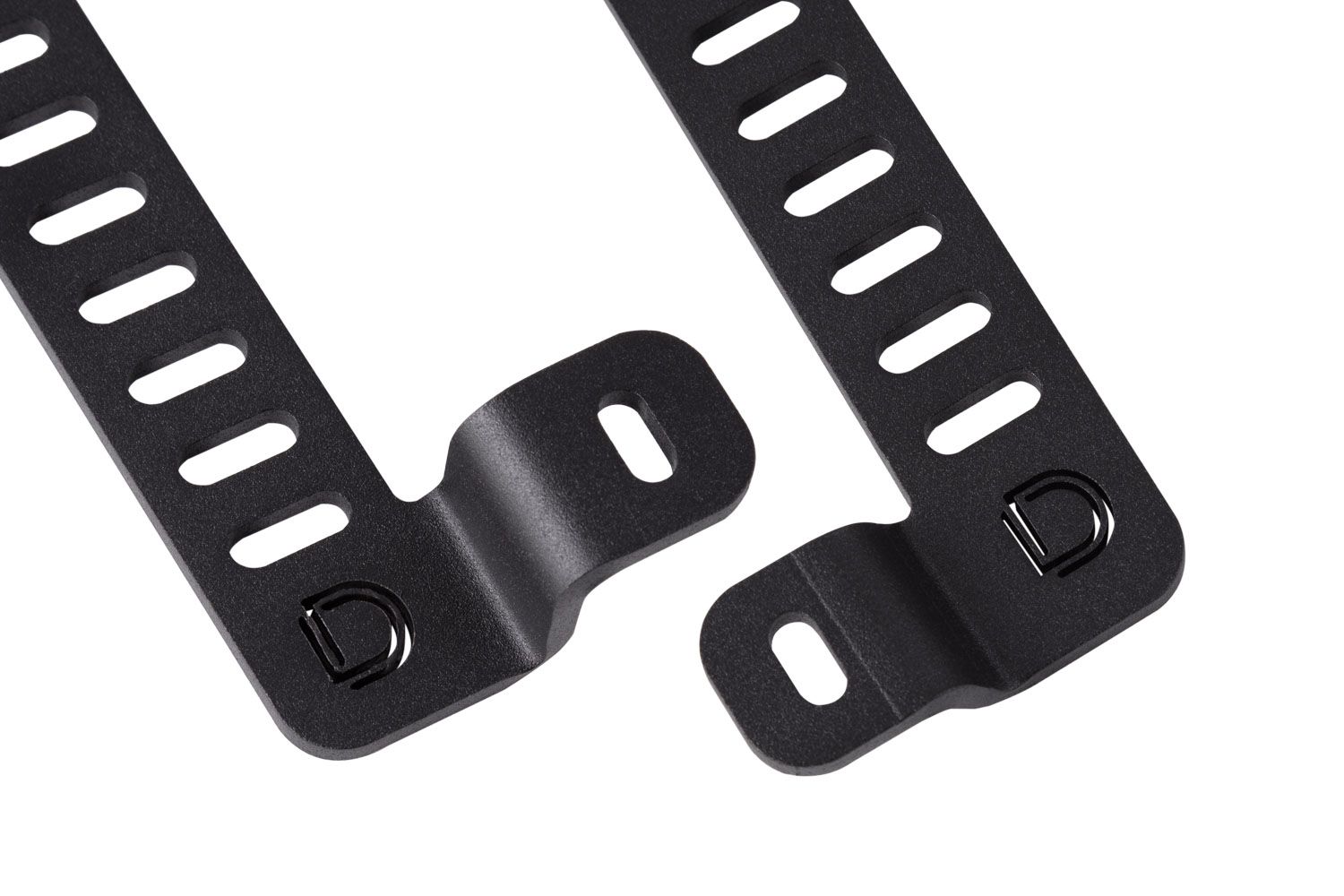

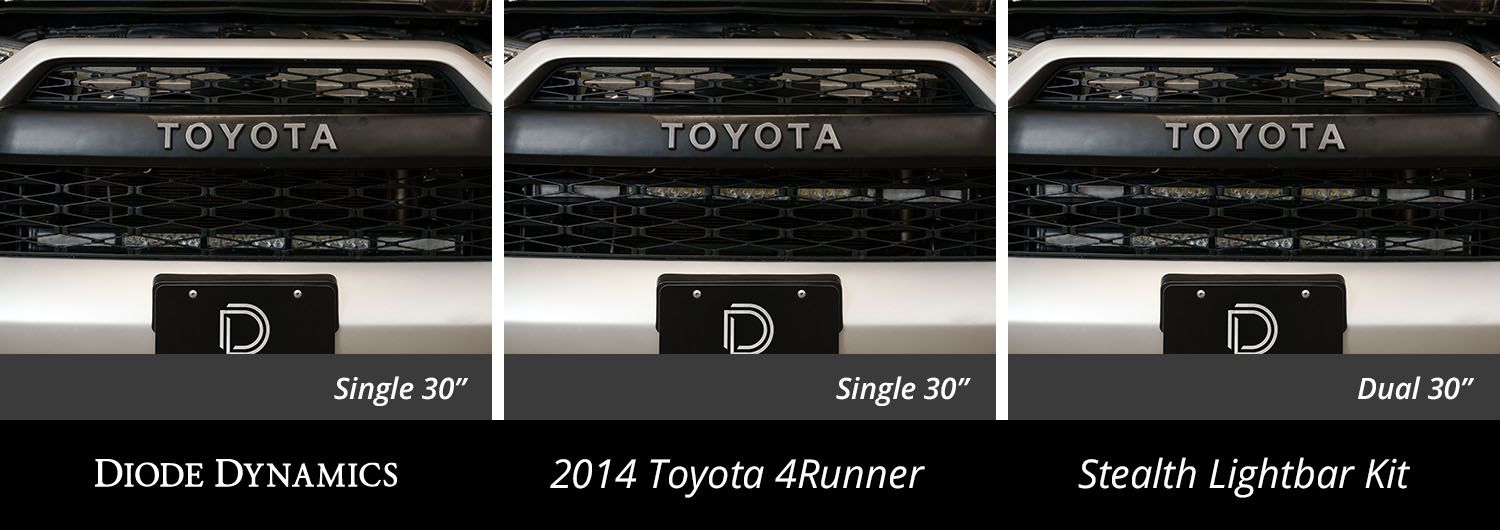

Choose your look. The brackets included with this kit were designed for full customization. They feature multiple mounting holes, so you can mount a single 30” light bar or dual 30” light bars behind your grille and achieve the look you're after.

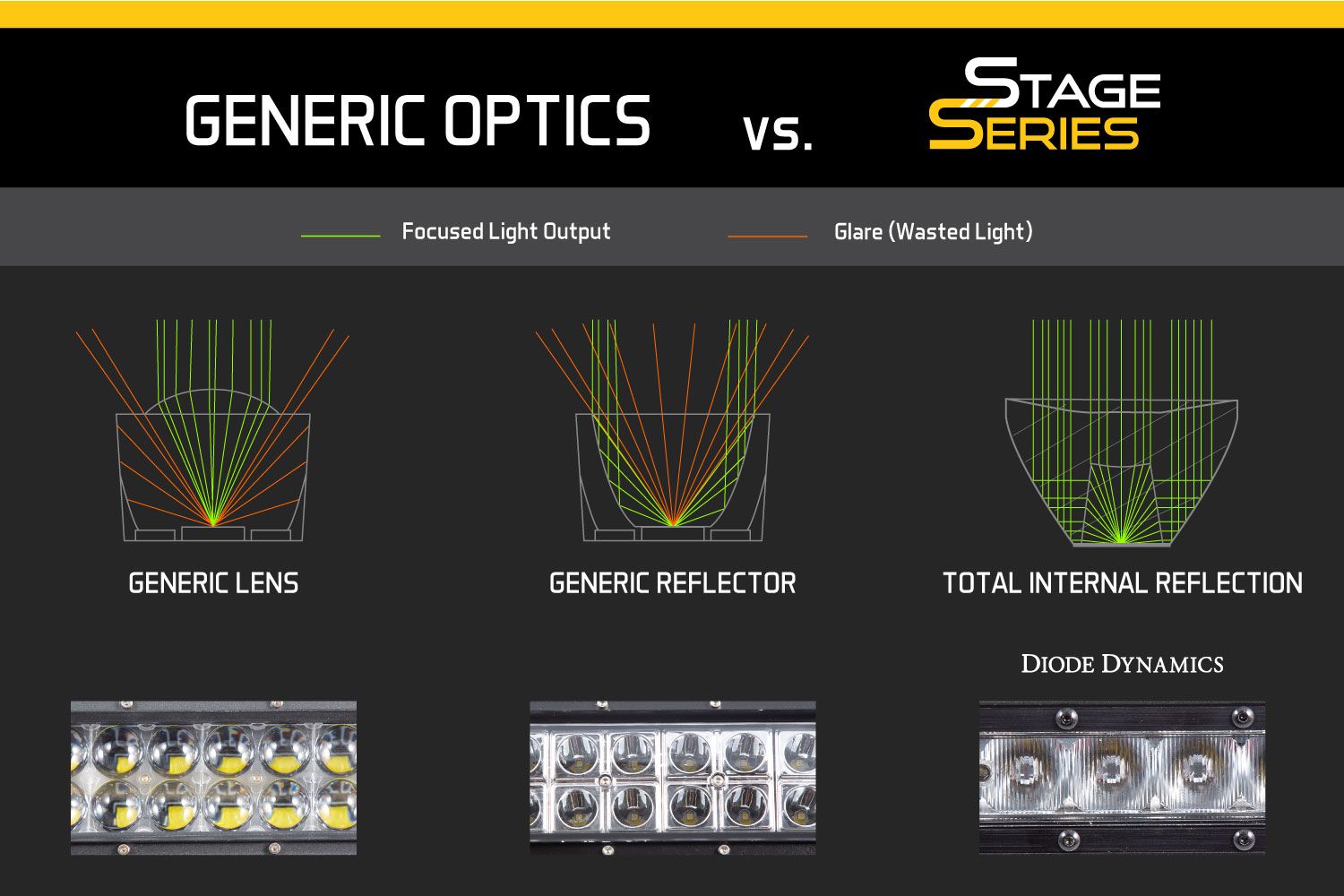

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

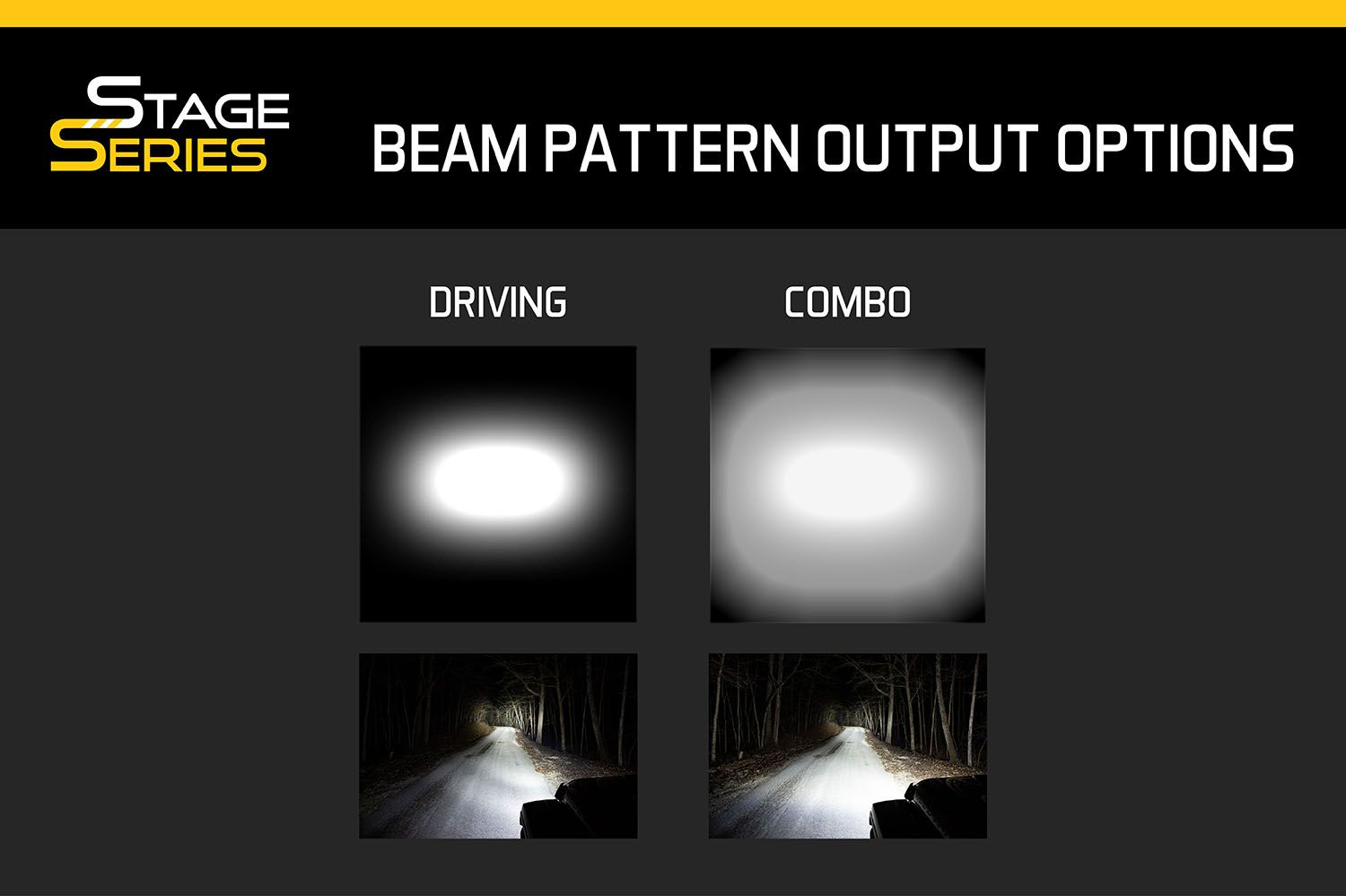

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

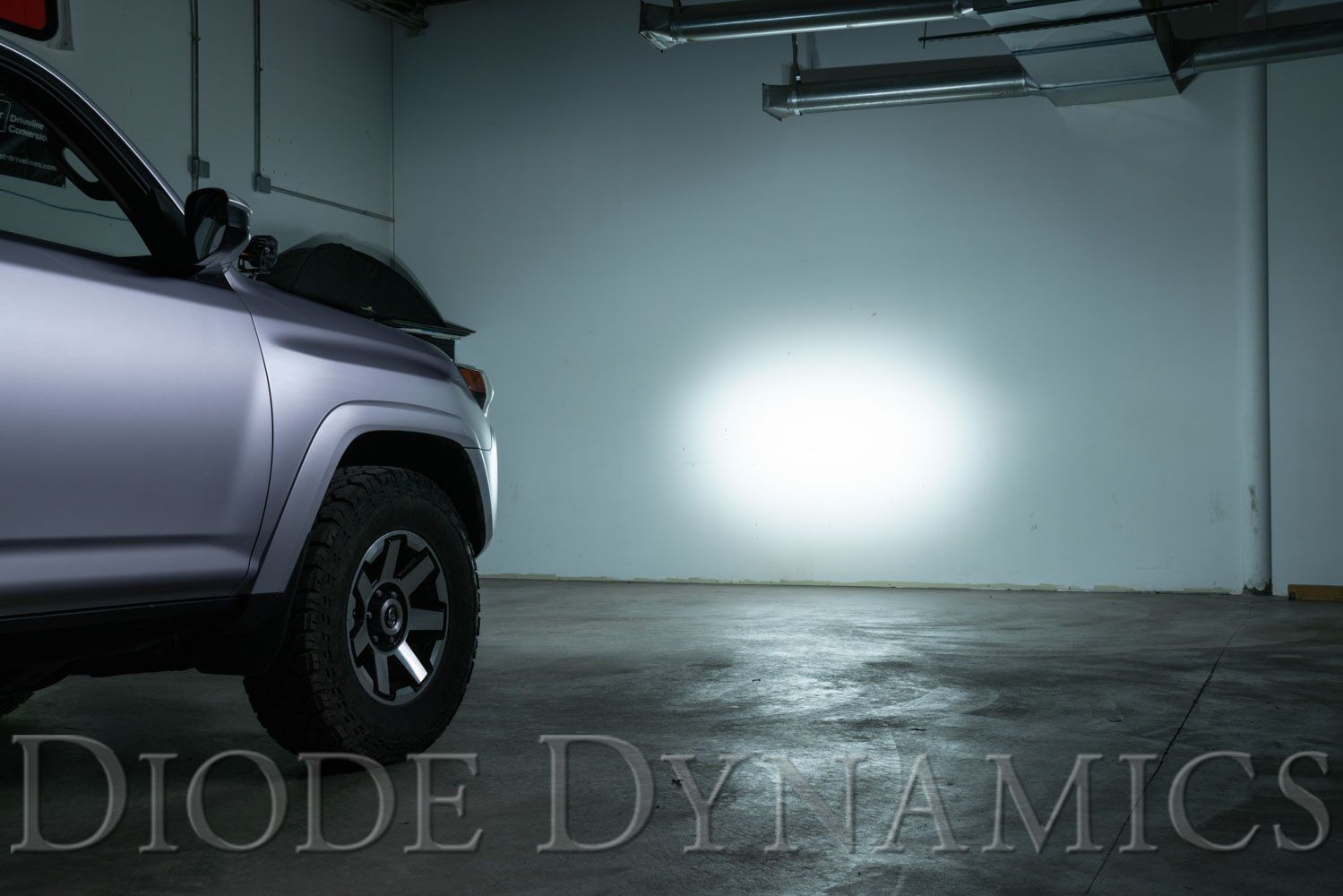

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating the area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

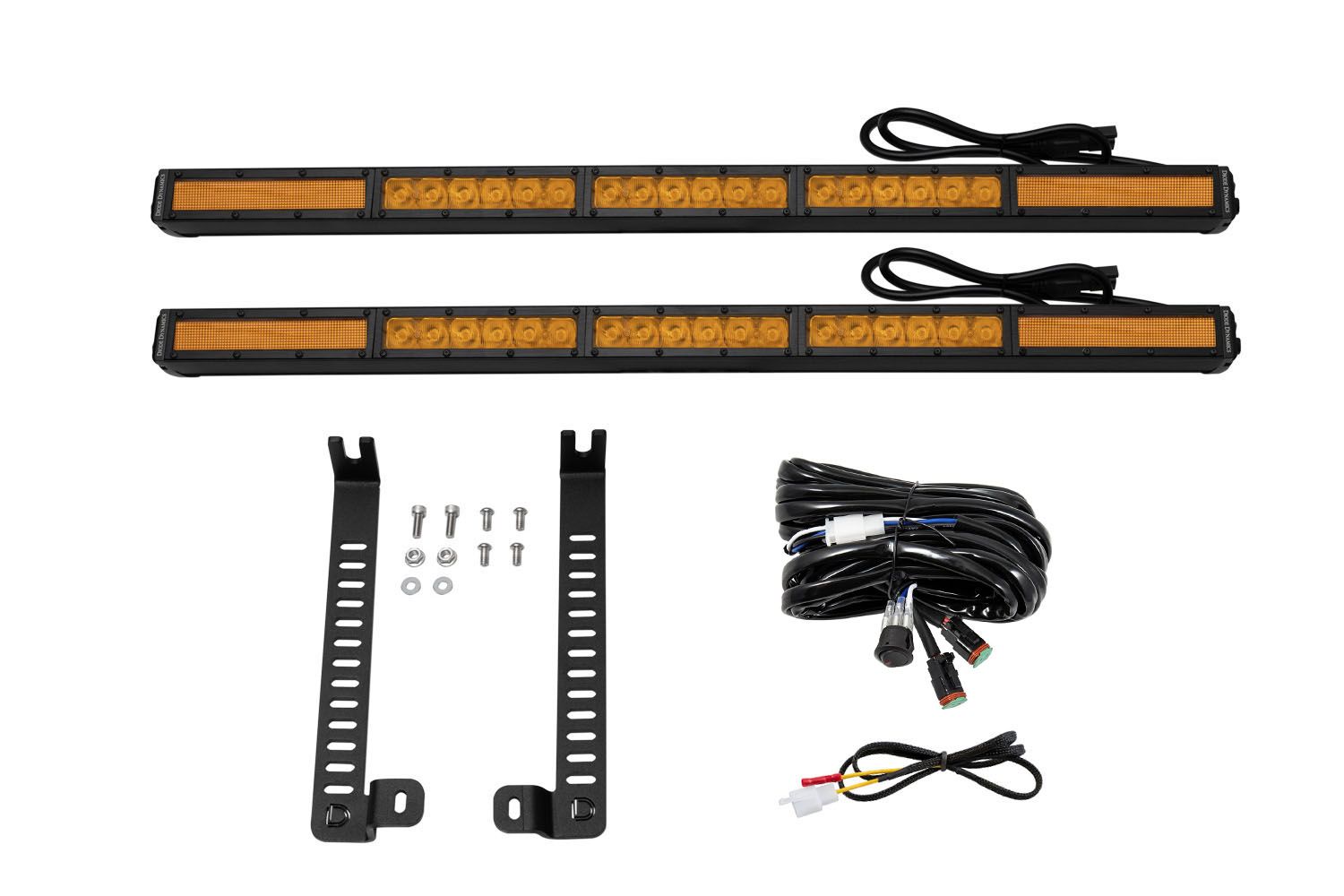

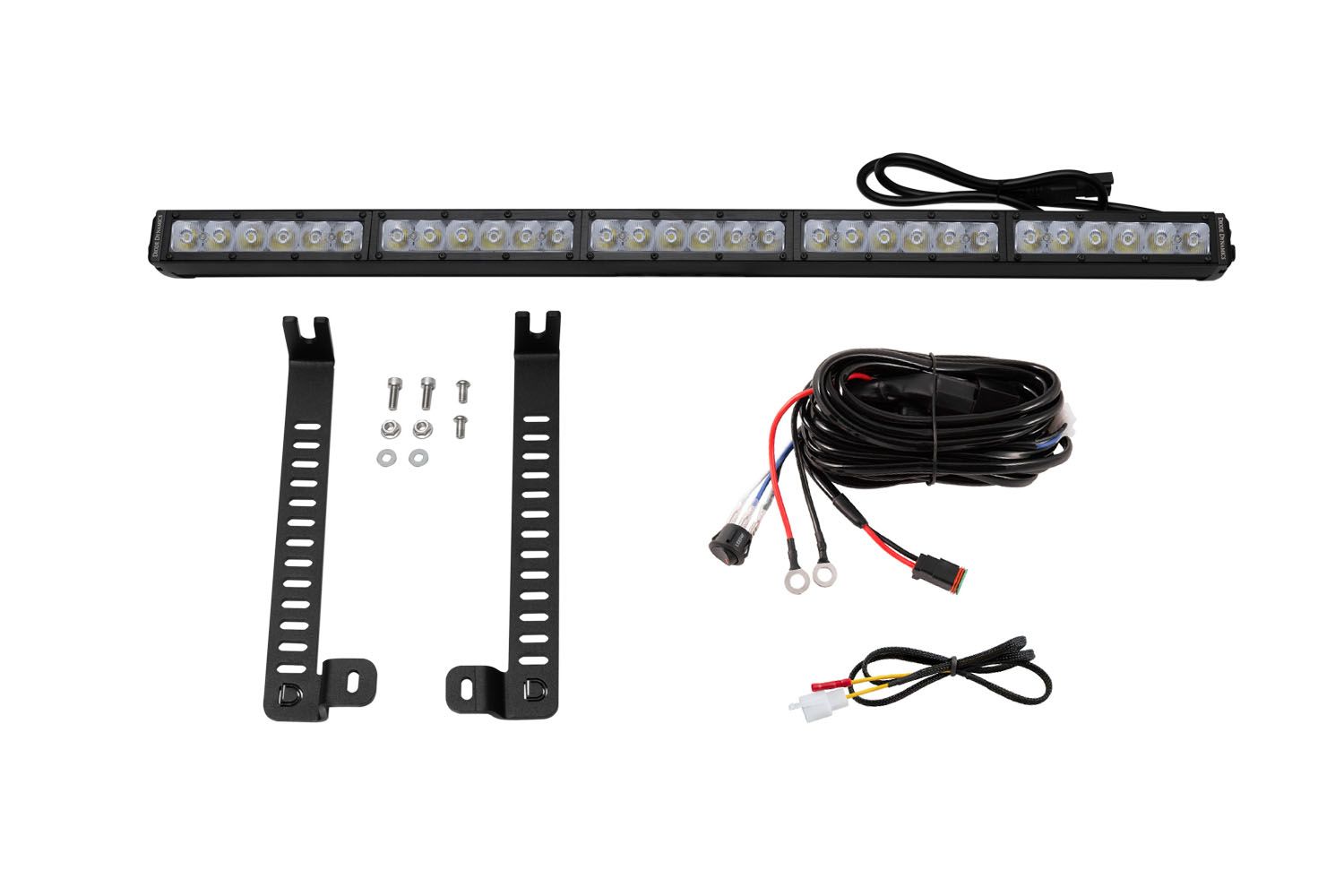

In the Box:

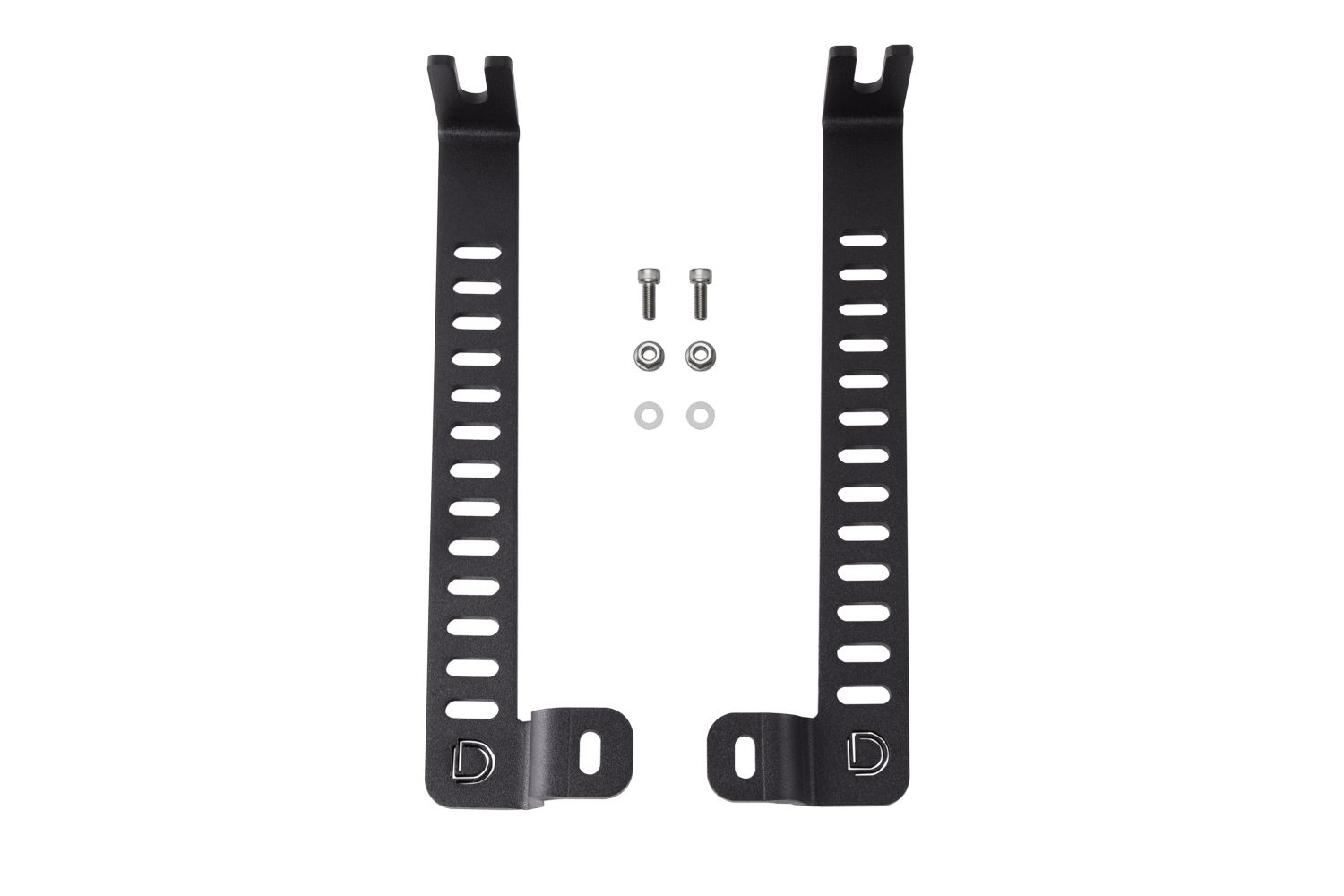

Two (2) application-specific SS30 brackets for installation on the 2014-2019 Toyota 4Runner
One (1) or Two (2) SS30 Stage Series lightbar(s)
One (1) heavy-duty dual output offroad wiring harness or One (1) heavy-duty single output 2-pin offroad wiring harness
One (1) Aux Switch Adapter Wire
Mounting Hardware
Installation Guide

Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment
NOTE: This kit is not compatible with the Limited or Nightshade trim levels.

Make: Toyota
Model: 4Runner
Years: 2014, 2015, 2016, 2017, 2018, 2019
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
White Driving 275,000 cd 2,750 lux 7,000 lm 11,400 lm 6000K White
White Combo 217,000 cd 1,690 lux 7,000 lm 11,400 lm 6000K White
Amber Driving 165,000 cd 1,650 lux 4,000 lm 5,700 lm 2000K Amber
Amber Combo 113,800 cd 1,014 lux 4,000 lm 5,700 lm 2000K Amber



What do these terms mean?
Color Temp (CCT): 2000K, 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood)
Power (watts): 137.2
Operating Voltage: 9-24V
Current (amps @ 14V): 9.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB
Cooling: Passive, heatsink
Product Dimensions (in): 31x3x1.63 If you would like CAD for your project, please contact us.
Make: Toyota
Model: 4Runner
Years: 2014, 2015, 2016, 2017, 2018, 2019
Electrical Compatibility: No electrical issues (tested and confirmed)
100% Satisfaction Guarantee

Installation

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.

Shipping

Domestic (U.S.) Shipping

All domestic (U.S.) orders ship with your choice of UPS or USPS, and all orders placed before 12 PM CST will ship the same day, if all items are in stock. Shipping costs are calculated at checkout, based on order size. Delivery usually takes just 3-5 days.

You will receive updates from our site when your order is shipped, along with a unique shipment number to ensure that your order is correctly accounted for. This allows you to easily reply to us if you have any concerns.

Have a question about your shipment? Just like any other question you might have, simply send us an email and our trained lighting and shipping experts will reply, usually the same day. Or, give us a call during normal business hours.


International Shipping

We ship to almost everywhere in the world using USPS shipping services, along with your country's postal service. Rates are calculated at checkout to ensure fair pricing. We normally offer standard mail, Priority International, and EMS Express. Please note that the shipping time can vary widely, based on your countries mail service and border policies.

Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.

Puerto Rico: As we use standard USPS, PR is considered a US territory for mailing purposes, and can be selected as such at checkout. Shipping will be domestic U.S. rates.

Canada: We ship to Canada every day! Most small orders will cost around $10 via standard mail. We also offer Priority and Express EMS. To see exact shipping rates, please view your options at checkout. We also offer UPS service to Canada.

Europe, Asia, and Australia: We ship to all other countries using standard mail. You can check the shipping cost at checkout, as it will be calculated based on your cart. We offer standard mail, Priority, and EMS Express.


Customs Fees for International Shipping

Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.

As we use only standard mail, our customers normally do not incur any type of import fees, customs fees, or tariffs for smaller shipments. However, this cannot be guaranteed, and any fees are the responsibility of the buyer. Please contact us if you have any concerns.

Part Numbers

The following part numbers are included with this listing:

SKU Price Name Weight Driver Components
DD6759P $119.95 SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner 3.76 lbs HW0037 M6-1.00 Hex Flange Nut Serrated A2 , HW0114 Screw Socket Head M6x1.00mm, 16mm 18-8SS, HW0115 Washer Nylon M6 6.4mm ID 12mm OD, Off White
DD6760 $559.95 SS30 Single Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, White Combo 15.45 lbs DD4031 Heavy-Duty Single Output 2-Pin Offroad Wiring Harness, DD5032 SS30 White Combo Light Bar, DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
DD6762 $559.95 SS30 Single Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, White Driving 15.45 lbs DD4031 Heavy-Duty Single Output 2-Pin Offroad Wiring Harness, DD5018 SS30 White Driving Light Bar, DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
DD6761 $559.95 SS30 Single Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, Amber Combo 15.45 lbs DD4031 Heavy-Duty Single Output 2-Pin Offroad Wiring Harness, DD5054 SS30 Amber Combo Light Bar , DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
DD6763 $559.95 SS30 Single Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, Amber Driving 15.45 lbs DD4031 Heavy-Duty Single Output 2-Pin Offroad Wiring Harness, DD5040 SS30 Amber Driving Light Bar, DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
DD6764 $909.95 SS30 Dual Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, White Combo 23.85 lbs DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD5032 SS30 White Combo Light Bar, DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
DD6766 $909.95 SS30 Dual Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, White Driving 23.85 lbs DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD5018 SS30 White Driving Light Bar, DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
DD6765 $909.95 SS30 Dual Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, Amber Combo 23.85 lbs DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD5054 SS30 Amber Combo Light Bar , DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
DD6767 $909.95 SS30 Dual Stealth Lightbar Kit for 2014-2019 Toyota 4Runner, Amber Driving 23.85 lbs DD4045 Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness, DD5040 SS30 Amber Driving Light Bar, DD6759P SS30 Stealth Lightbar Brackets for 2014-2019 Toyota 4Runner
