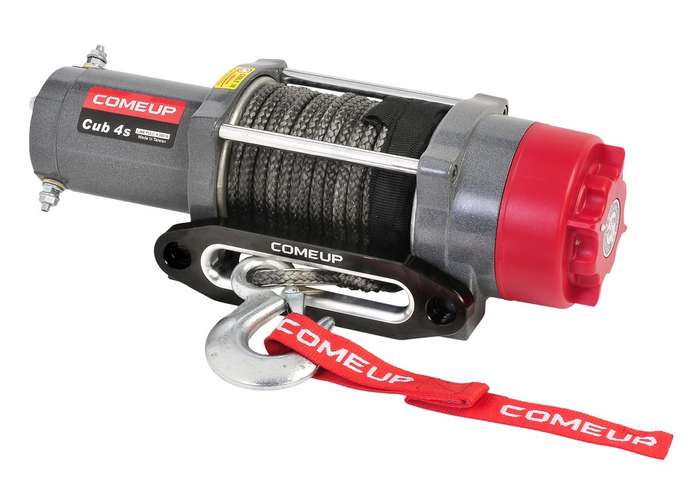

COMEUP WINCH | CUB 4s, 12V WINCH
COMEUP WINCH | CUB 4s, 12V WINCH

COMEUP WINCH | CUB 4s, 12V WINCH

Regular price $490.00 Sale price $405.95
/

Part Number 129412



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw,  A
No load 4.6 / 15.1 15
454 / 1,000 3.4 / 11.2 60
907 / 2,000 2.9 / 9.5 120
1,361 / 3,000 2.4 / 7.9 180
1,814 / 4,000 2.0 / 6.6 230



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 1,814 / 4,000 4.0 / 13.2
2nd 1,535 / 3,385 8.8 / 28.8
3rd 1,331 / 2,933 14.2 / 46.7
4th 1,174 / 2,588 15.2 / 50



Specifications:

  • Rated Line Pull 4,000 lbs (1,814 kg) single line
  • Motor 800 w / 1.0 hp 12V permanent magnet
  • Gear Ratio 3-Stage Planetary 191:1
  • Clutch (freespooling) Sliding pin and ring gear
  • Brake Mechanical & Dynamic
  • Winch Construction Aluminum Die Cast Housings and Drum
  • Drum Size 2.2” x 4.7” (55 x 119 mm)
  • Control Handlebar rocker switch
  • Rope Type Synthetic rope
  • Rope Size 7/32” x 50' (5.5 mm x 15.2 m)
  • Mounting Bolt Pattern 3” x 6.6” (76 x 168 mm)
  • Winch Weight 17.6 lbs (8 kg)
  • Gross Weight 26.4 lbs (12 kg)
  • Box Dimensions 15.0” x 14.3” x 5.7” (380 x 362 x 144 mm)
