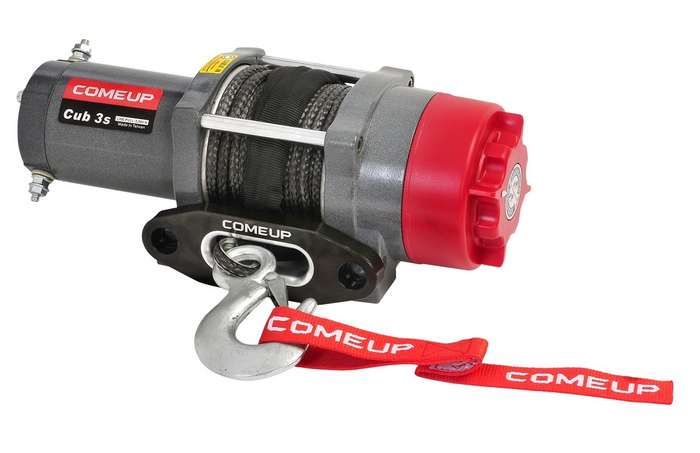

COMEUP WINCH | CUB 3s, 12V WINCH
COMEUP WINCH | CUB 3s, 12V WINCH

COMEUP WINCH | CUB 3s, 12V WINCH

Regular price $380.00 Sale price $315.95
/

Part Number 129302



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw,  A
12V
No load 5.7 / 18.7 25
227 / 500 4.8 / 15.7 50
454 / 1,000 4.0 / 13.1 80
680 / 1,500 3.5 / 11.5 110
907 / 2,000 3.0 / 9.8 140
1,134 / 2,500 2.5 / 8.2 180
1,361 / 3,000 2.0 / 6.6 230





Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 1,361 / 3,000 2.8 / 9.3
2nd 1,173  / 2,585 6.1 / 20.1
3rd 1,030 / 2,271 9.9 / 32.5
4th 918 / 2,025 14.1 / 46.3
5th 829 / 1,827 15.2 / 50



Specifications:

  • Rated Line Pull 3,000 lbs (1,361 kg) single line
  • Motor 800 w / 1.0 hp 12V permanent magnet
  • Gear Ratio 3-Stage Planetary 138.5:1
  • Clutch (freespooling) Sliding pin and ring gear
  • Brake Mechanical & Dynamic
  • Winch Construction Aluminum Die Cast Housings and Drum
  • Drum Size 2.2” x 3” (55 x 75 mm)
  • Control Handlebar rocker switch
  • Rope Type Synthetic Rope SK-75
  • Rope Size 3/16” x 50' (4.8 mm x 15.2 m)
  • Mounting Bolt Pattern 3” x 4.9” (76 x 124 mm)
  • Winch Weight 15.9 lbs (7.2 kg)
  • Gross Weight 25.3 lbs (11.5 kg)
  • Box Dimensions 13.7” x 13” x 5.7” (349 x 331 x 144 mm)
