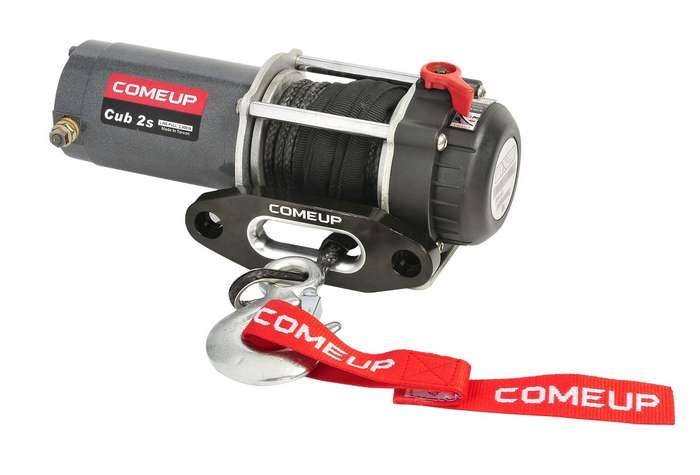

COMEUP WINCH | CUB 2s, 12V Winch

COMEUP WINCH | CUB 2s, 12V Winch

$325.95
Quantity:

Part Number 122390

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		 Line Speed,
mpm / fpm		 Amp. Draw,  A
No load 6.1 / 20.0 20
302 / 666 4.6 / 15.1 50
605 / 1,334 3.1 / 10.2 100
907 / 2,000 2.0 / 6.6 150



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 907 / 2,000 2.4 / 7.9
2nd 762 / 1,680 5.3 / 17.4
3rd 657 / 1,448 8.6 / 28.2
4th 577 / 1,272 12.4 / 40.7
5th 515 / 1,135 15.2 / 50.0



Specifications

  • Rated Line Pull 2,000 lbs. (907 kg) single line
  • Motor 600 w / 0.8 hp 12V permanent magnet
  • Gear Ratio 3-Stage Planetary 103:1
  • Clutch (freespooling) Cam activated
  • Brake Mechanical & Dynamic
  • Winch Construction Aluminum Die Cast Drum and Strong Steel Housings
  • Drum Size 1.5" x 3" (38 x 75 mm)
  • Control Handlebar rocker switch
  • Rope Type Synthetic Rope SK-75
  • Rope Size 5/32" x 50' (4.0 mm x 15.2 m)
  • Mounting Bolt Pattern 3"� x 4.9"� (76 x 124 mm)
  • Winch Weight 13.2 lbs (6 kgs)
  • Winch Weight 13.2 lbs (6 kg)
  • Gross Weight 19.8 lbs (9 kg)
  • Box Dimensions 11.7" x 8.8" x 5.5" (296 x 223 x 140 mm)
