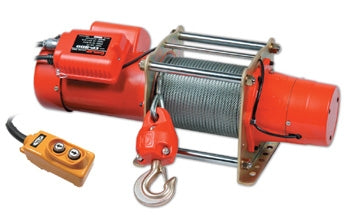

COMEUP WINCH | AC Hoist - CP500 230V - 1,330 lbs
COMEUP WINCH | AC Hoist - CP500 230V - 1,330 lbs

COMEUP WINCH | AC Hoist - CP500 230V - 1,330 lbs

Regular price $1,136.99
/

Part Number 153025



Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope Lifting Capacity, kg Lifting Speed, m / min Total Rope on the Drum, m
1st 757 10 10
2nd 671 11.6 22
3rd 602 12.9 35
4th 546 14.2 50
5th 500 15 60



 Pulling Load Capacity for Various Inclines in kg :

Model Level Surface Gradient % inclines / angle in degrees
10% 6° 20% 11° 40% 22° 60% 31° 80% 39°
CP-500 4,170 2,230 1,620 1,040 810 690



Specifications:

  • Lifting Capacity Up to 1,330 lbs
  • Line Speed at 1st Layer 32.8 ft/min
  • Line Speed at Top Layer 49.2 ft/min
  • Power Source 1 phase, 230V AC
  • Motor 1.8 kw x 4 poles induction brake motor
  • Gear Ratio 48:1
  • Maximum Lifting Height 58 m
  • Braking Methods Electromagnetic
  • Wire Rope 7 mm x 60 m
  • Drum Length 220 mm
  • Drum Dia. 102 mm
  • Drum Flange Dia. 180 mm
  • Mounting Bolt Pattern 265 x 156 mm
  • Net Weight 55 kg
  • Gross Weight 57 kg
  • Hoist Dimension (L x D x H) 694 x 260 x 299 mm
  • Package Dimension (L x D x H) 730 x 272 x 350 mm
