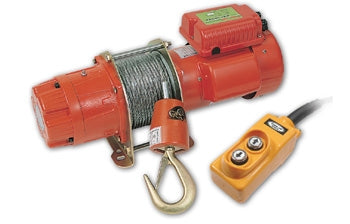

COMEUP WINCH | AC Hoist - CP300 115V - 780 lbs.
COMEUP WINCH | AC Hoist - CP300 115V - 780 lbs.

COMEUP WINCH | AC Hoist - CP300 115V - 780 lbs.

Regular price $676.99
/

Part Number 150005



Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope Lifting Capacity, kg Lifting Speed, m / min Total Rope on the Drum, m
1st 444 10 5.4
2nd 396 11.3 11.5
3rd 358 12.5 18.3
4th 327 13.8 25.7
5th 300 15 30



Pulling Load Capacity for Various Inclines in kg:

Model Level Surface Gradient % inclines / angle in degrees
10% 6° 20% 11° 40% 22° 60% 31° 80% 39°
CP-300 2,500 1,340 970 620 490 410



Specifications:

  • Lifting Capacity Up to 780 lbs
  • Line Speed at 1st Layer 32.8 ft/min
  • Line Speed at Top Layer 49.2 ft/min
  • Power Source 1 phase, 115V AC
  • Motor 1.1 kw x 4 poles induction brake motor
  • Gear Ratio 43:1
  • Maximum Lifting Height 29 m
  • Braking Method Electromagnetic
  • Wire Rope 6 mm x 30 m
  • Drum Length 110 mm
  • Drum Dia. 94 mm
  • Drum Flange Dia. 154 mm
  • Mounting Bolt Pattern 142 mm x 142 mm
  • Net Weight 32 kg
  • Gross Weight 38 kg
  • Winch Dimension (L x D x H) 489 x 210 x 241 mm
  • Package Dimension (L x D x H) 610 x 286 x 285 mm
