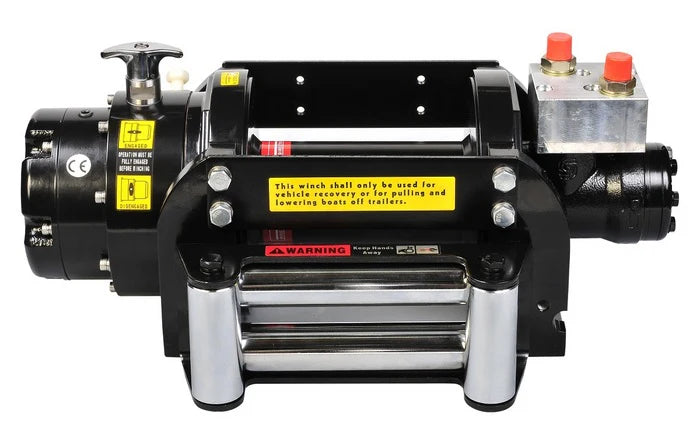

COMEUP WINCH | Badger 8 Long Drum Hydraulic Winch (680811)
COMEUP WINCH | Badger 8 Long Drum Hydraulic Winch (680811)

COMEUP WINCH | Badger 8 Long Drum Hydraulic Winch (680811)

$1,315.95
Quantity:

Description

Line Pull and Rope Capacity:

Layer of Wire Rope
 Pull by Layer
lb/ kg		 Total Rope on the Drum ft / m Line Speed
at 60 l/min (15.9 g/min)
fpm / mpm
1st 8,000 / 3,630 25.6 / 7.8 49.0 / 15.0
2nd 6,669 / 3,025 56.1 / 17.1 59.7 / 18.2
3rd 5,717 / 2,593 91.9 / 28.0 69.6 / 21.2
4th 5,000 / 2,269 131.0 / 40.0 79.4 / 24.2



Specifications

  • Line Speed (at 1st layer of rope) 49 fpm at 15.9 g/min (15 mpm at 60 l/min)
  • Operation Pressure 2,175 psi / 150 bar
  • Max Oil Flow 15.9 g/min (60 l/min)
  • Hydraulic Motor 4.7 cu in (77.8 cc)
  • Gear Ratio 2-stage planetary gear 16:1
  • Winch Construction Aluminum die cast housings with steel drum
  • Clutch (Freespooling) Rotating ring gear
  • Brake Spring applied drag brake together with supplied over-center valve
  • Rotation of Winch Wire rope shall be under-wound orientation only

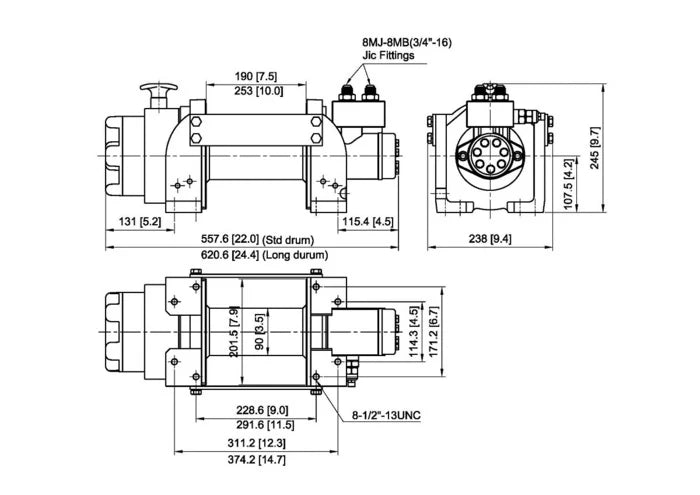

  • Drum Barrel Diameter 3.5 inches (90 mm)
  • Drum Flange Diameter 7.9 inches (201.5 mm)
  • Distance Between Flanges 10 inches (253 mm)
  • Mounting Bolt Pattern 11.5" x 6.7" (291.6 x 171.2 mm) ; 14.7" x 4.5" (374.2 x 114.3 mm)
  • Wire Rope Recommended 3/8" x 131' (9.5 mm x 40 m)
  • Winch Weight 82.7 lbs (37.5 kg)
  • Gross Weight 99.9 lbs (45.3 kg)
  • Box Dimensions 26.5" x 14.6" x 11.2" (665 x 370 x 285 mm)

(680811)
