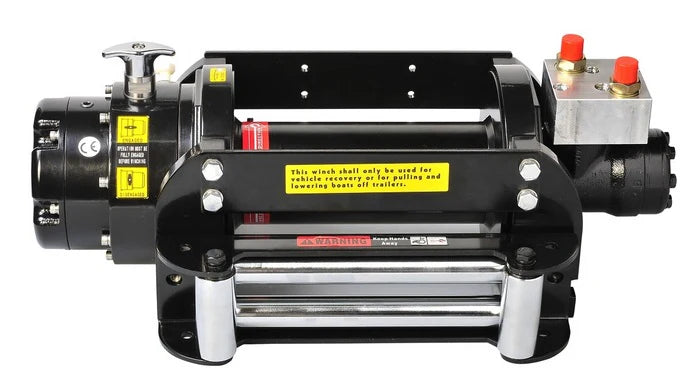

COMEUP WINCH | Badger 12 Hydraulic Winch (681201)
COMEUP WINCH | Badger 12 Hydraulic Winch (681201)

COMEUP WINCH | Badger 12 Hydraulic Winch (681201)

$1,485.95
Quantity:

Description

Line Pull and Rope Capacity:

Layer of Wire Rope
 Pull by Layer
lb/ kg		 Total Rope on the Drum ft / m Line Speed
at 60 l/min (15.9 g/min)
fpm / mpm
1st 12,000 / 5,440 23.0 / 7.0 36.0 / 11.0
2nd 10,075 / 4,570 50.9 / 15.5 43.3 / 13.2
3rd 8 684 / 3,939 82.0 / 25.0 51.2 / 15.6

Specifications

  • Line Speed (at 1st layer of rope) 36 fpm at 15.9 g/min (11 mpm at 60 l/min)
  • Operation Pressure 2,175 psi / 150 bar
  • Max Oil Flow 15.9 g/min (60 l/min)
  • Hydraulic Motor 7.6 cu in (125 cc)
  • Gear Ratio 2-stage planetary gear 16:1
  • Winch Construction Aluminum die cast housings with steel drum
  • Clutch (Freespooling) Rotating ring gear
  • Brake Spring applied drag brake together with supplied over-center valve
  • Rotation of Winch Wire rope shall be under-wound orientation only

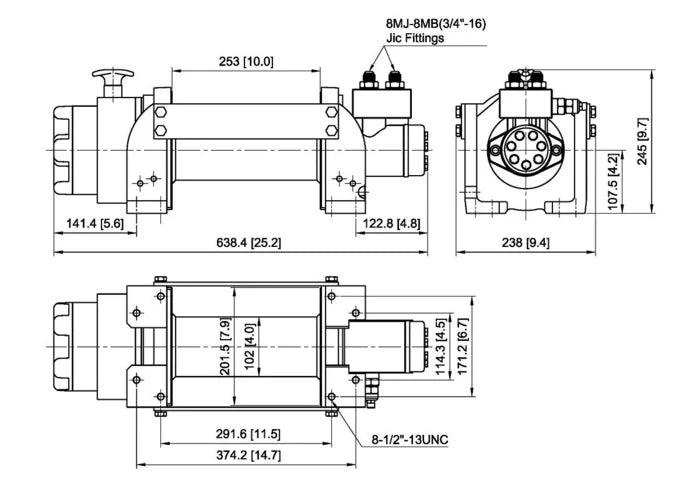

  • Drum Barrel Diameter 4.0 inches (102 mm)
  • Drum Flange Diameter 7.9 inches (201.5 mm)
  • Distance Between Flanges 10 inches (253 mm)
  • Mounting Bolt Pattern 11.5" x 6.7" (291.6 x 171.2 mm) ; 14.7" x 4.5" (374.2 x 114.3 mm)
  • Wire Rope Recommended 1/2" x 82' (12.7 mm x 25 m)
  • Winch Weight 81.4 lbs (37 kg)
  • Gross Weight 102.5 lbs (46.6 kg)
  • Box Dimensions 26.5" x 14.6" x 11.2" (665 x 370 x 285 mm)

(681201)
