CASCADIA 4X4 | Lexus GX 470 (2003-2009) Hood Solar Panel VSS System 2.0
SELECT OPTIONS
Description

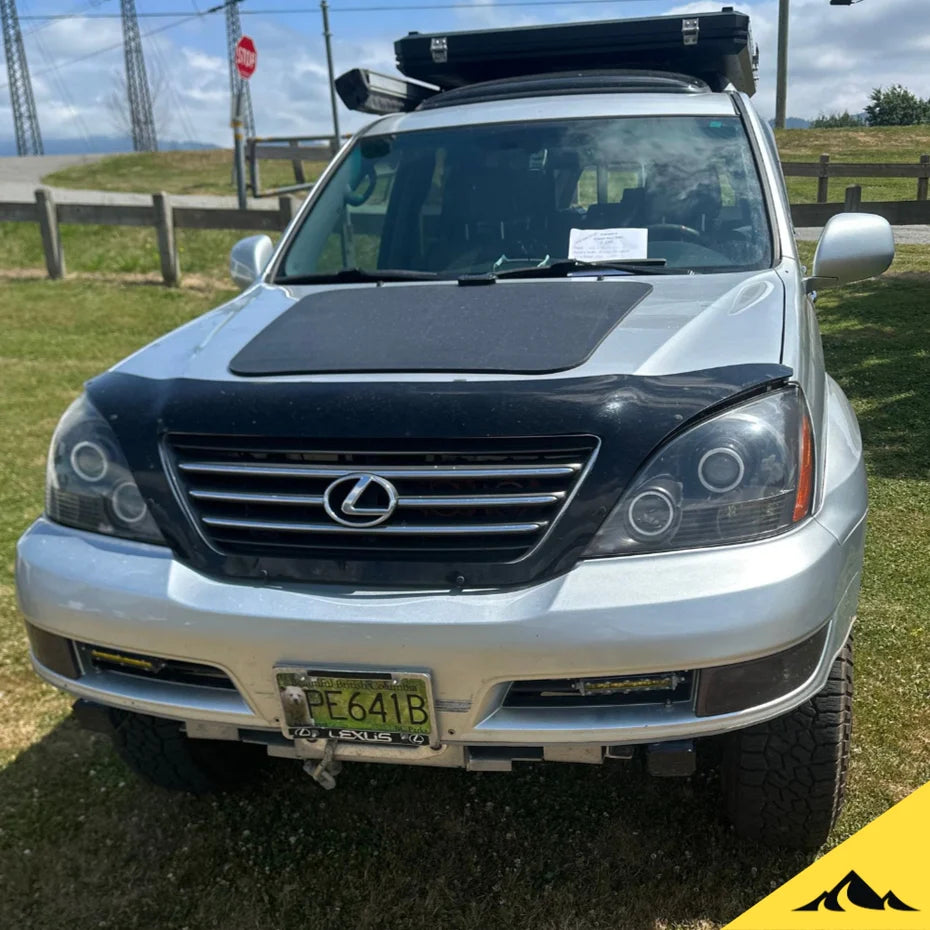

The Cascadia 4x4 VSS System™ 2.0 is the latest iteration of the world's first vehicle specific hood solar panel system, and it's packed with new technology. The solar panel attaches directly to the vehicle hood using Cascadia 4x4's SolarClasp™ Technology, enabling it to be removable, and creating an insulative air-pocket for cooling.
Cascadia 4x4's vehicle hood solar panel provides high-efficiency, clean energy generation on otherwise empty space. It uses the power of the sun to keep the vehicle battery fully charged.
The system is capable of powering solar generators, fridges, handheld devices, emergency devices, lights, tools, and overlanding accessories without any maintenance or setup beyond initial installation. System monitoring and programming is available via the CascadiaTether™ Bluetooth app.

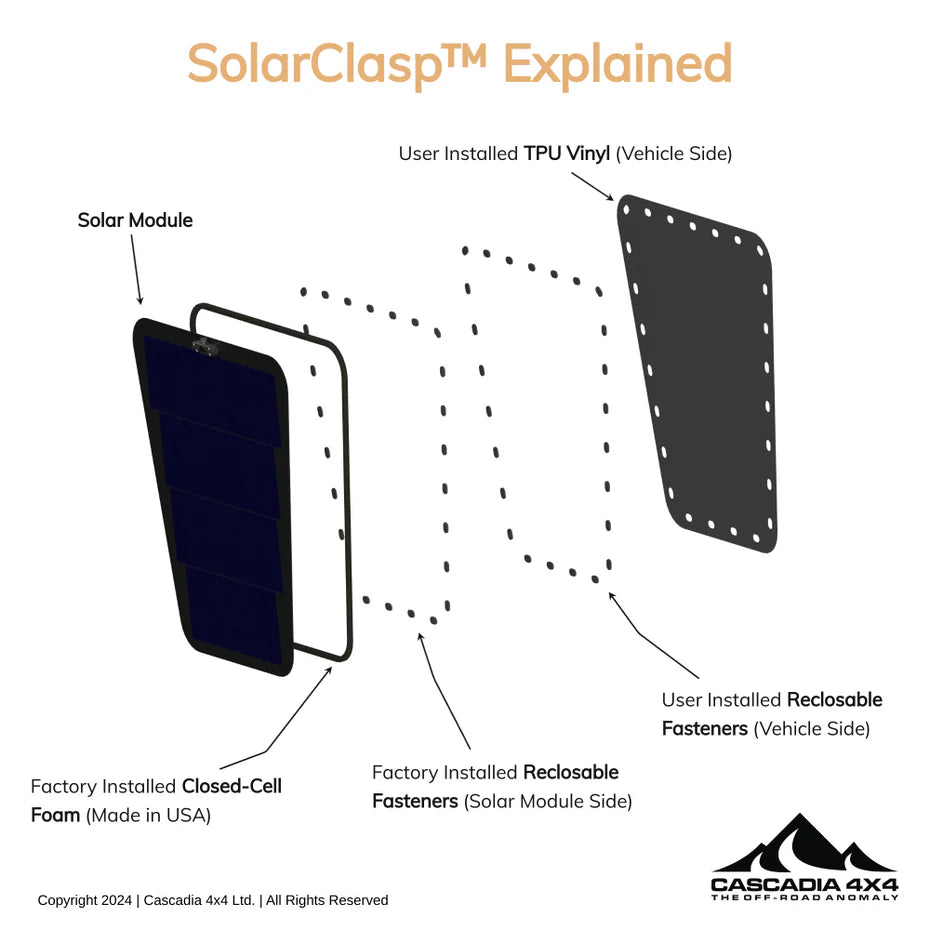

SolarClasp™ Technology
The VSS System™ 2.0 utilizes Cascadia 4x4’s SolarClasp™ Technology to affix the solar module onto the vehicle. 3 years of R&D led to us perfecting this novel method of securely attaching solar modules.
Cascadia 4x4’s SolarClasp™ Technology employs an array of military-grade reclosable fasteners, and a closed-cell foam perimeter to create a securely attached, yet still easily removable solar module. This allows the solar module to be transferred between vehicles, or easily replaced in the case of damage orrepair. SolarClasp™ also creates a thermally-insulative air gap between the solar module and the vehicle. This limits thermal bridging and keeps the solar module cooler, extending its service life and efficiency.
Benefits Include:
- Removable
- Replaceable
- Transferable
- Air Cooling
- Higher Efficiency
- Longer Service Life
Contiguous Cell™ Technology (CCT)

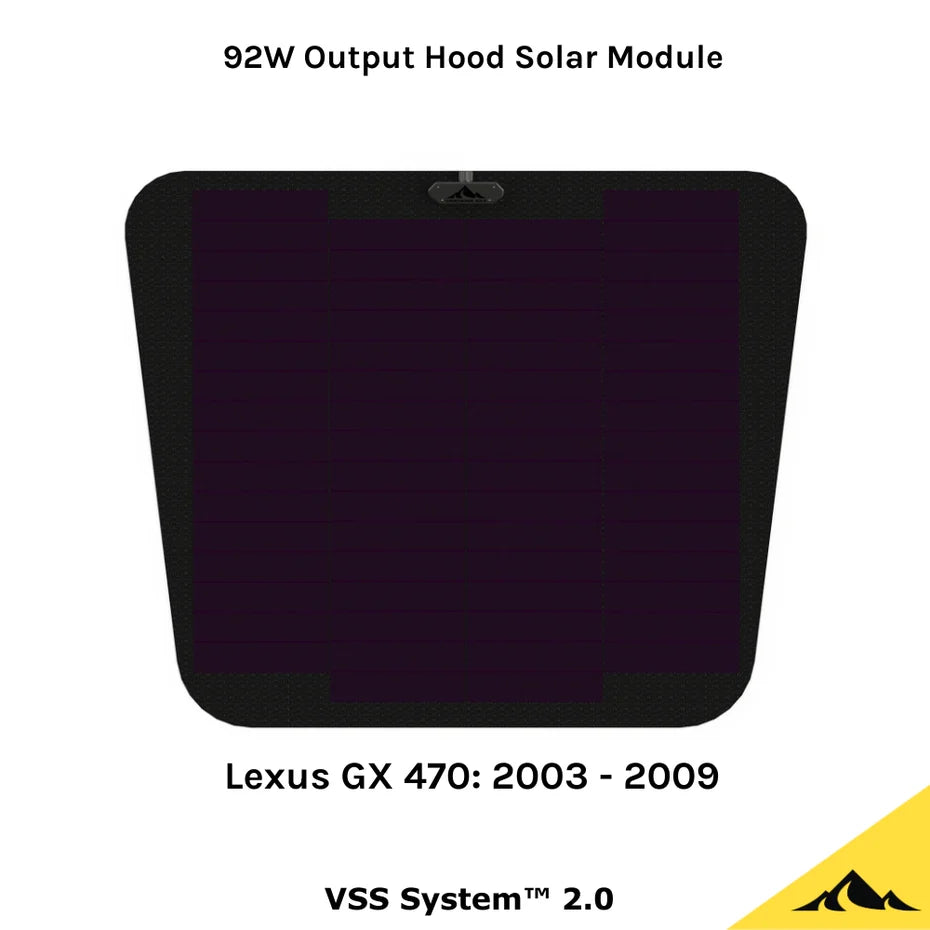

Cascadia 4x4's Contiguous Cell™ Technology (CCT) is used on all VSS System™ 2.0 solar modules. CCT is a new type of solar module assembly technique whereby solar cells are attached directly to each other using an electrically conductive adhesive along the entire length of the cell. This removes the weak connections that are common points of failure on traditional semi-flexible solar modules. It also allows solar cells to be placed without any space between them, reducing the unproductive surface area of the solar module.
Features
- Top-Grade Monocrystalline Solar Cells (~23% Efficiency)
- Removable and Replaceable via SolarClasp™ Technology
- Sealed Air Gap Beneath Solar Panel for Cooling
- Bluetooth App for Monitoring and Programming
- High Efficiency Contiguous Cell™ Technology
- High Impact, Abrasion, and Cut-Through Resistance
- Anti-Glare Properties from Matte ETFE Top Sheet
- Excellent Chemical and UV Resistance
- Extreme Temperature Operational Range
- Flexible Construction Conforms to Vehicle Bodywork
- Sleek OEM-Adjacent Design
- Impact Resistant Junction Box
- Self-Cleaning Low Friction Surface
- 2 Year Warranty (Optional 5 Year)
- Made In Canada with Globally Imported Parts
Included: Solar module(s), SolarClasp™ installation components, instructions.

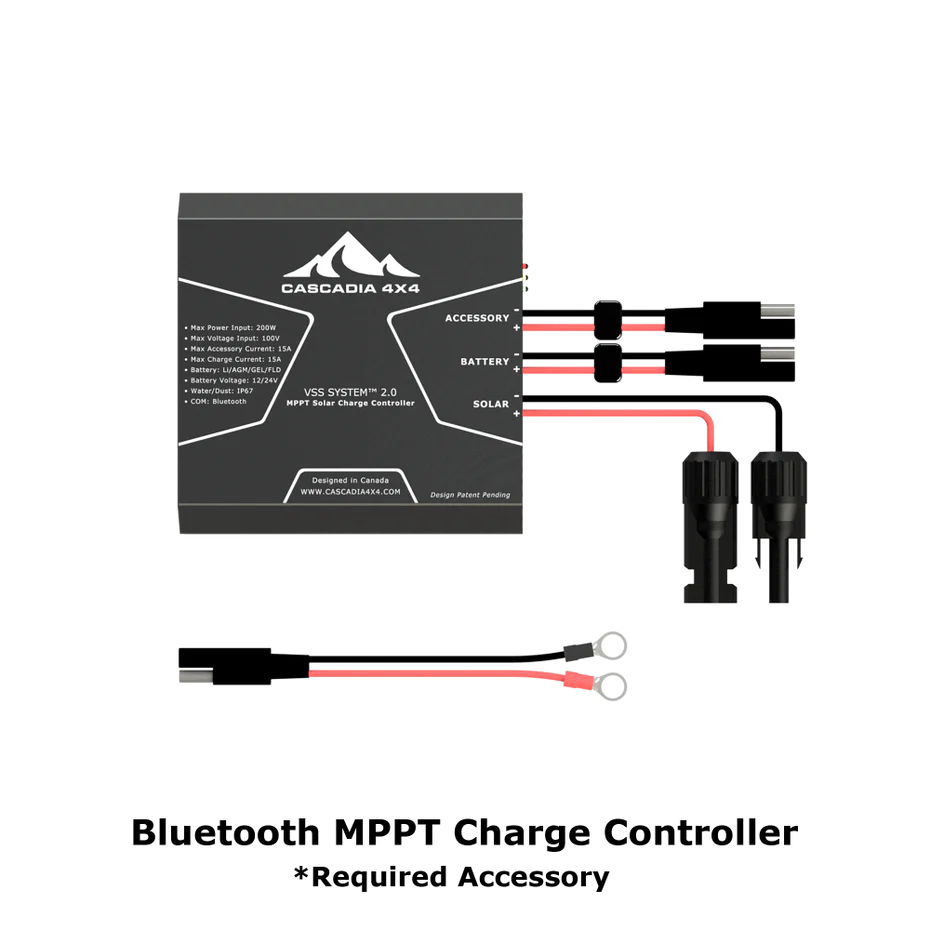

Required: Solar charge controller. The Cascadia 4x4 MPPT Bluetooth Charge Controller was designed from the ground up to work seamlessly with the VSS System™ 2.0.
Optional: 12V Accessory Kit. This unit plugs into the Cascadia 4x4 MPPT Bluetooth Charge controller and draws power directly from the battery being charged by solar. This is the easiest way to power fridges, solar generators, power stations, smartphones, laptops, and more.
Optional extension cables are available to customize the placement of the charge controller or 12V Accessory Kit.
