C4 FABRICATION | Tundra 2nd Gen Hybrid Front Bumper 2nd Gen w/ Parking Sensors w/ Wider Bumper

Description

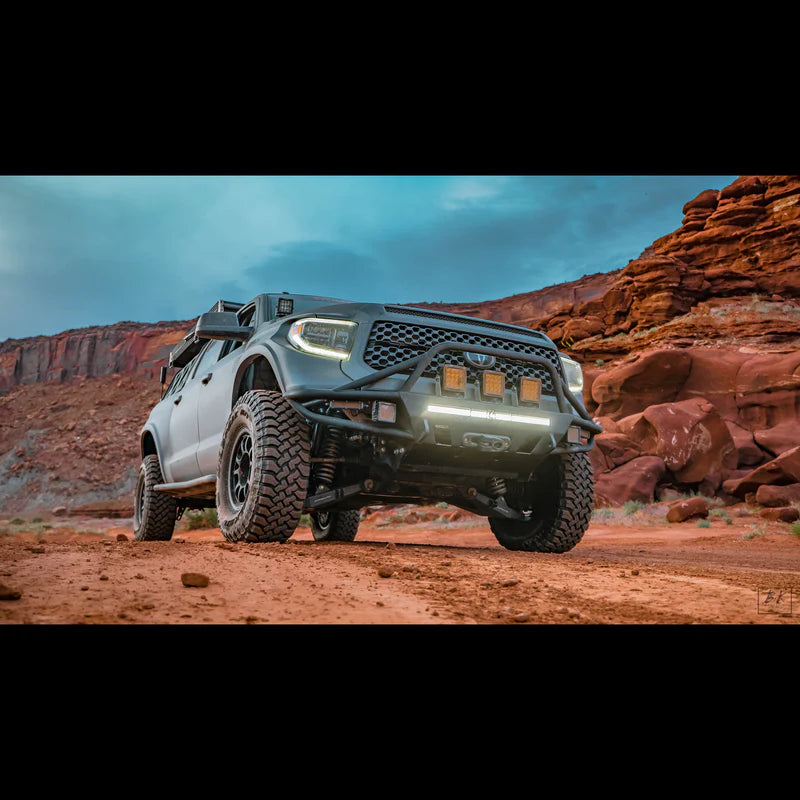

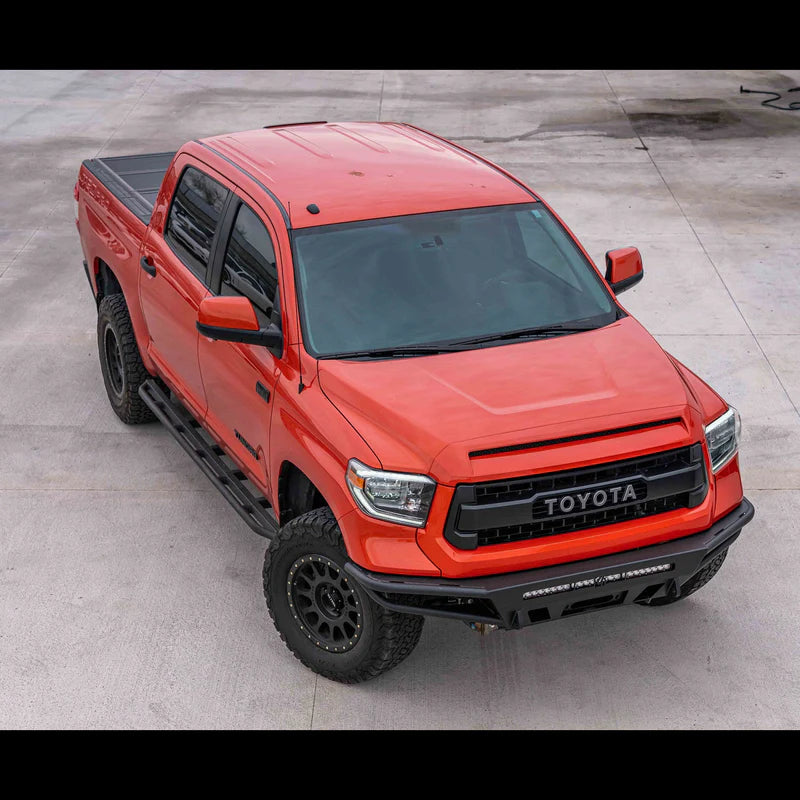

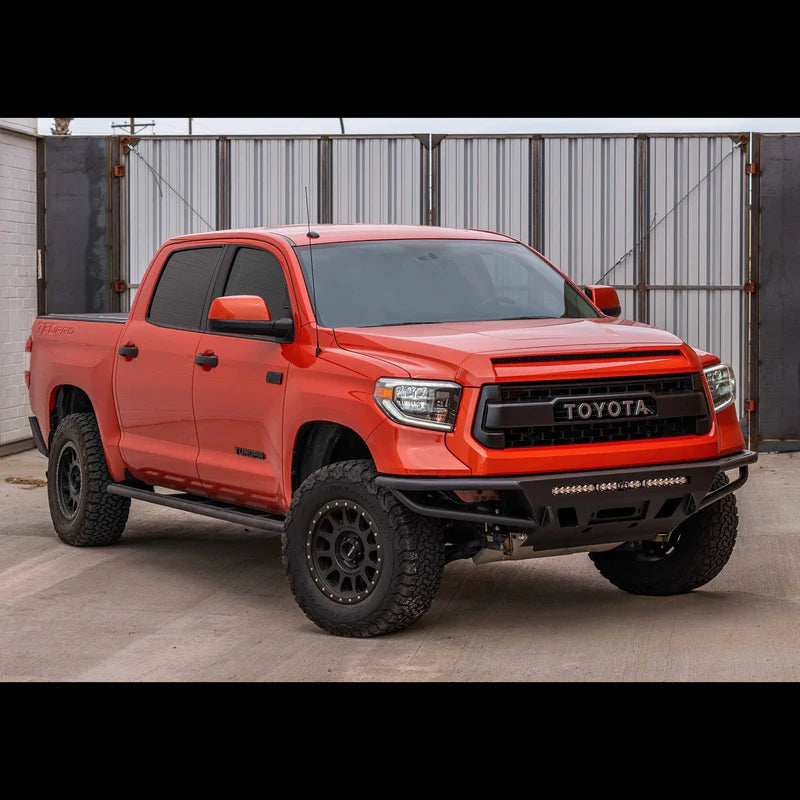

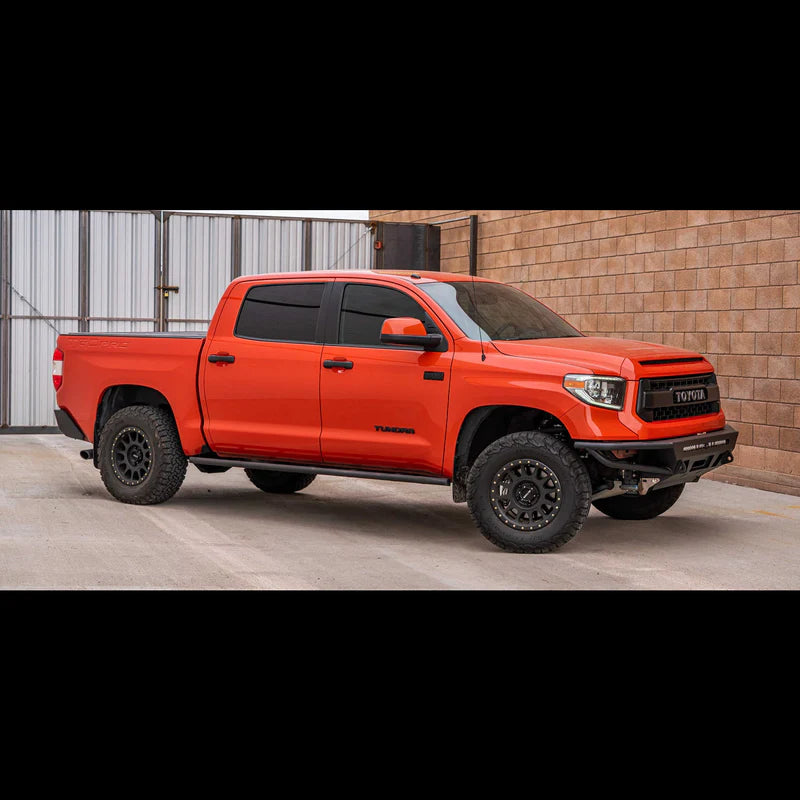

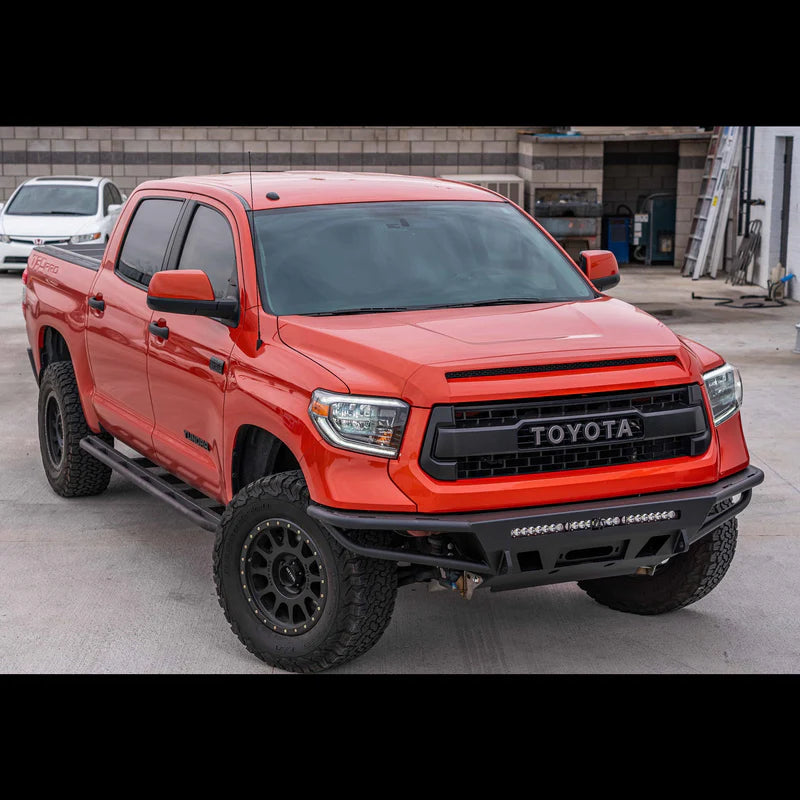

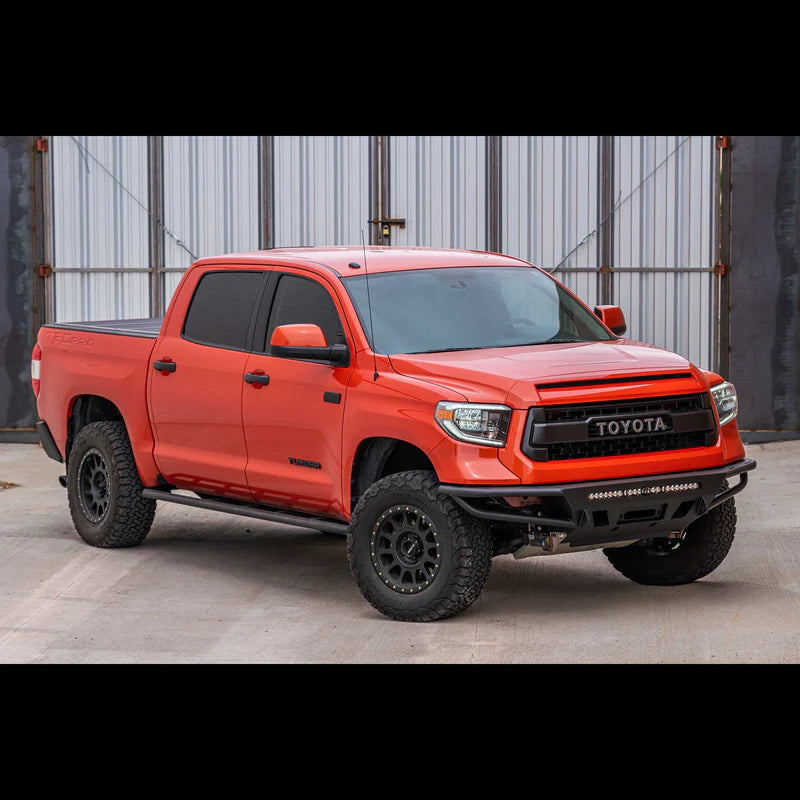

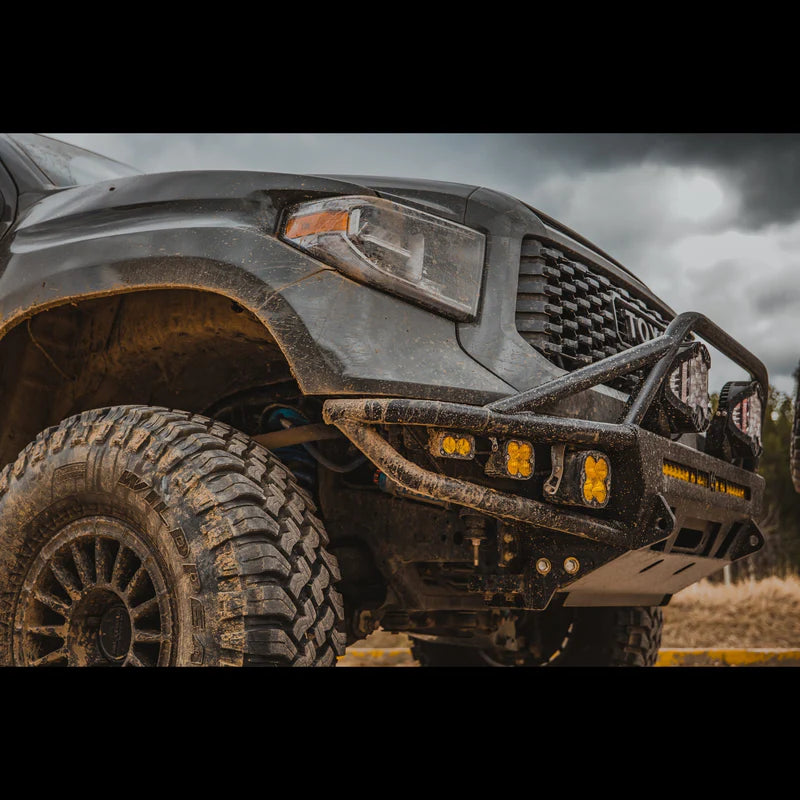

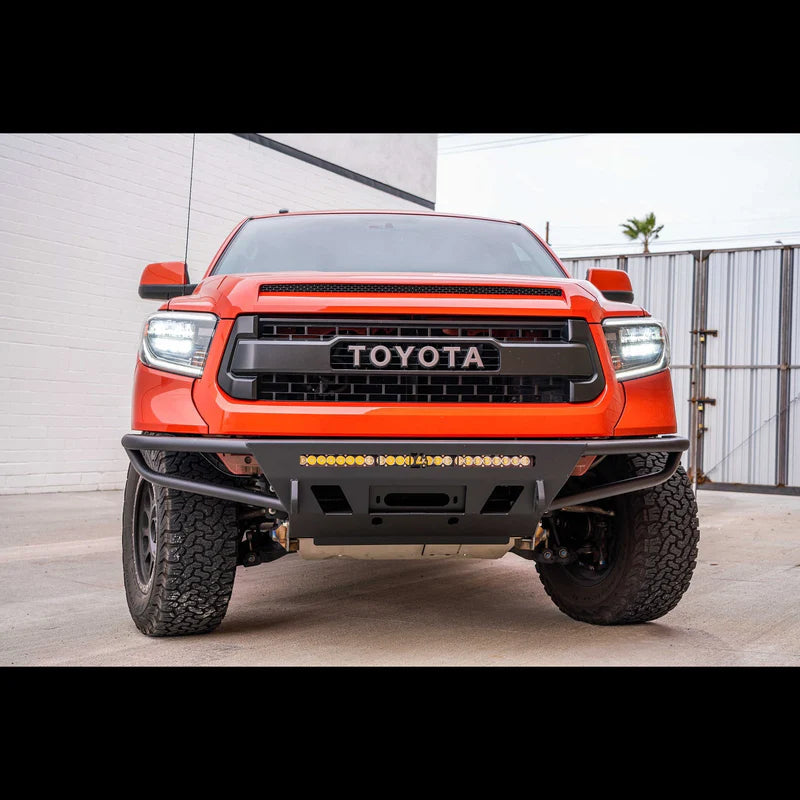

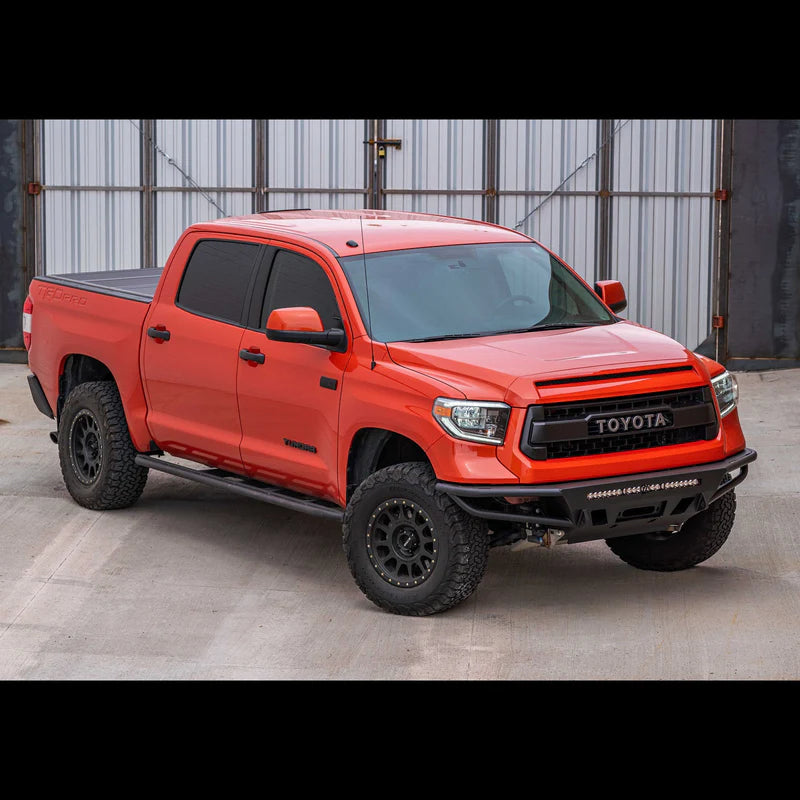

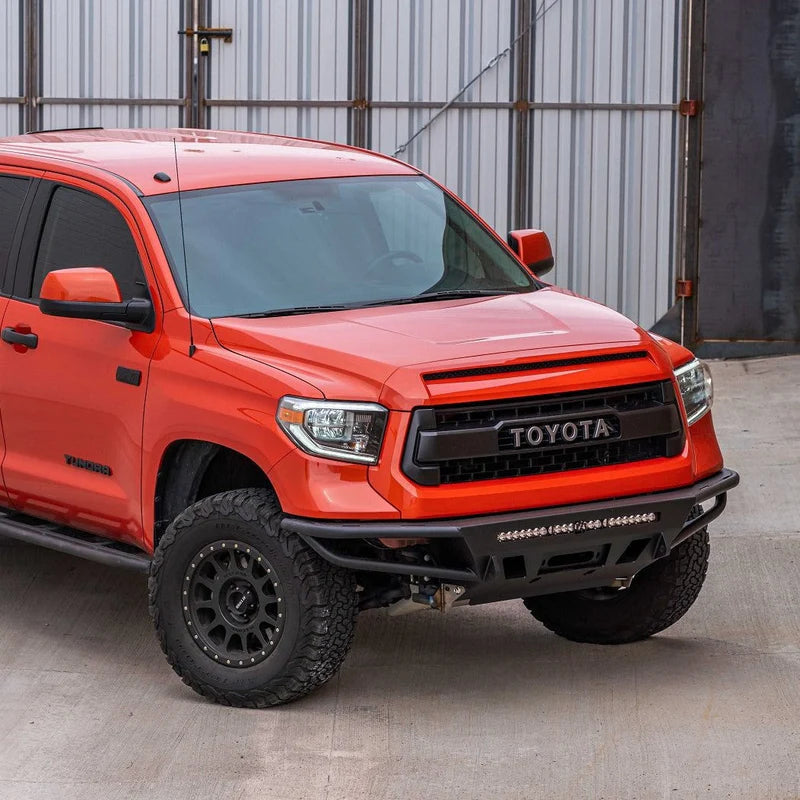

The 2014-2021 Tundra Hybrid bumper is a unique combination of a plate steel center with round tube on the sides. This design allows you to achieve a “lighter” look while gaining the ability to mount a winch, LED light bar and multiple combinations of fog lighting in the tube area.

• Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
• Center portion is made from 3/16″ laser cut P&O steel with 3/8″ thick mounting plates And 1/4″ winch mounting plate.
• 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
• Tube portions are .120 wall 1 3/4″ diameter HREW tubing.

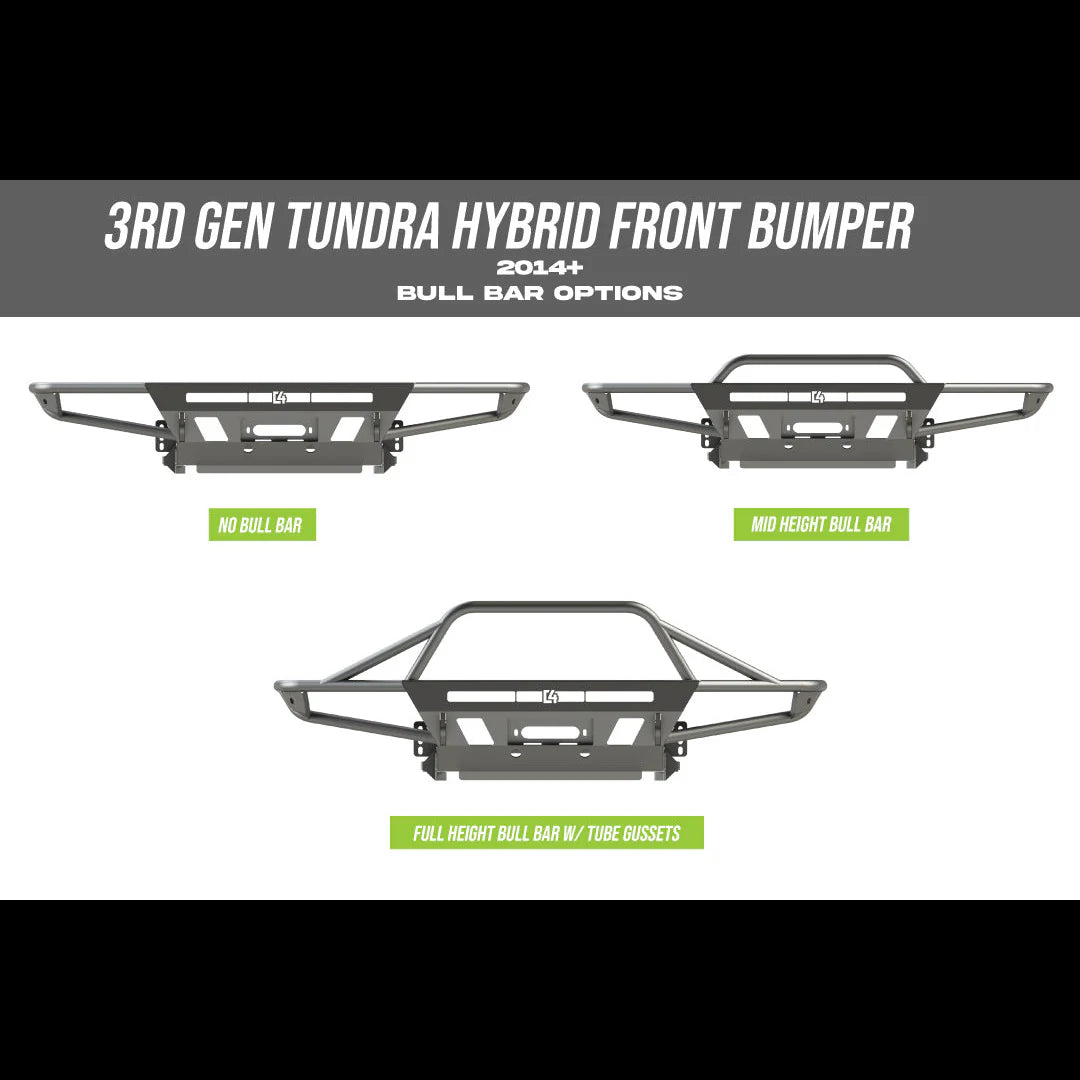

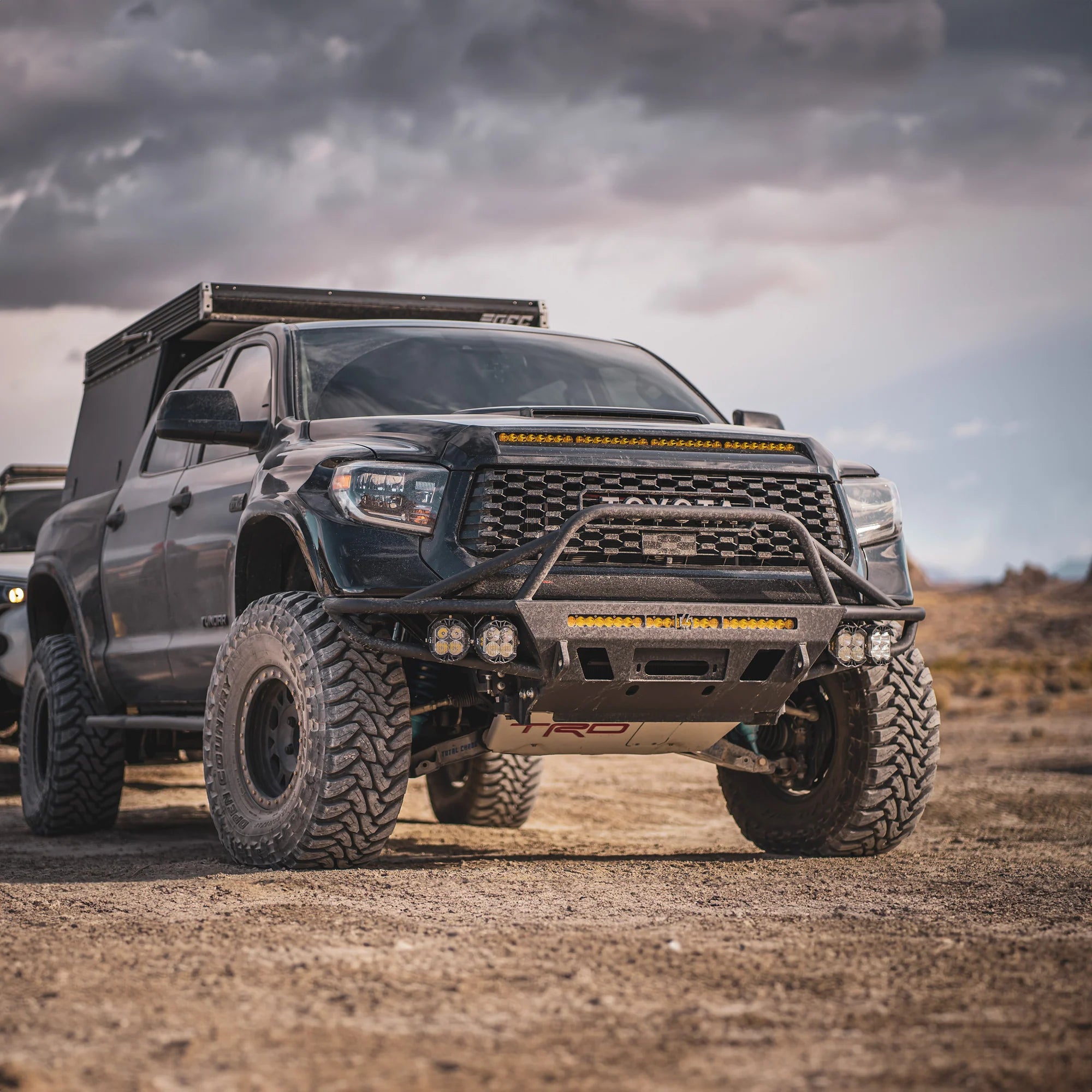

• Full-height bull bar will work with TSS in TRD Pro grilles only. Bull bar will block the TSS sensor on regular grilles.
• Mid-height bull bar works with TSS on all models
• Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
• We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
• Bumper works with TRD Pro skid and aftermarket skids.
• Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
• If you have ordered an Extreme X6S 30" Amber/Whitelight bar from us with your bumper you will receive a pair of mounting brackets to use for mounting the light into the bumper which will allow it to fit properly. If you do not order a 30" X6S light bar from us and you are planning to install one, you will need to purchase these mounting brackets in order to install the light properly.

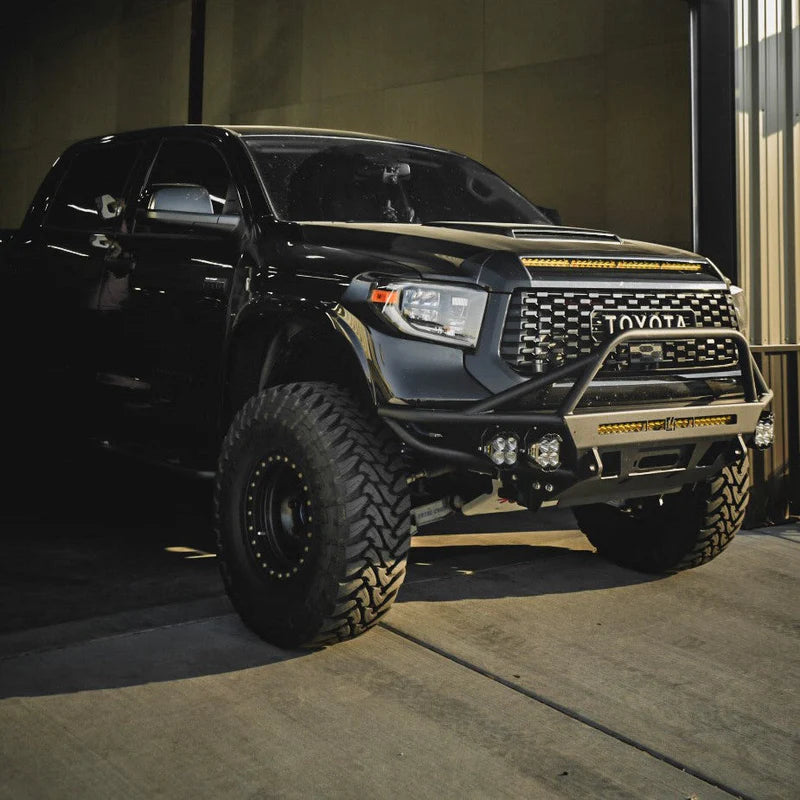

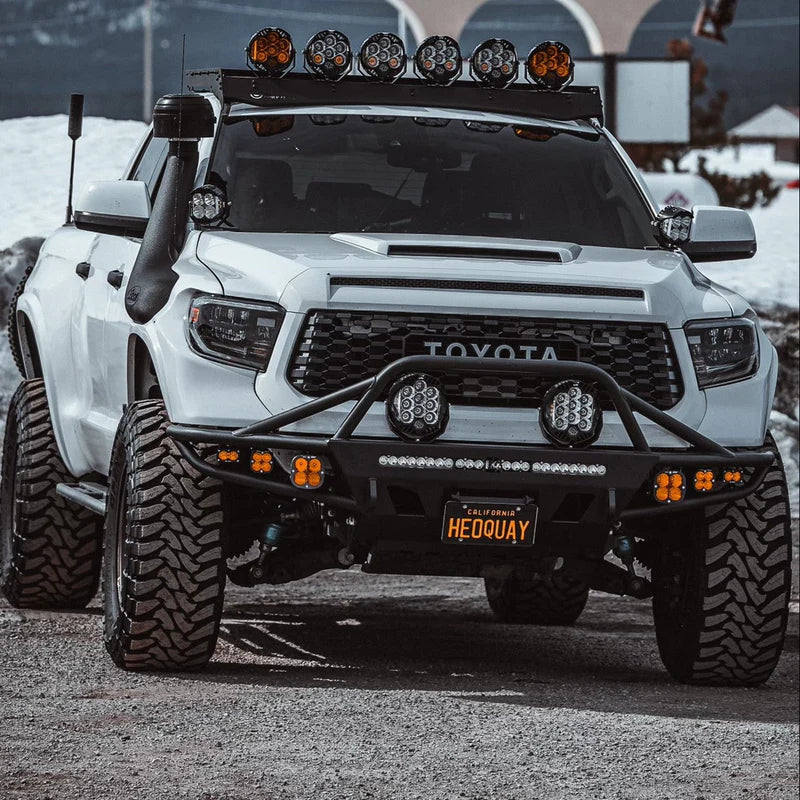

• Bumper comes pre-drilled for a pair of LP9 or LP6 lights to mount on top of the bumper in front of the grille. The LP9 lights will work with the full-height bull bar as well as no bull bar.
• Weights 150lbs without bull bar, 165lbs with full height bull bar.
• This bumper is a direct bolt on application. No cutting or modifications needed.
• SHIPS BARE STEEL, powder coat finish not available. Product will need to be painted, or powder coated to prevent rusting.
