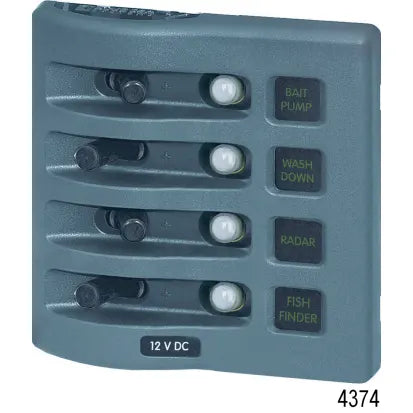

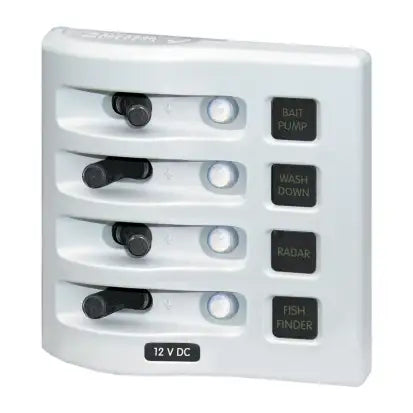

BLUE SEA SYSTEMS | Weather Deck Water Resistant Switch (207740)

Description

• Rating per circuit: 15 amps@12VDC, 9 amps@24VDC
• Switch type: ON/OFF toggle
• Switch rating: 15 amps max
• Circuit breaker type: push button, thermal trip, manual reset only
• Circuit Breaker Rating: 15 amps installed
• Constructed from corrosion resistant materials
• Label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• UV stabilized and weather resistant faceplate
• Rated IP67 - “Temporary Immersion”
• Rugged UV stabilized waterproof boots protect switches and circuit breakers
• Each panel can be mounted in four different orientations
• Includes 4215 - 30 label set
• Backlight current: 10mA per circuit

• For flybridge or open cockpits
• Backlit labels
• UV stabil & weather resistant
