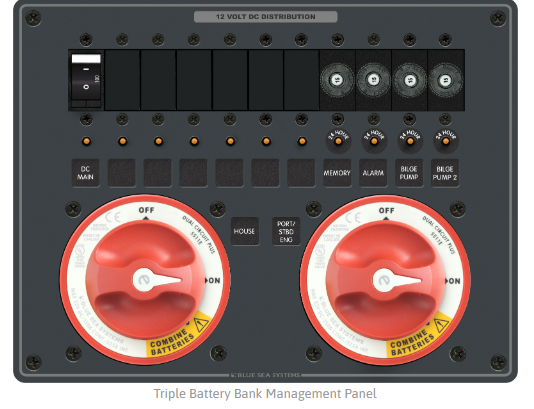

BLUE SEA SYSTEMS | Triple Battery Bank Management Panel (8693)
Quantity:
SELECT OPTIONS
Quantity:
Description
- Isolates the Engine circuit from the House circuit
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
Specifications
| Positions | 11 |
| Nominal Voltage | 12V DC 24V DC |
| Maximum Voltage | 32V DC |
| Continuous Rating | 350A |
| Intermittent Rating | 525A (5 min) |
| Cranking Rating 10 sec | 1000A |
| Cranking Rating 1 min | 750A |
| Height | 8.00in (203.2 mm) |
| Width | 10.50in (266.7 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 5.0lbs |
(8693)
