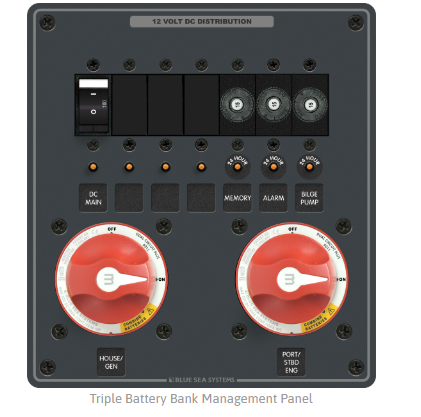

BLUE SEA SYSTEMS | Triple Battery Bank Management Panel (8689)
Quantity:
SELECT OPTIONS
Quantity:
Description
- Isolates the Engine circuit from the House circuit
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
| Positions | 7 |
| Nominal Voltage | 12V DC 24V DC |
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 10 sec | 1000A |
| Cranking Rating 1 min | 650A |
| Height | 7.25in (184.15 mm) |
| Width | 7.25in (184.15 mm) |
| Depth | 3.25in (82.55 mm) |
| Weight | 5.0lbs |
(8689)
