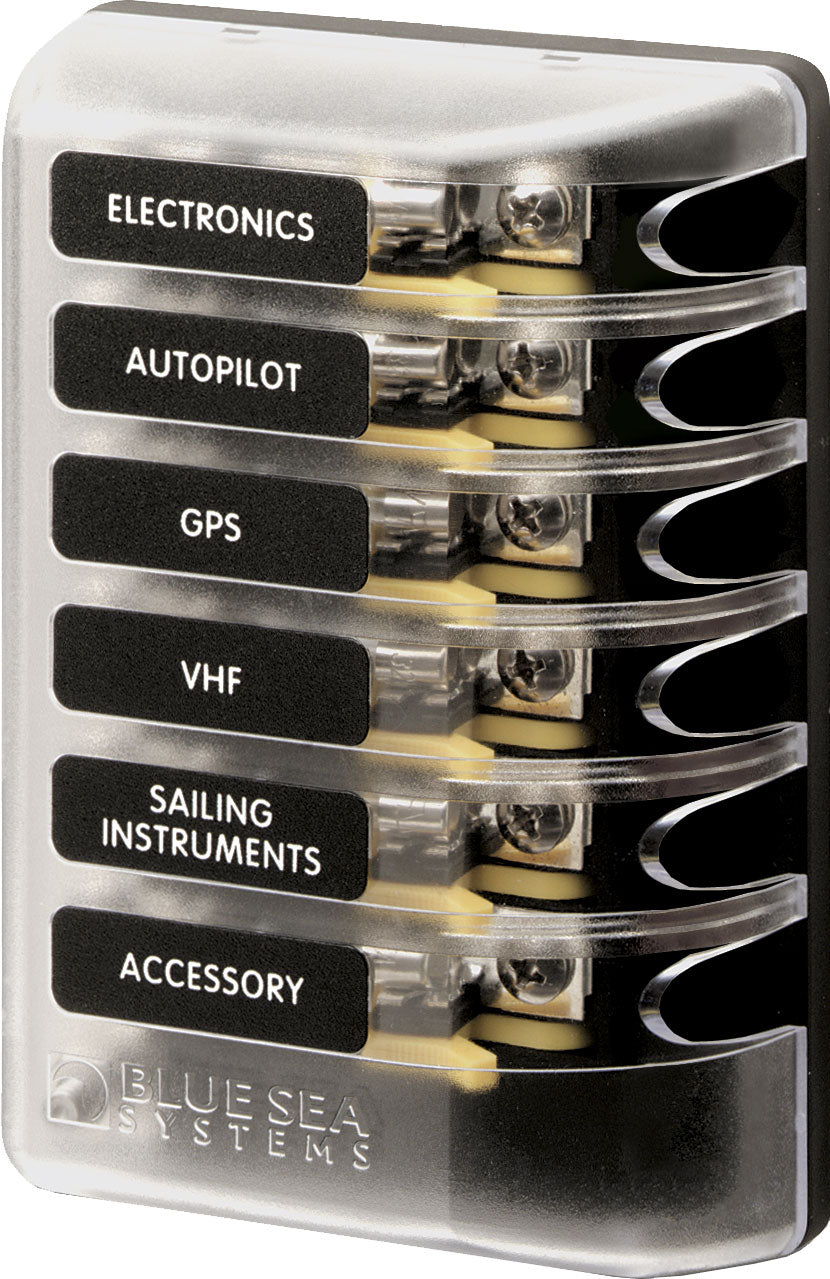

BLUE SEA SYSTEMS | ST Glass 6 Circuit Fuse Block with Cover (5018)

Innovative design allows for labeling, spare fuse storage, and easy fuse removal

• Clear insulating cover with label recesses for accept Large Format Labels
• Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
• Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
• Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses

Specifications

Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#10 Screw
Base Material	Reinforced Polycarbonate
Cover Material	Polycarbonate
Screw Terminal Type	#8-32 with Captive Star Lockwasher

(5018)
