Description

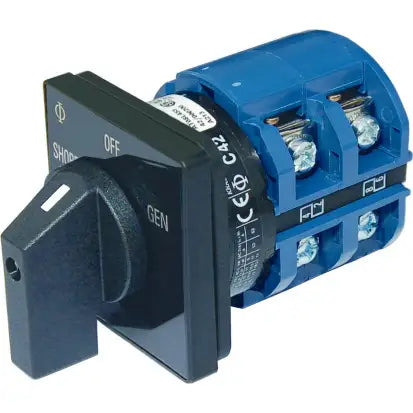

This switch, and the panels it is used in, lets you select between two 120V AC input sources to power your 120V AC onboard electrical loads. The #9011 switch is the 65 amp version of the Blue Sea #9009 30 amp switch which has the same function.
Features

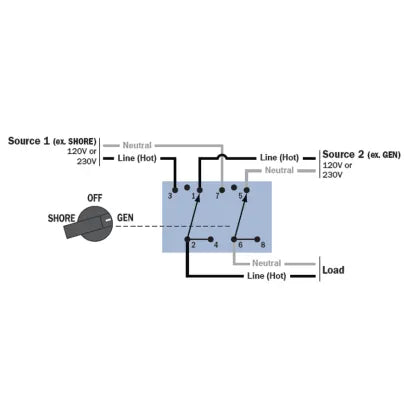

• Wired for input sources with 1 Hot wire and 1 Neutral wire
• Use for both North American (120V) and European (230V) line voltage
• Typical sources are dockside shore power and an onboard generator (genset)
• 360 Panel System modular panels are available labeled for either 120 or 230 volts
• Traditional aluminum panels are available labeled for either 120 or 230 volts
• Switch specifications: max 65A, max 600V AC, 2 source positions + Off position, 2 poles; accepts 12-6 AWG wire
• Panel max voltage is 120 or 230V AC depending on model, see Table
• Panels have “power available” and “reverse polarity” indicating LEDs, and include a set of 30 labels, instructions & template
• UL listed; CE marked
Specifications

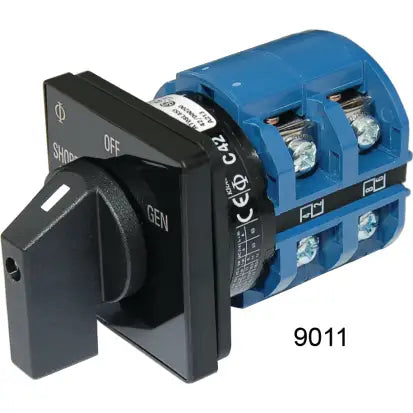

- MFG #: 9011 | Item: 9011 Switch Only | SKU: 160068
- 9011

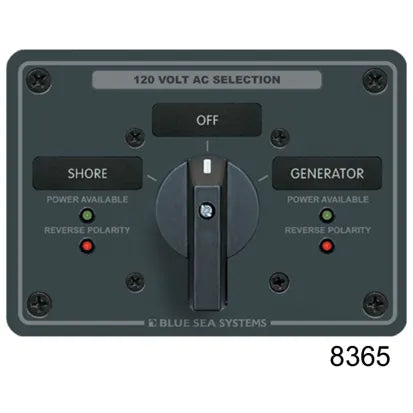

- MFG #: 8365 | Item: 9011 Rotary Switch in Aluminum Panel, 120V AC | SKU: 161077
- MFG #: 8357 | Item: 9011 Rotary Switch in Aluminum Panel, 230V AC | SKU: 194457

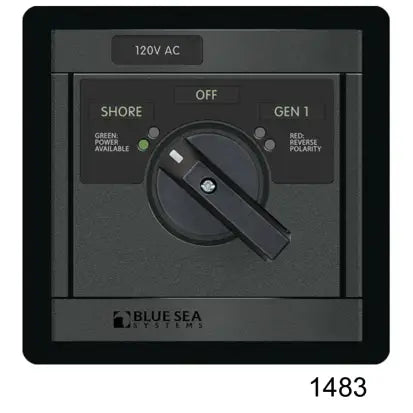

- MFG #: 1483 | Item: 9011 Rotary Switch in 360 Modular Panel, 120V AC | SKU: 208080
