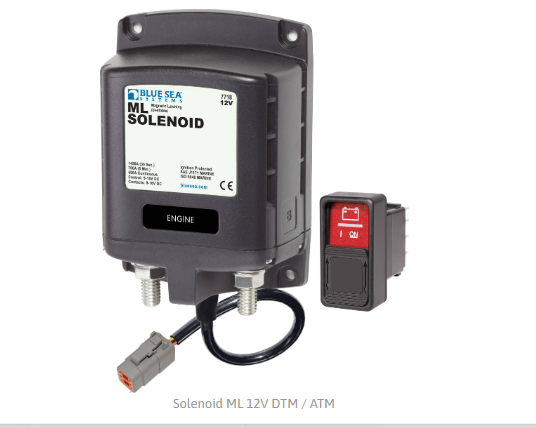

BLUE SEA SYSTEMS | Solenoid ML 12V DTM ATM (7718100)
Quantity:
SELECT OPTIONS
Quantity:
Description
- For applications where sustained control signals are needed to emulate a Normally Open relay with a lower current draw
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state - requires optional LED or Remote Control Contura Switch with integrated LED (included in retail package)
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
- Retail package includes Remote Control Contura Switch
Specifications
| Control Circuit Voltage | 10.1 to 16.5V DC |
| Control Circuit Connection | Deutsch DTM / Amphenol ATM |
| Nominal Voltage | 12V DC |
| Coil Function | Auto-Releasing |
| Mounting | #10 |
| Amperage Operating Current | 8mA when OFF 13mA when ON |
| Amperage Operating Current when changing state | <7A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
(7718100)
