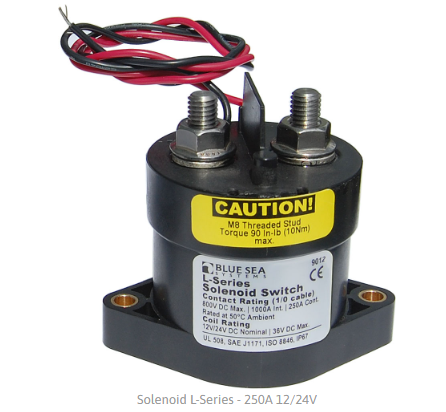

BLUE SEA SYSTEMS | Solenoid L Series 250A 12/24V (9012)
Quantity:
SELECT OPTIONS
Quantity:
Description
- Continous duty, SPST - Normally Open
- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- 450 Amp Class
- Activated by a low amperage ON-OFF switch mounted anywhere
- Coil control circuit minimizes heating and amperage draw
- No external coil suppression required
| Control Circuit Voltage | 9-36V DC (12/24V nominal) |
| Control Circuit Connection | 20 AWG Tinned Wire |
| Contact Voltage | 800V DC |
| Amperage Operating Current continuous | 0.13A @ 12 V 0.07A @ 24 V |
| Amperage Operating Current when changing state | 3.6A |
| Terminal Stud | M8 (accepts 5/16" terminals) |
| Terminal Stud Torque | 90 in-lb (10.17 Nm) max |
| Continuous Rating | 250A 300A 400A 450A |
| Intermittent Rating | 275A (5 min) 400A (5 min) 500A (5 min) 600A (5 min) |
| Cranking Rating 30 sec | 1,000A |
| Contact Form | SPST-NO |
| Inrush Rating: 0.25 sec (10 repeats) | 2000A |
| Mounting Screw | #10 or M5 |
| Stud Material | Stainless Steel |
| Terminal Stud Length | 0.66in (16.76 mm) |
(9012)
