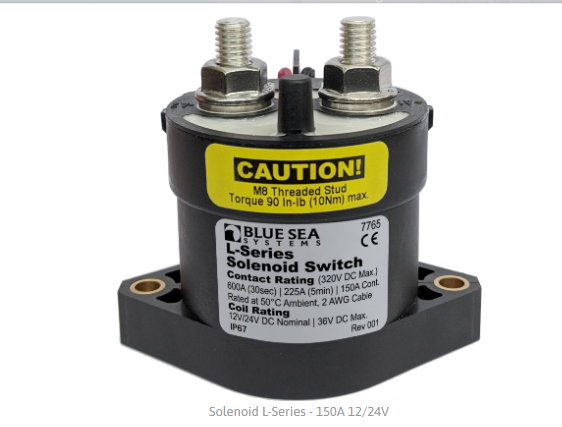

BLUE SEA SYSTEMS | Solenoid L Series 150A 12/24V (7765)
Quantity:
SELECT OPTIONS
Quantity:
Description
Ideal for switching DC subpanels, thrusters, windlass, inverters and other medium-amp DC loads.
- Continuous duty, SPST - Normally Open
- Hermetically sealed contacts
- Activated by a low amperage ON-OFF switch mounted anywhere
- Coil control circuit minimizes heating and amperage draw
- No external coil suppression required
Specifications
| Control Circuit Voltage | 9-36V DC (12/24V nominal) |
| Control Circuit Connection | 22 AWG Tinned Wire |
| Contact Voltage | 320V DC |
| Amperage Operating Current continuous | 0.13A @ 12 V 0.07A @ 24 V |
| Amperage Operating Current when changing state | 3.8A |
| Terminal Stud | M8 (accepts 5/16" terminals) |
| Terminal Stud Torque | 90 in-lb (10.17 Nm) max |
| Continuous Rating | 150A |
| Intermittent Rating | 225A (5 min) |
| Cranking Rating 30 sec | 600A |
| Contact Form | SPST-NO |
| Mounting Screw | #10 or M5 |
| Mounting Screw Torque | 30 in-lb (3.39 Nm) max 15 in-lb (1.69 Nm) min |
| Operating Temperature Range | –40°C to +85°C |
(7765)
