BLUE SEA SYSTEMS | Selector Rotary Switch & Panels (378436)

Description

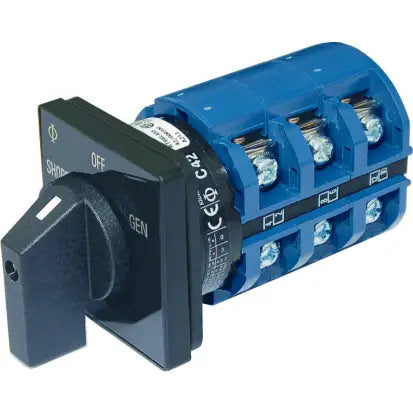

This switch, and the panels it is used in, lets you select between two 120/240V AC input sources to power your 120/240V AC onboard electrical loads.

Features

• Wired for input sources with 2 Hot wires and 1 Neutral wire (capable of supplying 240 volts or 120 volts)
• Switches both Hot lines as well as the Neutral line
• Typical sources are dockside shore power and an onboard generator (genset)

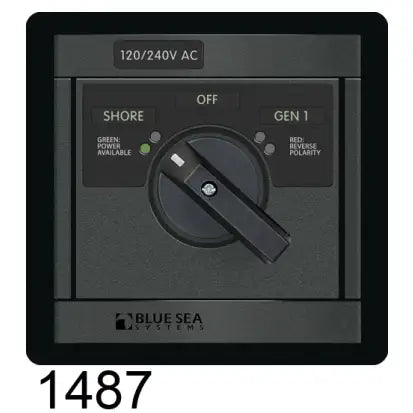

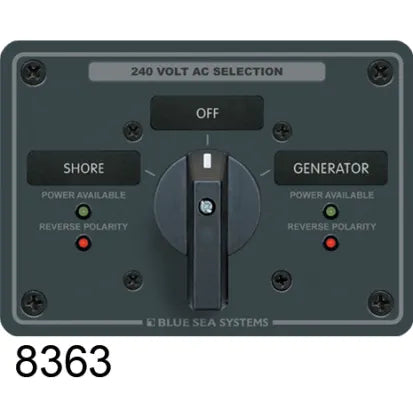

• Available mounted in a 360 Panel System modular panel or in a traditional aluminum panel
• Switch specifications: max 65A, max 600V AC, 2 source positions + Off position, 2 poles; accepts 12-6 AWG wire
• Panel max voltage is 240V AC
• Panels have “power available” and “reverse polarity” indicating LEDs, and include a set of 30 labels, instructions & template
• UL listed; CE marked
