BLUE SEA SYSTEMS | Selector Rotary Switch & Panels (160065)

Description

This switch, and the panels it is used in, lets you select among three 120V AC input sources to power your 120V AC onboard electrical loads.

Features

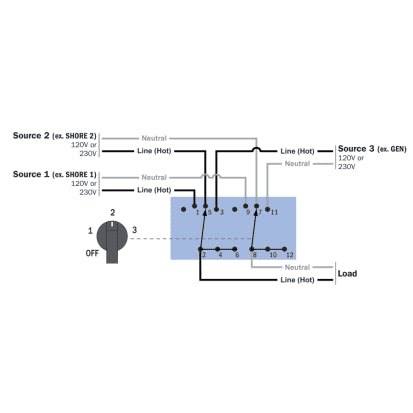

• Wired for input sources with 1 Hot wire and 1 Neutral wire
• Use for both North American (120V) and European (230V) line voltage
• Typical sources are 2 different dockside shore power sources and an onboard generator (genset)

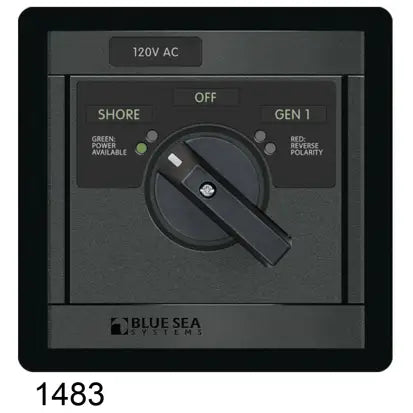

• 360 Panel System modular panels are available labeled for either 120 or 230 volts

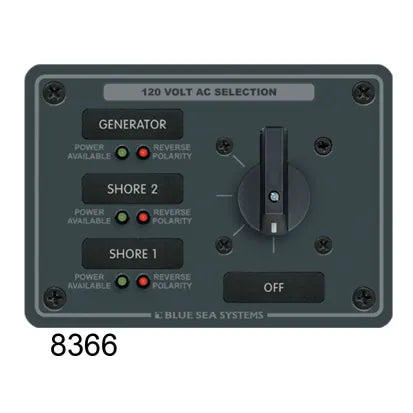

• Traditional aluminum panels are available labeled for either 120 or 230 volts

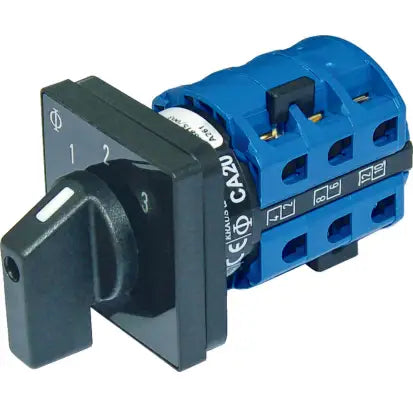

• Switch specifications: max 30A, max 600V AC, 3 source positions + Off position, 2 poles; accepts 14-10 AWG wire
• Panel max voltage is 120 or 230V AC depending on model, see Table
• Panels have “power available” and “reverse polarity” indicating LEDs, and include a set of 30 labels, instructions & template
• UL listed; CE marked
