Description
This switch, and the panels it is used in, lets you select between two 120V AC input sources to power your 120V AC onboard electrical loads. The #9009 switch is the 30 amp version of the Blue Sea #9011 65 amp switch which has the same function.
Features
• Wired for input sources with 1 Hot wire and 1 Neutral wire
• Use for both North American (120V) and European (230V) line voltage
• Typical sources are dockside shore power and an onboard generator (genset)
• 360 Panel System modular panels are available labeled for either 120 or 230 volts
• Traditional aluminum panels are available labeled for either 120 or 230 volts
• Switch specifications: max 30A, max 600V AC, 2 source positions + Off position, 2 poles; accepts 14-10 AWG wire
• Panel max voltage is 120 or 230V AC depending on model, see Table
• Panels have “power available” and “reverse polarity” indicating LEDs, and include a set of 30 labels, instructions & template
• UL listed; CE marked
Specifications
- MFG #: 8359 | Item: 9009 Rotary Switch in Aluminum Panel - 230V AC (European Line Voltage) | SKU: 368647

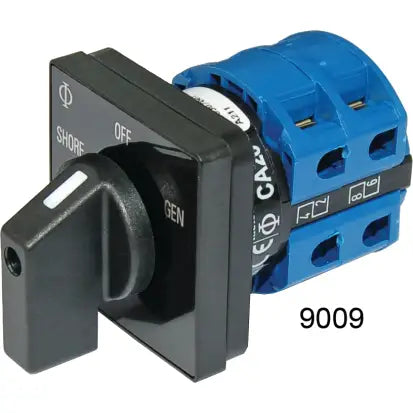

- MFG #: 9009 | Item: 9009 Rotary Switch Only | SKU: 160067

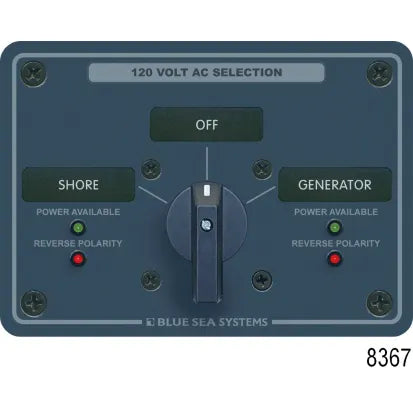

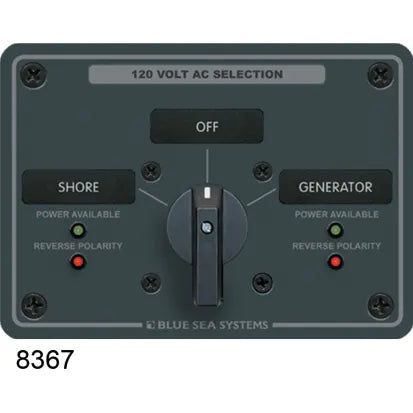

- MFG #: 8367 | Item: 9009 Rotary Switch in Aluminum Panel - 120V AC | SKU: 159183

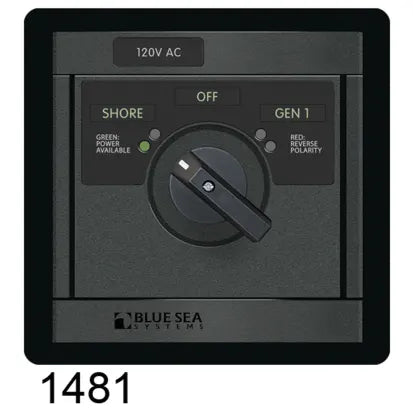

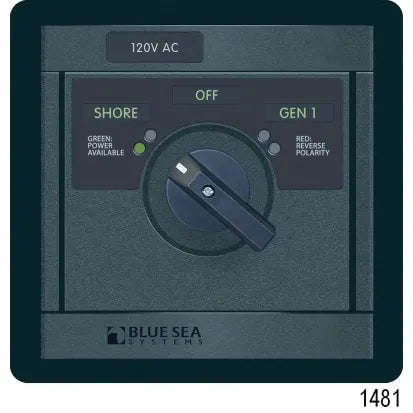

- MFG #: 1481 | Item: 9009 Rotary Switch in Modular 360 Panel, 120V AC | SKU: 200243
