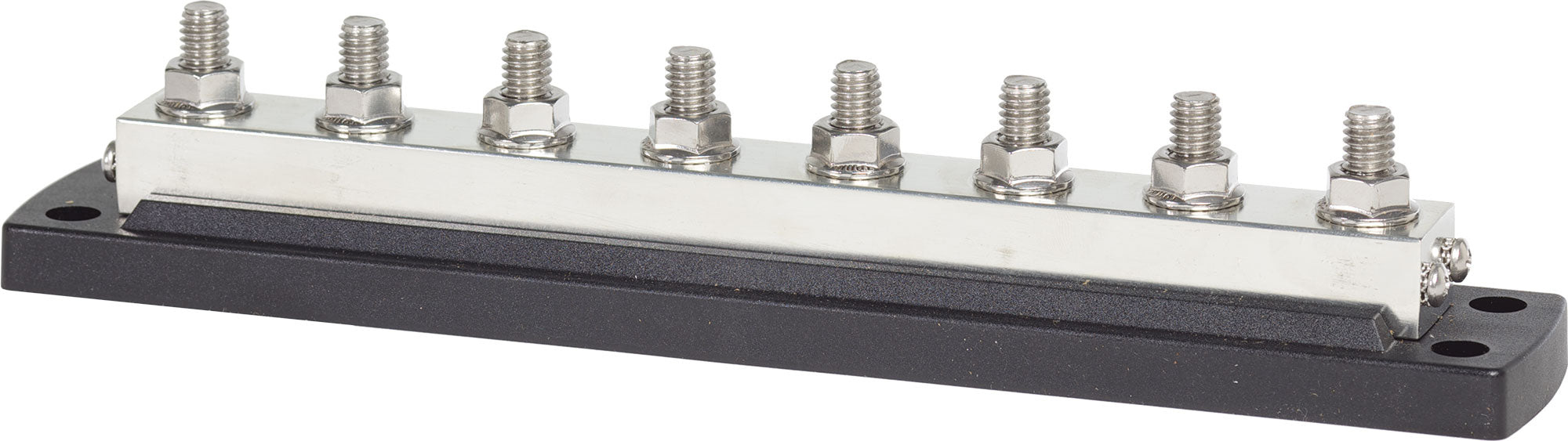

BLUE SEA SYSTEMS | PowerBar 600A BusBar Eight 3/8" 16 Studs (2107)
Quantity:
SELECT OPTIONS
Quantity:
Description
- Provides compact high-ampere busing with 3/8" terminal studs
Specifications
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 8 |
| Terminal Type | 3/8"-16 Stud |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 545A AC 600A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 140 in-lb (15.82 Nm) |
(2107)
