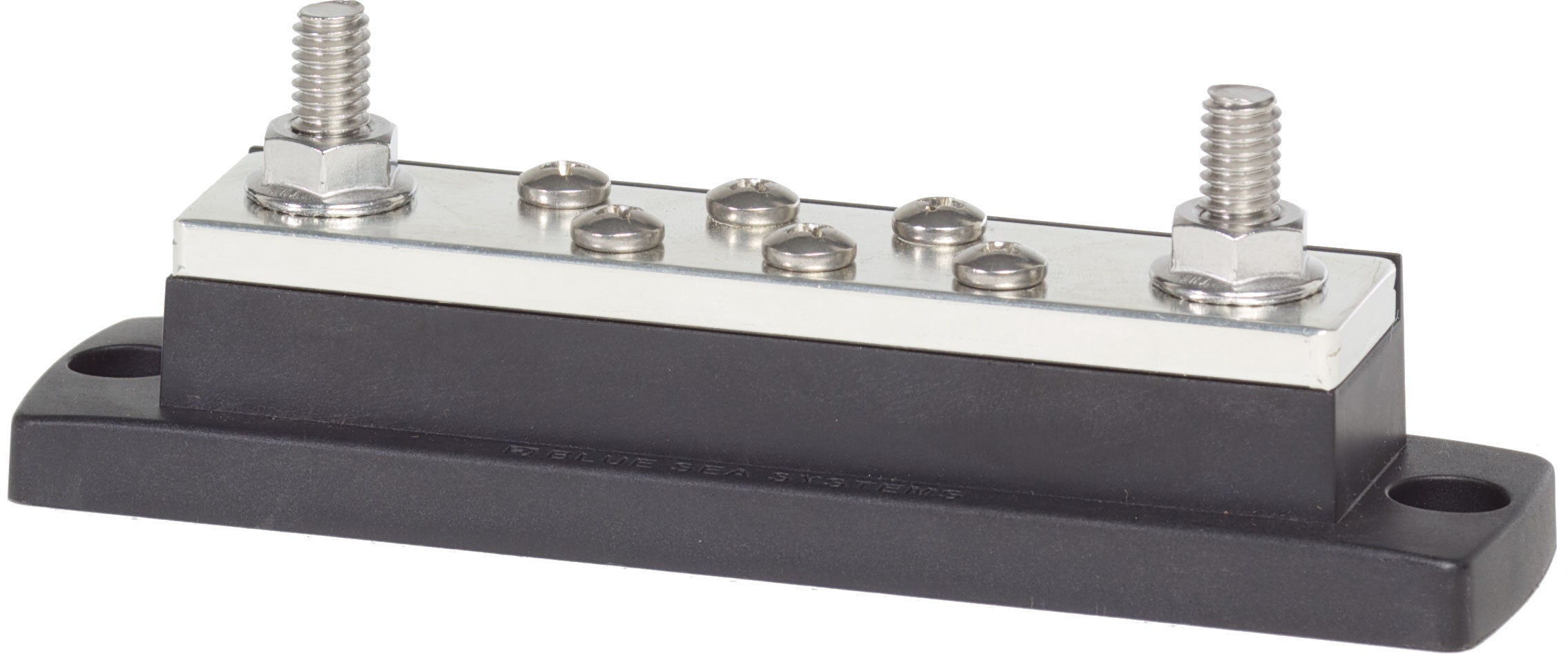

BLUE SEA SYSTEMS | MaxiBus 250A BusBar Two 5/16" 18 Studs and Six 10-24 Screws (2128)

Busbars are used to consolidate multiple wires or feed multiple circuits

• Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
• Raised bus provides easy access to multiple wires on a single stud
• UL 94-V0 rated base material resists high heat
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Specifications

Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	6
Number of Terminal Studs	2
Terminal Type	#10-24 Screw 5/16"-18 Stud
Continuous Rating	250A
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Recommended Screw Torque	23 in-lb (2.6 N·m)
Recommended Stud Torque	132 in-lb (14.91 N·m)

(2128)
