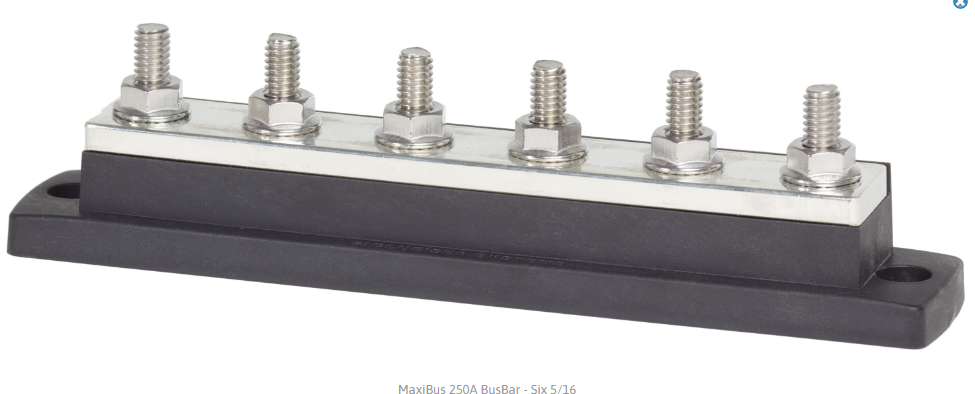

BLUE SEA SYSTEMS | MaxiBus 250A BusBar Six 5/16" 18 Studs (2126)
Quantity:
SELECT OPTIONS
Quantity:
Description
Busbars are used to consolidate multiple wires or feed multiple circuits
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
Specifications
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 6 |
| Terminal Type | 5/16"-18 Stud |
| Continuous Rating | 250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Stud Torque | 132 in-lb (14.91 N·m) |
(2126)
